Enhanced High - Torque Micro Servo Motor Set for Remote Control Aircraft (MG996R 180 Metal)

🔩 Product Overview: This premium set of micro servo motors, including the MG995, MG996R, SG90, and MG90S, is expertly designed for enthusiasts in the realm of remote-controlled models. Perfect for enhancing the functionality of RC planes, racing cars, boats, helicopters, and a variety of other telecontrolled applications, this versatile collection is crafted to meet the diverse needs of hobbyists and professionals alike. With both metal and plastic gear options, these servos are engineered for performance, reliability, and responsiveness.

Specifications:

Brand: 9IMOD

Gear Types:

• MG995 / MG996R: Metal Gear
• SG90: Plastic Gear
• MG90S: Metal Gear

🔩 Servo Size:

• MG995 / MG996R: Standard Size Servo
• SG90 / MG90S: Micro Servo

Control Range: 0-180 Degrees (Compatible with Arduino)

SG90 Specifications:

• Dimensions: 21.5mm x 11.8mm x 22.7mm
• Weight: 9 grams
• No-load Speed: 0.12 seconds per 60 degrees (at 4.8V)
• Stall Torque: 1.2 - 1.4 kg/cm (at 4.8V)
• Operating Temperature: -30 to +60 degrees Celsius
• Dead-set: 7 microseconds
• Voltage Range: 4.8V - 6V
• Connector Wire Length: 250mm
• Accessories: Multi-arm, fixing screws

🔁 Recommended Applications: Mini Cars, Mini Ships, Helicopters, Airplanes, small robots, etc.

MG90S Specifications:

• Weight: 12 grams
• Speed: 0.10 seconds (4.8V); 0.09 seconds (6.0V) per 60 degrees
• Torque: 1.6 kg-cm (at 4.8V); 1.8 kg-cm (at 6.0V)
• Dimension: 22.6mm x 12.1mm x 22.5mm

🌿 MG995 Specifications:

• Dimensions: 40mm x 19mm x 43mm
• Color: Black
• Operating Speed: 0.17 seconds (at 4.8V), 0.13 seconds (at 6.0V) per 60 degrees
• Stall Torque: 13 kg-cm (at 4.8V); 15 kg-cm (at 6V)
• Operating Voltage: 4.8 - 7.2 volts
• Connector Wire Length: 300mm

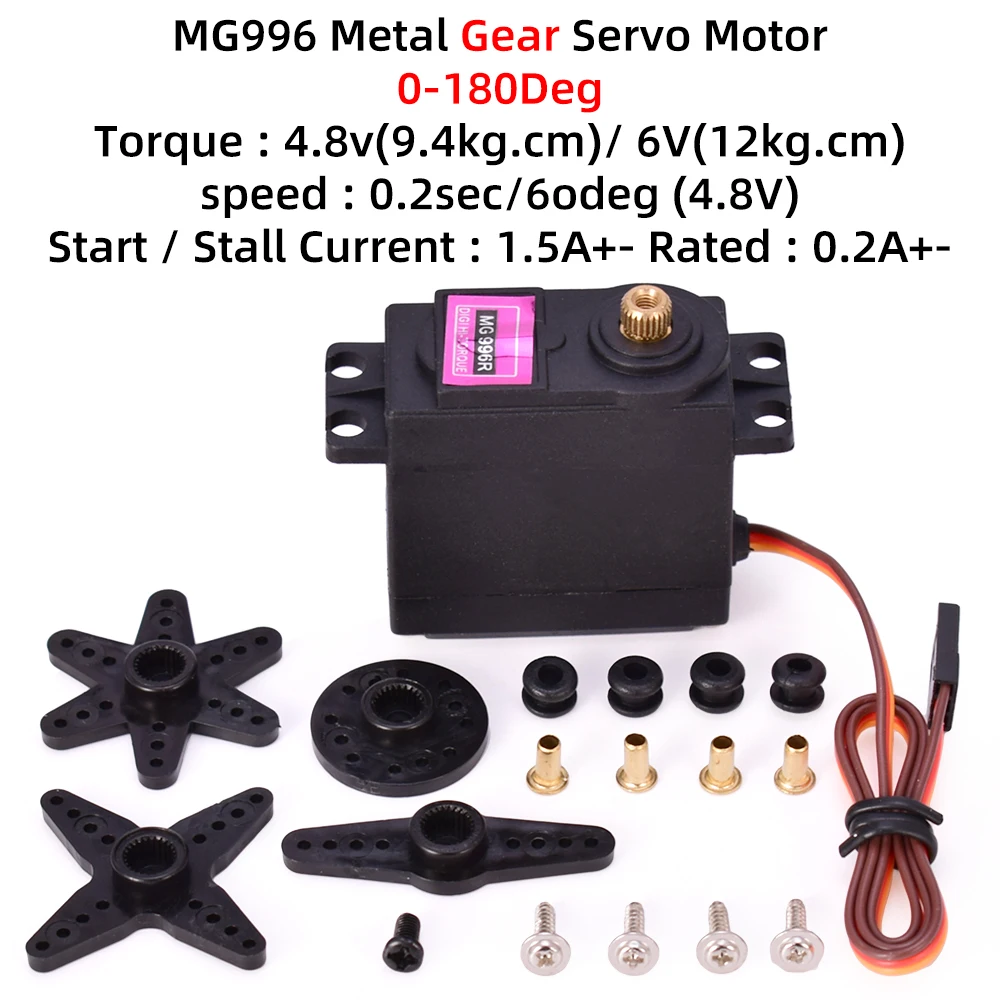

⚫ MG996R Specifications:

• Dimensions: 40mm x 19mm x 40mm
• Stall torque: 12 kg/cm (at 6V)
• Operating Voltage: 4.8 - 7.2V
• Temperature Range: 0°C to 55°C
• Operating Speed: 0.17 seconds (at 4.8V), 0.13 seconds (at 6.0V) per 60 degrees
• Connector Wire Length: 300mm

💎 Compatibility: These servos are designed to work seamlessly with most standard receiver connectors, including Futaba, Hitec, Sanwa, and GWS. With their robust design, they are stable, shockproof, and perfect for ensuring precise control over your models.

Further Considerations:

• Ensure proper voltage levels for optimal performance.
• Be aware that minor size deviations may occur due to manual measurement.

🛠️ This comprehensive micro servo motor set is the ultimate choice for hobbyists looking to enhance their RC models with precision and reliability.
