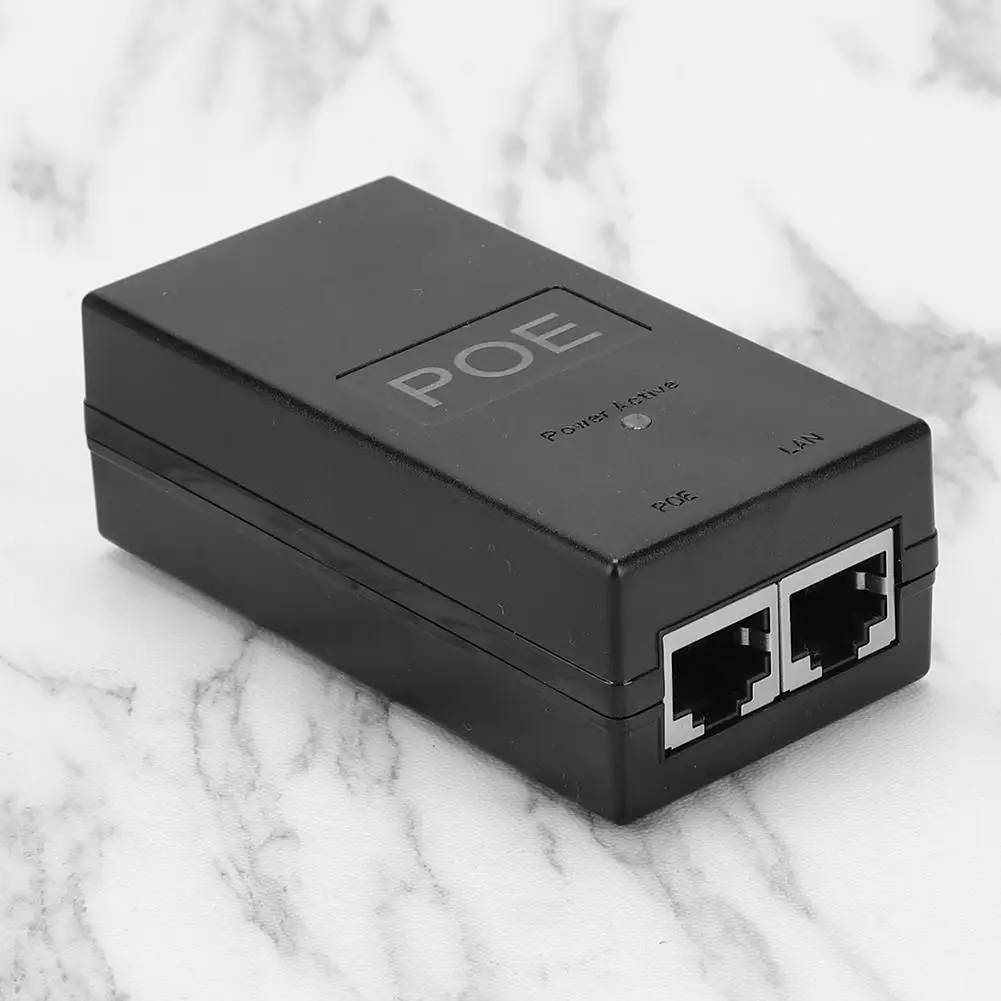

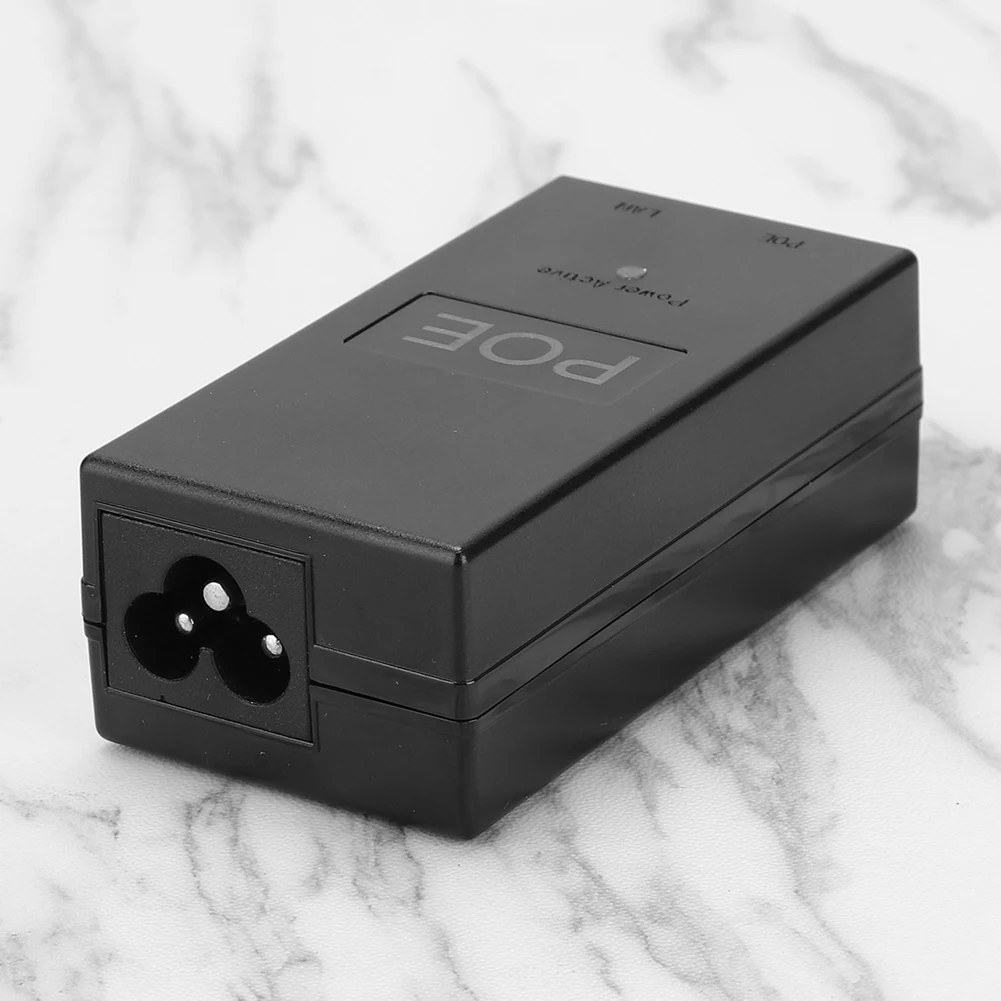

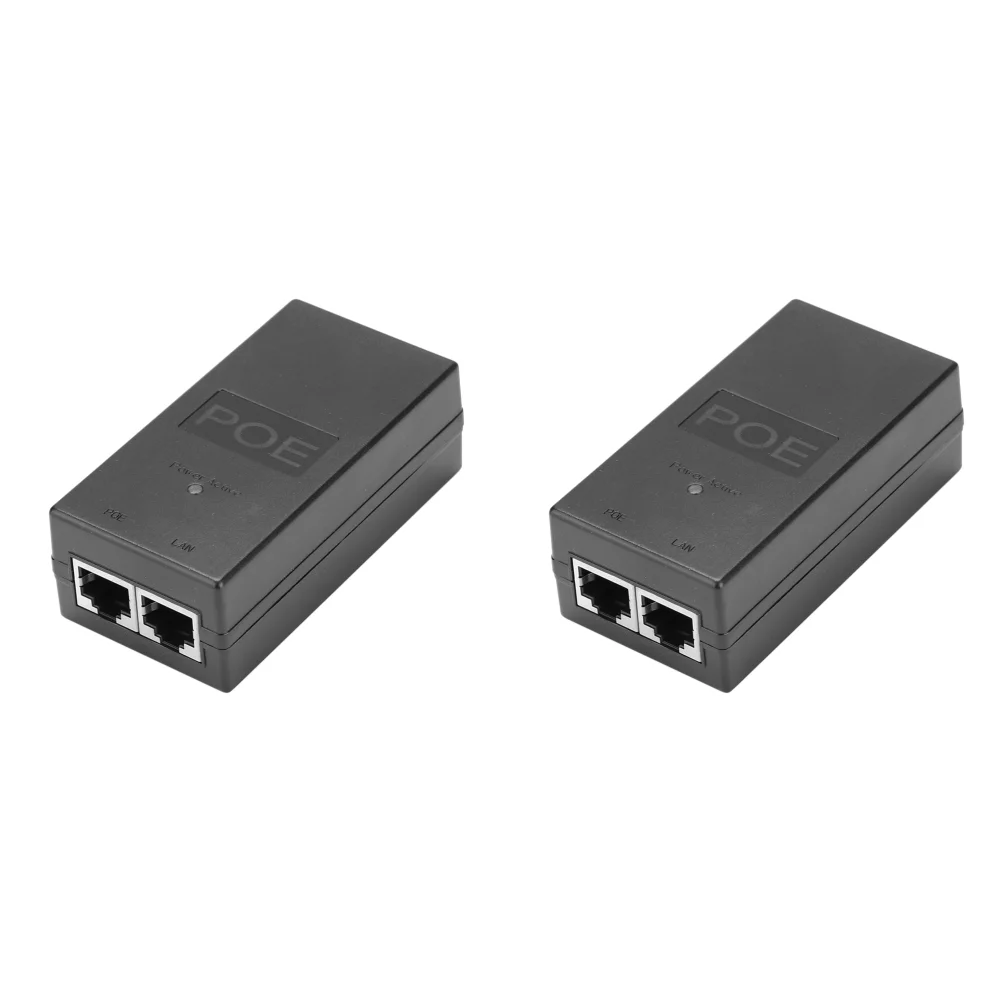

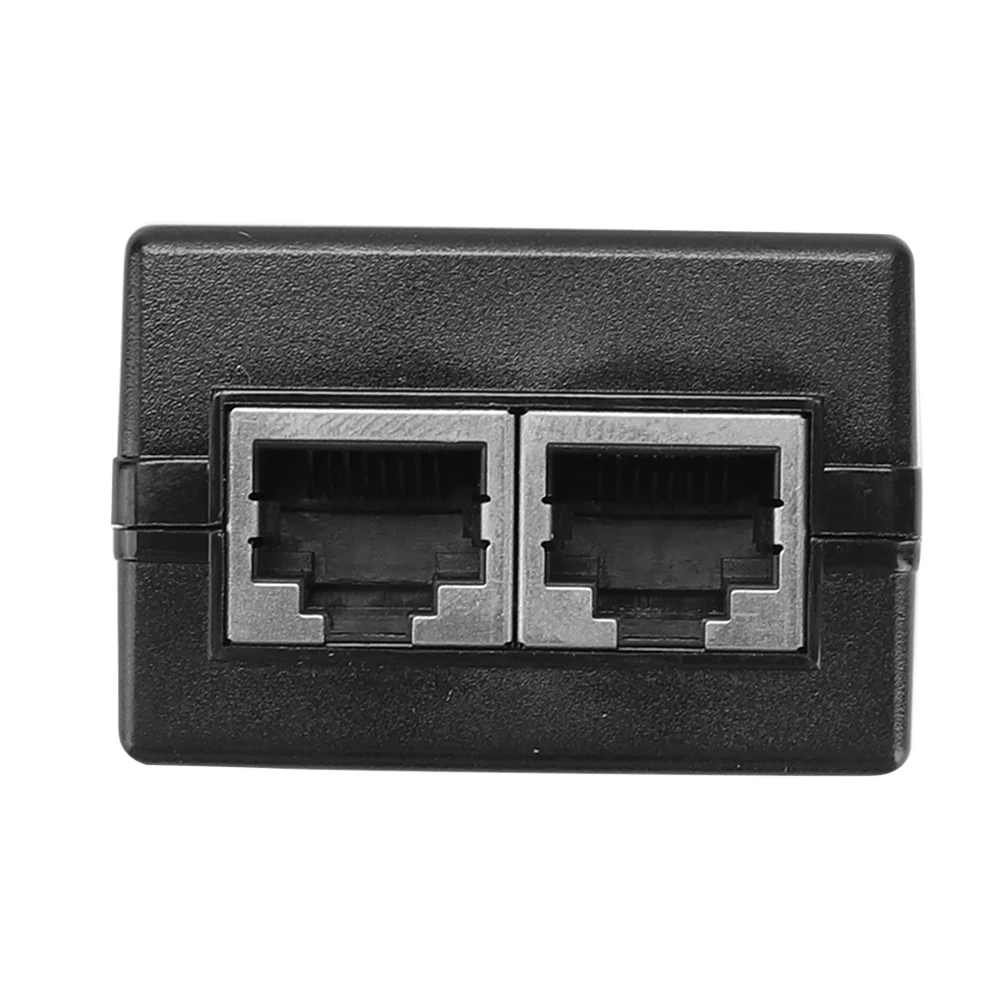

⚡ Product Overview: The Desktop POE Injector is a high-performance power supply solution designed for seamless integration of powered devices in home and office environments. With a robust input range of 100V to 240V and an output specification of 24V at 0.5A, this injector effortlessly supports devices that comply with the IEEE802.3af/at POE protocol, ensuring efficient and reliable power delivery.
🔧 Key Features:
- Compatibility: Fully compliant with the IEEE802.3af/at POE protocol, ensuring compatibility with a wide range of devices.
- Power Supply Priority: The standard Power Device (PD) port includes a power supply priority function, optimizing energy distribution among connected devices.
- High Throughput: Supports forwarding rates of 10/100BASE-TX with a performance of up to 148800 packets per second per port, ensuring fast data transfer.
- Enhanced Safety Features: Equipped with short circuit, over-current, and over-voltage protection mechanisms to safeguard connected devices against potential damage.
- System Reliability: Built for longevity with a Mean Time Between Failures (MTBF) exceeding 100,000 hours, ensuring consistent performance over time.
- Regulatory Compliance: Meets EN55022 and CLASS B standards for CE and RE, demonstrating commitment to quality and safety.
- Robust Protection: Features an anti-thunder design with a lightning protection capability that withstands up to 5kV, providing added security against electrical surges.
- Failure Alert Function: Equipped with a fuse and failure alert feature to notify users of any issues, enhancing the overall reliability of the device.
🧩 Technical Specifications:

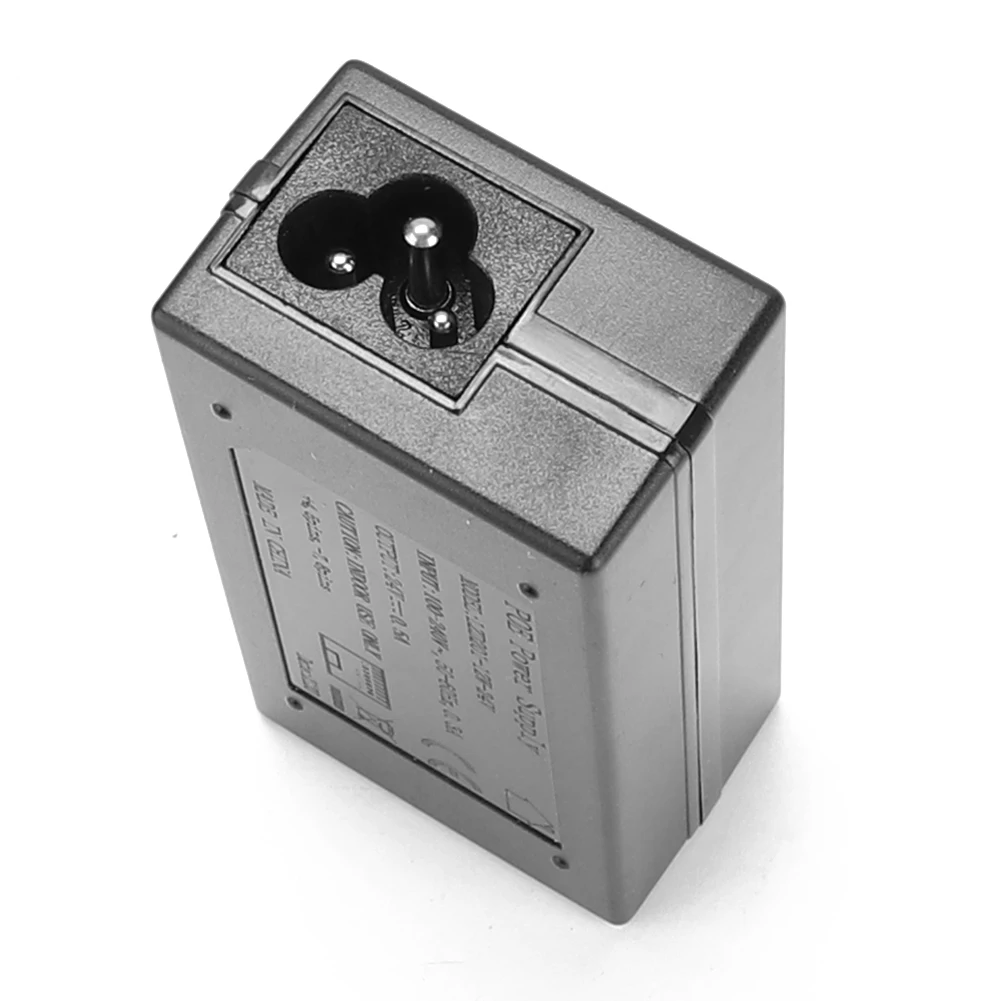

- Input Current: 100V-240V AC, 47-63Hz
- Max Input Power: 12W
- Output Voltage Stabilization: -24V DC ±2%
- Load Adjustment Rate: -24V DC ±2%
- DC Output Broadband Noise Voltage: ≤ 50m (at frequency range of 3.4kHz-150kHz)
Operating Environment:
- Temperature Range: -5 to 55℃
- Humidity: Relative humidity of 5% to 90% RH
- Conditions: Requires a ventilated, clean environment free of conductive dust and corrosive gases, ensuring operational safety.
- Explosion Risk: Designed with no risk of explosion, making it suitable for various setups.
🧩 POE Power Protection:
- Output Overvoltage Protection: Range of -52V to -50V DC
- Overcurrent Protection: Capable of handling up to 1A for single circuits
- Overvoltage Protection: Activates when input voltage exceeds 290V to 310V AC
- Undervoltage Protection: Engages when input voltage drops below 140V to 155V AC
- Temperature Protection: Automatically disconnects power at temperatures exceeding 100℃

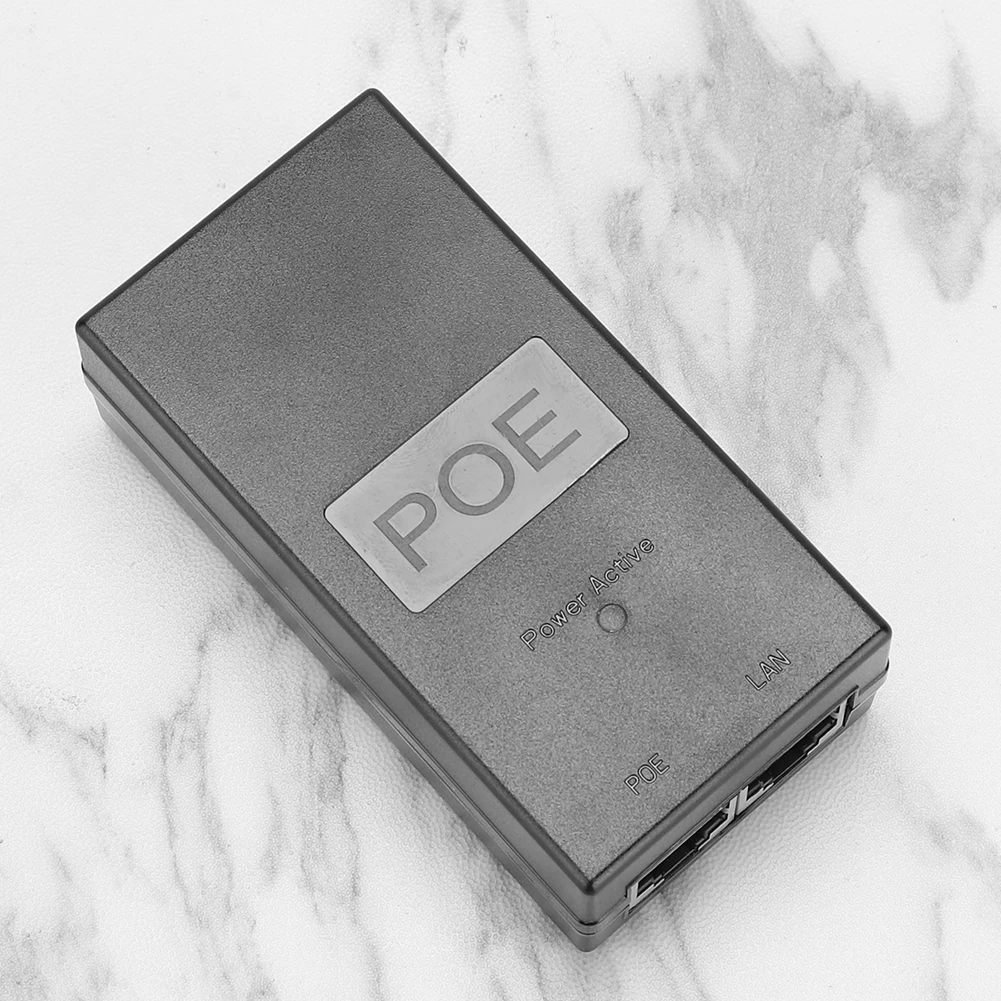

💥 Indicator Light Functions:
- Light On: Indicates that the device is operational.
- Light Off: May signify a short circuit, overload protection, consumer power exceeding limits, or a breakdown of the consumer device.
- Warning On Conditions: Cable short circuit detected or potential overload issues.
🧩 This Desktop POE Injector is an essential accessory for powering devices reliably and safely, making it a valuable addition to your home or office setup.
