Multi - Functional PCB Ruler & Electronic Measurement Tool (30CM 1)

🧩 Expanded Description of Multi-functional PCB Rulers

🎨 The Multi-functional PCB Ruler series offers an innovative measuring solution specifically designed for electronics enthusiasts, hobbyists, and professionals alike. Available in various sizes—9CM, 15CM, 20CM, 25CM, and 30CM—each ruler is crafted from high-quality FR-4 gold-plated PCB material, ensuring durability and a sophisticated aesthetic. The rulers incorporate a wealth of features tailored for PCB design, measurement, and component placement.

15CM PCB Ruler

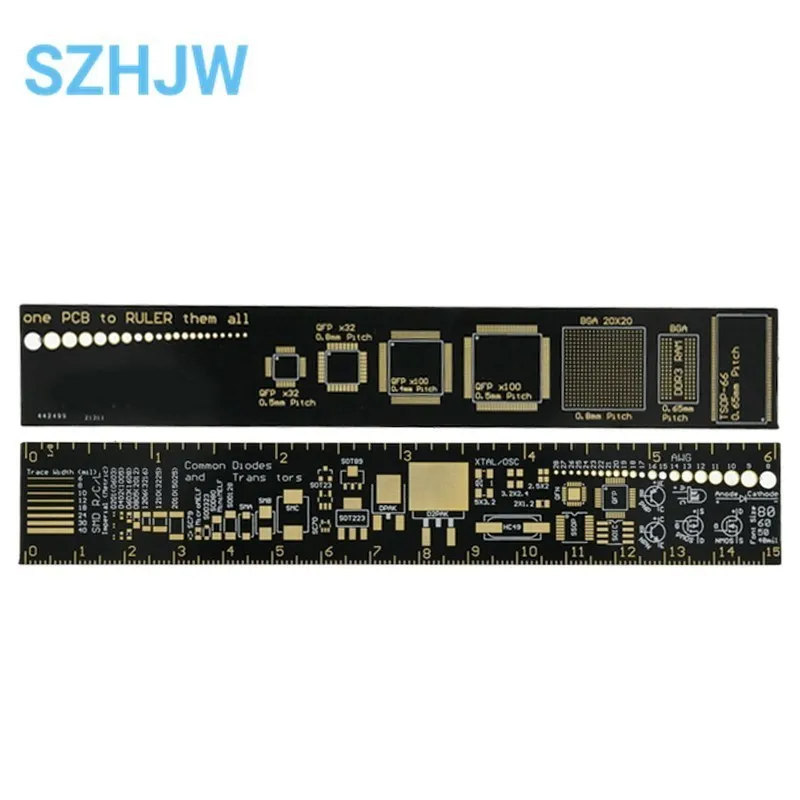

🛡️ This 15CM version serves as an essential tool for on-the-go measurements. It provides a comprehensive centimeter scale marked in 0.1cm increments, making it easy to achieve precise measurements. Additionally, this ruler features a font size guide and trace-width diagram, which are invaluable for designers. The integrated charts include device and IC pin spacing tables, along with common drill sizes and resistor/capacitor chip package references, all printed directly on the durable surface of the ruler.

20CM PCB Ruler

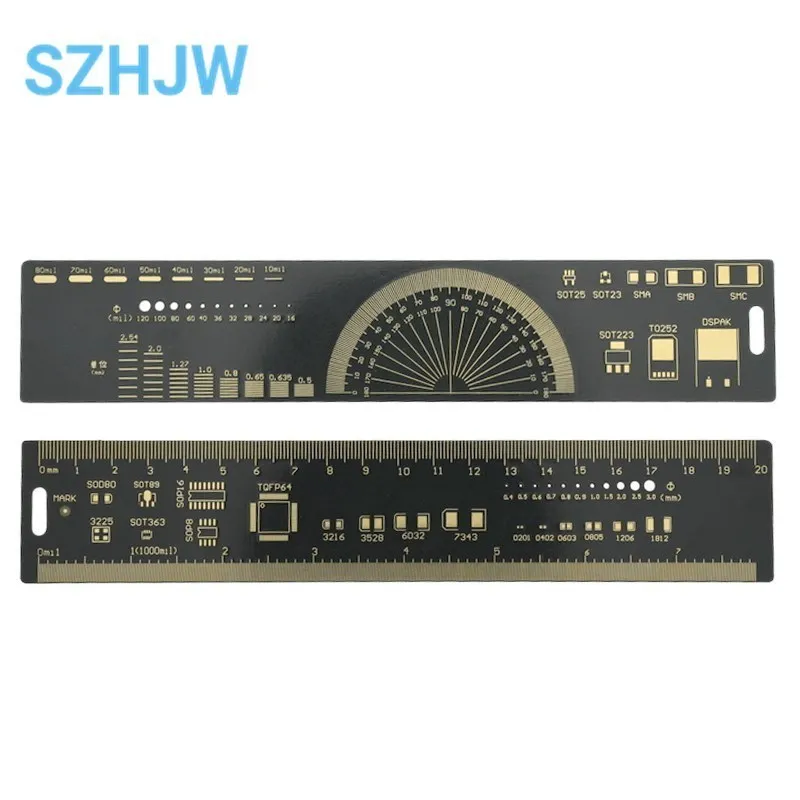

💍 The 20CM ruler enhances your measurement capabilities with a dual-function design. Featuring both millimeter and inch measurements, it also includes critical design information such as angle gauges and pin spacing tables, enabling users to measure with confidence. This ruler's common package references, such as SOT and SOP designs, are seamlessly integrated into the design for quick reference in your PCB projects. With its high hardness and wear resistance, this tool is built to last through the rigors of hands-on use.

25CM PCB Ruler

🛠️ Offering increased measurement length, the 25CM ruler is suited for larger PCB projects. This ruler not only provides an easy-to-read metric scale but also features detailed back specifications, including commonly used line widths and bore diameter references. The inclusion of essential IC package information enhances its functionality, allowing users to quickly identify the correct components for their designs. The ruler's sturdy construction promises reliability and precision in every measurement.

30CM PCB Ruler

🔍 The largest in the series, the 30CM PCB ruler, delivers ultimate versatility when measuring larger components. Its extensive graduated marking allows for straightforward and accurate calculations. Just like its smaller counterparts, it comes with a clear layout of common electronic component dimensions and provides vital PCB design information, ensuring that all your measurement needs are met efficiently.

🧱 Each ruler in this series not only serves the practical purpose of measurement but also acts as a valuable reference tool, encapsulating a host of information in a compact format. The gold-plated PCB surface not only enhances the visual appeal but also ensures that the printed text remains legible and resistant to wear, making these rulers a long-lasting addition to your electronic toolkit.
