Multi - functional PCB Ruler and Measuring Tool for Electronic Components (15CM WHITE)

5 Type PCB Ruler Series

💍 Introducing our extensive range of PCB rulers, meticulously designed to cater to the needs of electronic enthusiasts and professionals alike. Available in lengths of 9cm, 15cm, 20cm, 25cm, and 30cm, these rulers are not just measuring tools—they are multifunctional instruments packed with essential features for PCB design and prototyping.

🛠️ 15CM PCB Ruler

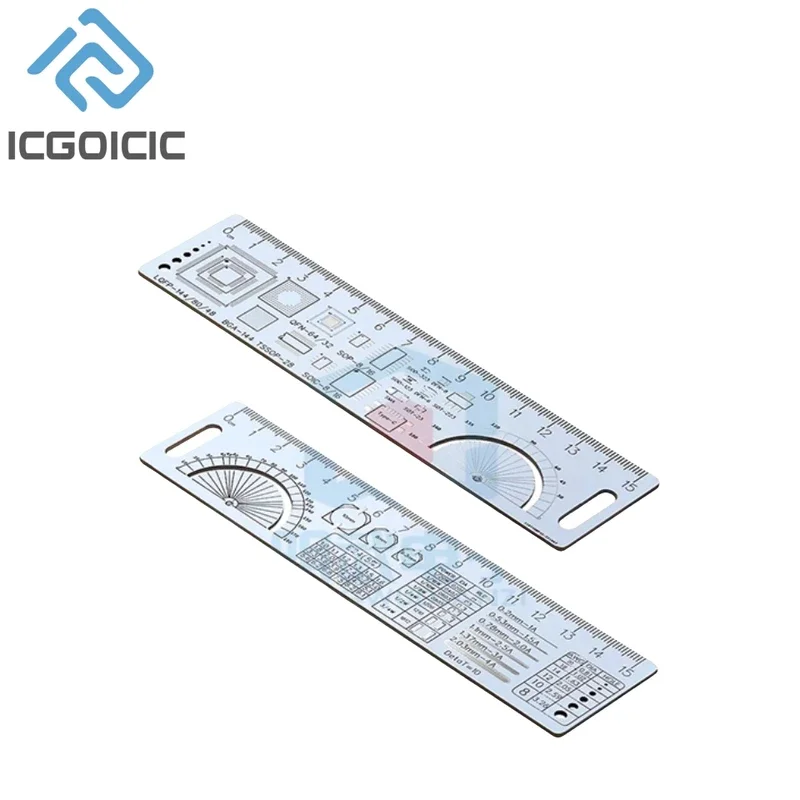

Crafted from high-quality PCB material, this 15cm ruler carries an impressive combination of functionality and durability. It features a detailed font size guide, a trace-width diagram, and a comprehensive set of American Wire Gauge (AWG)-sized drill indicators. The centimeter side boasts 0.1cm marks, ensuring precise measurements for your electronic components.

🧱 20CM PCB Ruler
The 20cm variant is a versatile tool equipped with vital PCB design information. This ruler not only measures in millimeters and inches but also includes integrated angle gauges, a variety of device dimensions, and IC pin spacing tables. Key specifications such as resistor and capacitor chip package outlines, common drill reference sizes, and line width references are printed directly on FR-4 gold-plated PCB, providing a wear-resistant and sophisticated aesthetic. With a measurement length of 20cm (approximately 7.8 inches), it accommodates a broad selection of electronic packages such as SOT89, SOP16, and TQFP64, making it an indispensable part of your toolkit.

⚡ 25CM PCB Ruler
Similar in design to the 20cm ruler, the 25cm edition offers even more functionality. Measuring 25cm (approximately 10 inches), this ruler continues to integrate crucial PCB design elements, including angle gauges and IC pin spacing tables. Common IC packages like NAND_FLASH_TSOP48 and QFP7X7-64 can be easily referenced, while chip components such as SOT23 and TO252 allow for effortless alignment and placement. The back side features a line width reference as well as bore diameter dimensions, adding further utility. The ruler's polished look is supported by FR-4 gold-plated PCB construction, ensuring that it stands the test of time in both durability and style.

📦 9CM PCB Ruler
Compact and practical, the 9cm ruler serves as an excellent measurement tool for quick assessments and details in tighter spaces. Though smaller in size, it retains essential design features for accurate measurements and is perfect for portable projects.

🛠️ 30CM PCB Ruler
Our largest offering at 30cm provides ample length for larger projects, incorporating all the critical elements from the smaller models in a more spacious format. Ideal for expansive circuit designs or layouts requiring extensive measurements, this ruler ensures you have the versatility and precision you need.

🛠️ Whether you're an experienced electronics designer or a hobbyist, our PCB ruler series delivers invaluable support, simplifying the measurement process and enhancing the overall design experience. With easy-to-read scales and relevant design information integrated directly into the material, you’ll always have the knowledge and precision required for successful PCB design at your fingertips.
