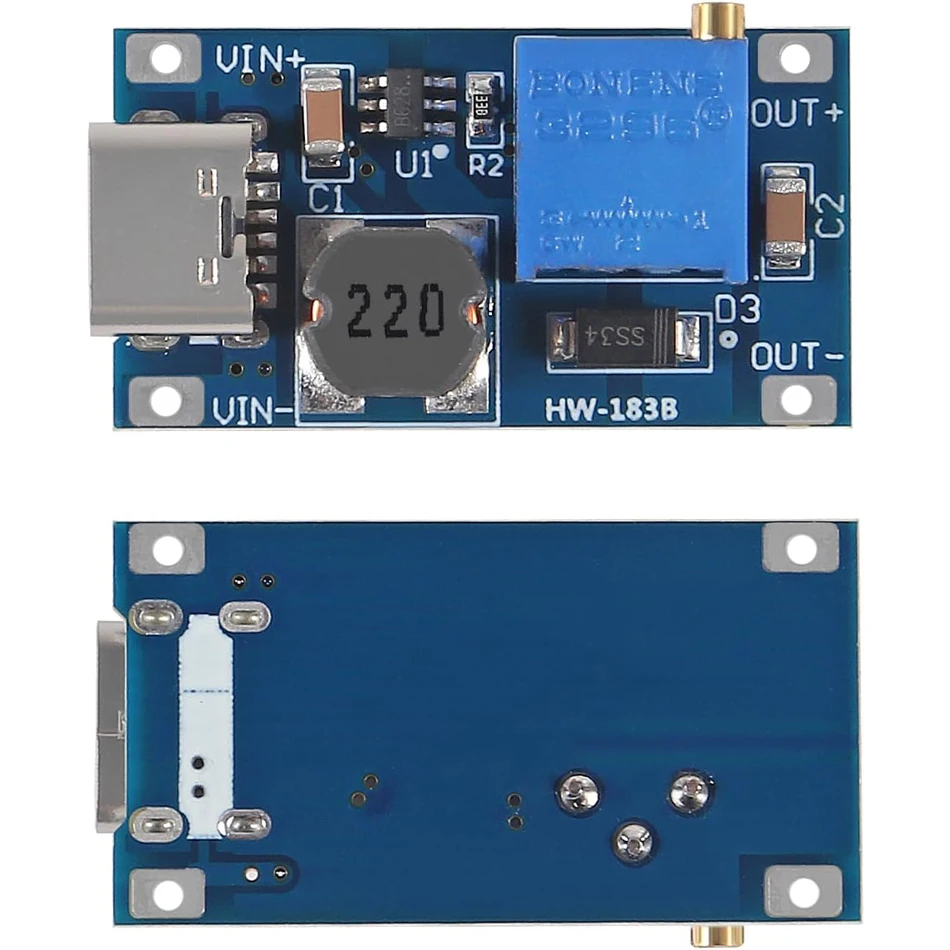

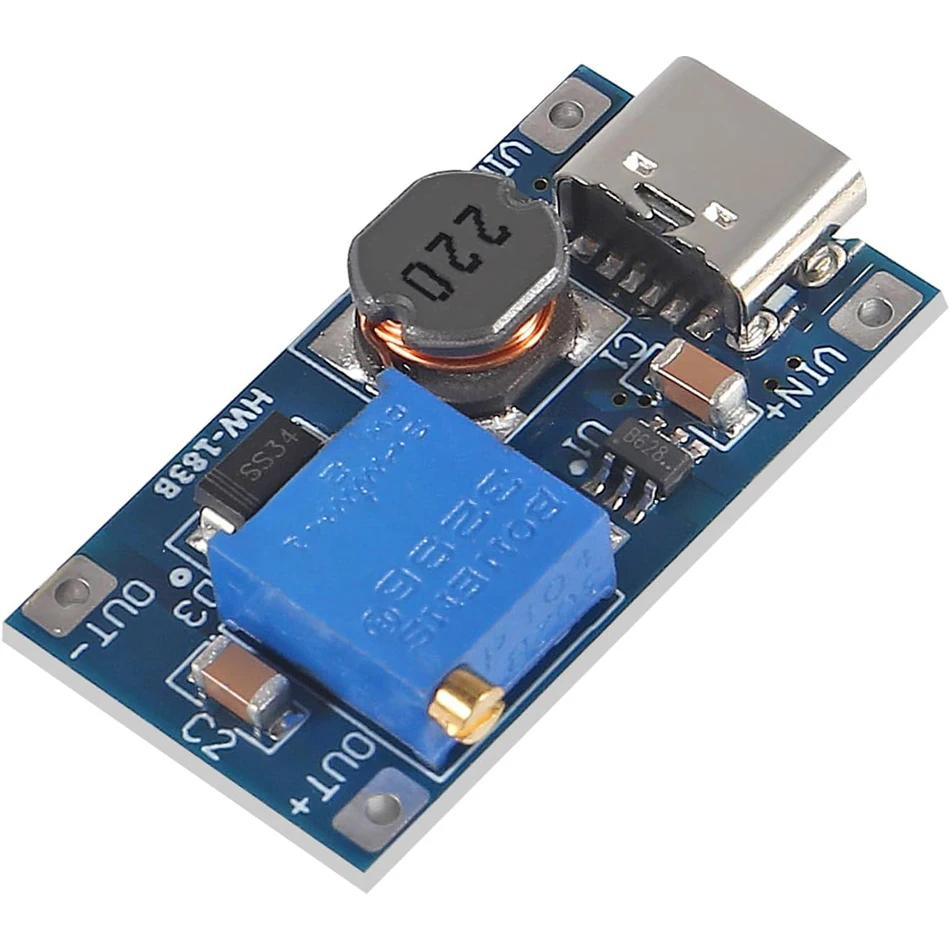

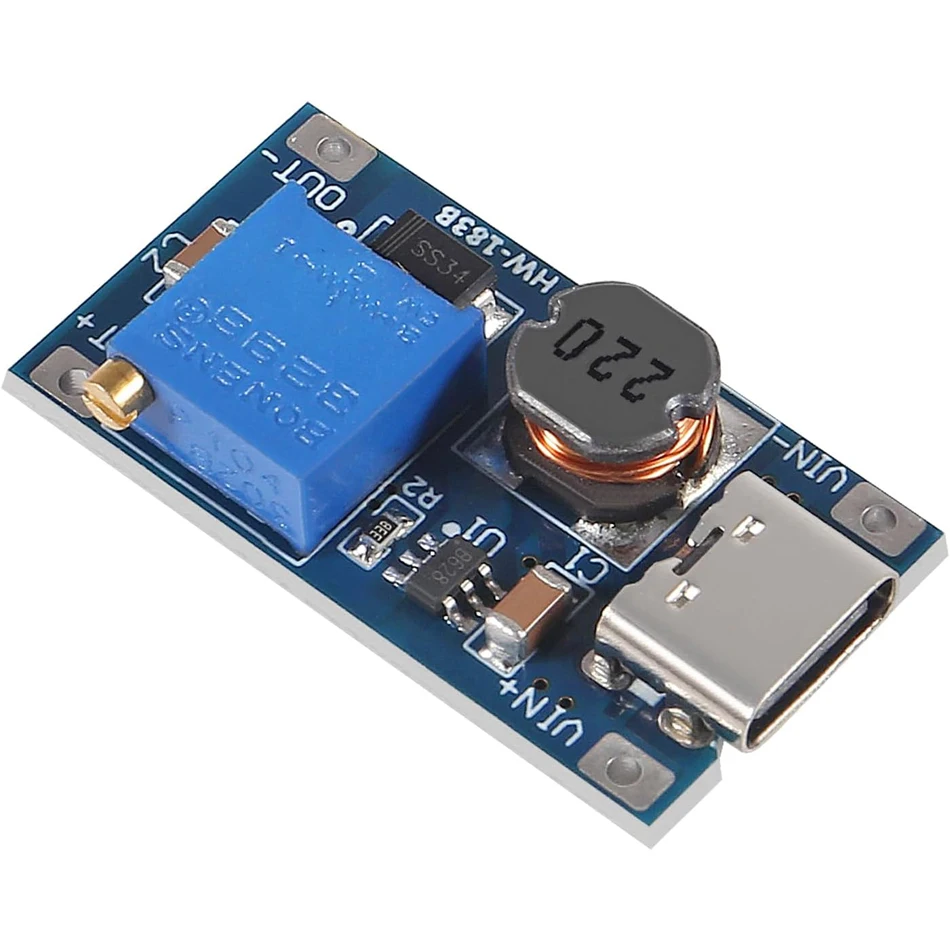

MT3608 Adjustable Voltage Regulator Pack - 10pcs Boost Converter Modules with Micro USB Type - C Connection - 2A (10pcs type C)

🔴 Introducing the MT3608 Adjustable Step-Up DC-DC Boost Converter Module – a versatile and efficient solution for all your voltage regulation needs. This package includes 10 high-quality modules designed to transform input voltages ranging from 2V to 24V into output voltages between 5V and 28V, making it perfect for a variety of applications such as battery-powered devices, LED lighting, and creative electronics projects.

🔧 Key Features:

• Maximum Output Current: Capable of delivering up to 2A, allowing it to power demanding applications effectively.
• Input Voltage Range: Accepts a wide input voltage range of 2V to 24V, providing flexibility for different power sources.
• Maximum Output Voltage: Efficiently boosts voltage up to 28V, making it suitable for higher voltage requirements.
• High Efficiency: Achieves greater than 93% efficiency, ensuring minimal energy loss and longer battery life.

💍 Usage Instructions:

⚡ To utilize the module, simply connect your input voltage of 2-24V to the designated IN+ and IN- terminals. Adjust the output voltage using the built-in potentiometer, which allows for fine-tuning of the output to meet your specific voltage needs. It’s important to remember that the output voltage will be greater than the input voltage, and care should be taken not to exceed the specified input limits.

⚡ Important Notes:

• Do not exceed the maximum input voltage of 24V to avoid potential damage to the module.
• Peak output current should remain within the 2A limit to ensure safe and reliable operation.
• If you experience difficulty adjusting the output voltage, turn the potentiometer counterclockwise for more than 20 full turns before attempting to set your desired voltage level.

🧩 Package Contents:

📦 Each package includes:

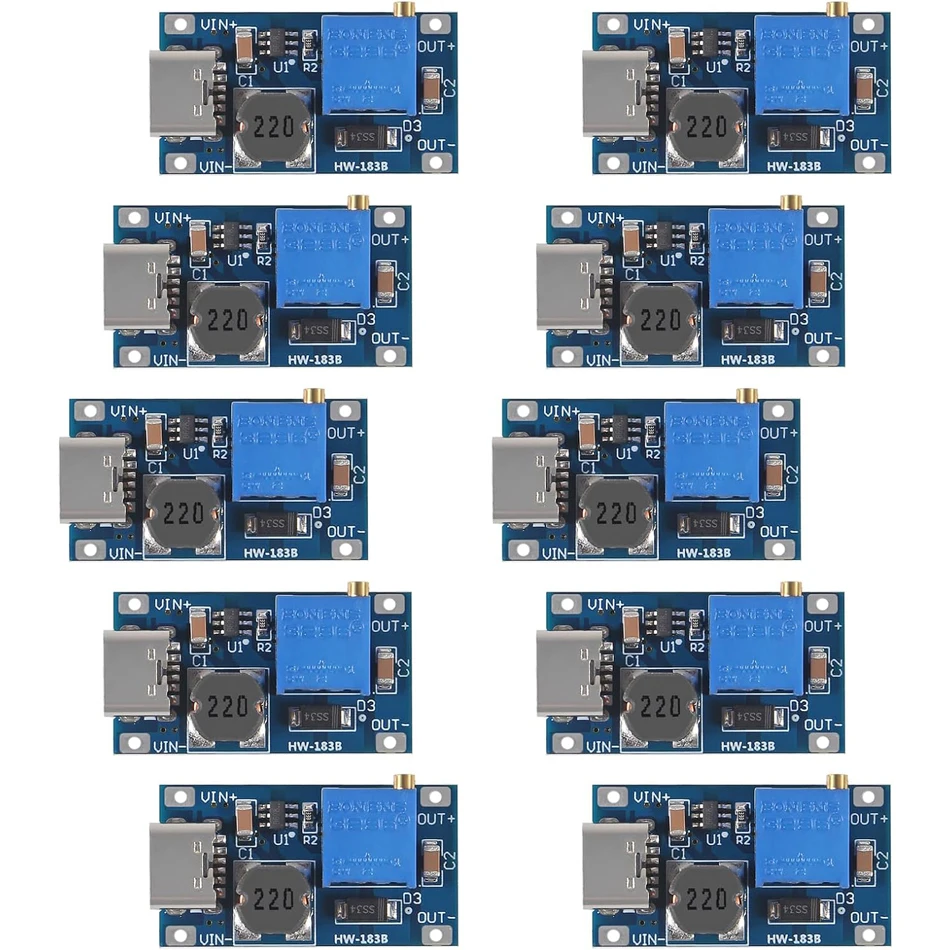

• 10 x MT3608 DC-DC Step-Up Modules with Type-C/Micro USB connectors.

🧩 Safety Precautions:

• Keep the device away from fire hazards during operation.
• Due to small components, it is advised to keep this product away from children under three years old.

💍 Elevate your project’s power capabilities with the MT3608 Adjustable Step-Up DC-DC Boost Converter Module - a reliable and efficient solution for various electrical applications.
