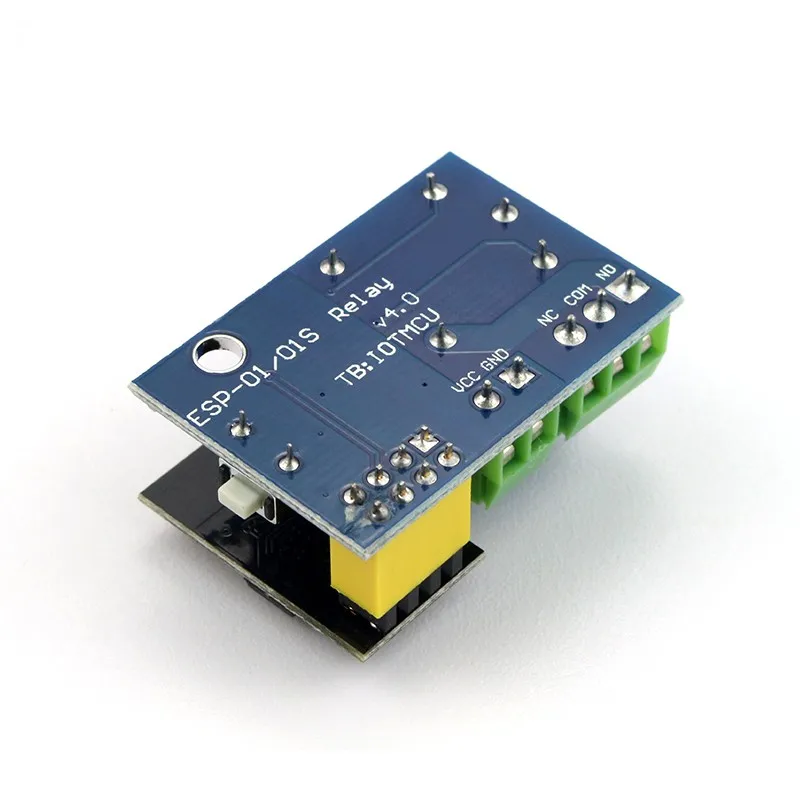

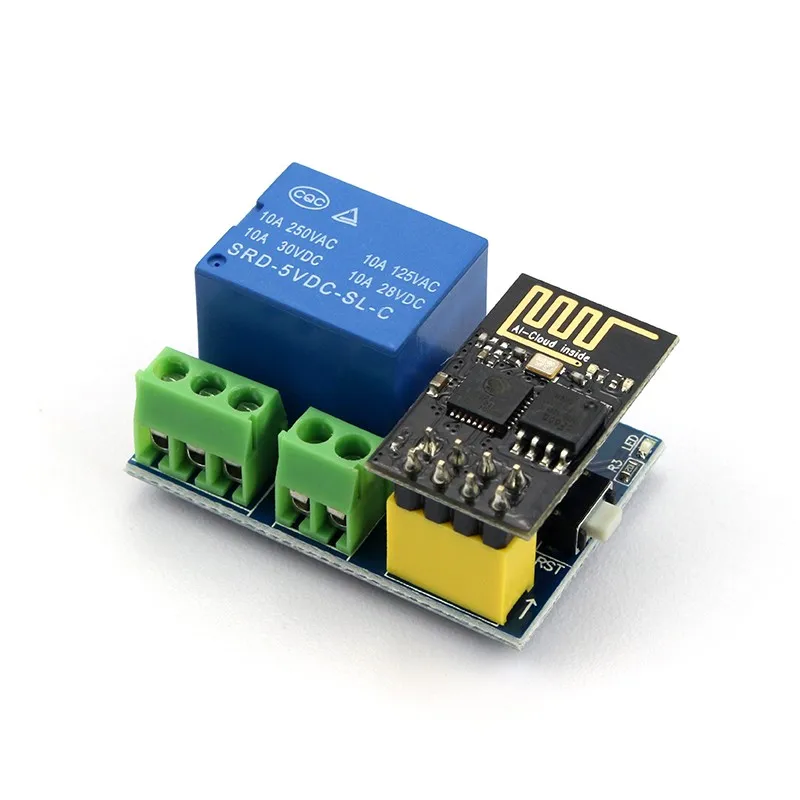

🤖 1PCS ESP8266 ESP-01 Relay Module WIFI Smart Socket
1. Description

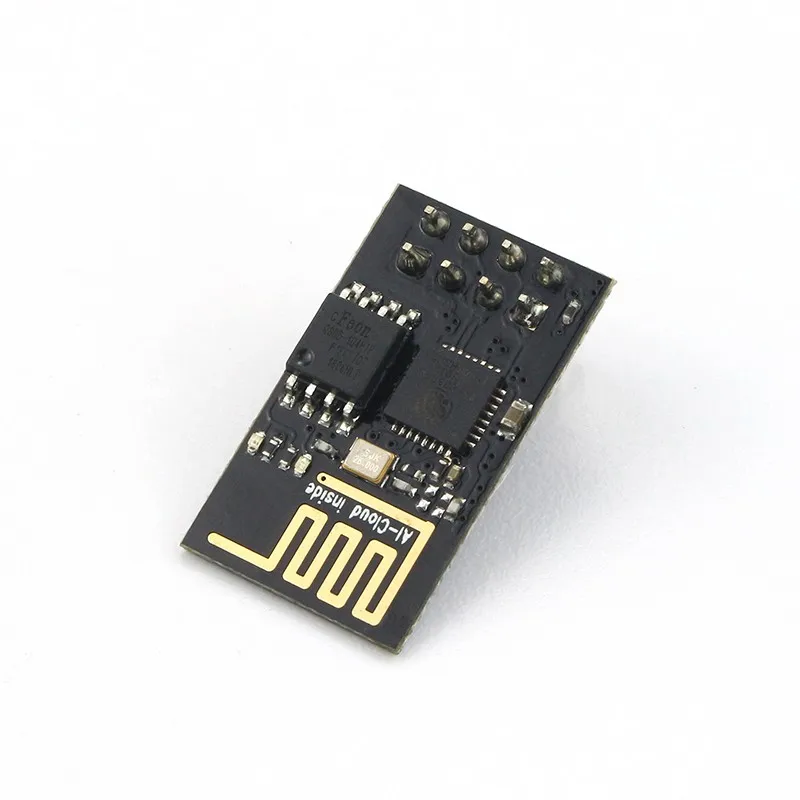

🌫️ Introducing the innovative ESP-01/01S Relay, expertly crafted around the AI-Thinker ESP-01/01S WiFi module. This smart relay empowers you to bring your home into the digital age, making it an ideal choice for various smart home applications, Internet of Things (IoT) projects, and other DIY endeavors. With this versatile relay, you can effortlessly transform any standard device into a smart one, allowing you to control it remotely from your smartphone, no matter where you are. The product includes support for a dedicated app and provides LUA source code, enabling customization and flexibility for your unique needs. In this version, we utilize GPIO0 from the ESP-01 or ESP-01S to manage the relay operation through low-level signaling.
2. Technical Specifications
- Operating Voltage: DC 5V-12V
- Operating Current: ≥250mA
- Communication Protocol: ESP-01 or ESP-01S WiFi module
- Transmission Range: Up to 400 meters in open environments (with a compatible mobile device)
- Load Specifications: Capable of handling 10A at 250VAC and 10A at 30VDC, rated for 100,000 relay cycles
- Control Mechanism: GPIO0 on ESP-01/01S activates the relay (Low level active)
- Product Dimensions: 37mm x 25mm
3. How to Use

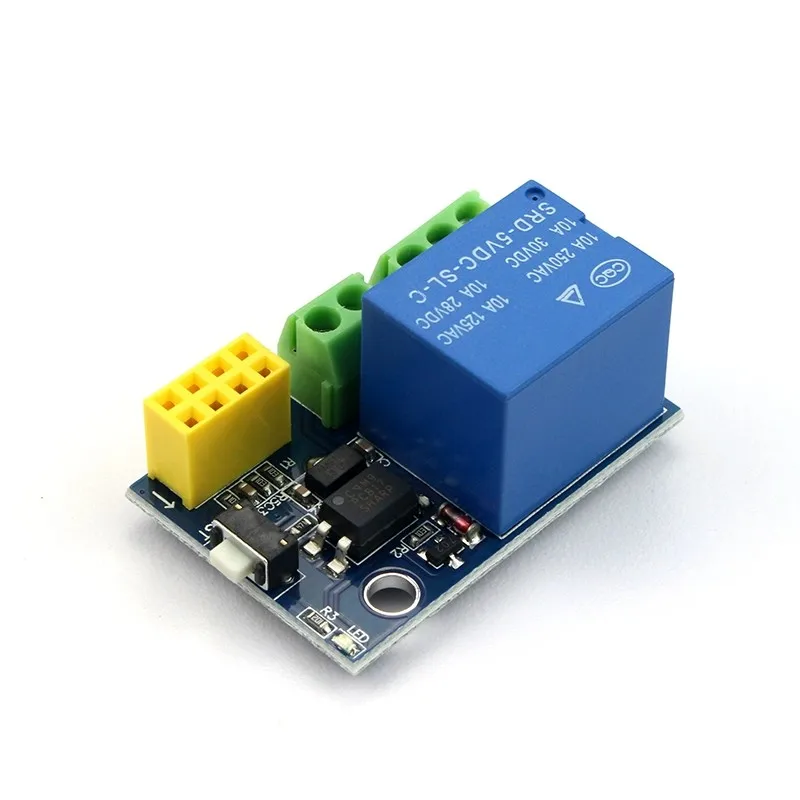

- Hardware Connection: Begin by plugging the ESP-01/01S into the 2*4 pin header after successfully downloading the relevant code to the module.
- Power Supply: Connect a DC power supply ranging from 5V to 12V to the GND and VCC terminals to power the device.
- Establish WiFi Connection: Activate the WLAN on your mobile device and connect to the WiFi network labeled ESP8266-XXXX, with the password set as 12345678.
- Utilize the App: Launch the ESP8266 Controller app, which should be pre-installed on your Android device.
- Configure IP Address: Set the IP Address to 192.168.1.1, enabling you to control your device seamlessly via the WiFi relay module.
⚙️ This powerful ESP-01/01S relay module is perfect for anyone looking to enhance their home automation systems or create exciting IoT projects with simplicity and efficiency.
