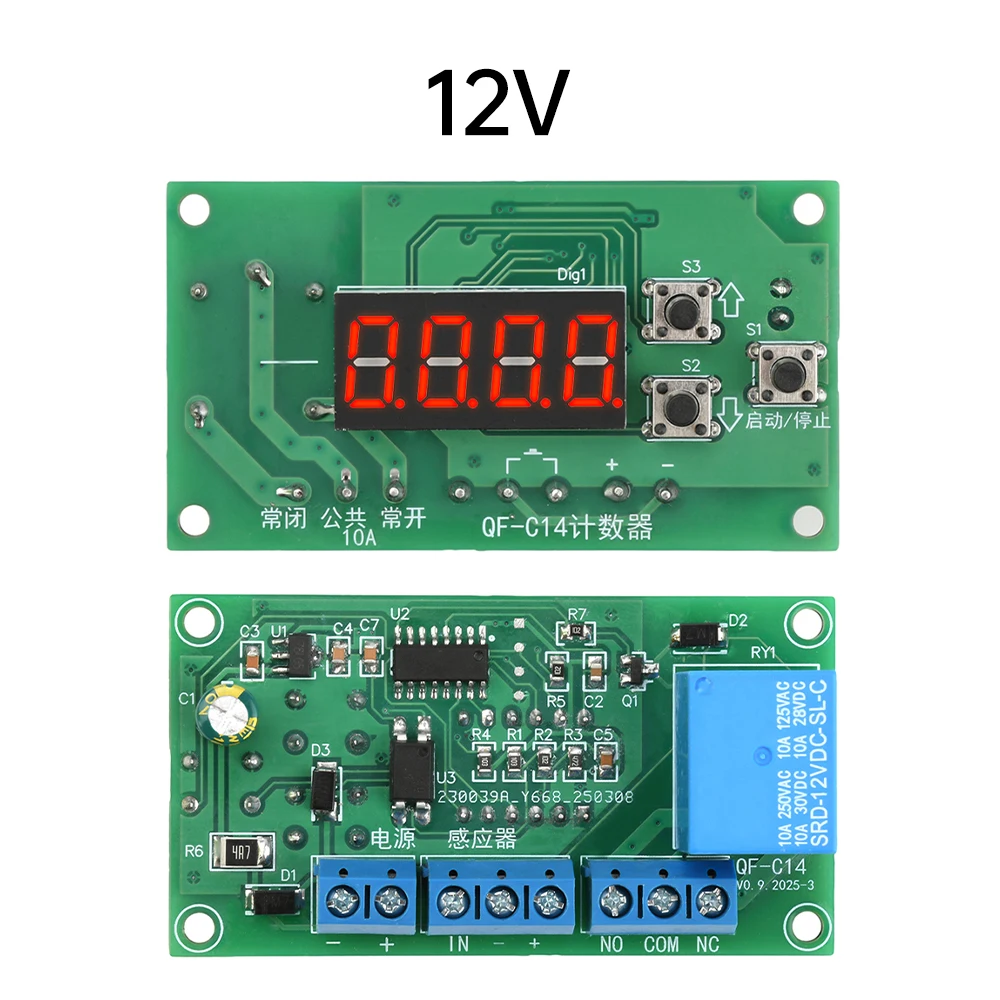

🛠️ Product Overview: Enhance your counting and monitoring tasks with our advanced 4-Digit Digital Display Counter Module. This comprehensive counter controller board features a relay output and showcases a bright 0-9999 count range, making it an ideal solution for various applications requiring precise counting. Designed for dual voltage compatibility at DC 12V and 24V, it is engineered to deliver reliable performance across a multitude of environments.
🔧 Key Features:
- Power Off Memory Function: This innovative feature ensures that the last configured counting value is retained even after power loss, allowing for seamless operation when powered back on without the need for reprogramming.
- Clear Digital Display: Featuring a 0.36-inch 4-digit red digital tube, the display offers a clear and intuitive view of the count value, ensuring excellent visibility in various lighting conditions.
- Wide Counting Range: Supports precise counting from 0 to 9999, making it suitable for diverse scenarios such as event counting, production tracking, and more.
- Low Level Trigger Design: Utilizes low-level input for triggering, enhancing compatibility with a variety of sensors or switching devices, ensuring ease of integration into existing systems.
- Environmentally Adaptable: Engineered to withstand temperatures from -25°C to +85°C, this counter module is versatile enough for use in various environments and electrical applications.
🔍 Specifications:
- Voltage: DC 12V/24V
- Working Current: 60mA (12V version), 45mA (24V version)
- Signal Mode: Low level effective (compatible with NPN-NO sensors or standard push button switches)
- Response Speed: 1.8 milliseconds
- Counting Speed: 200 counts per second
- Output Mode: 10A normally open and normally closed, isolated from the power supply
- Display Size: 0.36-inch 4-digit red display digital tube
- Module Size: 70 x 38mm
- Installation Hole Dimensions: 64 x 31.9mm
🔘 Functionality: The counter can be set to count between 1 and 9999 using the convenient control keys. The count will be automatically saved, and upon the next power-up, it will revert to the last setting. Operational features allow for easy starting and stopping of the counting process. As you input signals, the count will increment by one, with relay operations configured as per the specific needs. In addition, four distinct operational modes offer versatility for varied counting and output requirements.
