High - Performance Industrial Solid State Relay - DC to AC, 4 - 32VDC Input, 24 - 480VAC Output, Black - 10 - 40A

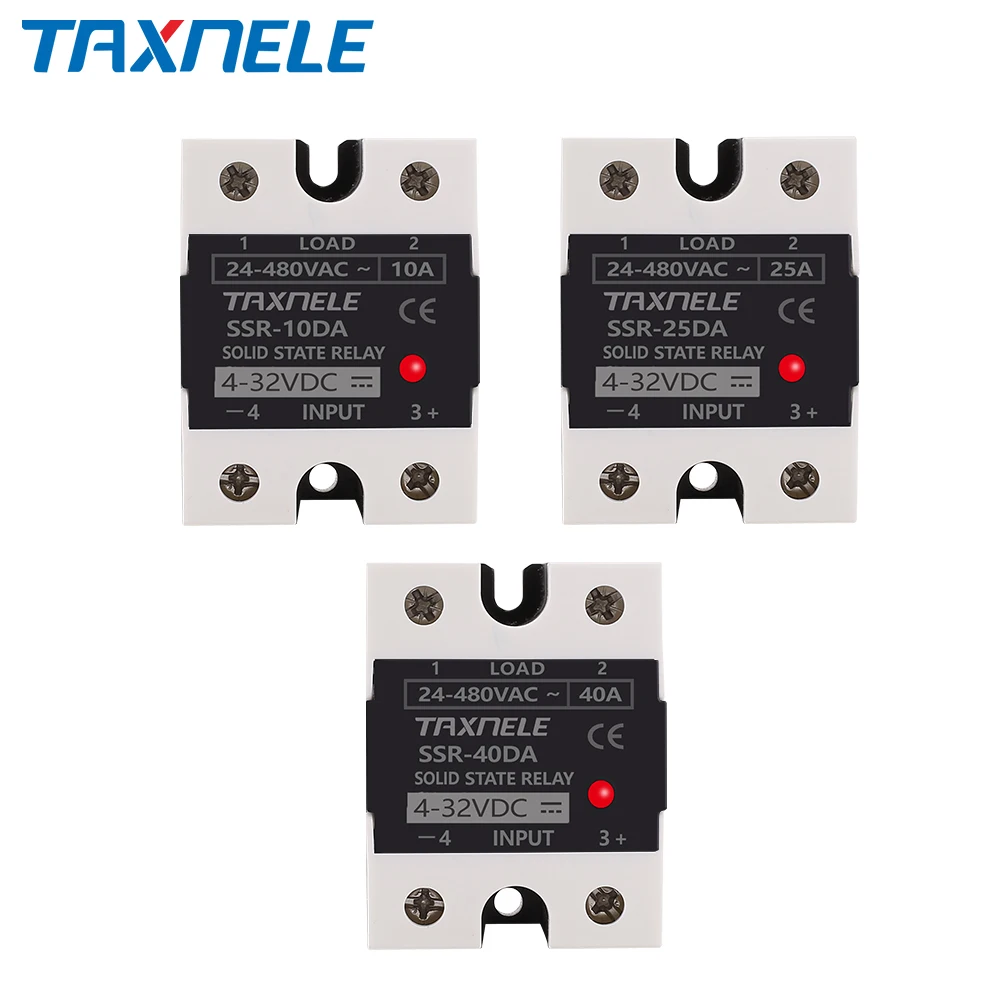

SSR Solid State Relays - 10DA, 25DA, and 40DA

🏆 Introducing the SSR Solid State Relay series, designed for robust and efficient performance in industrial applications. These relays offer varying load capacities of 10A, 25A, and 40A, making them ideal for diverse electrical environments.

SSR -10DA Solid State Relay

• Load Current: 10A
• Load Voltage: 24~480VAC
• Control Voltage: 4~32VDC
• Control Current: 3~25mA
• On Voltage: ≤ 1.5VAC
• Off Leakage Current: ≤4mA
• On-off Time: ≤ 10ms
• Dielectric Strength: 2500VAC
• Insulation Resistance: 100M Ω / 500VDC
• Ambient Temperature: -25~+75°C
• Indication: LED
• Weight: 90g

SSR -25DA Solid State Relay

• Load Current: 25A
• Load Voltage: 24~480VAC
• Control Voltage: 4~32VDC
• Control Current: 3~25mA
• On Voltage: ≤ 1.5VAC
• Off Leakage Current: ≤4mA
• On-off Time: ≤ 10ms
• Dielectric Strength: 2500VAC
• Insulation Resistance: 100M Ω / 500VDC
• Ambient Temperature: -25~+75°C
• Indication: LED
• Weight: 90g

SSR -40DA Solid State Relay

• Load Current: 40A
• Load Voltage: 24~480VAC
• Control Voltage: 4~32VDC
• Control Current: 3~25mA
• On Voltage: ≤ 1.5VAC
• Off Leakage Current: ≤4mA
• On-off Time: ≤ 10ms
• Dielectric Strength: 2500VAC
• Insulation Resistance: 100M Ω / 500VDC
• Ambient Temperature: -25~+75°C
• Indication: LED
• Weight: 90g

📦 Choose the SSR Solid State Relay series for reliable, high-performance switching in a wide range of industrial applications. With their compact design and robust capabilities, these relays ensure efficient operation and longevity, making them the perfect choice for your automation needs.
