MOFI High - Fidelity EMI Filter Module DIY Kit - 660W Enhanced Version (DIY KIT)

MOFI HiFi AC Power Line Single EMI Filter Module 660W Version DIY KIT

⚪ The MOFI HiFi AC Power Line Single EMI Filter Module is an advanced DIY project specifically designed for audio enthusiasts and electronics hobbyists. This kit requires a strong background in electronics, proficiency in soldering, and extensive experience in testing to successfully assemble and utilize the filter module. With the minimalist design and robust functionality, you can enhance your audio system's performance, providing an exceptional listening experience.

🔍 This EMI filter module operates effectively within an AC voltage range of 100-240V, showcasing an impressive anti-voltage surge functionality designed to protect your sensitive audio equipment. Furthermore, it serves to eliminate DC offsets in the mains supply, ensuring a cleaner power source for your audio components. Equipped with a sophisticated 4th-order low-pass filter, this module excels at suppressing high-frequency noise that often seeps in from the power grid, creating a more stable and clear audio signal.

🔧 Key Features:

• Designed for AC 100-240V filtering
• Integrated anti-voltage surge protection
• Elimination of DC offset from mains power
• 4th-order low-pass filter for effective high-frequency noise suppression
• Compact and aesthetically pleasing design, easily adaptable for various setups

⚡ Important Safety Note: The components on the circuit board will generate high voltage from the mains power. It is crucial to exercise caution and avoid contact with the circuit board and its components to prevent electric shock.

Application Guidelines:

🏆 When utilizing this module, it is recommended to reserve 30% of the power availability for optimal performance:

• For mains power of 220V AC: Maximum support power is 660VA; recommended transformer load power should not exceed 460W.
• For mains power of 110V AC: Maximum support power is 330VA; recommended transformer load power should not exceed 230W.

⚡ Product Configuration:

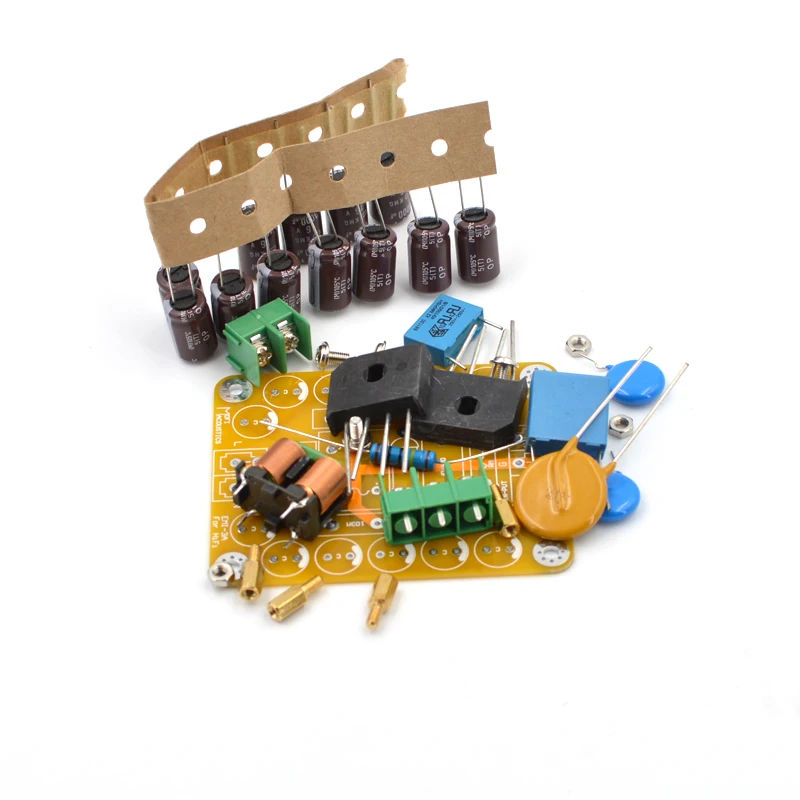

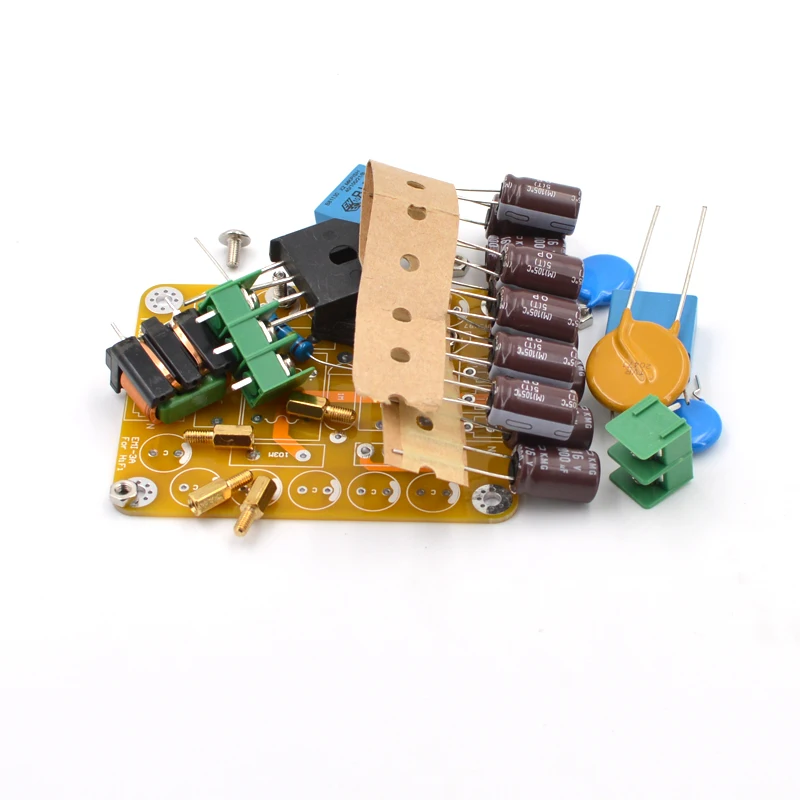

🏆 This DIY kit includes the PCB along with all necessary components for assembly, excluding the power transformer. For those who prefer a ready-to-use solution, we offer a finished board option, which is meticulously hand-soldered and thoroughly tested for performance. This option is ideal for users seeking reliability, although it comes at a higher price point.

DIY KIT Assembly Instructions:

• Ensure the PCB holes are plated through; solder from the bottom only. Avoid drilling or enlarging any holes to prevent damage.
• Clean both surfaces of the blank PCB with isopropyl alcohol or electronic flux remover before soldering components, starting with lower-profile parts.
• Confirm that each component is placed correctly according to the circuit board layout, paying attention to the polarity of electrolytic capacitors and diodes.
• After soldering, cleanse the board of any flux residue using isopropyl alcohol and a brush.
• Carefully inspect all solder connections with a magnifying glass to identify any solder bridges or cold joints. Utilize a multimeter to check for short circuits.

🪞 Embark on this exciting DIY journey with the MOFI HiFi AC Power Line Single EMI Filter Module and experience the enhancement in your audio system's sound quality!
