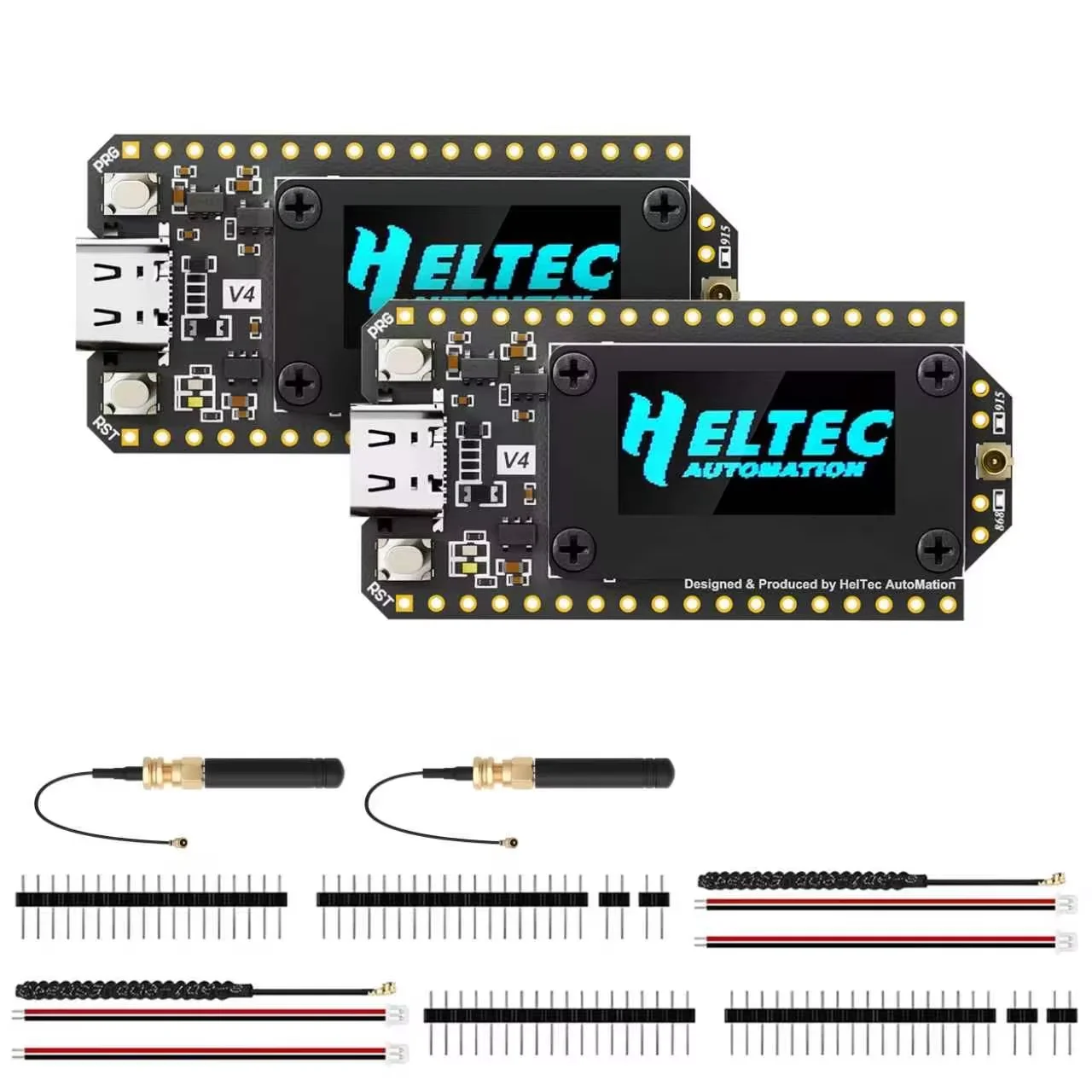

Enhanced WiFi LoRa 32 Development Board with Dual Antenna for Wireless Communication Projects (2PCS V4 dual antenna)

📶 Overview: The Heltec V3/V4 WiFi LoRa 32 868MHz Development Board is an innovative solution designed for enthusiasts and professionals alike who are exploring the realms of IoT, wireless communication, and mesh networking. Equipped with dual antennas, this board offers enhanced connectivity and performance, making it a prime choice for developing applications with Meshtastic, Bluetooth, and other frameworks. Its compatibility with Arduino and PlatformIO allows for seamless integration into a wide range of projects.

⚡ Version and Compatibility: This description pertains to Version 4.3 of the Heltec board. It's important to note that hardware version 4.3 necessitates the use of new firmware to ensure optimal functionality. For those utilizing Heltec’s development framework, be sure to update both the board package and the LoRa library to their latest versions via GitHub. When working with Meshtastic, make sure you are using firmware version 2.7.20 or higher, while for MeshCore, firmware version 1.15.0 or higher is required.

🔘 Bootloader Mode for Flashing: For successful firmware flashing, users must ensure the board is in Bootloader mode. To do this, connect a USB-C cable, hold down the PRG button, press the RST button once, then release the PRG button before proceeding with the flashing process. Once complete, don’t forget to restart the device.

⚡ Specifications: The board features a pin layout that supports various hardware integration requirements, which can be referenced through our comprehensive pin map documentation.

Troubleshooting FAQs:

• LoRa Error: If you encounter a “LoRa Error,” this does not indicate device damage. This error occurs while the board is running the factory default LoRa testing program, which may not find another device operating the same program.
• Firmware Flashing Issues: If you fail to flash the firmware or upload code, ensure you are in Bootloader mode. Additionally, consider switching your USB data cable or changing the port on your computer to resolve connectivity issues.
• Screen Display Settings: For those using Meshtastic, be aware that the “Meshtastic UI” is only compatible with touchscreen interfaces. If you are utilizing an ordinary OLED screen, refrain from selecting this option to avoid display issues.

⚡ LNA Configuration: With hardware version 4.3 and later, users have the ability to enable or disable the Low Noise Amplifier (LNA) through the Meshtastic interface. Navigate to the “System” → “LoRa” settings on the device to make your selection. In contrast, MeshCore version 1.15.0 default enables LNA and does not allow for modification.

🧩 For firmware with LNA toggling capabilities, please refer to the provided links, which are accessible through customer service. Our team is also actively working on an official firmware update that will support toggling LNA via command line or button for greater flexibility.

Whether you are creating a simple prototype or an advanced network solution, the Heltec V3/V4 WiFi LoRa 32 development board is a powerful tool that can enhance your project’s capabilities.
