📦 Introducing the 40W UPS Uninterruptible Power Supply Board, a compact and efficient solution designed specifically for providing backup power to your router and peripheral devices. This versatile UPS board is equipped with a range of features that ensure your equipment remains powered during outages and critical interruptions.
🔧 Key Features:
- Multi-Port Capability: The UPS board supports four output ports, allowing for simultaneous connection and power supply to routers and additional devices.

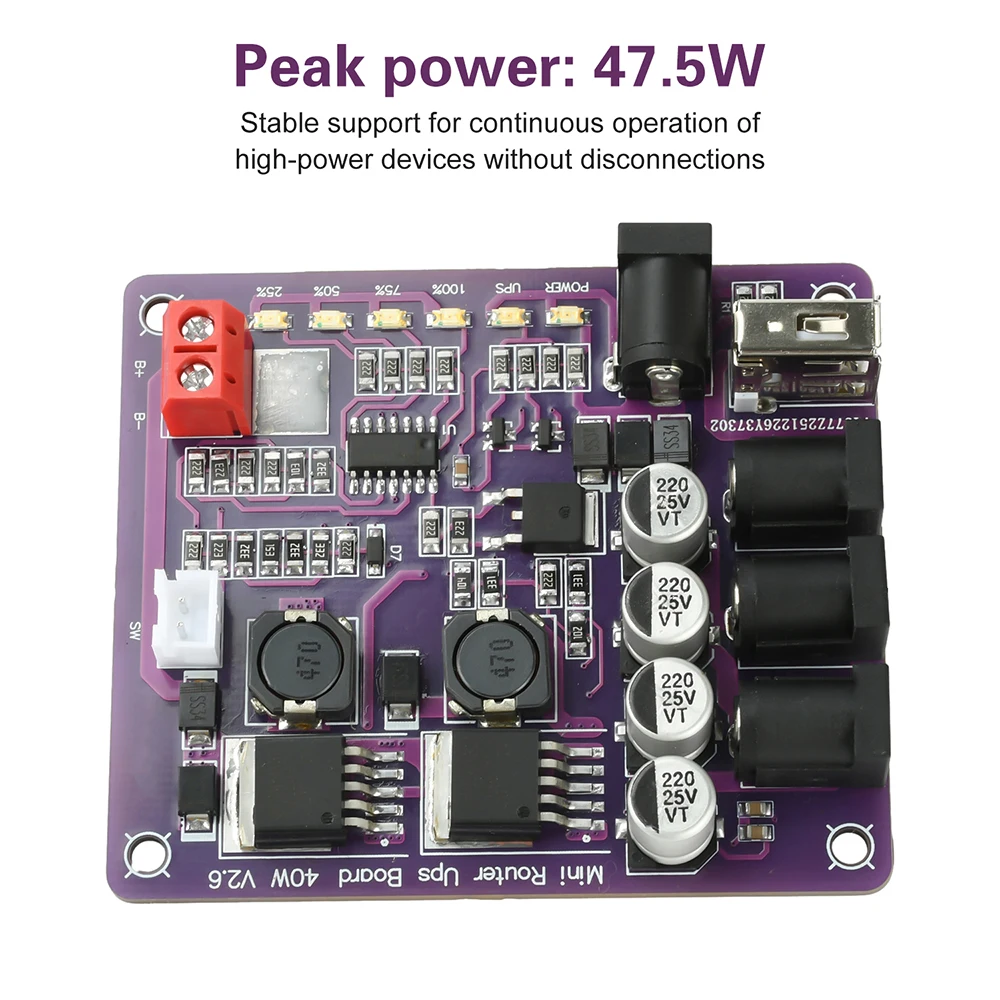

- Reliable Power Output: With a peak output of 47.5W, this system guarantees stable and consistent operation of even the most demanding devices, minimizing the risk of disconnections during crucial moments.

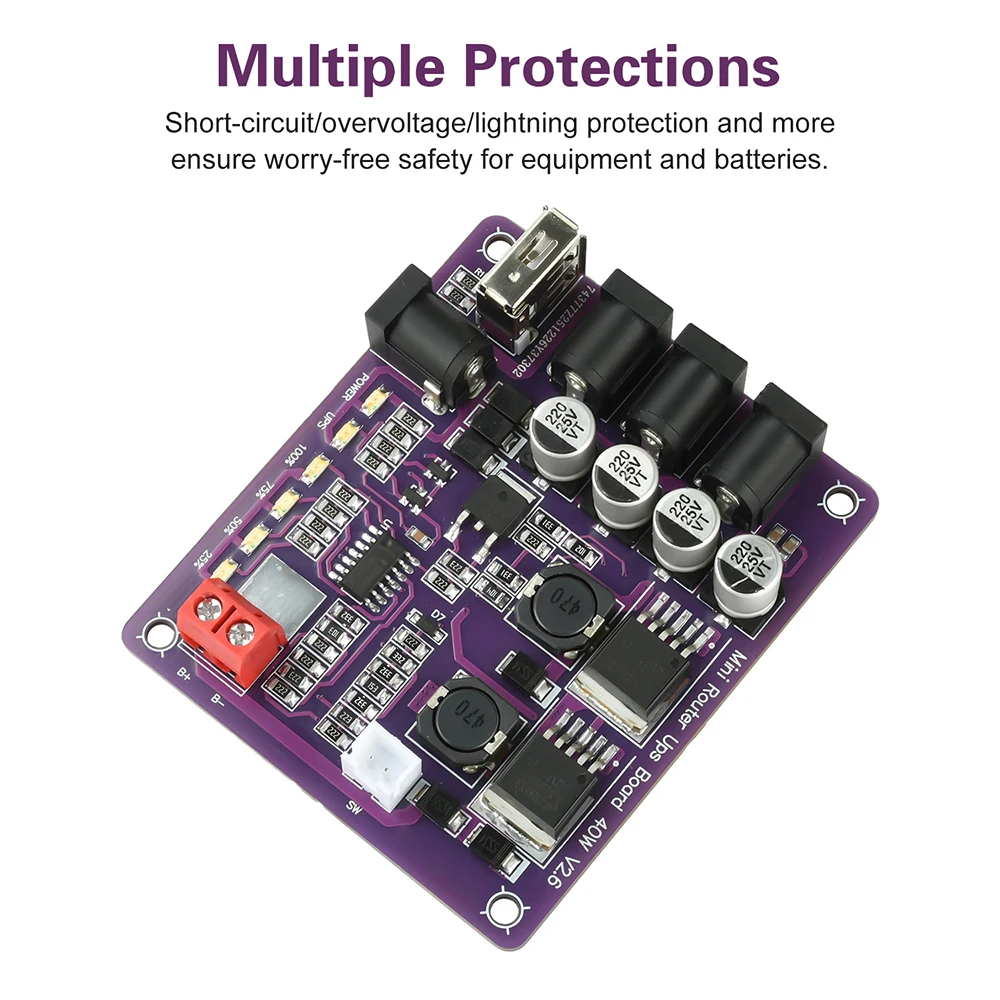

- Comprehensive Protection: Engineered with short-circuit, overvoltage, surge, and reverse polarity protection, this UPS board safeguards both your equipment and batteries, enhancing longevity and reliability.
- Intuitive Power Monitoring: A four-stage battery percentage indicator displays power levels at 100%, 75%, 50%, and 25%, allowing for precise monitoring and preventing unexpected shutdowns.
- Compact and Convenient Design: Featuring a mini module and terminal cable setup, this UPS board is easy to install and can be seamlessly integrated into various router configurations.
🧩 Specifications:

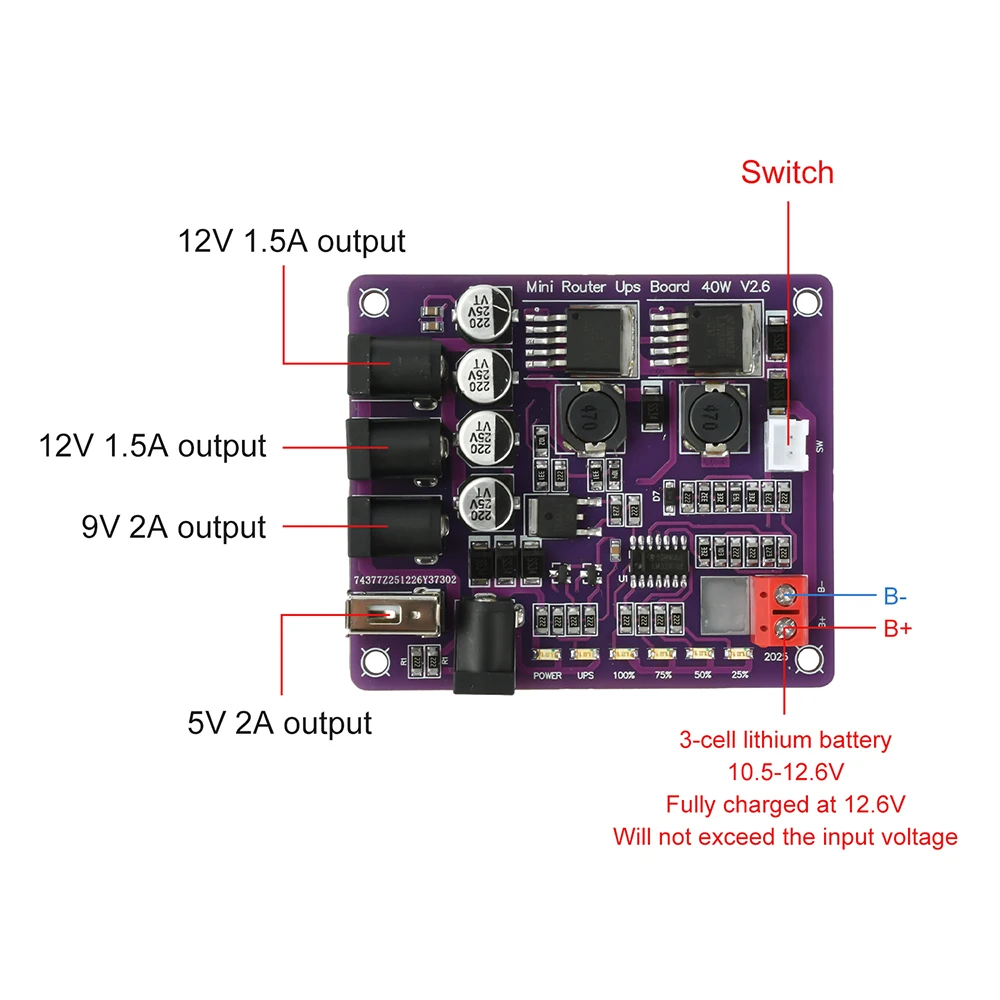

- Output Ports:
- Port 1: DC Output 12V/1.5A
- Port 2: DC Output 12V/1.5A
- Port 3: DC Output 9V/2A
- Port 4: USB Output 5V/2A
- Input Power: DC 12.6V to 13.0V (2A–5A)
- Maximum Output Power: 40W (with peaks up to 47.5W)
- Protection Features: Short-circuit, high-voltage, reverse polarity, output overvoltage, lightning surge protection
- Output Voltage Tolerance: ±0.05%
- Battery Monitor: Displays battery percentage (100%, 75%, 50%, 25%)
- Output Accuracy: 99%
- Compatible Battery: -11.1V (3S LiPo 18650 battery)
- Full Charge Voltage: 12.6V
- Undervoltage Protection: 10.5V

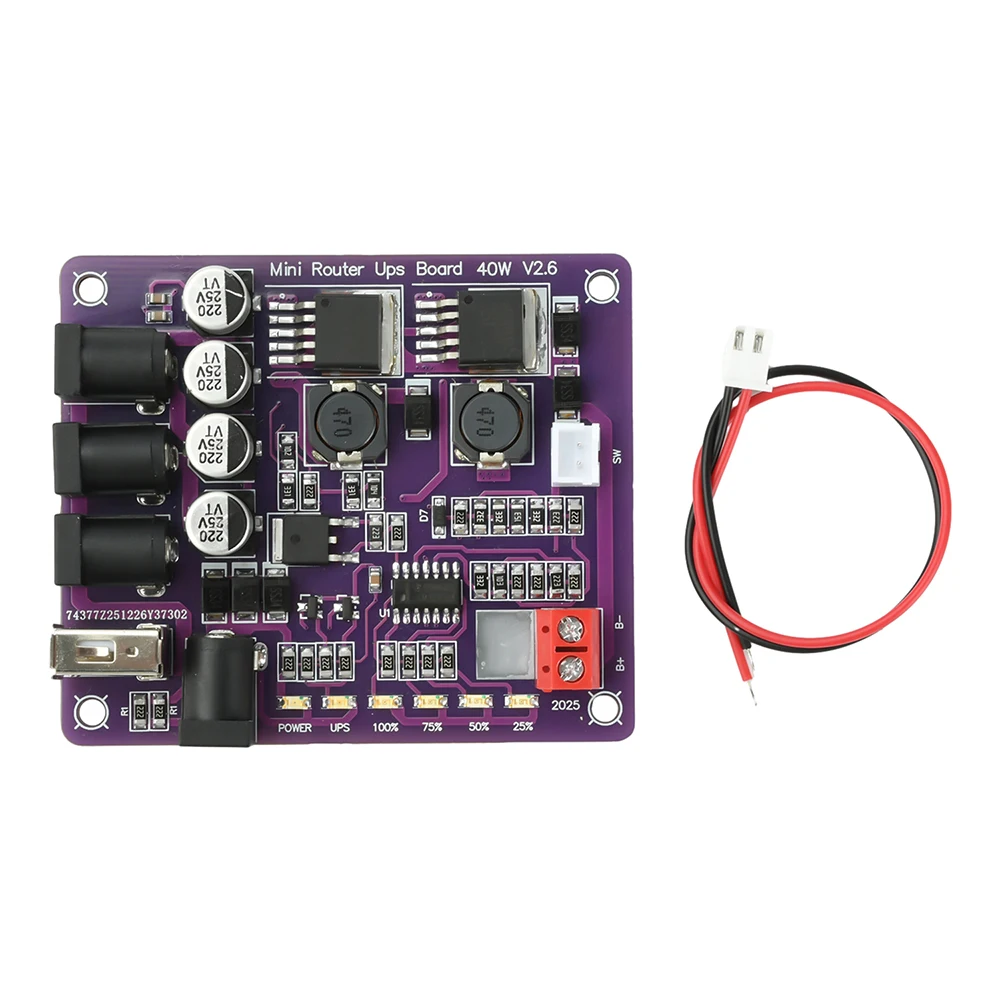

⚡ Included in the Package:
- Module: 1
- Terminal Cable: 1
🔴 Ensure uninterrupted connectivity and stable power for your networking equipment with the 40W UPS Uninterruptible Power Supply Board, designed to deliver a reliable backup solution tailored for your needs.
