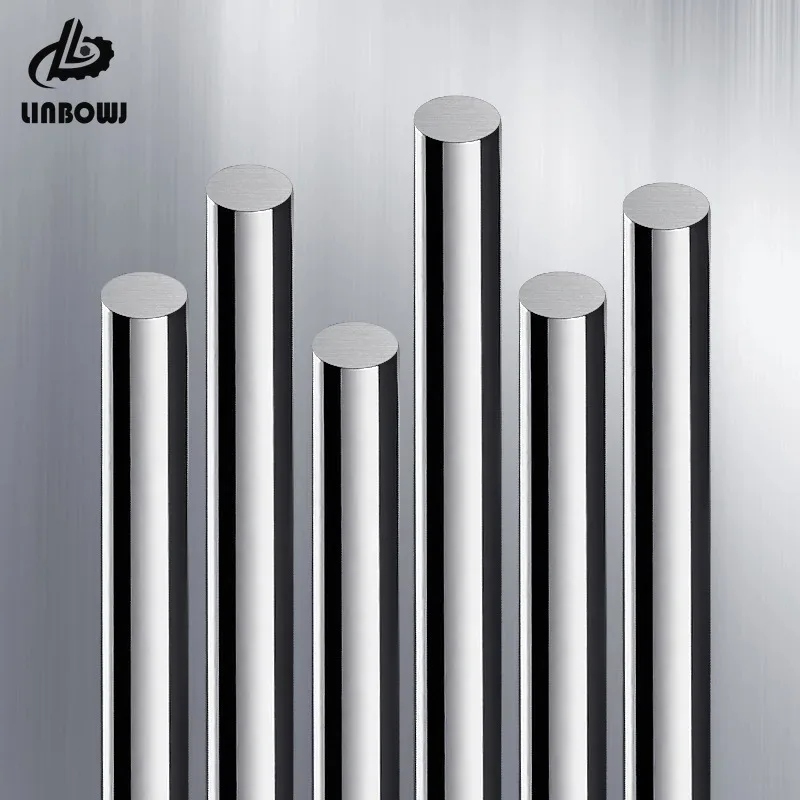

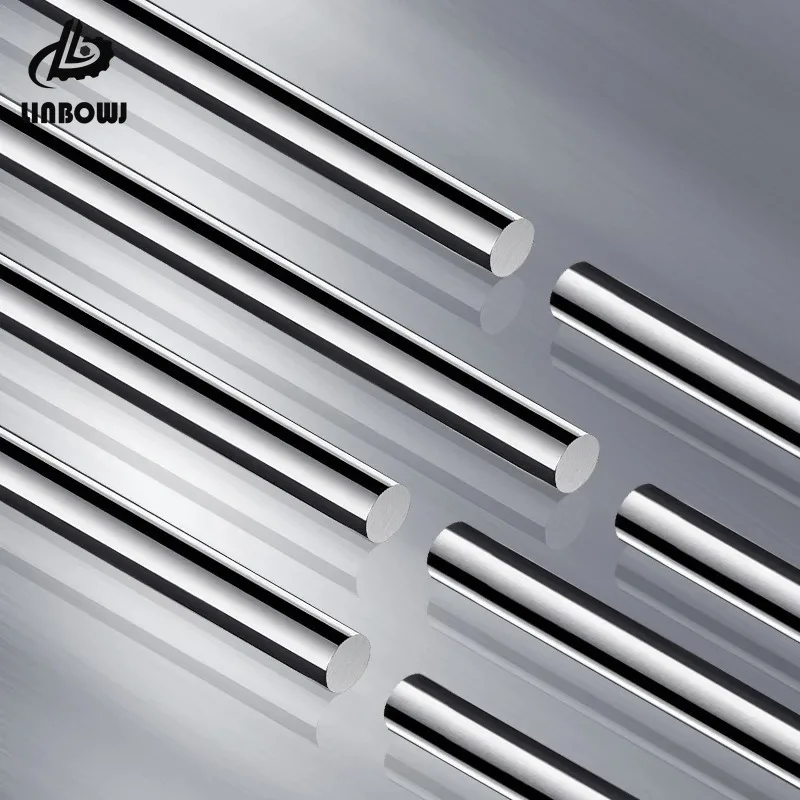

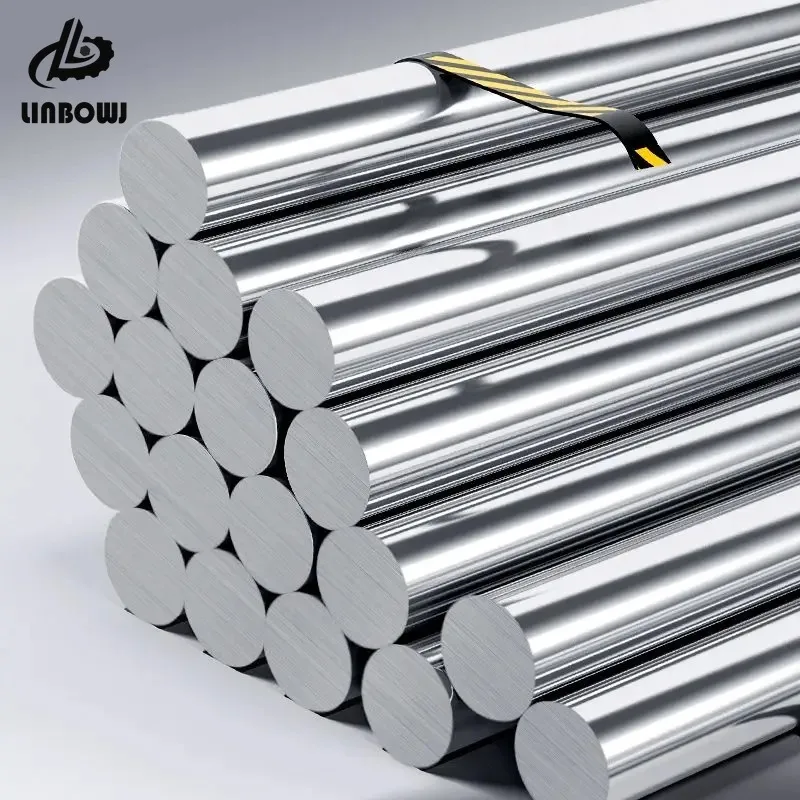

Multisize Linear Shaft 303 Stainless Steel Rod - 100mm

🛠️ Product Title: High-Precision 303 Stainless Steel Linear Shaft Rods

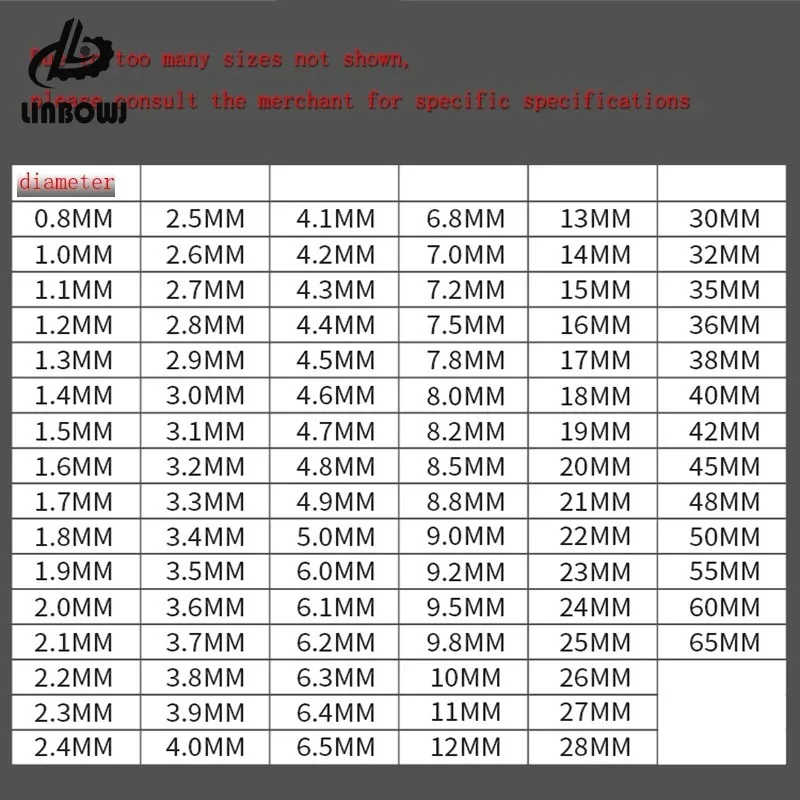

🧩 Available Diameters: 1mm, 2mm, 3mm, 4mm, 5mm, 6mm, 7mm, 8mm, 9mm, 10mm, 10.5mm, and many more up to 20mm. Custom sizes available upon request.

🔴 Length Options: Our rods come in various lengths ranging from 100mm to 500mm, and we offer complimentary cutting services, tailored to meet your exact specifications.

🏆 Material Excellence: Crafted from 303 stainless steel, a high-quality austenitic grade widely known for its superior machinability and corrosion resistance. To enhance its properties, we incorporate up to 0.60% molybdenum, allowing for improved performance against abrasion.

💍 Mechanical Strength: The 303 stainless steel exhibits impressive mechanical characteristics, including a tensile strength of 515MPa following annealing and stress relief treatments. It possesses a yield strength of 205MPa and an elongation of 40%, ensuring durability and resilience in a variety of applications.

🛠️ Standard Hardness: This material maintains a hardness rating of HRB 90-100 and HRC 20-25, making it suitable for tasks requiring both strength and precision.

🧩 Ideal Applications: Due to its composition which includes sulfur and selenium, 303 stainless steel is ideally suited for operations that demand easy cutting and a high surface finish. Common applications include components for automatic lathes, bolts, nuts, and parts where tight tolerances and surface integrity are paramount.

Chemical Composition Breakdown:

• Carbon (C): ≤ 0.15
• Silicon (Si): ≤ 1.00
• Manganese (Mn): ≤ 2.00
• Sulfur (S): ≥ 0.15
• Phosphorus (P): ≤ 0.20
• Chromium (Cr): 17.00–19.00
• Nickel (Ni): 8.00–10.00
• Molybdenum (Mo): ≤ 0.60

♻️ Important Notes:

• Manual measurements may have a tolerance of 0.1-0.3mm; we appreciate your understanding.
• Color variations may occur based on display settings; we ask for your comprehension on this matter.
• This product is a small component; please ensure it is kept out of reach of children.

🌫️ To select your preferred rod diameter and length, please use the dropdown menu provided above.

🛠️ Precision Tolerances: Rods up to 25mm have a tolerance of +0/-0.015"; rods over 25mm have a tolerance of +0/-0.025".

🧩 For inquiries regarding specific custom sizes or additional measurements not listed, do not hesitate to reach out for a personalized quote.
