Product Overview:

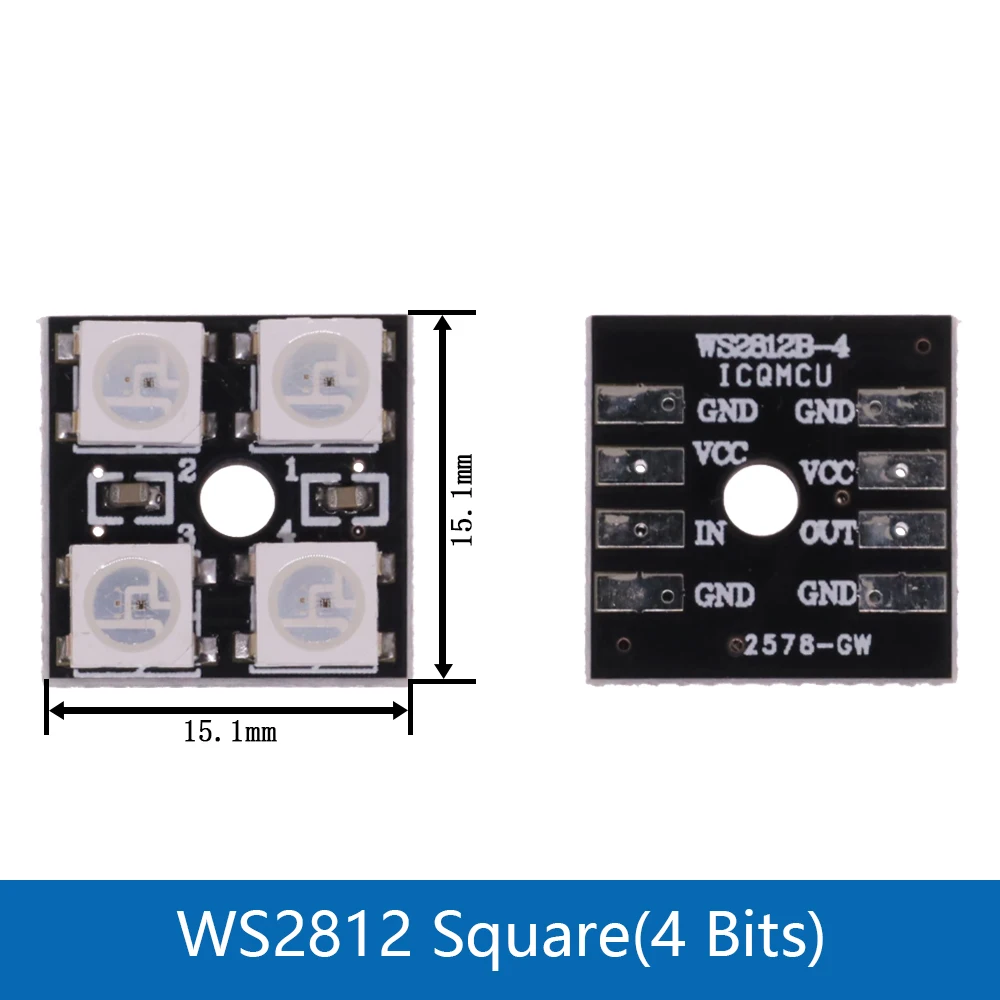

ðĶ The 1Bit 3 4Bit 7Bit 8Bit 12Bit 16Bit 24Bit 32 64Bits WS2812 5050 RGB LED Ring with Integrated Driver Controller Module is designed for enthusiasts and makers in the Arduino DIY community. This innovative lighting solution offers an intelligent LED light source that seamlessly integrates the control circuit with the light-emitting components in a compact 5050 package. As a brilliant choice for creating colorful displays, this module ensures optimal performance while maintaining simplicity in design and installation.
ð§ Technological Features:
- Protection Against Reverse Connection: Equipped with intelligent reverse connection protection, this module prevents damage to the integrated circuit (IC) even if the power is connected incorrectly.
- Shared Power Supply: Both the control circuit and the RGB LED point light source utilize a unified power supply, streamlining installation and ensuring efficiency.
- Signal Shaping Architecture: A built-in signal shaping circuit ensures that waveform distortion does not accumulate, allowing each pixel to reliably output reshaped signals for high-quality light displays.
- Power Management: The integrated circuits include built-in power-on and power-down reset mechanisms to enhance reliability and performance.
- Vibrant Color Display: Each pixel can achieve 256 brightness levels across three primary colors, leading to a full spectrum of 16,777,216 colors with a scanning frequency of no less than 400Hz/sec.
- Serial Cascade Interface: The module supports a single-line cascade data transmission, simplifying connections between numerous LED units.
- Distance Capabilities: No additional circuits are required for signal transmission between any two points within 5 meters, ensuring hassle-free installation.
- Cascade Capacity: With a refresh rate of 30 frames per second, this module can handle up to 1024 cascaded points, making it suitable for extensive installations.
- High-Speed Data Transmission: Capable of data transmission speeds reaching up to 800Kbps, enabling quick and efficient communication between connected devices.
- Consistent Color Quality: The module is designed for cost-effective production while maintaining high consistency across the colors emitted.
ðŠķ Applications:
This versatile LED module is perfect for a wide range of applications, including:
- Full-color luminous character strings
- LED pixel screens and decorative lighting
- LED soft light bars and guardrail tubes
- Indoor and outdoor LED displays, including irregular configurations
- Custom electronic projects requiring vibrant lighting solutions
ð§Đ Conclusion:
ð The WS2812 5050 RGB LED Ring with Integrated Driver Controller Module represents an evolution in DIY lighting technology, combining advanced features with ease of use. Ideal for hobbyists and professionals alike, it opens up endless possibilities for creative lighting projects.
