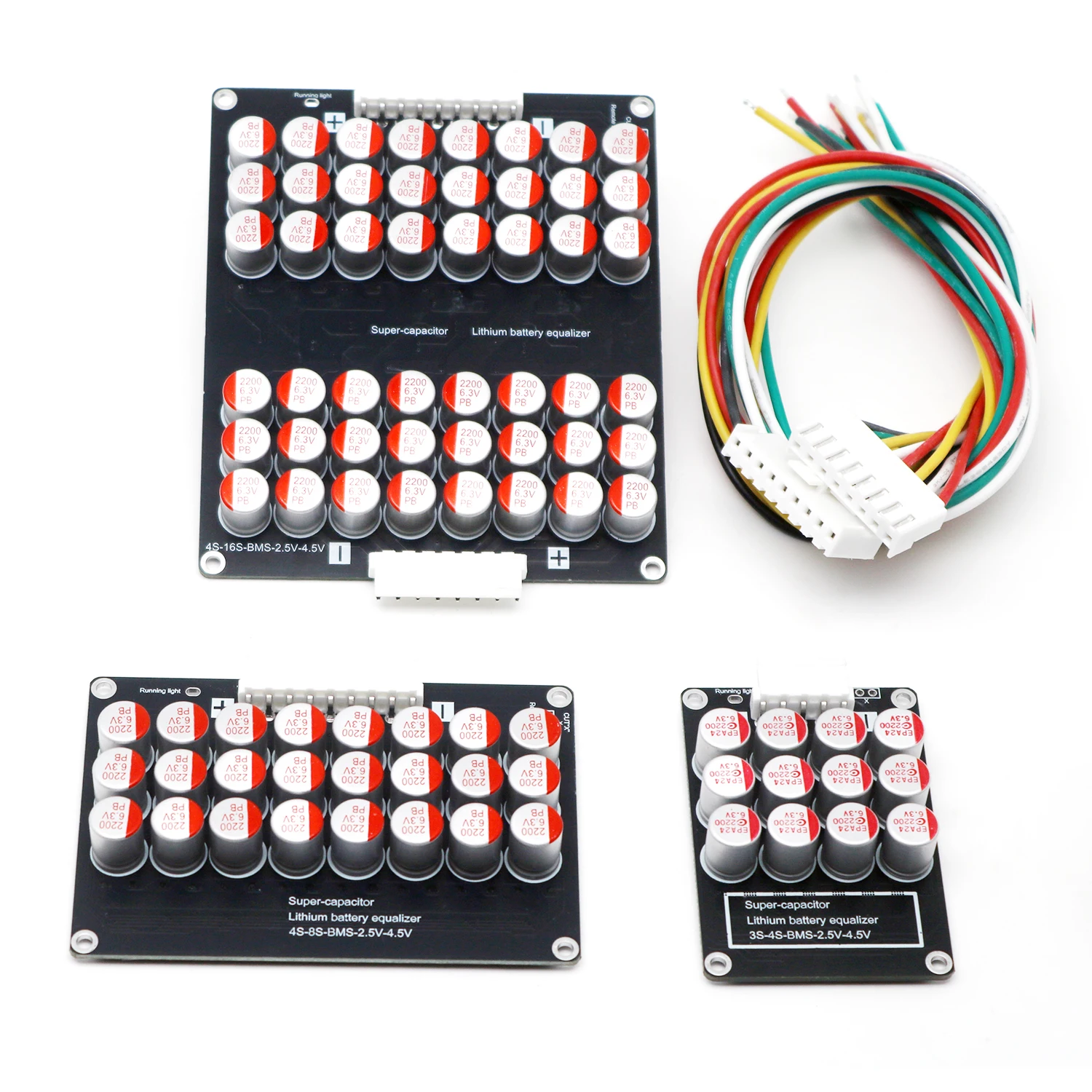

Advanced Lithium Battery Balancer & Energy Transfer System with BMS Protection (4S Supports 3S - 4S)

🏆 Introducing the 4S, 8S, 16S Active Equalizer Lithium Battery Balancer: an advanced energy transfer solution designed specifically for enhancing the performance of your battery systems. This versatile balancer is compatible with various configurations, including 3S up to 16S setups, making it ideal for a wide range of applications from electric vehicles to RV storage systems.

Key Features:

• Battery Compatibility: Perfectly suited for Lifepo4 and Li-ion battery types, this balancer maximizes the efficiency of energy transfer within your battery pack.
• Active Balancing Technology: Employs high-efficiency active balancing through capacitive energy transfer, ensuring uniform energy distribution across all cells.
• Precision Equalization: The high-precision balancing operates within a voltage range of 2.5-5V, achieving voltage accuracy within 5mV for optimal performance.
• Enhanced Design: Built with ultra-low internal resistance MOS technology and a robust 2OZ copper thickness PCB, it supports an equalization current of 0-6A based on your battery configuration.

🪶 Specifications:

• 4S Model: Supports 3S-4S configurations, dimensions 6.8 x 4.9 x 2 cm.
• 8S Model: Supports 4S-8S configurations, dimensions 9.8 x 6.5 x 2 cm.
• 16S Model: Supports 4S-16S configurations, dimensions 12 x 9.4 x 2 cm.

⚡ With a quiescent current of approximately 12 mA, this balancer is efficient in energy usage, recommended for battery capacities ranging from 60-300 AH. Additionally, the dormant power-off mode operates with a minimal current of less than 0.1 mA, ensuring energy conservation when the system is inactive.

💍 Before installation, please consult the accompanying advertising video and wiring diagram to ensure correct assembly and avoid damaging the board. Proper wiring is crucial, as variations in pressure and line length can influence current flow. Enjoy enhanced performance and longevity of your battery systems with this cutting-edge lithium battery energy transfer balancer!
