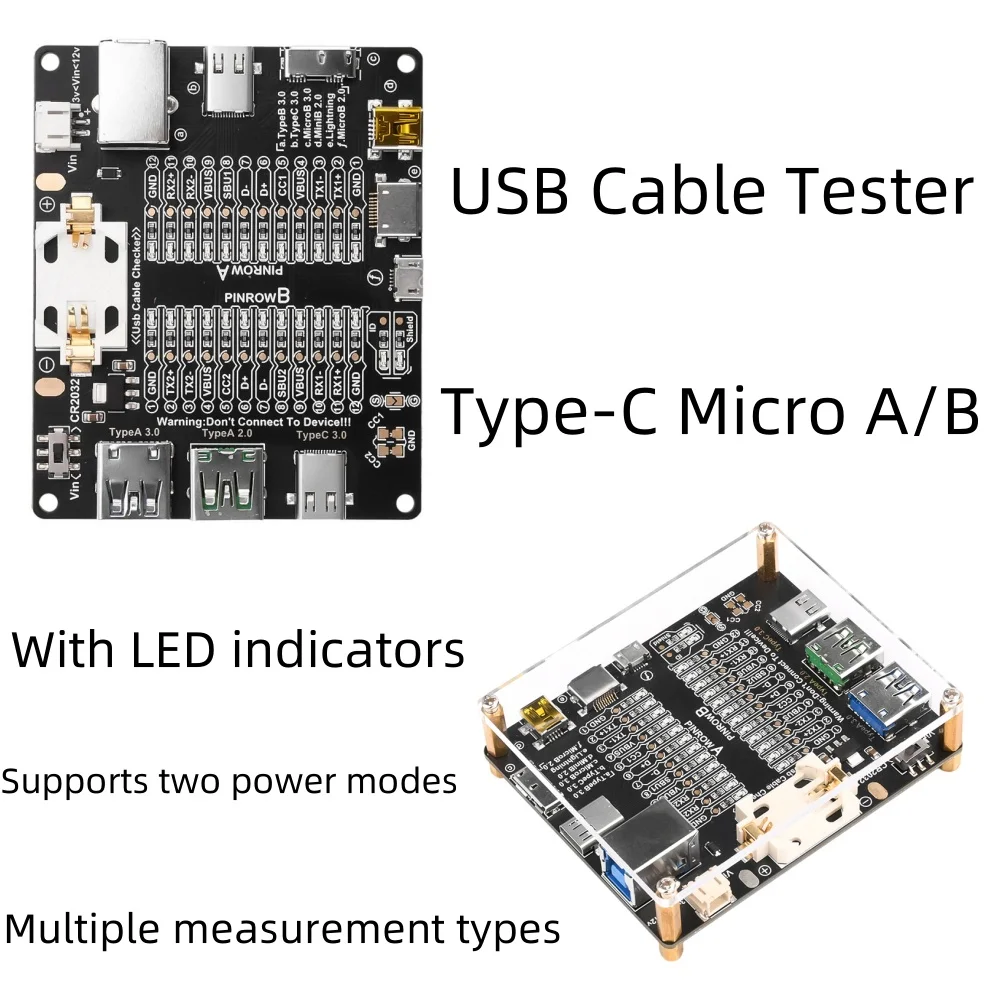

Data Cable Detection Board - USB Cable Tester

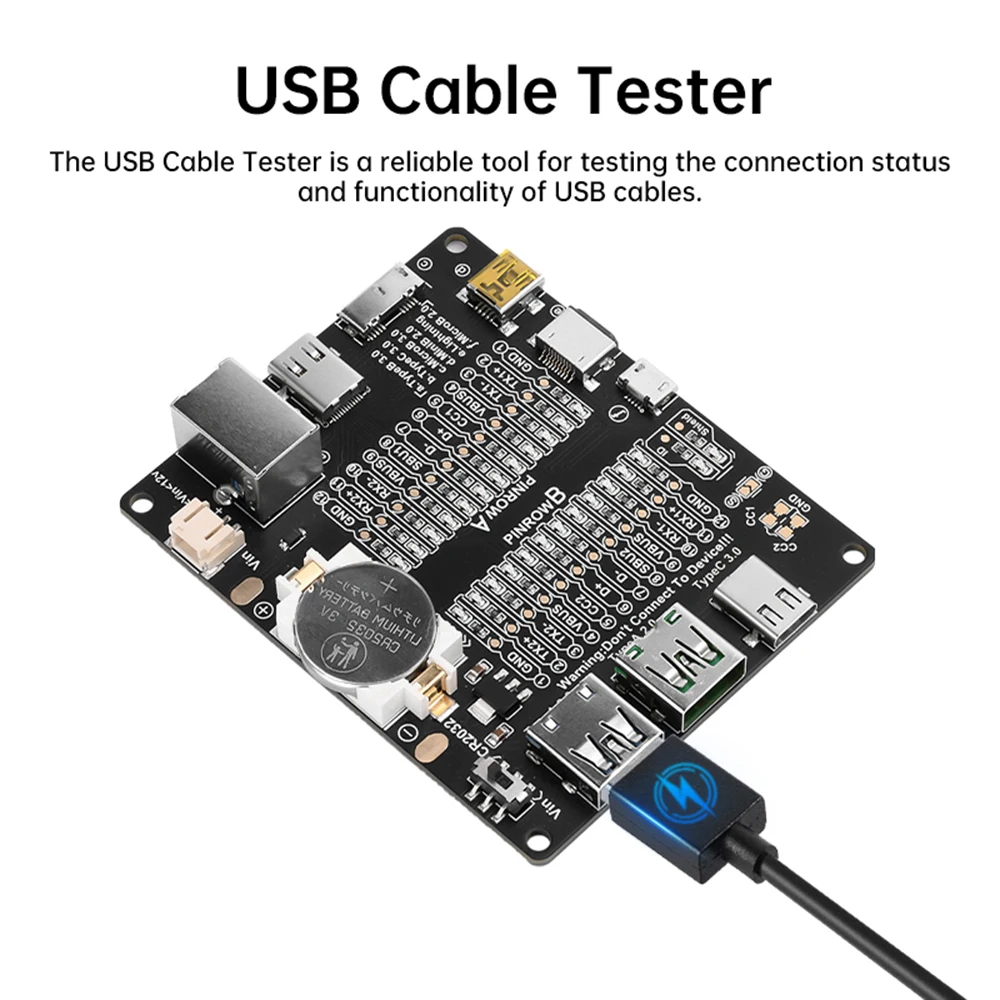

📦 The Data Cable Detection Board is an essential tool for anyone needing to assess the functionality and integrity of various USB cables. Whether you're a tech enthusiast, a professional technician, or an everyday user, this compact USB cable tester is designed to identify short circuits, continuity issues, and connection statuses with ease.
🔧 Key Features:
- Compact Design: With its lightweight and portable build, this device is easy to carry and store, making it perfect for on-the-go testing.
- LED Indicator Lights: The board features 24 LED indicator lights that provide clear visual feedback. Each pin on the USB cable corresponds to a specific LED, enabling users to quickly diagnose the cable's condition.
- Multiple Power Modes: Users can choose to power the board using a CR2032 button battery or an external power supply ranging from DC 3-12V. The external power option is equipped with directional connection protection, enhancing safety during use.
- Intuitive Interface: The testing process is straightforward. Simply insert both ends of the USB cable into their respective connectors on the board, and the LED indicators will reveal whether the cable is functioning properly or has a fault, providing users with immediate insights into the cable’s status. (Note: This tester does not measure the carrying capacity of the cable.)
- Wide Compatibility: The tester supports a range of USB types, including Type-B 2.0, Type-B 3.0, Type-C 3.0/3.1/3.2, Micro-B 2.0/3.0, Mini-B 2.0, and Lightning, making it versatile for various devices and applications.
🔍 Specifications:
- Product Name: USB Data Cable Test Board
- Power Supply: Supports battery operation (CR2032) and external power sources (DC 3-12V)
- Type Options: Available in variants with battery, without battery, with casing, or without casing to suit user preferences.
- Dimensions: 8.5 cm x 7 cm
⚡ Included in the Package:
- 1 x USB Data Cable Test Board
🏆 This USB Cable Tester is a reliable and efficient solution for evaluating the performance of USB cables, making it an invaluable addition for anyone dealing with electronic devices.
