Advanced Lithium Ion Battery Protection Board with Temperature Sensor and Heat Sink, 36V/48V, 15A/20A (13S 48 15A common)

🔒 Introducing Our Advanced Li-ion Battery Protection Boards: Tailored for efficient and secure operation, our battery management systems (BMS) are designed to enhance the performance and safety of your lithium-ion battery setups. Choose from our selection of common and split port configurations, perfectly calibrated for various applications. Below, you'll find detailed specifications for each product variant, ensuring you select the right protection board for your needs.

⚡ 10S 36V 15A Common Port (No TC Temperature Sensor) - Model: HXYP-DL10S-15
- Continuous Discharge Rate: 15A ± 2A
- Peak Discharge Rate: 40A ± 3A
- Charge Voltage Limit: 42V
- Continuous Charge Limit: 8A ± 1A
- Charge Protection Limit: 10A ± 1A
- Dimensions: 60mm x 32.5mm x 9mm
- Over Charge Voltage: 4.25V ± 0.05V
- Over Charge Release Voltage: 4.15V ± 0.1V
- Over Discharge Voltage: 2.8V ± 0.025V
- Over Discharge Release Voltage: 3V ± 0.05V

⚡ 10S 36V 20A Split Port (No TC Temperature Sensor) - Model: HXYP-DL10S-15F
- Continuous Discharge Rate: 20A ± 2A
- Peak Discharge Rate: 40A ± 3A
- Charge Voltage Limit: 42V
- Continuous Charge Limit: 5A ± 1A
- Charge Protection Limit: 10A ± 1A
- Dimensions: 60mm x 32.5mm x 9mm
- Over Charge Voltage: 4.25V ± 0.05V
- Over Charge Release Voltage: 4.15V ± 0.1V
- Over Discharge Voltage: 2.8V ± 0.025V
- Over Discharge Release Voltage: 3V ± 0.05V

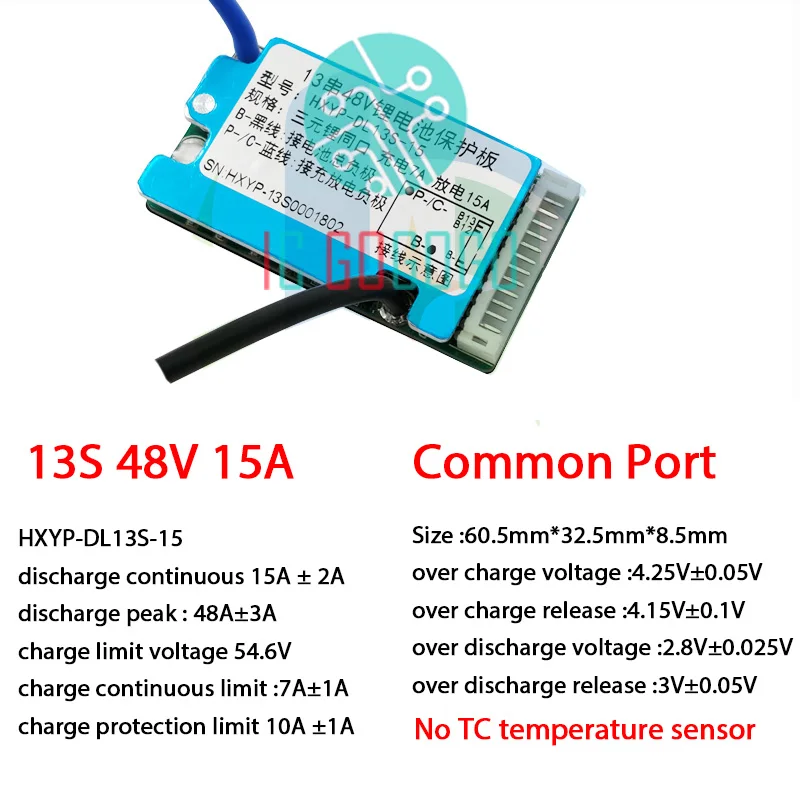

⚡ 13S 48V 15A Common Port (No TC Temperature Sensor) - Model: HXYP-DL13S-15
- Continuous Discharge Rate: 15A ± 2A
- Peak Discharge Rate: 48A ± 3A
- Charge Voltage Limit: 54.6V
- Continuous Charge Limit: 7A ± 1A
- Charge Protection Limit: 10A ± 1A
- Dimensions: 60.5mm x 32.5mm x 8.5mm
- Over Charge Voltage: 4.25V ± 0.05V
- Over Charge Release Voltage: 4.15V ± 0.1V
- Over Discharge Voltage: 2.8V ± 0.025V
- Over Discharge Release Voltage: 3V ± 0.05V

⚡ 13S 48V 20A Split Port (No TC Temperature Sensor) - Model: HXYP-DL13S-20
- Continuous Discharge Rate: 20A ± 2A
- Peak Discharge Rate: 48A ± 3A
- Charge Voltage Limit: 54.6V
- Continuous Charge Limit: 5A ± 1A
- Charge Protection Limit: 10A ± 1A
- Dimensions: 60.5mm x 32.5mm x 8.5mm
- Over Charge Voltage: 4.25V ± 0.05V
- Over Charge Release Voltage: 4.15V ± 0.1V
- Over Discharge Voltage: 2.8V ± 0.025V
- Over Discharge Release Voltage: 3V ± 0.05V

⚡ 13S 48V 15A Common Port (With TC Temperature Sensor) - Model: HXYP-DL13S-15-T
- Continuous Discharge Rate: 15A ± 2A
- Peak Discharge Rate: 48A ± 3A
- Charge Voltage Limit: 54.6V
- Continuous Charge Limit: 7A ± 1A
- Charge Protection Limit: 10A ± 1A
- Dimensions: 60.5mm x 32.5mm x 8.5mm
- Over Charge Voltage: 4.25V ± 0.05V
- Over Charge Release Voltage: 4.15V ± 0.1V
- Over Discharge Voltage: 2.8V ± 0.025V
- Over Discharge Release Voltage: 3V ± 0.05V
- Over Temperature Protection Range: -10°C to 70°C

⚡ 13S 48V 20A Split Port (With TC Temperature Sensor) - Model: HXYP-DL13S-20-T
- Continuous Discharge Rate: 20A ± 2A
- Peak Discharge Rate: 48A ± 3A
- Charge Voltage Limit: 54.6V
- Continuous Charge Limit: 5A ± 1A
- Charge Protection Limit: 10A ± 1A
- Dimensions: 60.5mm x 32.5mm x 8.5mm
- Over Charge Voltage: 4.25V ± 0.05V
- Over Charge Release Voltage: 4.15V ± 0.1V
- Over Discharge Voltage: 2.8V ± 0.025V
- Over Discharge Release Voltage: 3V ± 0.05V
- Over Temperature Protection Range: -10°C to 70°C

Choose the ideal model based on your specific requirements and experience enhanced battery management with our reliable BMS solutions.
