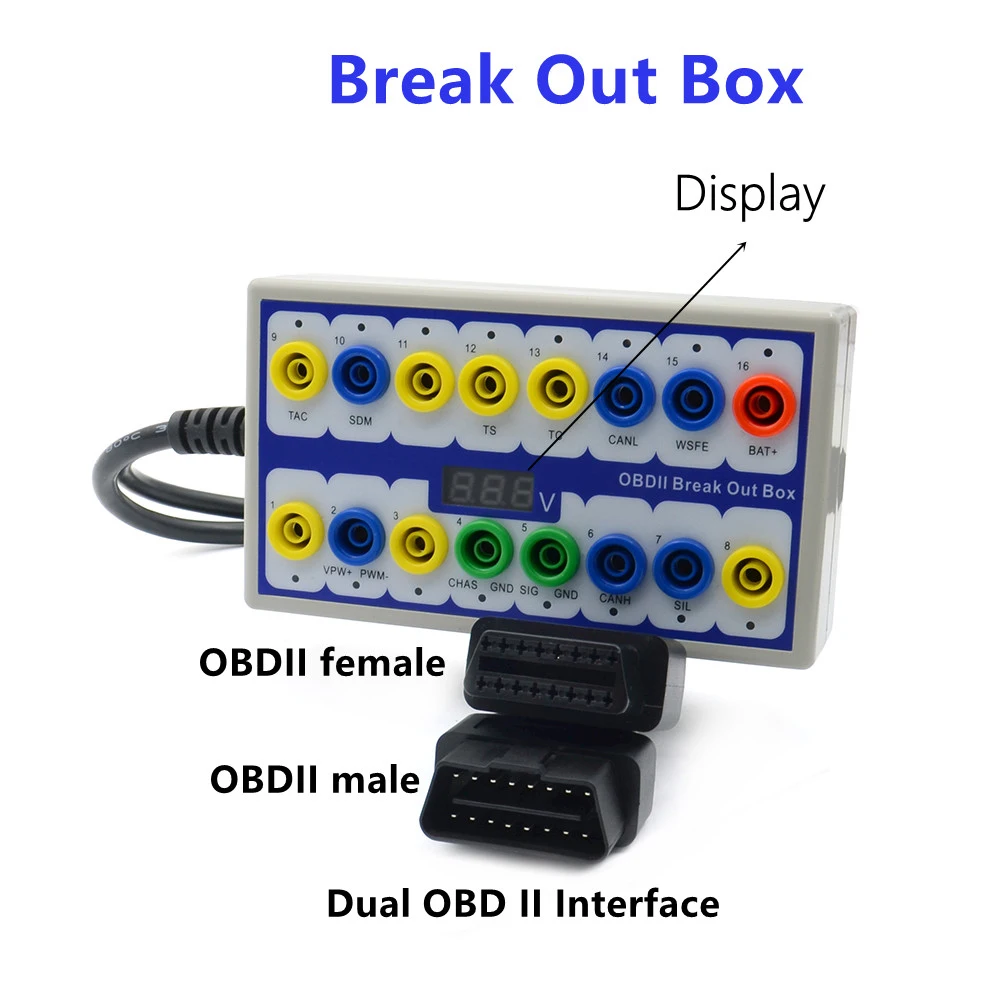

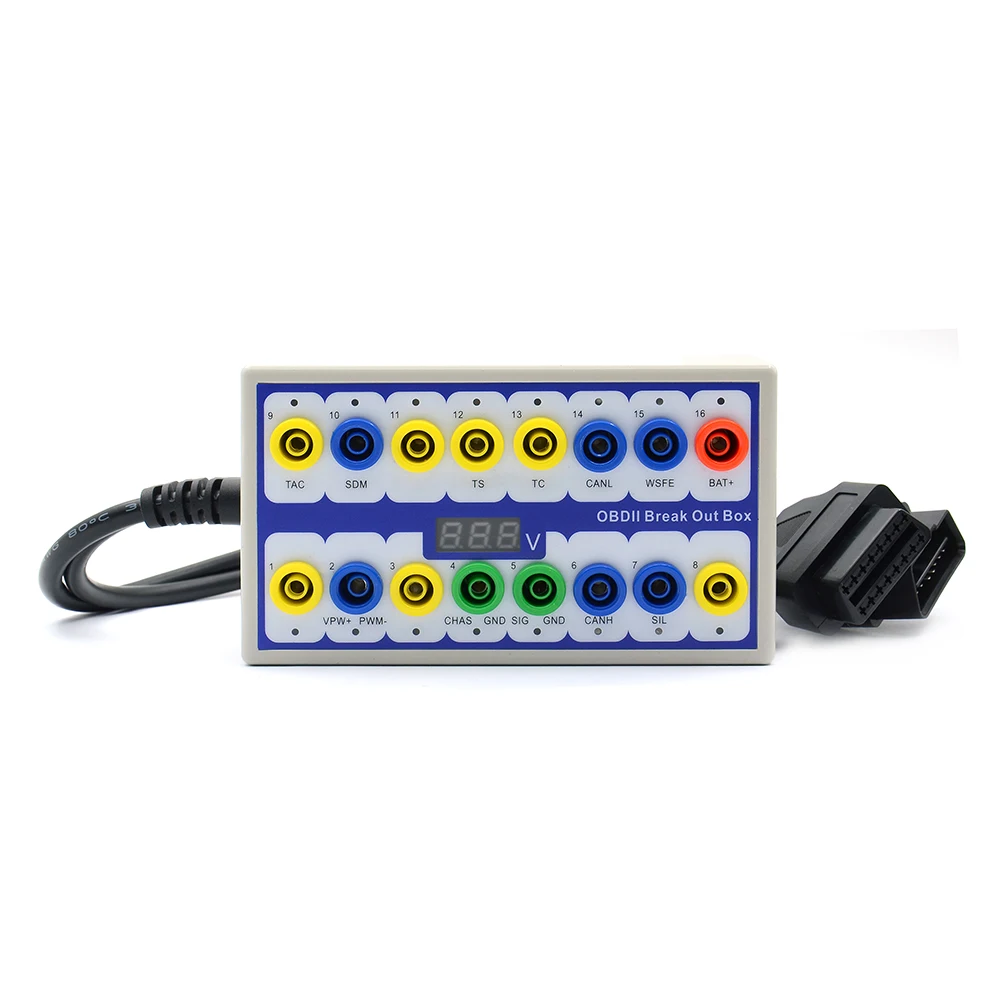

Advanced OBD2 Diagnostic Signal Analyzer and Breakout Box (OBDII Break Out Box)

Product Description:

💍 The OBDII Break Out Box serves as an essential diagnostic tool for automotive technicians and enthusiasts alike, providing crucial insight into a vehicle's onboard diagnostics system. Designed to facilitate the assessment and monitoring of OBD2 signals, this device enables users to perform comprehensive signal judgment and transfer with unparalleled ease and accuracy.

🔁 This innovative tool is particularly invaluable for diagnosing vehicle faults, programming keys, and tuning chips. With its multifaceted applications, users can:

• Monitor data streams while conducting diagnostic tests with a Scantool, allowing for real-time observation and analysis.
• Efficiently display testing voltage levels directly from the vehicle, ensuring that all readings are accurate and reliable.
• Identify and display the specific communicating pin number, streamlining the diagnostic process.
• Enhance the functionality of the OBD Diagnostic Link Connector (DLC) for more efficient communication with the car's systems.

💍 Key Features:

• Facilitates error detection and diagnosis within the OBD connector link, ensuring issues can be swiftly identified and addressed.
• Monitors the OBD interface for voltage and ground stability, immediately signaling low voltage conditions and potential diagnostic errors.
• Enables quick and easy jumping of OBD interface signals, including those of 7 to 15 vehicles online, optimizing the diagnostic experience.
• Rapidly assesses the OBD2 diagnostic connector to verify the normal communication of each pin, promoting effective troubleshooting.
• Includes a function to save vehicle data during battery replacement, preventing data loss and ensuring continuity.

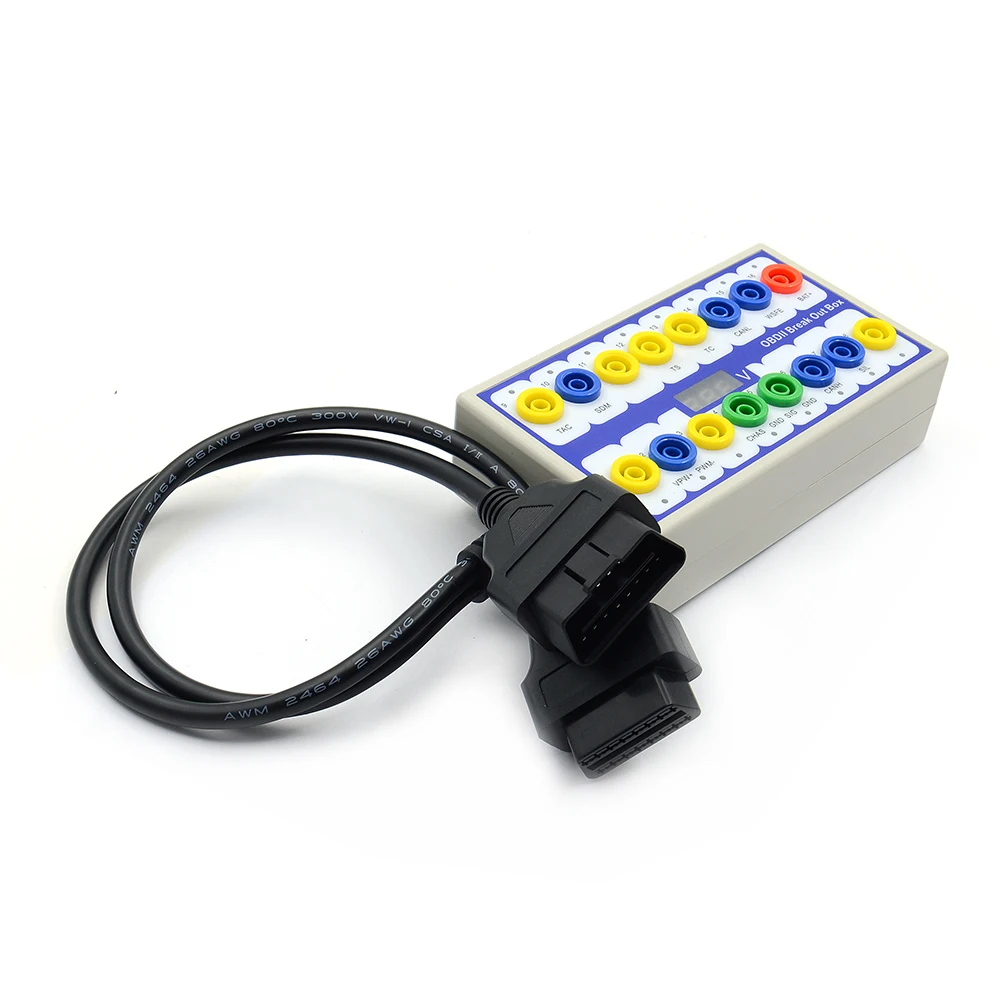

🛡️ The OBDII Break Out Box is professionally constructed with a durable plastic housing, making it practical for robust use in various environments. Its compact dimensions of 155mm x 78mm x 40mm and lightweight design enhance portability, while the included 112mm cable length provides flexibility in accessing vehicle diagnostic ports.

Technical Specifications:

• Size: 155mm x 78mm x 40mm
• Material: Plastic
• Length of Cable Line: 112mm
• Color: White

⚪ Package Includes:

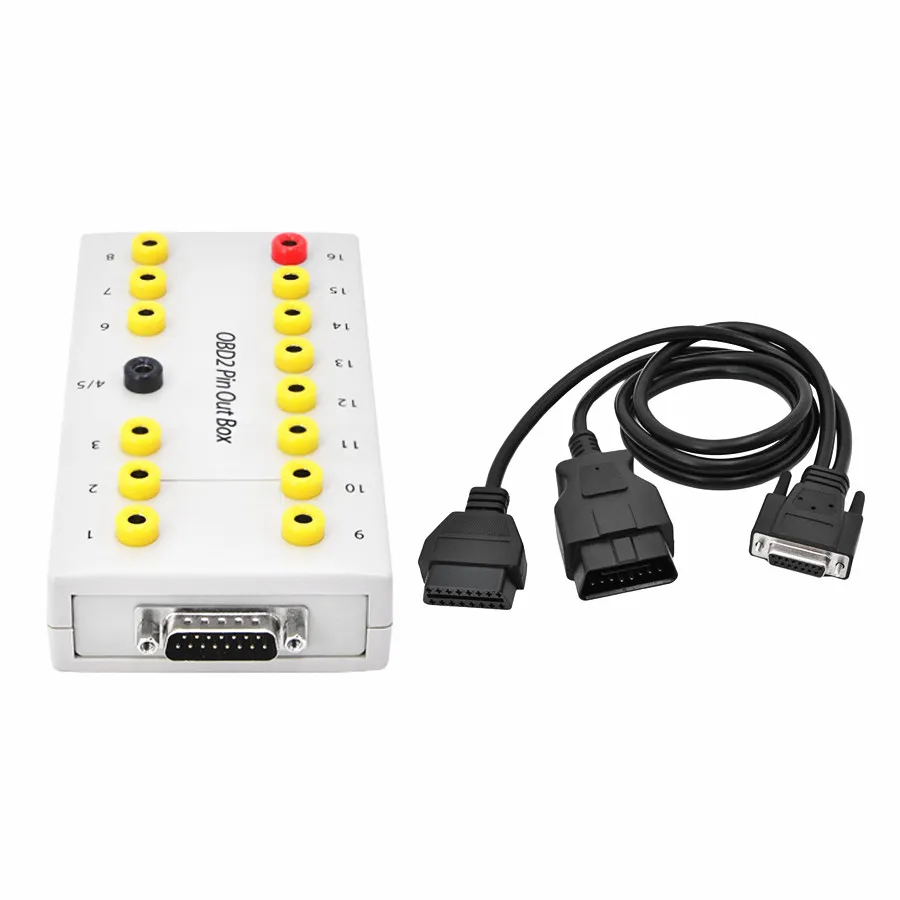

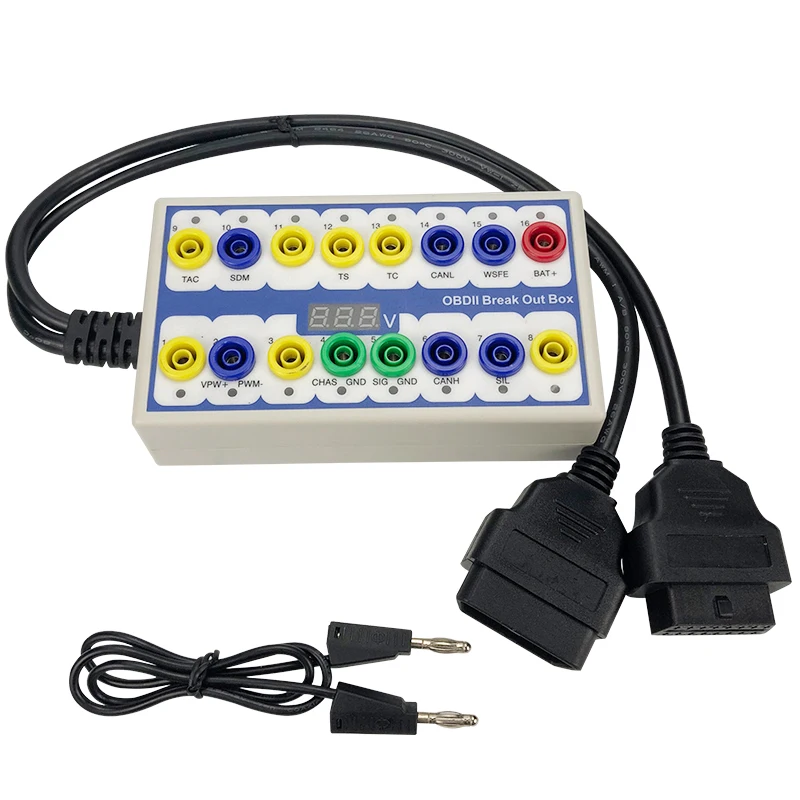

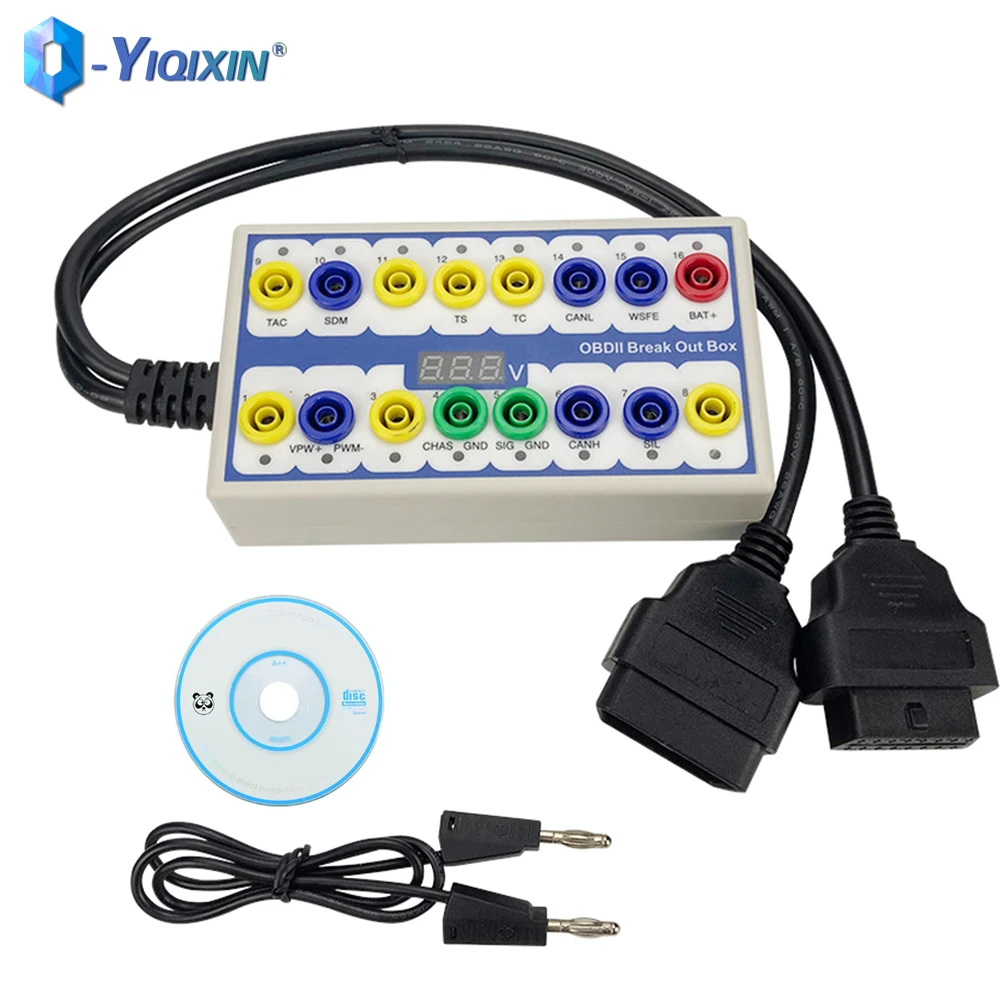

• 1pc x OBDII Protocol Detector & Break Out Box
• 1pc x Connect Cable

🛠️ For professionals and DIY enthusiasts looking to elevate their diagnostic capabilities, the OBDII Break Out Box is an indispensable addition to any toolkit, ensuring precision and reliability in automotive diagnostics.
