Smart Wireless Switch Receiver 10A 433MHz RF Relay Remote (Black)

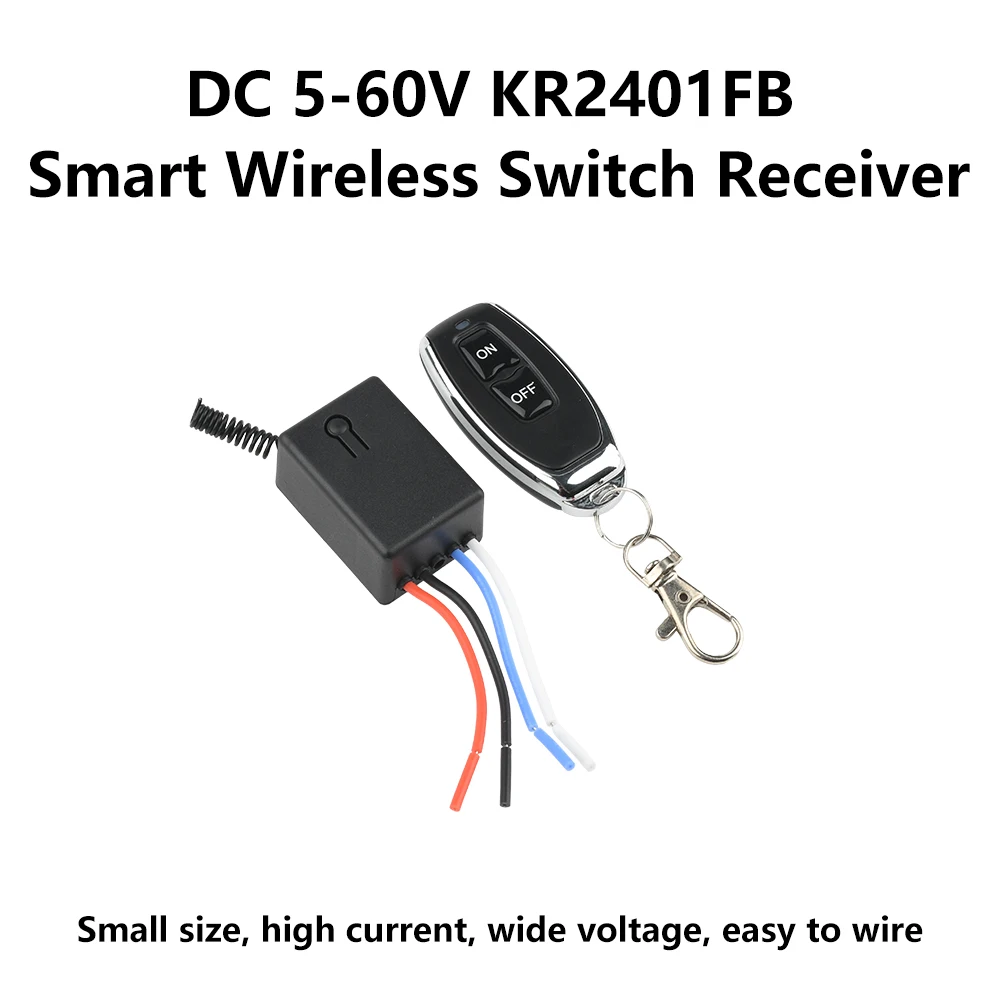

📶 KR2401FB Smart Wireless Switch Receiver
Unlock the power of seamless control with the KR2401FB Smart Wireless Switch Receiver. This innovative device is designed for versatility and ease of use in a variety of applications, making it an essential addition to your wireless control solutions.

🔧 Product Features:

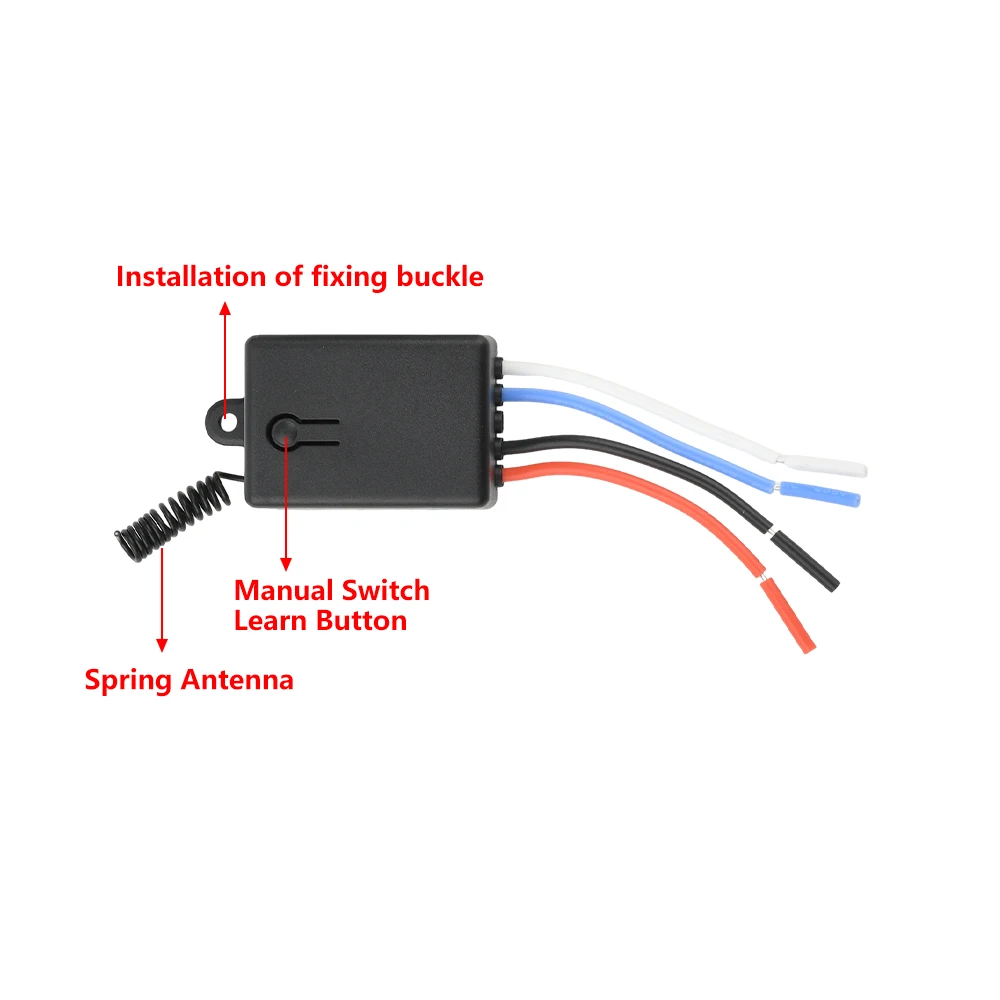

• Compact and Easy to Install: The KR2401FB boasts a streamlined design that not only saves space but also simplifies the installation process, allowing you to integrate it into your existing setup effortlessly.

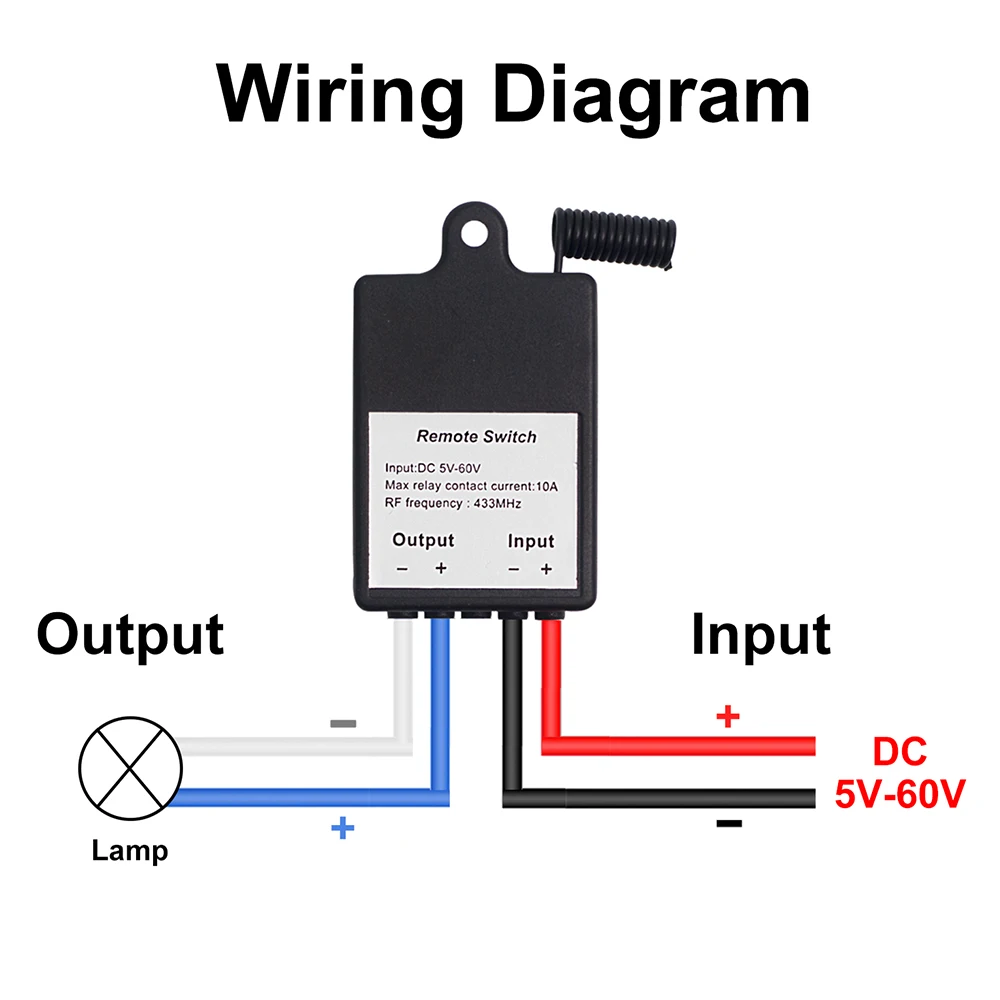

• Wide Voltage Support: Operating within a broad voltage range of DC 5-60V, this receiver is adaptable to various power supply environments, ensuring that you can use it in different applications with ease.

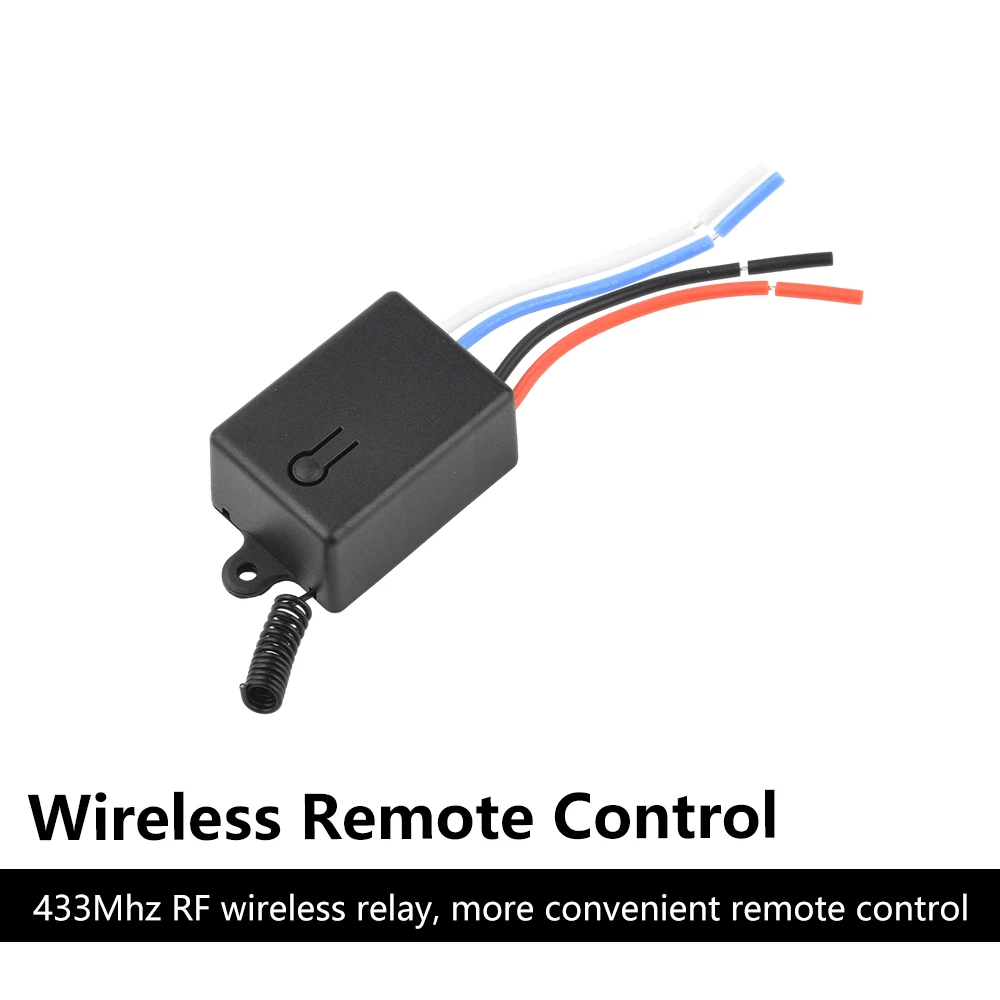

• Convenient Wireless Remote Control: Harness the power of 433MHz RF technology that enables you to operate devices remotely, giving you the flexibility to control your equipment from a distance.

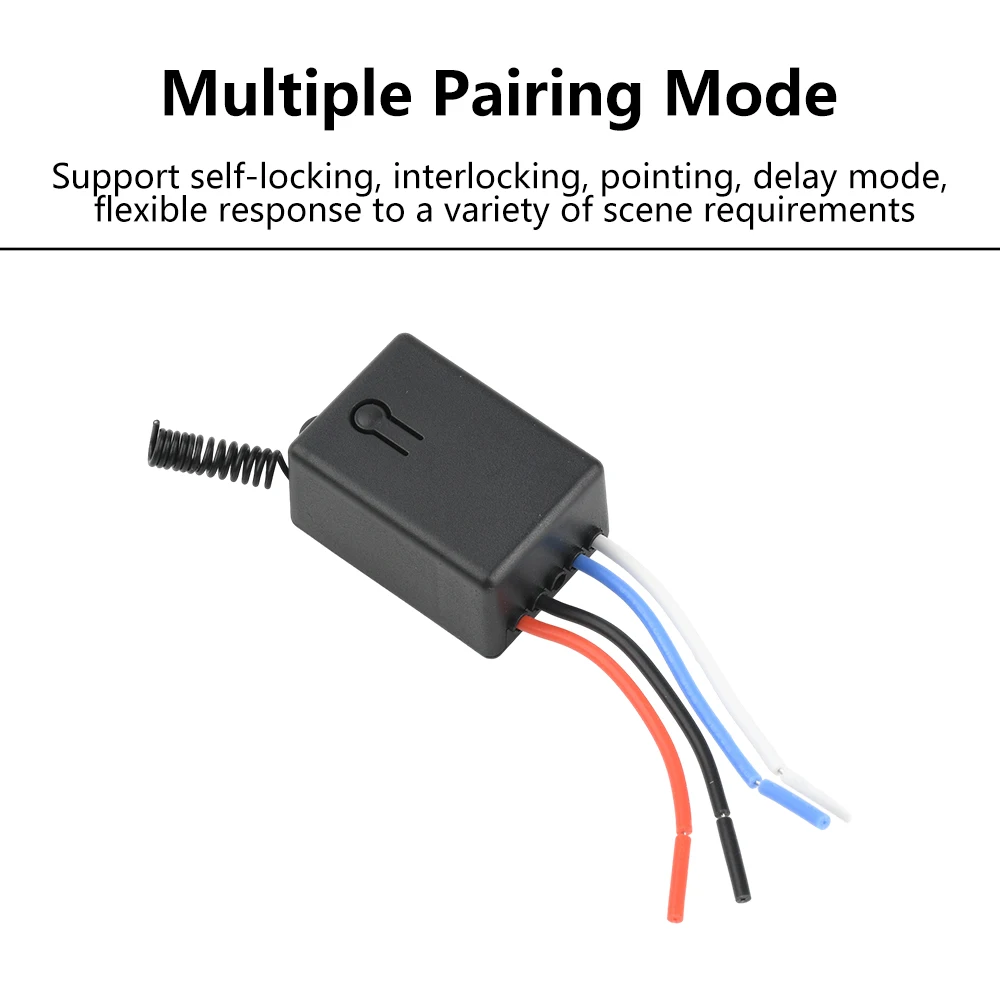

• Multiple Pairing Modes: Tailor your device's functionality to meet your specific needs with options for self-locking, interlocking, momentary, and delay modes; each designed to accommodate a wide range of scenario requirements.

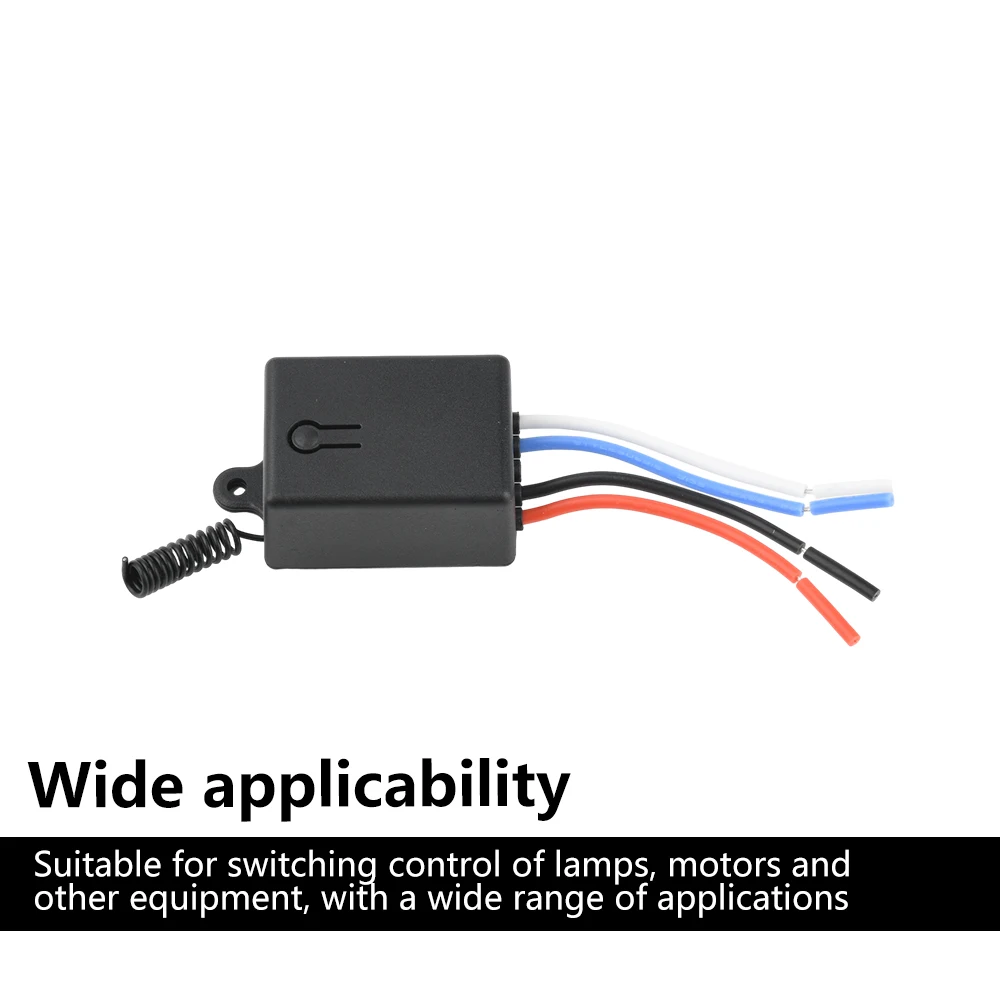

• Versatile Application: This receiver is perfect for a variety of uses, including the control of lighting fixtures, motors, and other electrical equipment, showcasing its broad applicability across different settings.

🪶 Product Specifications:

• Operating Voltage: DC 5-60V
• Maximum Relay Contact Current: 10A
• Frequency: 433MHz
• Control Method: Remote Control
• Dimensions: 40*29.4*21.3mm
• Cable Length: Approx. 6cm

💍 Pairing Instructions:

🔘 1. Self-Locking Mode: A single button on the remote controls both activation and deactivation. Press once to power on, again to turn off.
Setup: Press the receiver button twice; the indicator light will remain steady. Press the remote’s button to pair; the light will extinguish upon success.

🔘 2. Interlock Mode: Use two separate buttons to manage power; one for turning on, the other for turning off.
Setup: Press the receiver button three times; the light will indicate pairing mode. Select a button on the remote; hold the other until the light extinguishes to complete pairing.

🔘 3. Momentary Mode: Press and hold a button to energize the output; releasing it will de-energize.
Setup: Press the receiver button once to enter pairing mode, then press the remote button to finalize pairing.

🔘 4. Delay Mode: Activate the output for a set duration (5s/10s/15s/20s) before it turns off.
Setup: Press the receiver button multiple times corresponding to the delay length, then pair with the remote.

🔘 5. Reset Procedure: Restore default settings by pressing the receiver button eight times; this will erase stored data and revert the unit to its original power behavior.

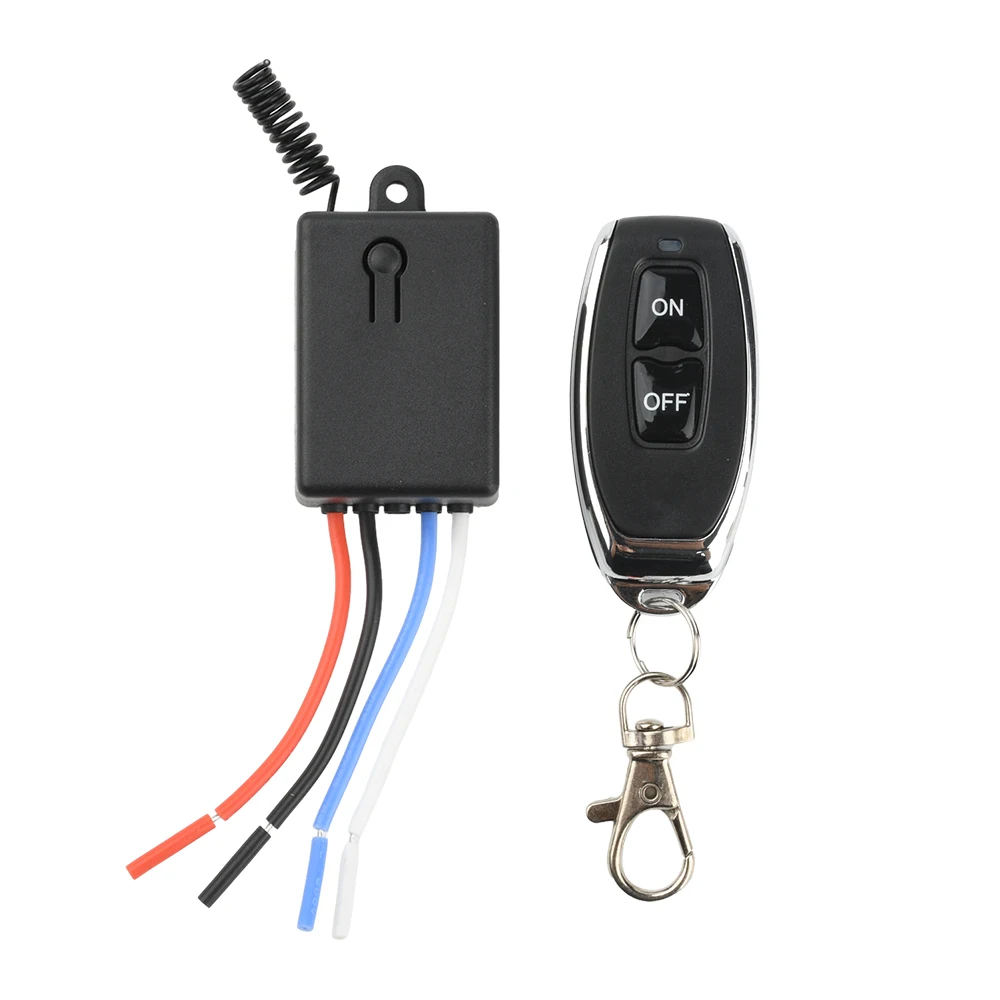

Packing List:

• Receiver ×1
• Remote Control ×1
