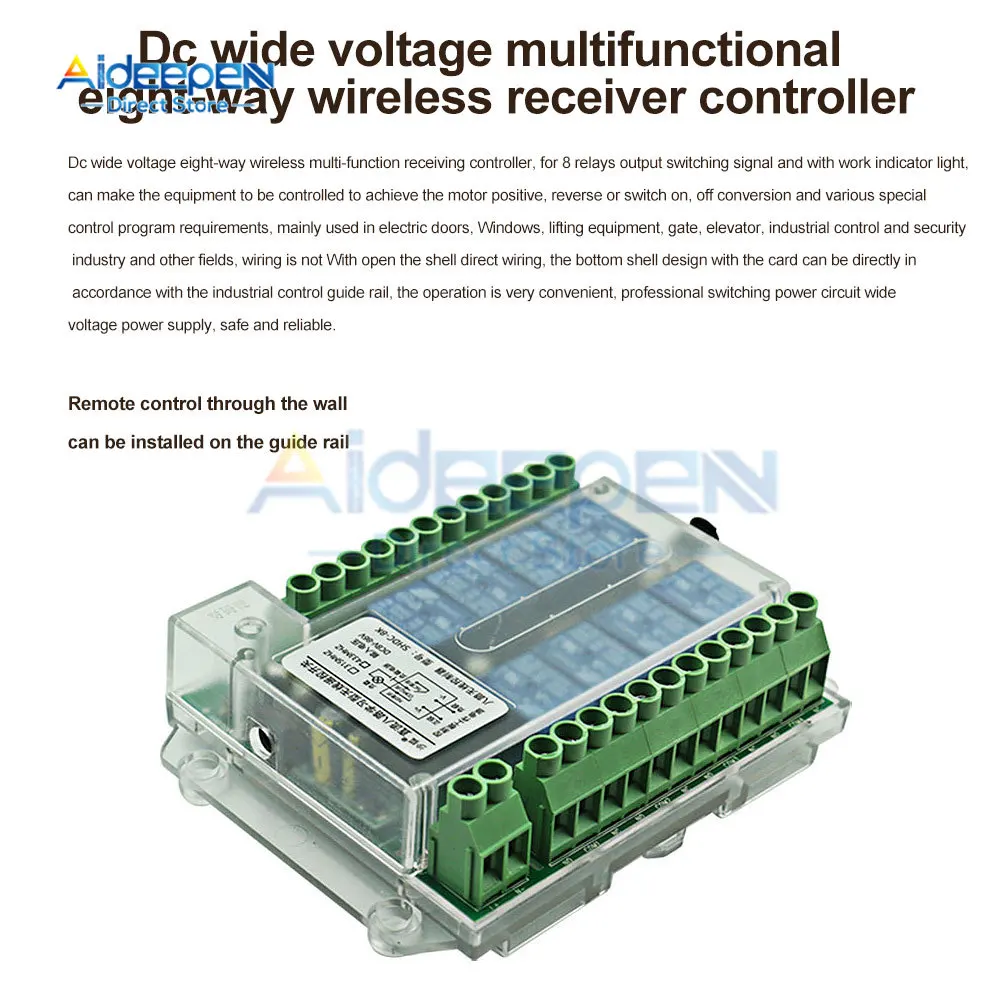

📶 Product Overview: The 8 Channel Wireless RF Remote Control Switch is a versatile and efficient solution for managing electrical devices from a distance. Available in multiple voltage options of 12V, 24V, 36V, 48V, 72V, 110V, and 220V, this switch is designed to accommodate a wide range of applications, making it ideal for both residential and commercial use.
🔧 Key Features:
- Compact Design: The remote control switch features a sleek and compact design, equipped with a built-in work indicator light for easy monitoring.
- Simplified Operation: The user-friendly operation allows for seamless wiring without the need to disconnect from the casing, enabling quick and direct connections.
- Wide Voltage Compatibility: With a broad voltage supply range, the device ensures safe, reliable, and stable performance coupled with low power consumption.
- Emergency Code Clearing: In the event that the remote control is misplaced, users can easily clear the stored information in the receiver, restoring the system back to its initial state.
- Versatile Applications: This remote control switch can be utilized in various fields, including controlling electric doors, windows, lifting equipment, gates, and elevators, among others.
🔍 Technical Specifications:
- Working Voltage: DC8-86V / AC110-275V (selectable)
- Load Power: 1000W
- Operating Temperature: -10 ℃ to +70 ℃
- Static Current: 8mA
- Encoding Method: Learning type

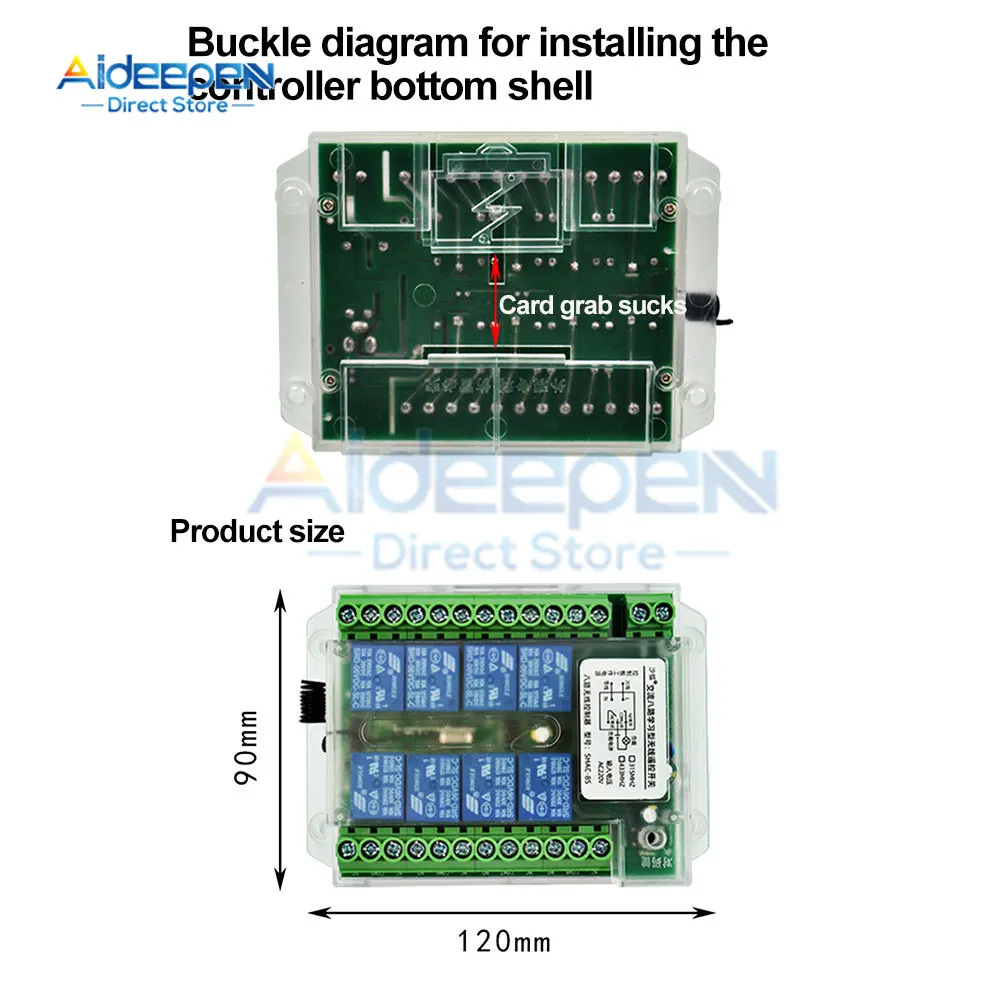

- Controller Dimensions: 120mm x 90mm x 35mm
Operating Modes:
- Mode 1: Jog - Activates the relay while the button is pressed.
- Mode 2: Self Locking - Toggle relay on/off with a single button press.
- Mode 3: Interlock - Only one relay can be activated at a time using separate buttons.
- Mode 4: Jog + Self Locking - Combines jog functions with self-locking features across multiple relays.
- Mode 5: Mixed Options - Offers combinations of jogging, self-locking, and interlocking functionalities.
- Mode 6: Jog + Main On - Controls the main power alongside jog features.
- Mode 7: Self Locking + General Opening and Closing - Provides a robust control system for various functionalities.
🔍 Learning and Clearing Codes:
🔍 Pairing new remote controls to the system is straightforward through a series of button presses on the control board. Each mode has its own specific sequence for easy setup. Additionally, if a fresh start is needed, users can clear all paired remote controls with a simple command.
📦 Included in the Package:
- Relay Module x 1

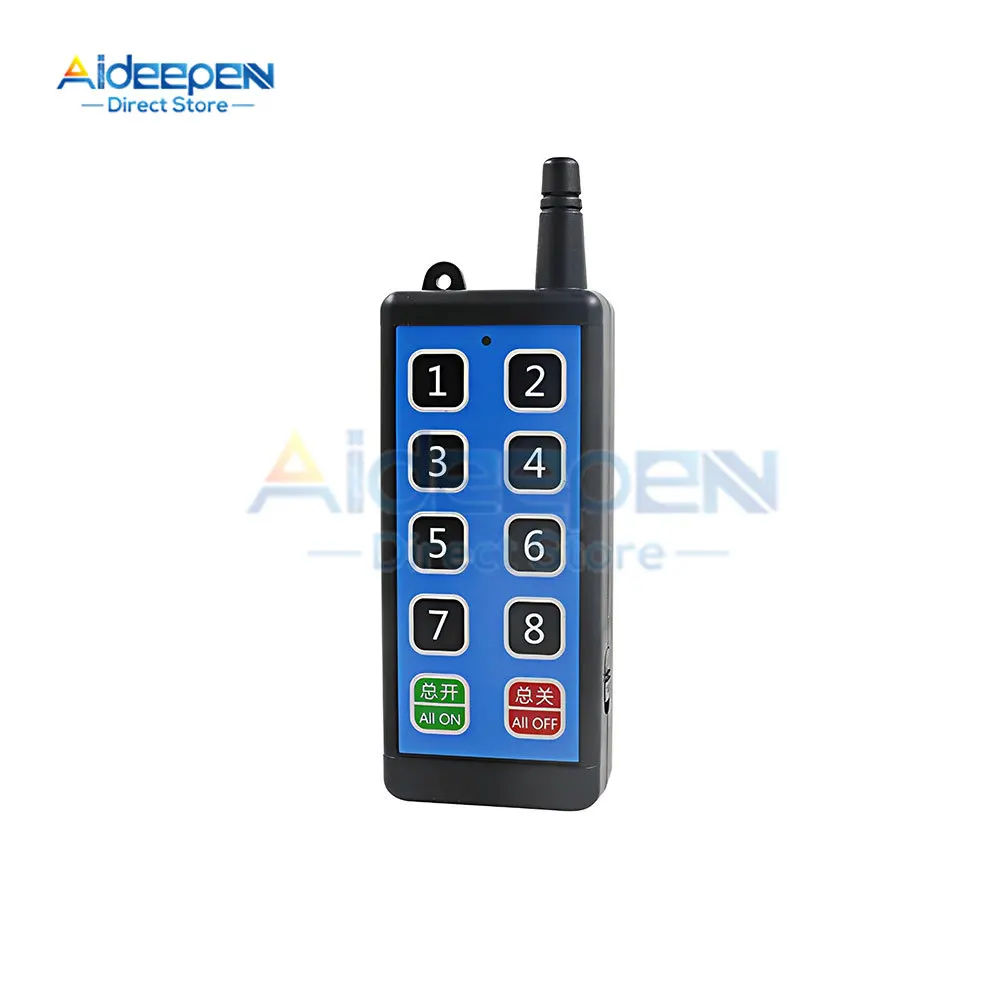

- Remote Control x 1
🧠 This 8 Channel Wireless RF Remote Control Switch embodies modern technology with practical application, making it an essential tool for effortless control over your electric devices.
