🤖 Welcome to Shenzhen Hi-Link Electronic Co., Ltd! We proudly present the Hi-Link HLK-LD6004, an advanced human trajectory tracking radar sensor module designed for seamless integration into a variety of smart applications.
Product Overview:
️⃣ The

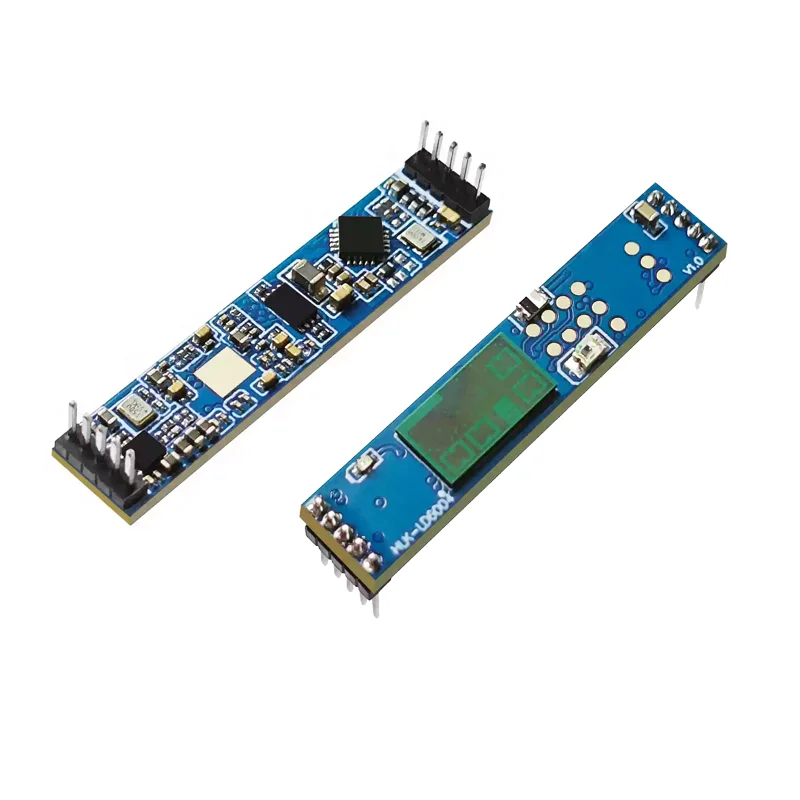

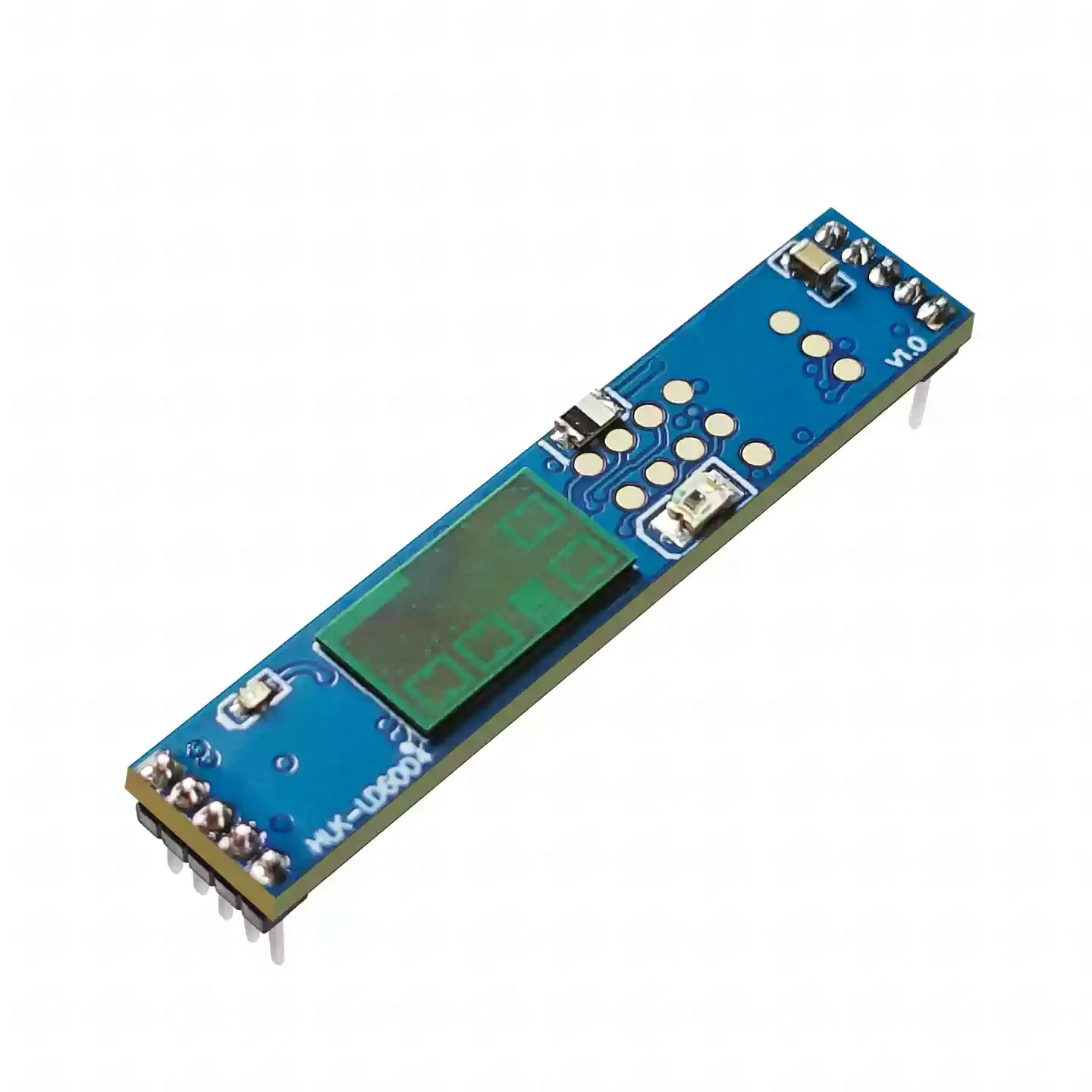

HLK-LD6004 is a cutting-edge radar sensing module built around the
ADT6101P chip, engineered to operate in the 57-64GHz frequency band. This sophisticated module incorporates a highly efficient RF transceiver system, a dual-channel antenna structure (2T2R), an integrated 1MB flash memory, and a robust radar signal processing unit powered by an
ARM® Cortex®-M3 core. By utilizing Frequency Modulated Continuous Wave (FMCW) technology, the module achieves exceptional sensitivity in detecting human presence and movements.
🔧 Key Features:
- Employs FMCW frequency-modulated continuous wave signal for radar detection.
- Offers a wide detection angle, facilitating horizontal detection within ±60° and pitch detection within ±60°.
- Supports side-mounted mode switching with an impressive maximum sensing distance of up to 6 meters.
- Capable of tracking movements of up to three individuals simultaneously, providing precise x, y, z coordinates for each person's position.
- Specialized in detecting both motion and stillness of individuals indoors, accurately differentiating within a designated range and effectively mitigating interference from external noise.
- Features a general UART interface for easy integration, along with support for UART parameter adjustments tailored for various applications.
- Compact in design with dimensions of merely 25mm x 31.5mm, offering both pin header and surface mount connection options.
- Designed to be resilient against environmental factors such as temperature swings, humidity, noise, airflow, dust, and light interference.
🪶 Application Scenarios:
- Smart Home Appliances: The HLK-LD6004 can intelligently manage the operational modes of home appliances (working, standby, or off) based on real-time detection of human presence, enhancing the convenience and efficiency of smart homes.
- Human Detection Lighting: This module excels in sensing human presence within various environments, autonomously controlling light switches in public spaces, offices, and other settings to optimize energy usage.
- Smart Home Scene Monitoring: Ideal for residential areas, hotels, offices, and restrooms, this radar sensor ensures real-time monitoring of human entry and presence, contributing to enhanced security, appliance management, and personnel monitoring. It can be seamlessly integrated with IoT platforms for expansive applications.
🪶 Elevate your smart technology solutions with the innovative Hi-Link HLK-LD6004 radar sensor module!
