Car Modification: 52mm Water Temperature Gauge

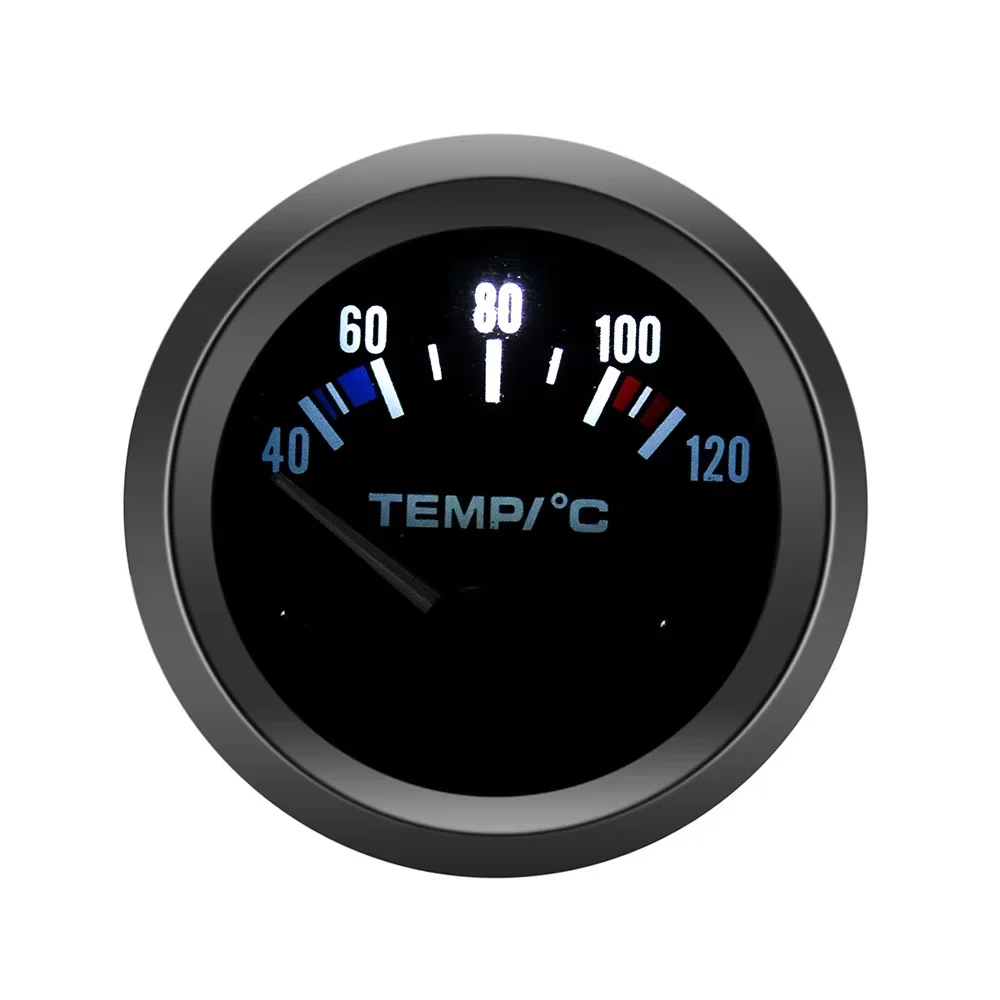

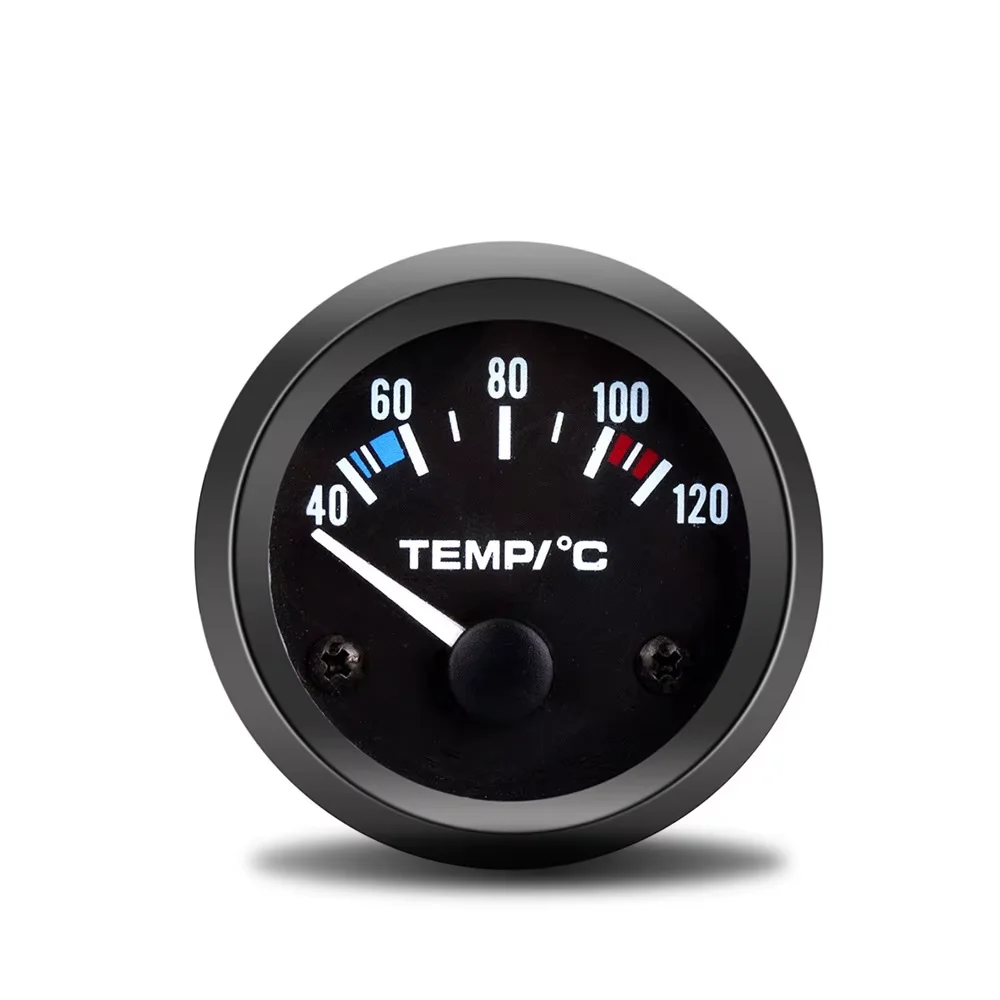

🪶 This 12V Universal Water Temperature Gauge is designed to monitor your vehicle's engine temperature within a range of 40-120 °C (Celsius). With its compact 52mm size, this gauge seamlessly fits into most dashboard setups, ensuring that you can easily keep an eye on water temperature while driving. The gauge provides vital information that can help prevent overheating and enhance the performance of your engine.
💍 Installation is a straightforward process, requiring minimal tools and mechanical know-how. Follow these steps for a successful setup:
- Safety First: Begin by disconnecting the negative (-) battery cable to ensure safety during installation.

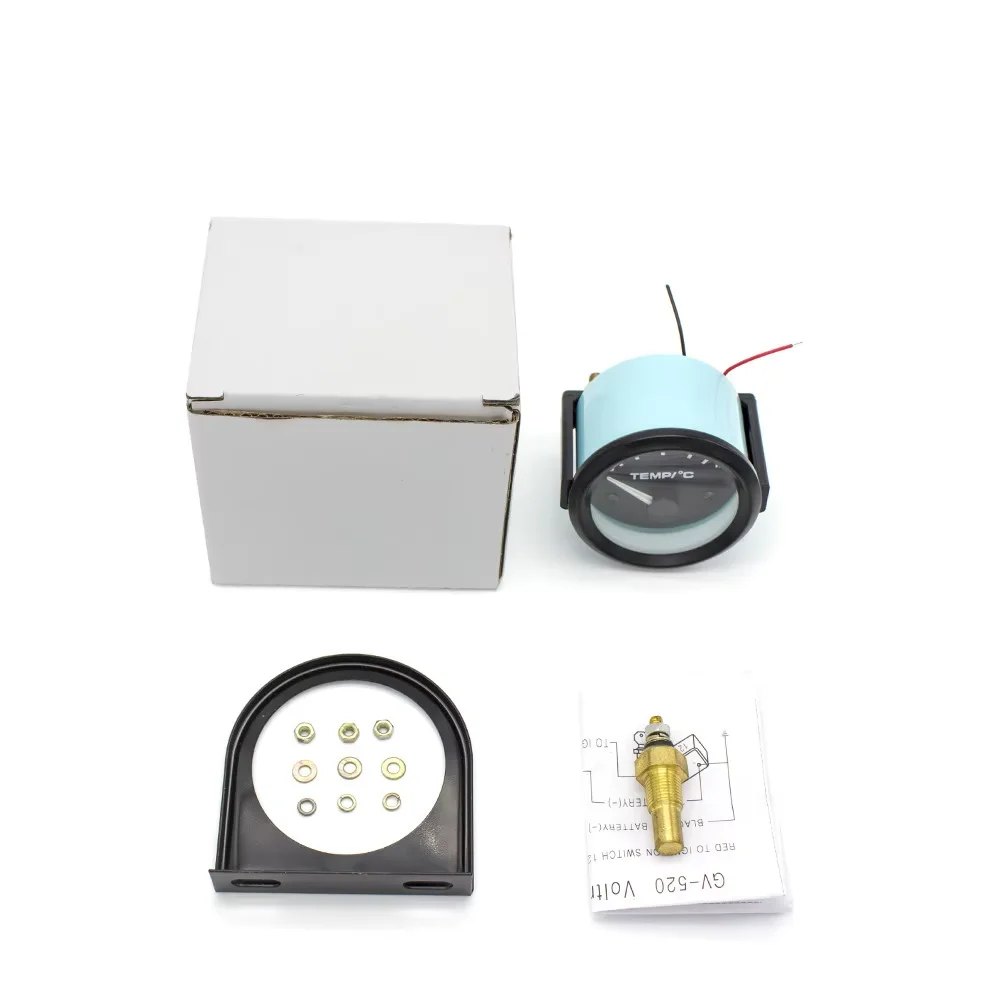

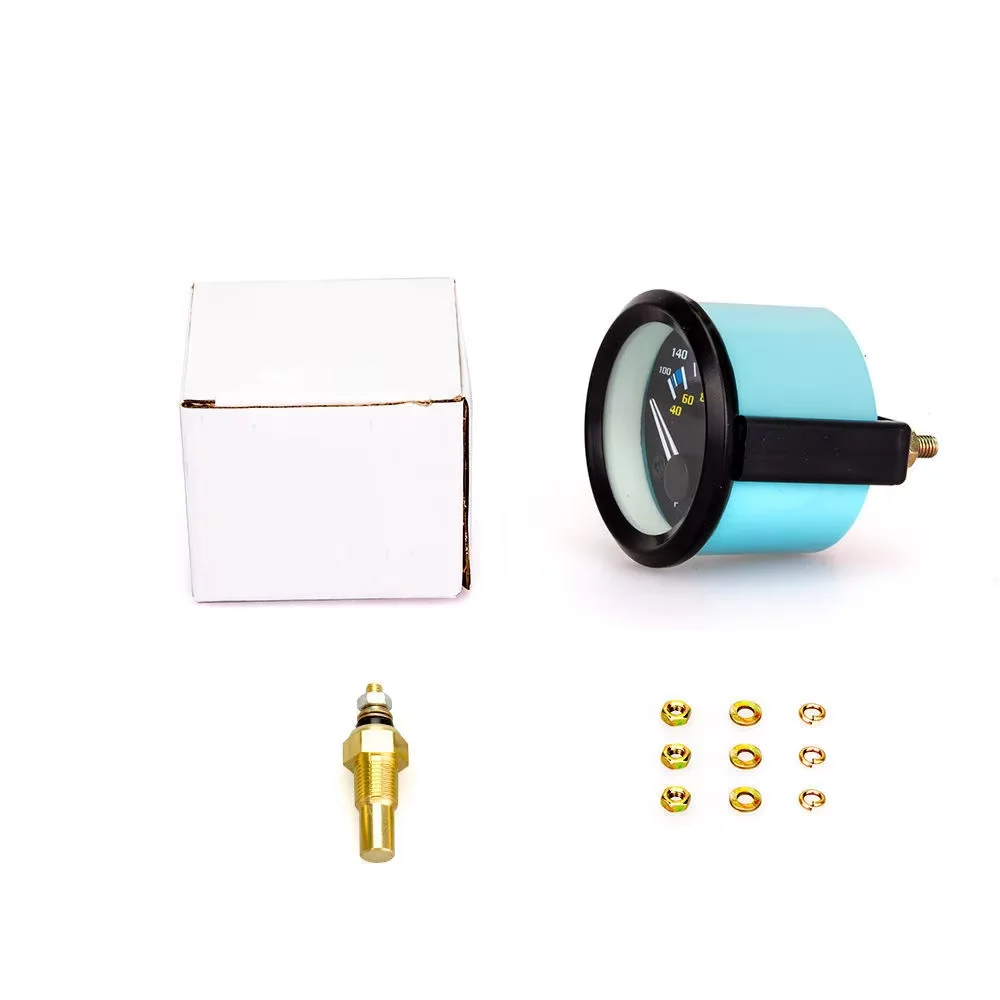

- Install Temperature Sender: Position the included temperature sender at a suitable location. You may need to drill a hole and use the included adaptor nut to secure it properly. Ensure there is enough clearance for both the nut and sender. Proper grounding is essential; the sender should automatically ground when installed, but if it does not, be sure to establish a good ground connection.
- Wiring: Route the included 18-gauge twin conductor wire through the firewall using a grommet for a clean installation. Connect one end to the terminal post on the temperature sender and the opposite end to the sender (S) terminal on the back of the gauge. Note: Avoid touching ignition wires to the sender (S) terminal as this could damage the sender.

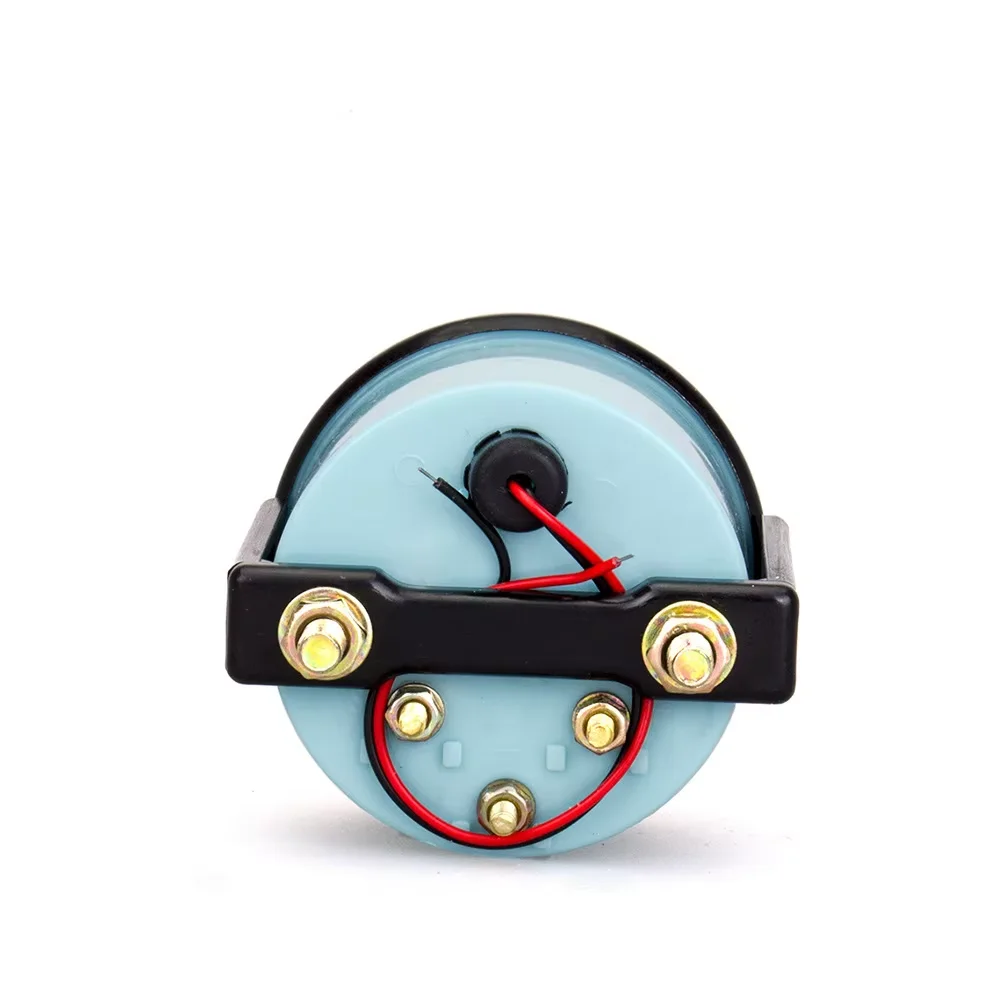

- Ground the Gauge: Connect the wire from the center terminal (GND -) on the back of the gauge to a reliable engine ground located near the sender.
- Ignition Connection: Link a wire from the ignition switch to the 'ignition (I)' terminal on the back of the gauge, facilitating the gauge's operation when the vehicle is running.
- Lighting the Gauge: Install a light in the back of the temperature gauge and connect it to the dashboard lighting circuit or another 12V power source, ensuring visibility at night.
- Final Steps: Once all connections are made, safely reconnect the negative (-) battery cable.
🔍 By following these detailed steps, you can achieve a reliable and accurate water temperature reading, ultimately enhancing your driving experience and ensuring your engine performs optimally.
