😎 Digital Temperature Controller 220V - Thermostat Regulator for Heating and Cooling
💍 Introducing the advanced Digital Temperature Controller designed for efficient temperature management in various applications, particularly during cold storage and heating operations. This state-of-the-art thermoregulator features a user-friendly interface, allowing for seamless temperature monitoring and control, ensuring optimal performance for your equipment.
Available Models:
🔴 The temperature controller comes in three models, each tailored to different operational needs:

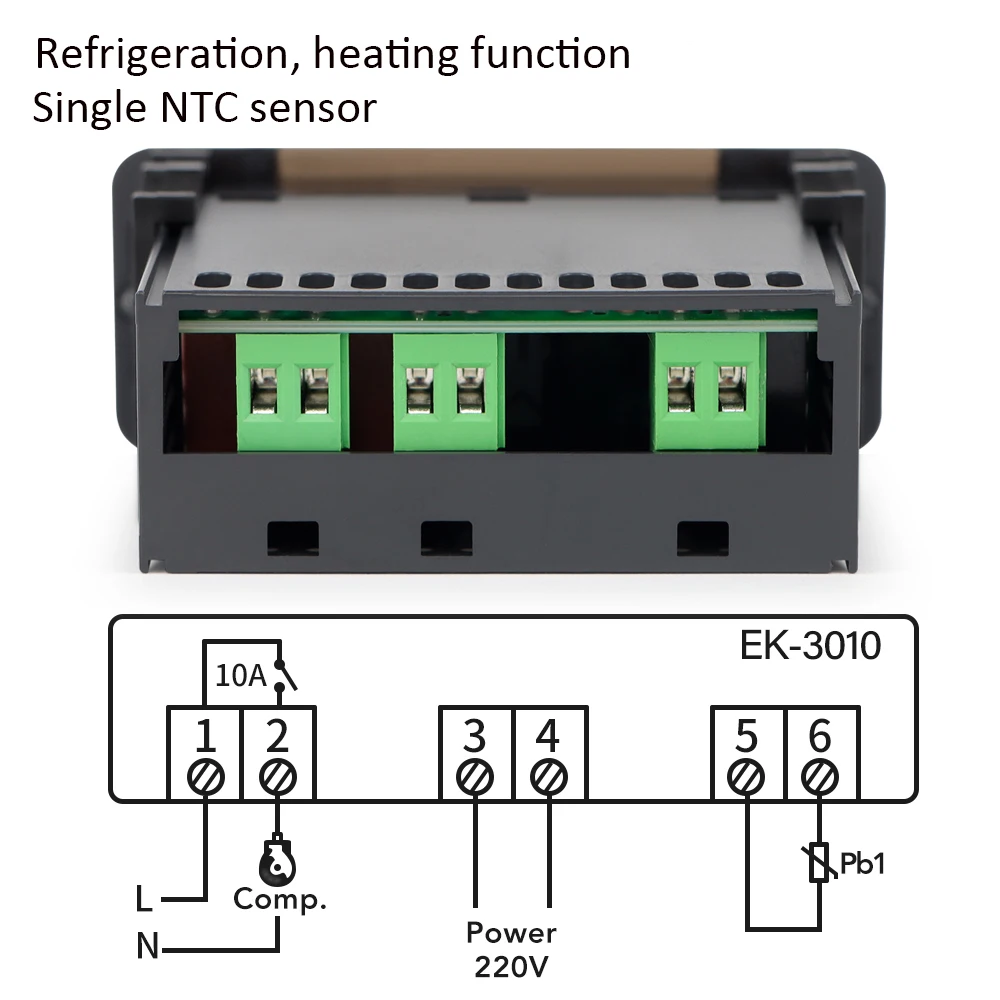

- EK-3010: Designed for refrigeration and heating functions with a single NTC sensor.
- EK-3020: Offers refrigeration and defrosting capabilities with a single NTC sensor.
- EK-3030: Features refrigeration, defrosting, and fan functionalities, accompanied by dual NTC sensors for enhanced control.
🧩 Key Features:

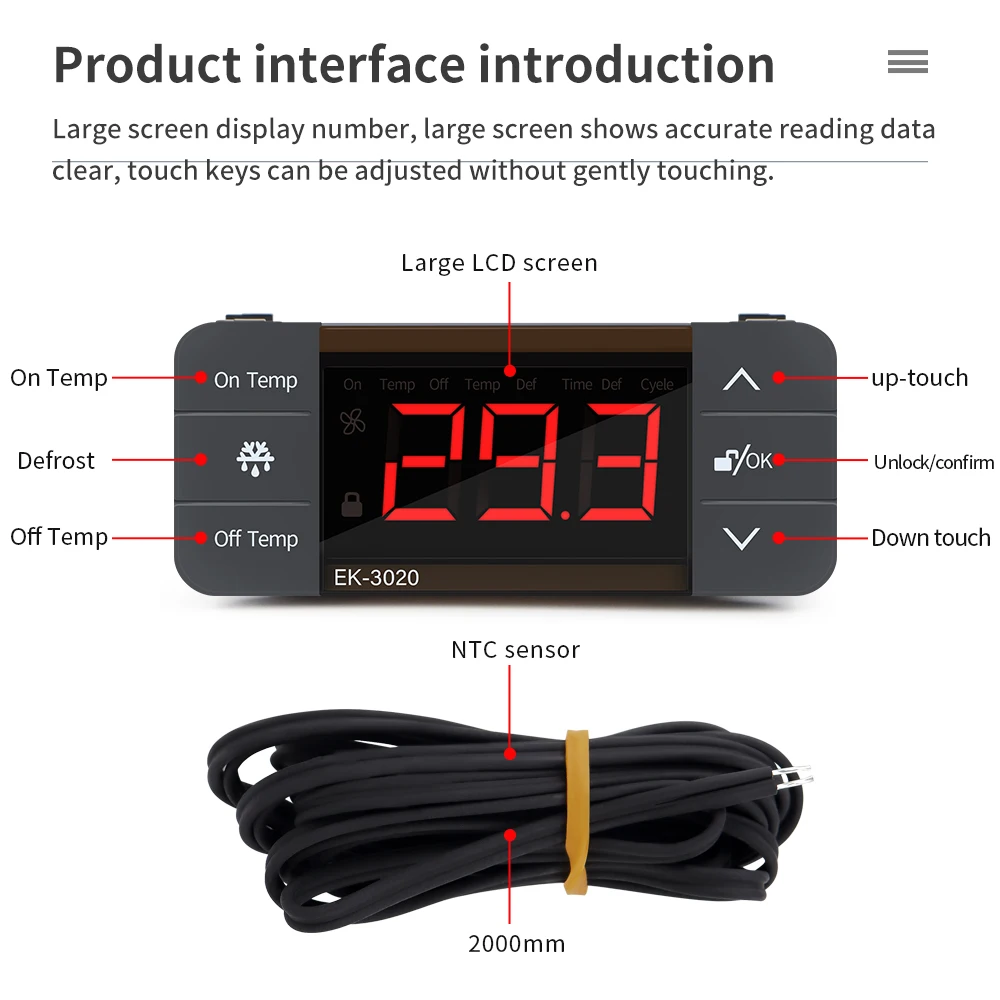

- Equipped with a six-touch key design, enabling quick parameter settings and easy operation.
- Includes multiple operational modes, including refrigeration mode, heating mode, and constant temperature mode (only for EK-3030).
- Offers one-key recovery of factory default values, allowing for quick restoration of settings.
- Provides alerts for temperature calibration, temperature over alarm, and sensor failure, ensuring your equipment operates within safe parameters.
- Allows for parameter presetting for construction contractors, simplifying and expediting installation processes.
🧩 Technical Specifications:
- Measuring Range: -40℃ to 99℃
- Controlling Range: -40℃ to 85℃
- Accuracy: ±0.5℃ for -30℃ to 50℃; ±2℃ for other ranges
- Resolution: 0.1℃ / 1℃
- Mounting Dimensions: 71mm x 29mm
- Power Supply: 220V ± 10% (VAC), 50/60Hz
- Power Consumption: < 5W
🧩 Output Specifications:
- Refrigeration Output: 10A/220VAC (or 16A/220VAC to directly drive a single-phase compressor up to 1HP)
- Defrost Output: 10A/220VAC
- Fan Output: 10A/220VAC (only for EK-3030)
- Buzzer Alarm Output: One-way for alert notifications.
Operating Conditions:
- Work Ambient Temperature: -10℃ to 60℃
- Work Ambient Humidity: 10% to 90% (non-condensing)
- Storage Temperature: -25℃ to 75℃
- Sensor Type: NTC (10KΩ/25℃, B value 3435K)
- Sensor Length: 2M
😎 This Digital Temperature Controller is the perfect solution for maintaining precise temperature controls in various settings, ensuring reliability and efficiency in heating and cooling applications.
