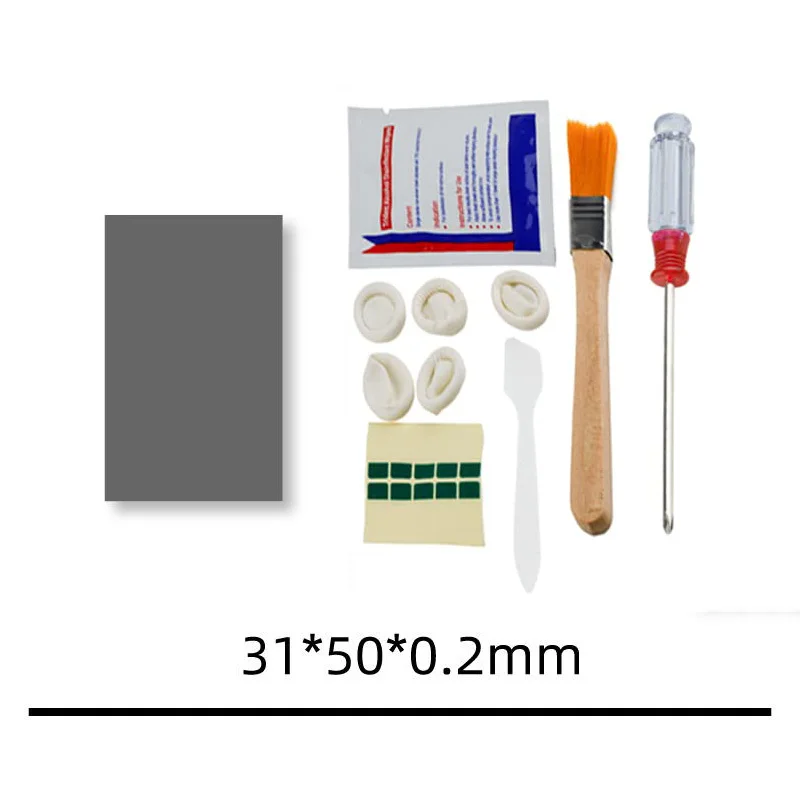

High-Performance Conductive Phase Change Thermal Pad for Enhanced Cooling Efficiency (31x50x0.2)

🏆 Honeywell PTM7950 8.5W Conductive Phase Change Silicone Thermal Pad Sheet is an advanced thermal interface material designed to optimize heat management in high-performance computing systems, particularly laptop CPUs. It incorporates cutting-edge Phase Change Material (PCM) technology to ensure maximum thermal conductivity and reliability in demanding applications.

🔧 Main Features:

• Thermal Impedance: An impressive 0.04°C-cm²/W ensures minimal thermal resistance, providing efficient heat transfer.
• Thermal Conductivity: Rated at 8.5 W/m·K, it excels in dissipating heat, making it suitable for high-performance components.
• Thickness: At a thickness of only 0.2 mm, this thermal pad is designed for compatibility with a wide range of electronic components while maintaining a slim profile.

📏 Product Description: The PTM7950 is crafted from an innovative polymer PCM system, which enhances interface wetting across a spectrum of operating temperatures. This results in exceptionally low surface contact resistance, allowing for better thermal performance. The reliable phase change properties of PTM7950 ensure a seamless transition between solid and liquid states during operation, which maximizes heat transfer efficiency. Due to its unique formulation, PTM7950 is ideal for high-performance integrated circuit devices that require stringent heat management solutions.

💍 Performance Insights: To achieve optimal performance, it is crucial to apply the correct clamping pressure and temperature, ensuring the bond line thickness of the thermal interface material remains below 1.5 mil (0.038 mm). The PTM7950 must reach its phase change temperature to exhibit peak performance, allowing it to maintain low thermal impedance even under extreme conditions.

Reliability Testing: The PTM7950 has undergone rigorous reliability testing, including:

• End of Line: 0.04°C-cm²/W
• Bake Test at 150°C for 1000 hours: 0.04°C-cm²/W
• Double 85 (85°C/85% RH for 1000 hours): 0.04°C-cm²/W
• Temperature Cycling "B" (-55°C to +125°C, 1000 cycles): 0.045°C-cm²/W

🧩 Exceptional Performance: The PTM7950 not only meets but exceeds the reliability expectations for the 7XXX series products, having successfully passed extensive reliability tests that affirm its durability and performance longevity. Customers have reported impressive results even under conditions surpassing Honeywell’s testing limits, signaling robust performance in automotive and other critical applications.

🧩 Ideal Applications: Given its outstanding thermal conductivity and reliability, the PTM7950 is particularly suited for high-performance IT and enterprise computing applications, ensuring that critical components operate within safe thermal limits.

💍 In summary, the Honeywell PTM7950 stands out in the competitive thermal interface material market, offering superior performance, reliability, and efficiency for advanced computing technologies.
