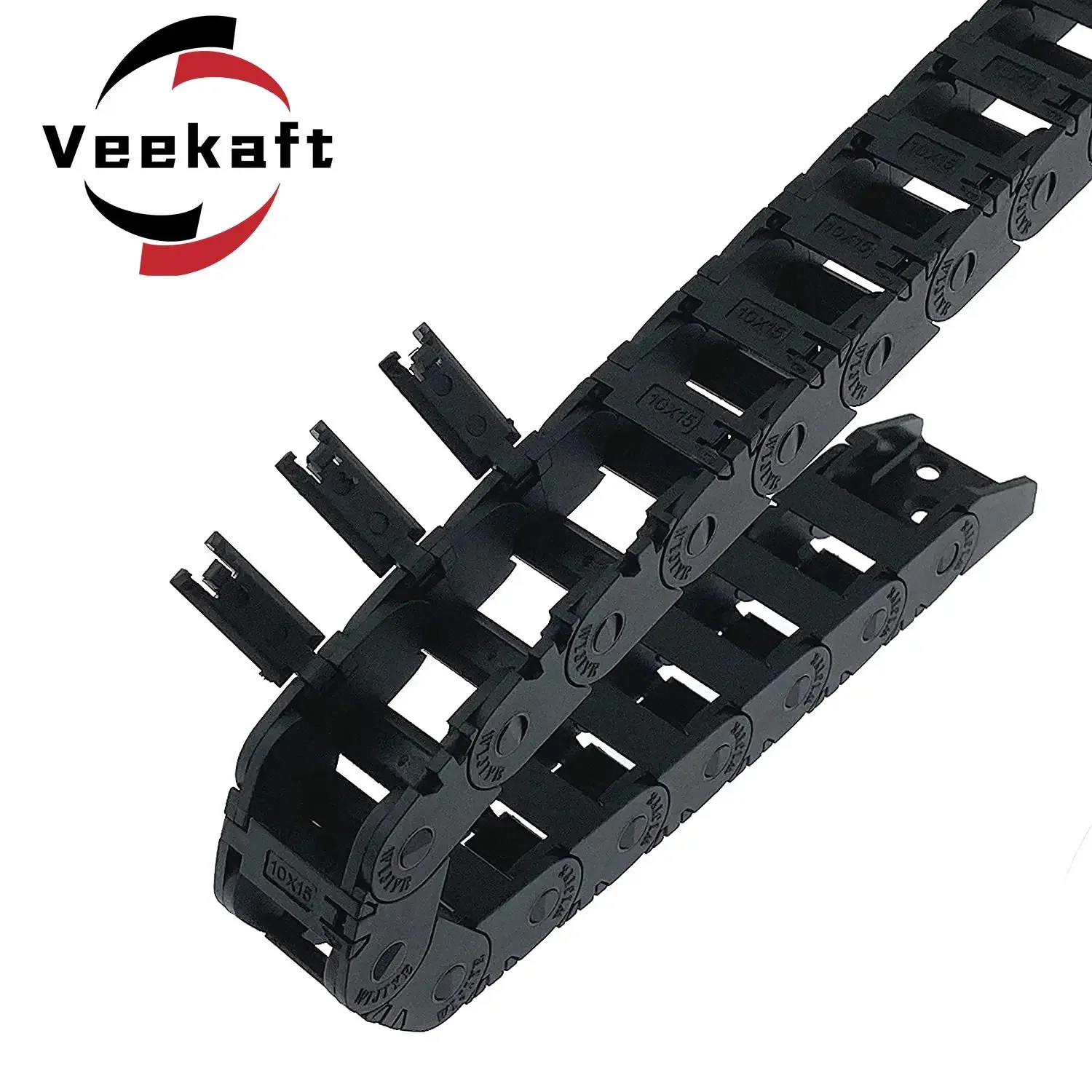

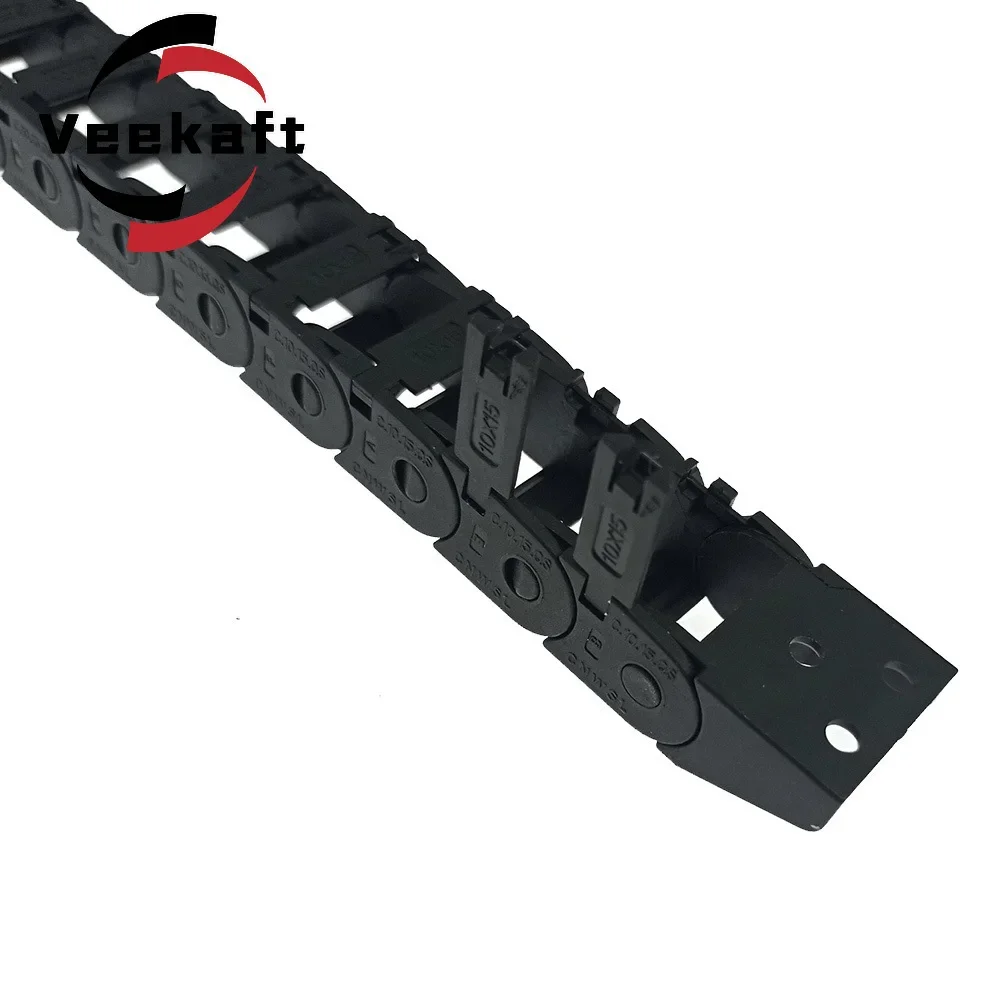

Enhanced Drag Chain Bridge-Type Cable Carrier with End Connectors (L1m) for CNC and 3D Printing Applications

Product Overview:

⚙️ Enhance the organization and efficiency of your CNC machine or 3D printer setup with our open Drag Chain bridge-type cable carriers. Available in various sizes including 7x7, 10x10, 10x15, 10x20, 15x20, and 18x18 with a standardized length of L1m, these cable carriers are specifically designed to accommodate the needs of advanced systems like the Voron Trident 2.4.

Please be advised that sizes 5x5, 7x7, 7x15, and 10x10 are not open-type. However, you can typically substitute 10x10 with a 10x11 open variant. The drag chain facilitates a tidier workspace, enabling seamless movement while protecting your cables and tubes from wear and misalignment.

🔧 Key Features:

• Customizable Links: The drag chain's segments can be easily spliced or separated, allowing for customization that meets your specific routing requirements.
• Enhanced Cable Protection: The design features a flexible configuration where each unit link can rotate freely, providing optimum protection for your cables, oils, and water lines. Note that a larger bending radius typically offers better protection for your lines at the cost of greater space requirements.
• High-Quality Material: Constructed from reinforced nylon, our drag chain is characterized by its high tensile strength, exceptional toughness, and wear resistance. It stands up well to environmental factors, including exposure to extreme temperatures.
• Durability and Longevity: With a maximum operational capacity of 5 million reciprocating movements, the drag chain assures durability under normal conditions, making it an ideal component for long-term applications.

🧵 Selection Guidance:

When choosing your drag chain, consider these three key specifications:

1. Inner Height: Use the thickness of the largest built-in cable as a reference, adding at least 10% extra space for optimal fit.
2. Inner Width: Sum the outer diameters of the thickest cables or pipes to establish necessary inner width, again adding a minimum of 10% for flexibility.
3. Bending Radius: Use the largest bending radius requirement from your installed components as your guide, allowing for more than 10% extra space for movement.

🎯 Applications:

This versatile drag chain is extensively used across various sectors, including:

• CNC machinery
• Textile and glass machinery
• Manipulator systems
• Injection molding machinery
• Wood, stone, and mechanical equipment
• Lifting and transport systems

🪞 Designed for reciprocating motion, this drag chain not only provides traction but also ensures that your built-in cables and pipes remain organized and protected during operation. Its modular design allows for easy installation, modifications, and maintenance, thus optimizing your machine's performance.

Product Specifications:

💍 Material: Engineering plastics designed for heavy-duty use.

🧩 Length: Customizable to fit any project requirement.

🧩 Operating Temperatures: Capable of functioning in temperatures ranging from -40°C to +130°C, suitable for short-distance operations and light loads.

Invest in superior organization and reliability with our open Drag Chain cable carriers, and transform the way you manage your CNC and 3D printing operations!
