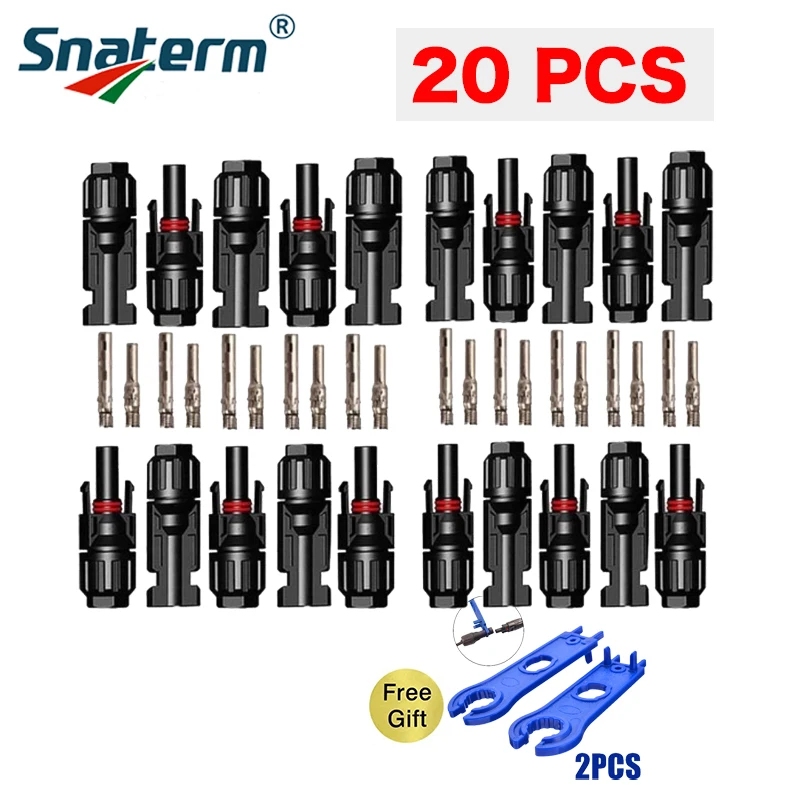

🏆 Product Overview: Discover our top-quality Solar Connectors, available in packs of 10, 20, or 50 pairs. Designed for high-performance solar energy systems, these connectors are capable of handling up to 1000V and 30A, making them ideal for connecting multiple solar panels or creating branch configurations in solar fields. Their robust design and high-quality materials guarantee reliable and efficient electrical connections.
🔧 Key Features:
- Compatible with PV cables featuring a variety of insulation diameters, ensuring versatility and ease of use.
- Engineered to perform effectively even in harsh environments, allowing for dependable outdoor installations.
- Enhanced durability with excellent resistance to aging and UV exposure, prolonging the lifespan of your solar connections.
- Designed with double seal rings for superior waterproofing, keeping connections safe from moisture ingress.
- Dust-proof capabilities ensure optimal performance even in challenging conditions, preventing debris from causing connection issues.
- High load capacity supports significant current and voltage demands, suitable for a variety of solar applications.
- Quick and simple assembly facilitate hassle-free installation, and plugs can be easily removed without special tools.
- Strong pulling force capability guarantees secure connections that hold up under stress.
- Exceptional resistance to extreme temperatures and flames, ensuring safety and reliability.
- Low contact resistance promotes efficient power transfer, maximizing energy output.
💧 Technical Specifications:
- Rated Current: 30A
- Rated Voltage: 1000VDC
- Compatible Cable Sizes: 2.5mm², 4mm², 6mm² (AWG14, AWG12, AWG10)
- Contact Resistance: ≤0.2mmΩ
- Waterproof Rating: IP67
- Safety Class: II
- Withdrawal Force: ≥50N
- Pin Dimension: 4.0mm diameter
- Insertion Force: ≤50N
- Insulation Material: PPO + PA
- Connection Type: Crimping Connection
- Contact Material: Copper, Tin Plated
- Operating Temperature Range: -40 °C to +90 °C
🌫️ Elevate your solar energy system with reliable, high-quality connectors that ensure safe and efficient electrical connections, no matter the conditions.
