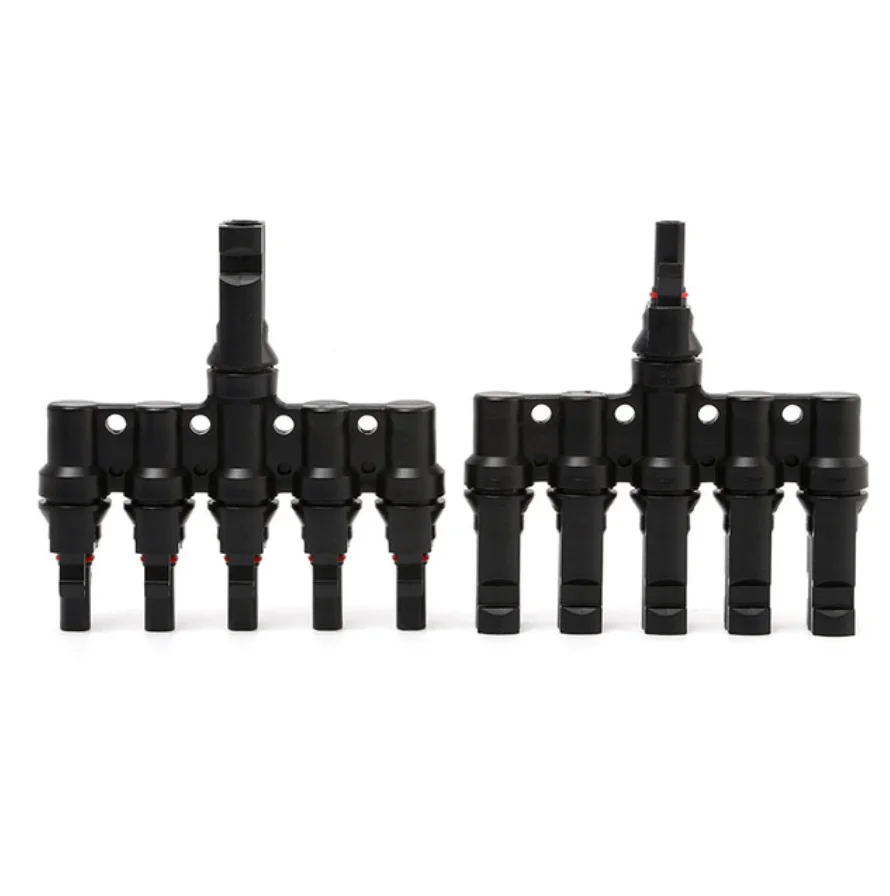

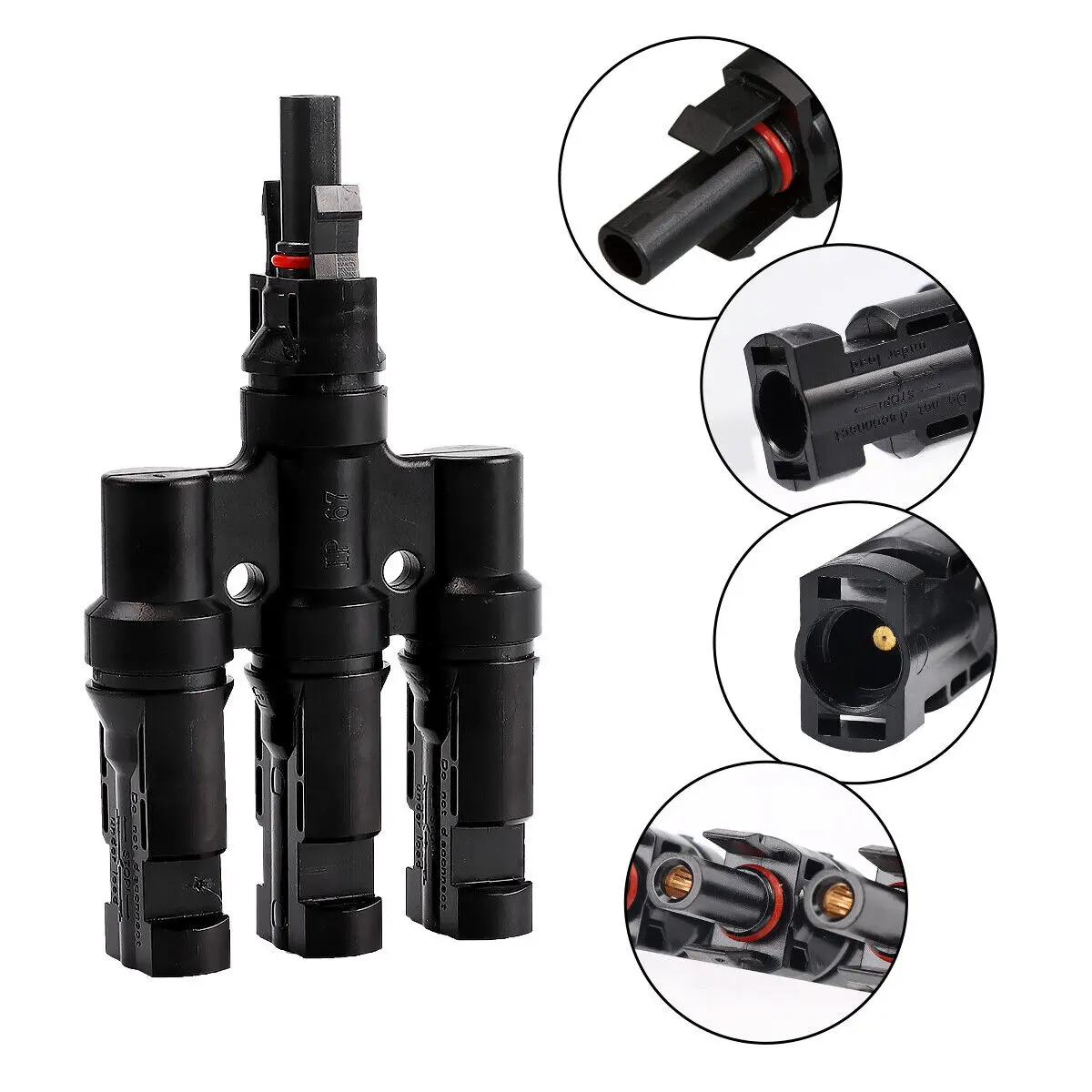

High-Performance Dual-Sided PV Solar Cable Connectors - 30A 1000V Photovoltaic Panel Wire Adapter Pair - 1Pairs (5T)

🛡️ Product Overview: Enhance your solar panel system's connectivity with our high-quality Male and Female Branch PV Solar Panel Cable Connectors. This pair of durable connectors is engineered to meet the demanding needs of photovoltaic applications, providing reliable and efficient connections that are essential for optimal energy production.

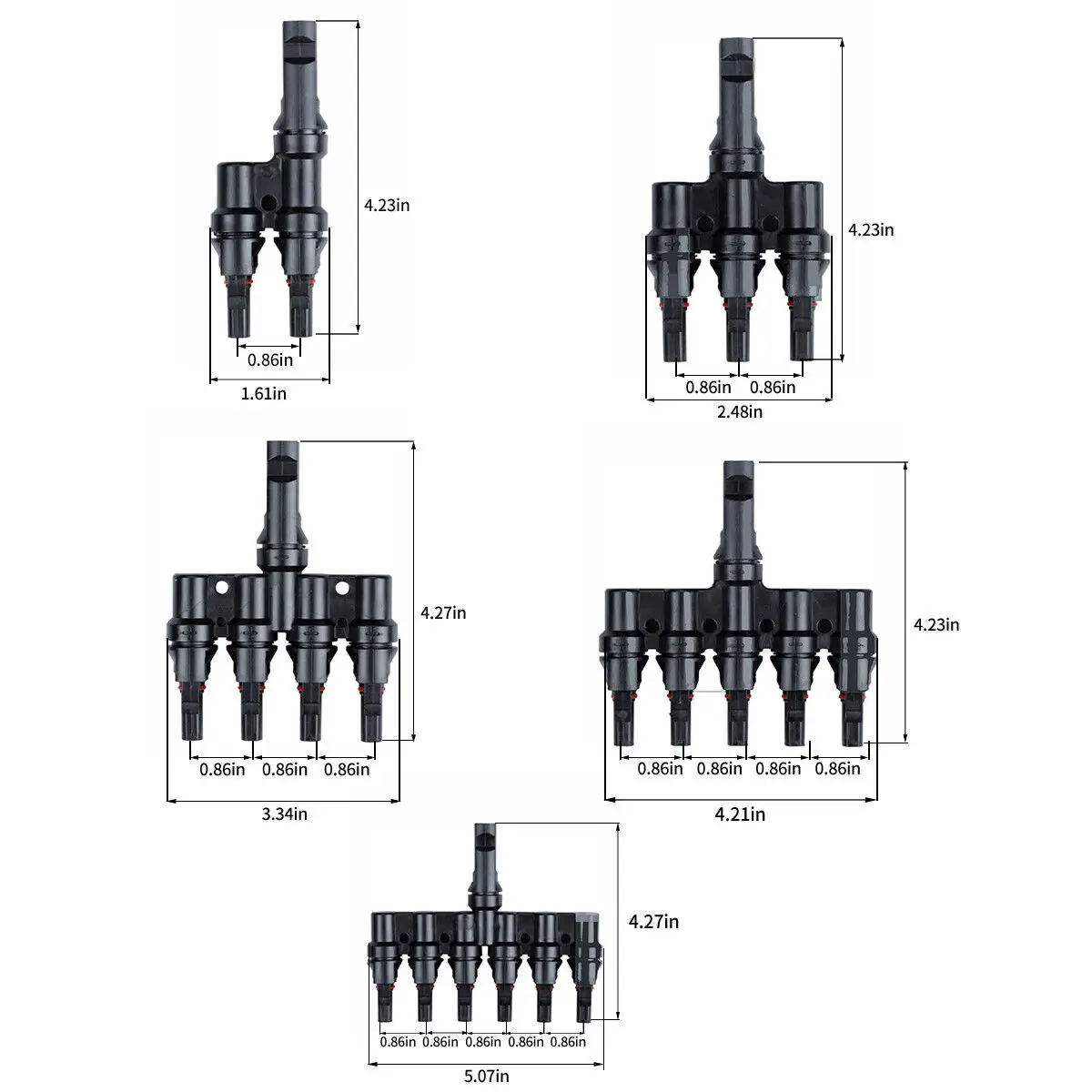

Model Numbers: Available in various configurations - T2, T3, T4, T5, T6 (Product No: PV-2T/3T/4T/5T/6T).

Electrical Specifications:

• Rated Voltage: TUV 1000V DC / UL 600V DC
• Rated Current: 20A - 30A
• Suitable Cable Cross Sections: 2.5mm² - 6.0mm² / 14AWG - 10AWG
• Pin Dimension: 4.0mm
• Proof Voltage: DC 8KV (1 Minute)
• Contact Resistance: 5mΩ

🧩 Durability & Safety Features:

• Pollution Degree: 2
• Protection Class: Class II
• Connector Material: Made from PPO (Polyphenylene Oxide)

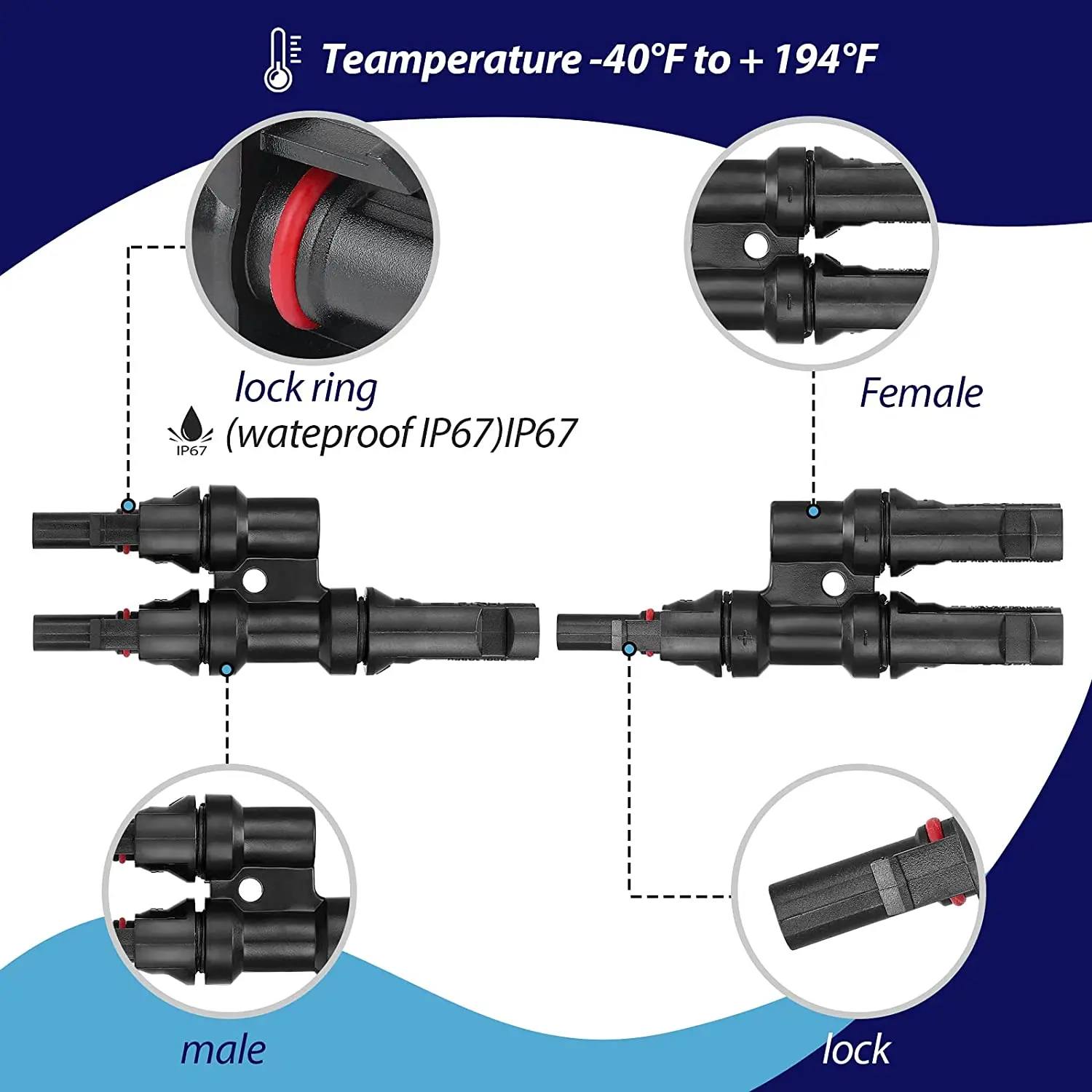

• Degree of Protection: IP67 (IEC 60529) – ensuring full protection against dust and protection against water immersion up to 1 meter.
• Flame Class: UL94V-0 – indicating excellent resistance to fire.

Mechanical Properties:

• Insertion Force: 50N
• Operating Temperature Range: -40°C to +85°C – suitable for diverse climatic conditions.

🧩 Designed for superior performance and longevity, these connectors are an indispensable addition to any solar photovoltaic system, ensuring that your solar energy harnessing is both effective and safe.
