Dual Display Adjustable Din Rail Digital Surge Protector with Over/Under Voltage and Over Current Protection - 110V 63A

🧩 Product Overview: The Dual Display 40A 63A 230V Din Rail Adjustable Digital Over/Under Voltage Relay and Surge Protector is designed to enhance the safety and efficiency of electrical systems. It offers robust protection features to safeguard your electrical devices from voltage and current irregularities.

🔧 Key Features:

• Over-Voltage Protection: Automatically disconnects power to prevent damage when voltage exceeds user-defined limits.
• Under-Voltage Protection: Monitors voltage levels and cuts off power when it drops below certain thresholds, ensuring devices operate within safe voltage ranges.
• Over-Current Protection: Safeguards circuits by interrupting current flow that exceeds the set limits, thus preventing overheating and potential damage.
• Automatic Recovery: After a fault condition clears, the relay automatically resets, restoring power without the need for manual intervention.

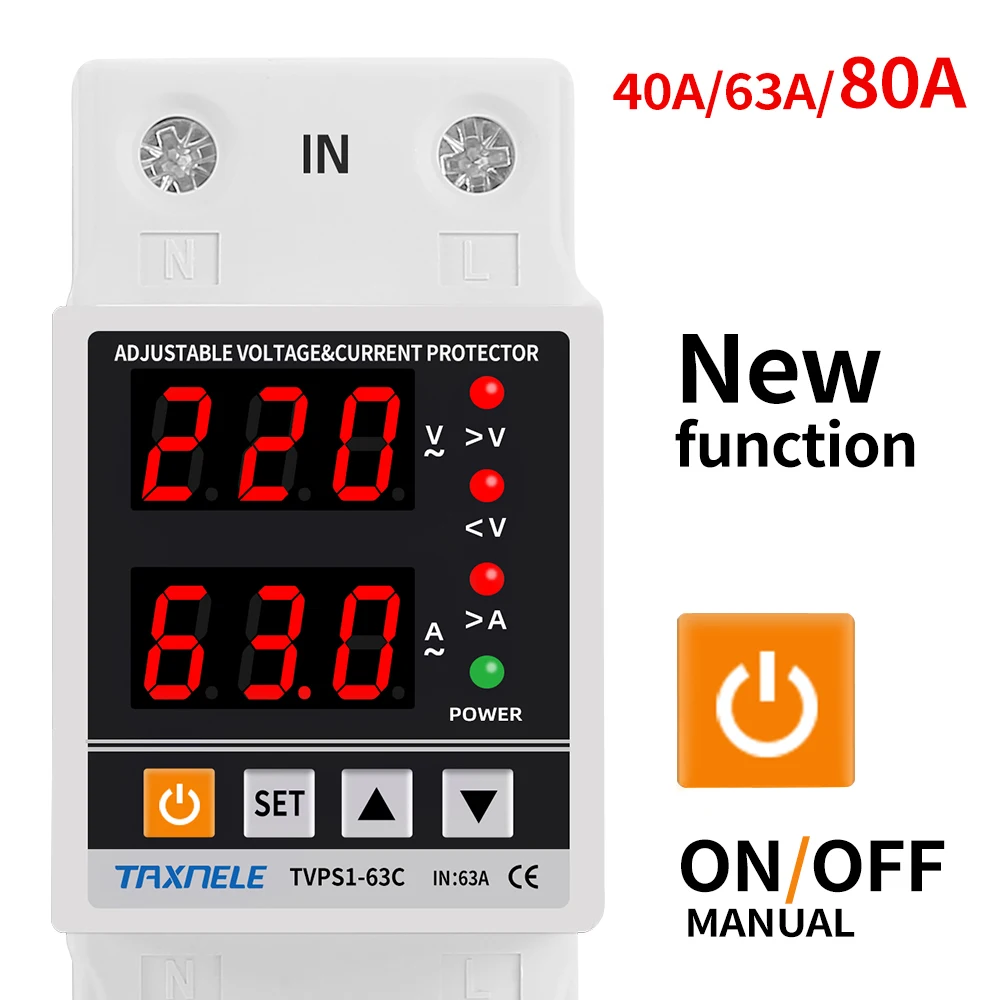

• Real-Time Voltage and Current Display: The unit features a dual display showcasing real-time voltage and current readings for easy monitoring.
• Adjustable Calibration: Users can calibrate both voltage (±10%) and current (±9/5%) settings to ensure precision per their application requirements, enhancing overall accuracy.
• Factory Reset and Fault Inquiry: Easily revert to factory settings or inquire about fault conditions with a simple button press for maintenance convenience.

🔍 Technical Specifications:

Model Number: TVPS1-63 or TVPS1-63C for 110V version

Power Supply: Available in 230VAC 50/60Hz and 110VAC 50/60Hz

🧰 Adjustable Loading Power: Configurable from 1A to 80A, accommodating various applications with default settings at 20A, 40A, and 60A.

🧩 Over-Voltage Protection Range: 230V to 300V (adjustable, default 270V) with recovery voltage settings and action delays customizable between 0.1s to 30s.

🧩 Under-Voltage Protection Range: 140V to 210V (user-adjustable, default 170V) with similar customizable settings for recovery voltage and action time.

🌿 Over-Current Adjustment: Selectable range of 1A to 63A (default 40A); includes options for recovery and action delay timings.

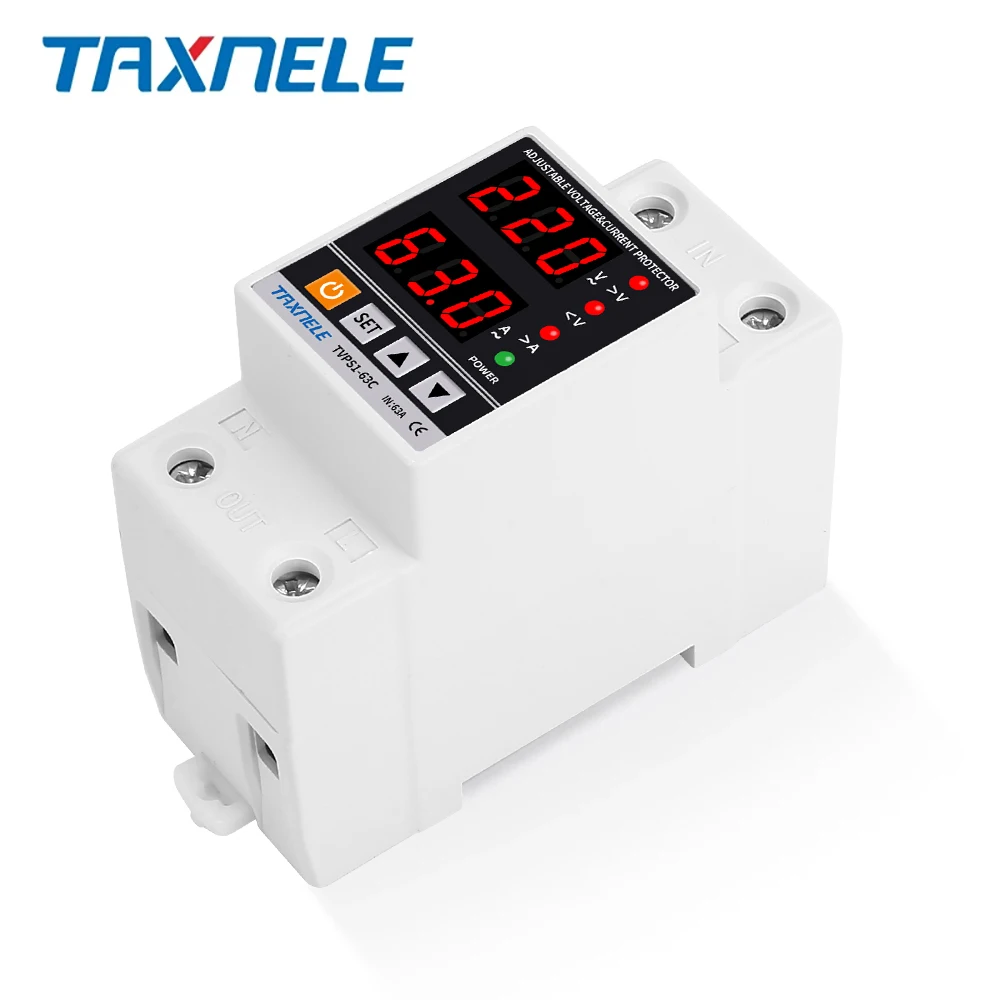

💍 Durability and Installation: Designed with a staggering lifespan of 100,000 operations, the relay is easy to install on standard 35mm DIN rail, making it a practical choice for commercial and residential applications.

💍 Power Efficiency: The device boasts low power consumption of less than 2W, underscoring its energy efficiency and cost-effectiveness in operation.
