📷 Introducing the Car Rear View Camera:
🧩 This cutting-edge rear view camera is designed to enhance your driving experience, providing a reliable solution for safe reversing and parking. Its compact, lightweight design ensures that it's unobtrusive and easy to install.
🔧 Features:
- Mini lightweight design for enhanced convenience during installation and use.
- Constructed from premium, durable materials to guarantee longevity and safety.
- Equipped with a wide 170-degree viewing angle that ensures maximum visibility, allowing you to see more of your surroundings with exceptional clarity.

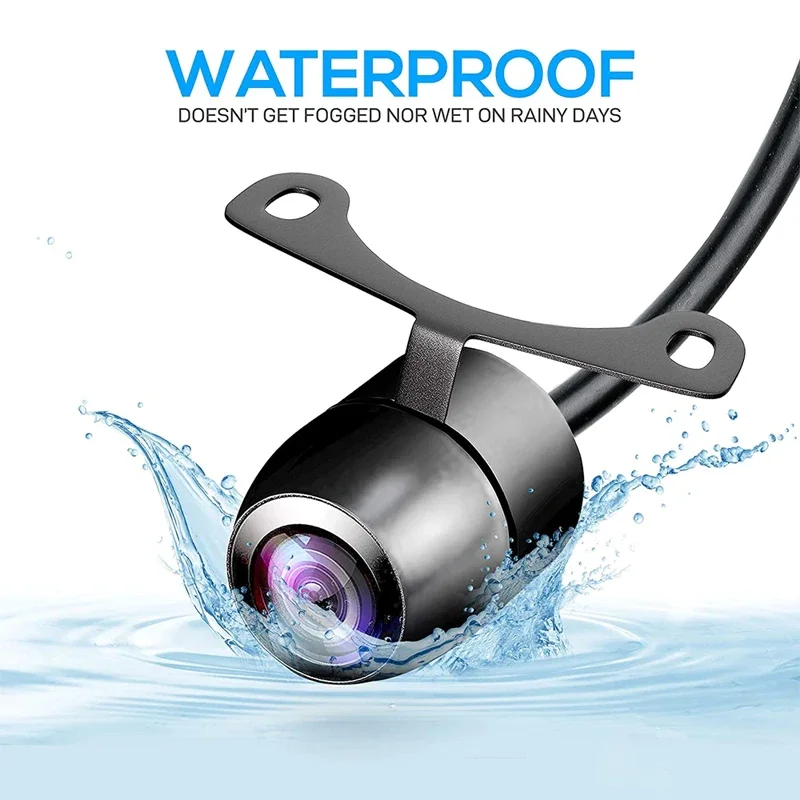

- IP67-rated dustproof and waterproof design, making it suitable for various weather conditions.
- Versatile functionality allows it to serve as both a rearview camera for vehicles and a security camera for safeguarding your property.
- Provides an excellent rear view for various vehicles such as cars, boats, trailers, campers, trucks, and more.
- Multi-functional compatibility enables connection to a wide range of display systems.

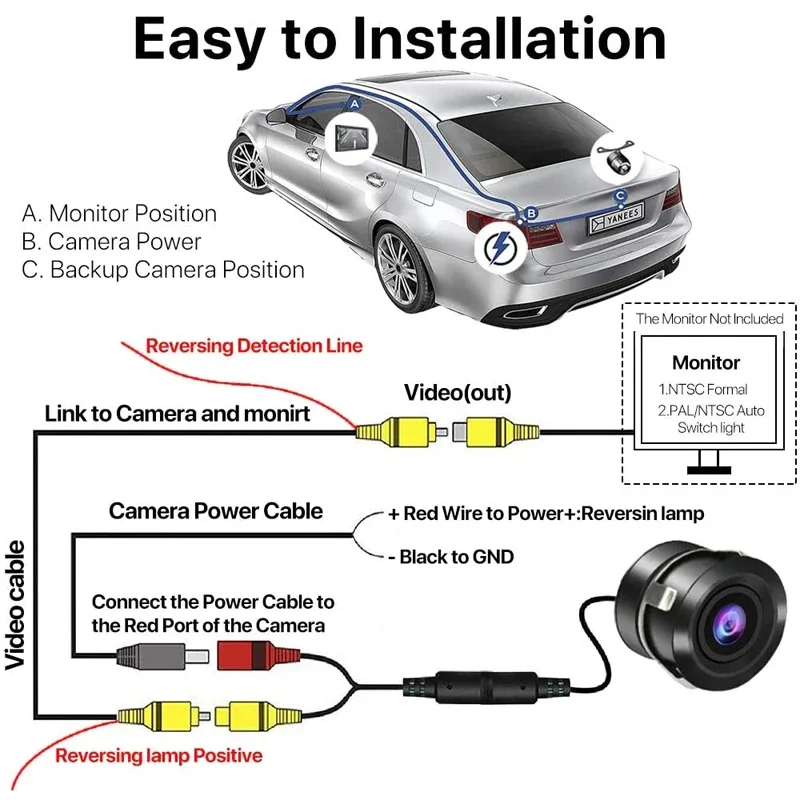

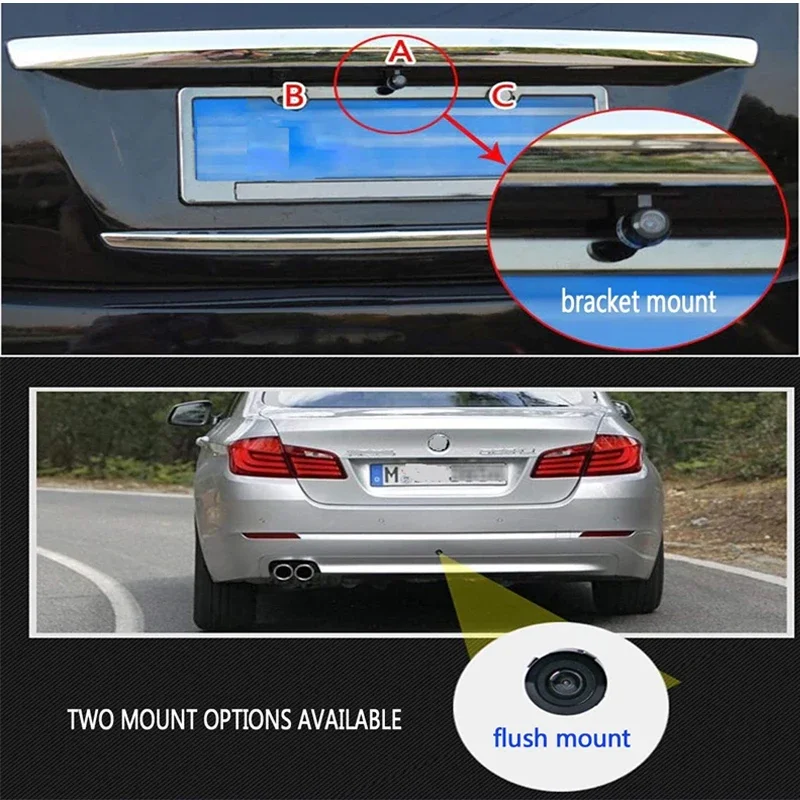

- Installation is a breeze, with the ability to use existing license plate screws, eliminating the need for any new mounting holes.
🛡️ Technical Specifications:
- Image Sensor: 7070
- Signal System: NTSC
- Effective Pixels: 656 × 492
- Sensing Area: 4.08 mm × 3.12 mm
- Horizontal Resolution: 420 TV lines
- Minimum Illumination: 0.1 Lux / F = 1.2 (IR activates at 0 Lux)
- Viewing Angle: 170°
- Signal to Noise Ratio: > 48 dB
- Shutter Speed: 1 / 60-1 / 20000
- Video Output: 1.0 VP-P, 75 OHM
- Voltage: DC 12V
- Current: 100mA
- Operating Temperature: -20°C to 75°C, maximum humidity 95%
- Storage Temperature: -40°C to 85°C, relative humidity up to 95%
- Gamma Coefficient: 0.45
- White Balance: Automatic
- Scanning System: 2:1 interlaced scanning
- Color: Black
- Dimensions: 22*16*16mm

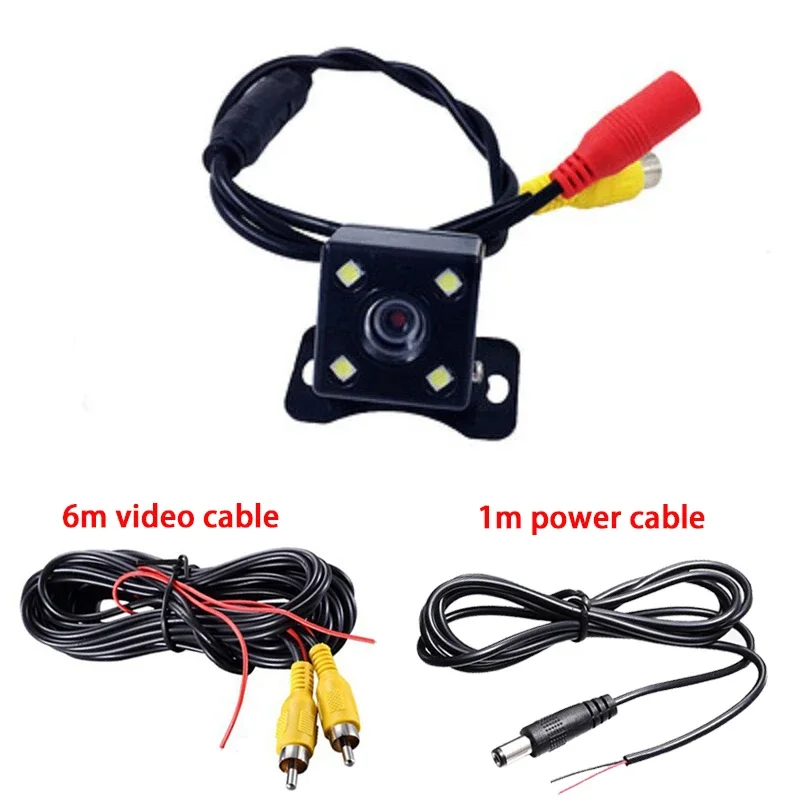

⚙️ Package Includes:
- 1 * Car Rear View Camera
- 1 * Video Cable (6 meters)
- 1 * Power Cable (1 meter)
📷 Note: Dimensions are approximations; minor variations may occur due to manual measurement.
