Load Cell Specifications:

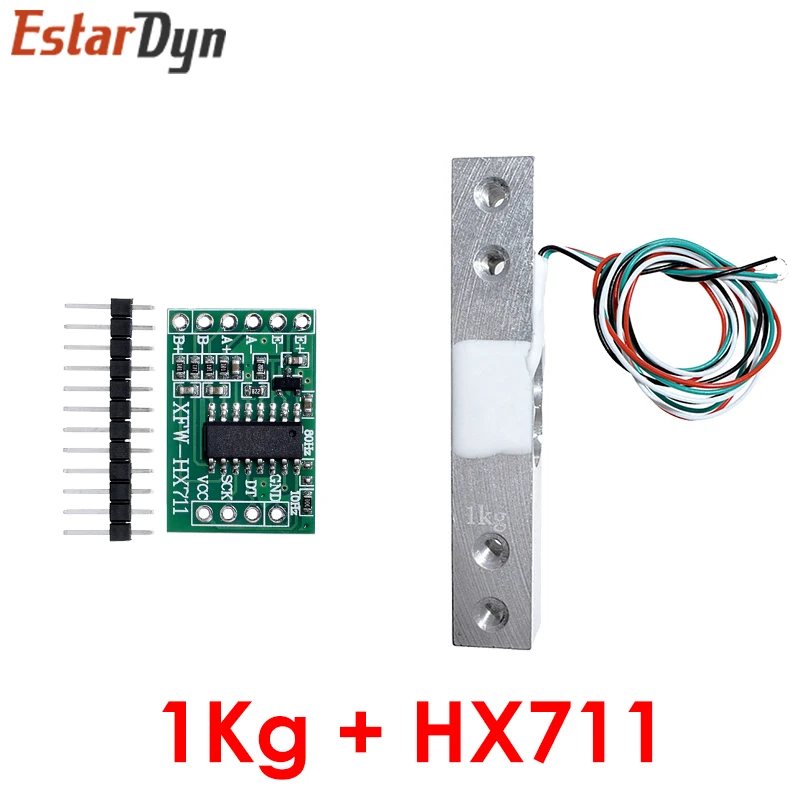

🛠️ Introducing the advanced Load Cell series, designed for precise weight measurement across a range of capacities: 1KG, 2KG, 5KG, 10KG, and 20KG. Engineered with an HX711 AD Module, this Electronic Scale is built using high-quality aluminum alloy, ensuring durability and reliability in various applications.
🔧 Key Features:
- Dual Differential Input Channels: The load cell incorporates two selectable differential input channels, allowing for versatile integration and improved measurement accuracy.
- Low Noise Amplification: Equipped with an on-chip active low noise Programmable Gain Amplifier (PGA), the load cell offers selectable gains of 3264 and 128 for optimal signal conditioning.
- Integrated Power Supply Regulator: The on-chip power supply regulator caters to both the load cell and ADC analog power requirements, streamlining your setup.
- Built-in Oscillator: Our load cell features an on-chip oscillator that requires no external components, with an optional external crystal for refined timing stability.
- Power-On Reset Feature: The built-in power-on-reset ensures reliable startup performance every time.
- User-Friendly Interface: Experience hassle-free control with simple digital and serial interfaces. The pin-driven control design eliminates the need for programming.
- Selectable Data Output Rates: Choose between 10SPS and 80SPS output data rates, allowing you to tailor your measurement needs.
- Supply Rejection: Achieve exceptional performance with simultaneous 50Hz and 60Hz supply rejection, enhancing stability and accuracy.
- Efficient Power Consumption: Designed for energy efficiency, the load cell operates at under 1.5mA during normal operation, with a power-down mode consuming less than 1µA.
- Broad Operating Voltage: Suitable for a wide supply voltage range of 2.6V to 5.5V, making it adaptable to various applications.
- Wide Temperature Range: With an operational temperature range spanning from -20°C to +85°C, this load cell is suited for both indoor and outdoor environments.
💍 Connection Guidelines:
🏆 For optimal performance, make sure to connect the load cell as follows:
- Red wire to E+
- Black wire to E-
- Green wire to A+
- White wire to A-
🛠️ Whether for industrial applications or DIY projects, this Load Cell with HX711 AD Module is your ideal solution for precise and reliable weight measurement.
