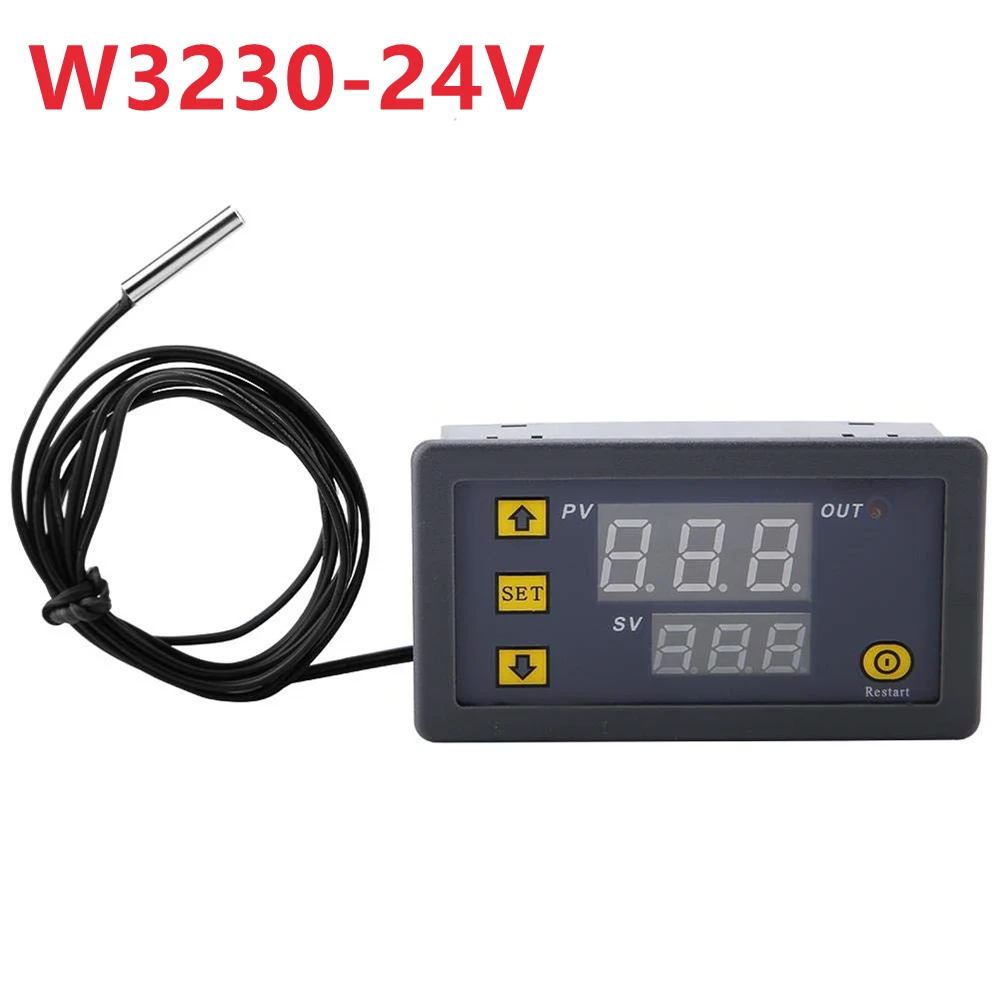

Compact Digital Temperature Control LED Display Thermostat with Heat/Cooling Functionality (DC 24V)

Product Overview:

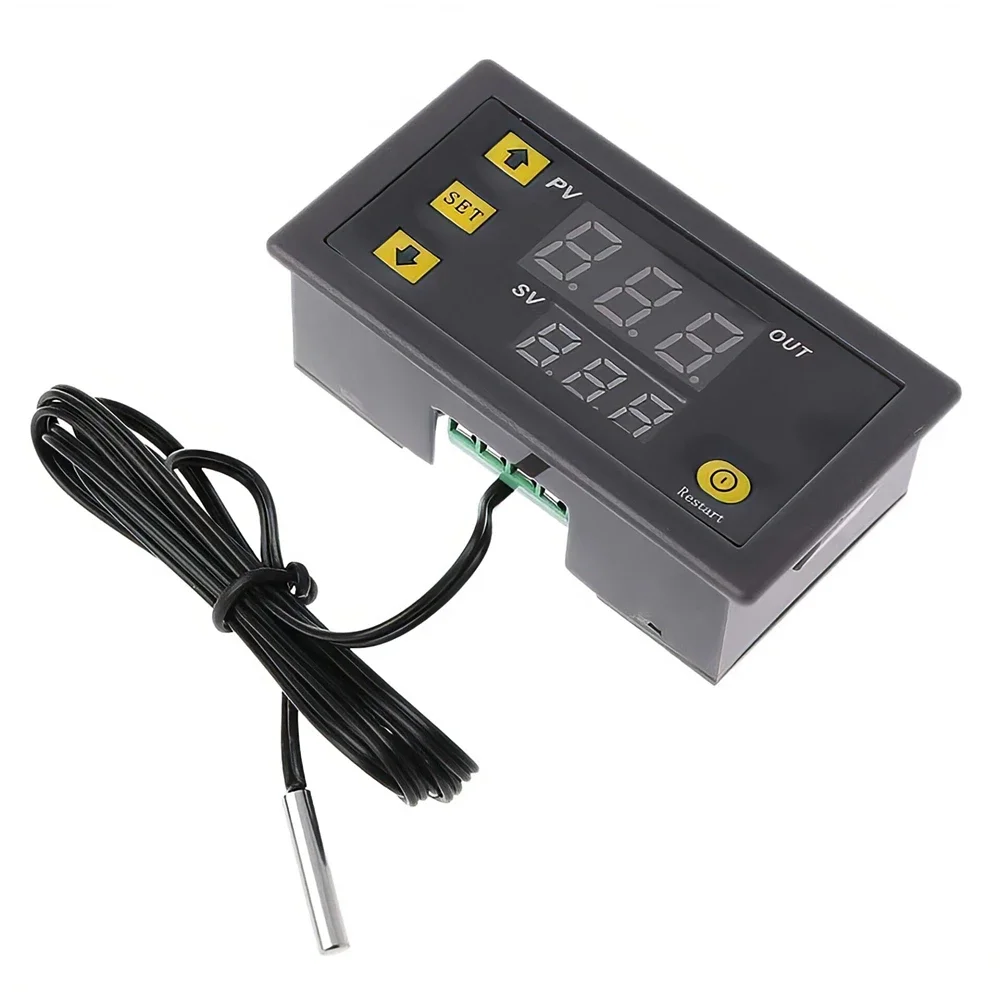

📦 The Mini W3230 Probe Line Digital Temperature Control Thermostat is a compact and versatile instrument designed for precise temperature management across a variety of applications. This user-friendly device features a bright LED display, allowing for easy readability and monitoring of temperature settings at a glance. With a robust sensor capability and a wide temperature measurement range from -55°C to 120°C, the W3230 is perfect for managing heating, cooling, and refrigeration processes in both domestic and industrial environments.

🔧 Key Features:

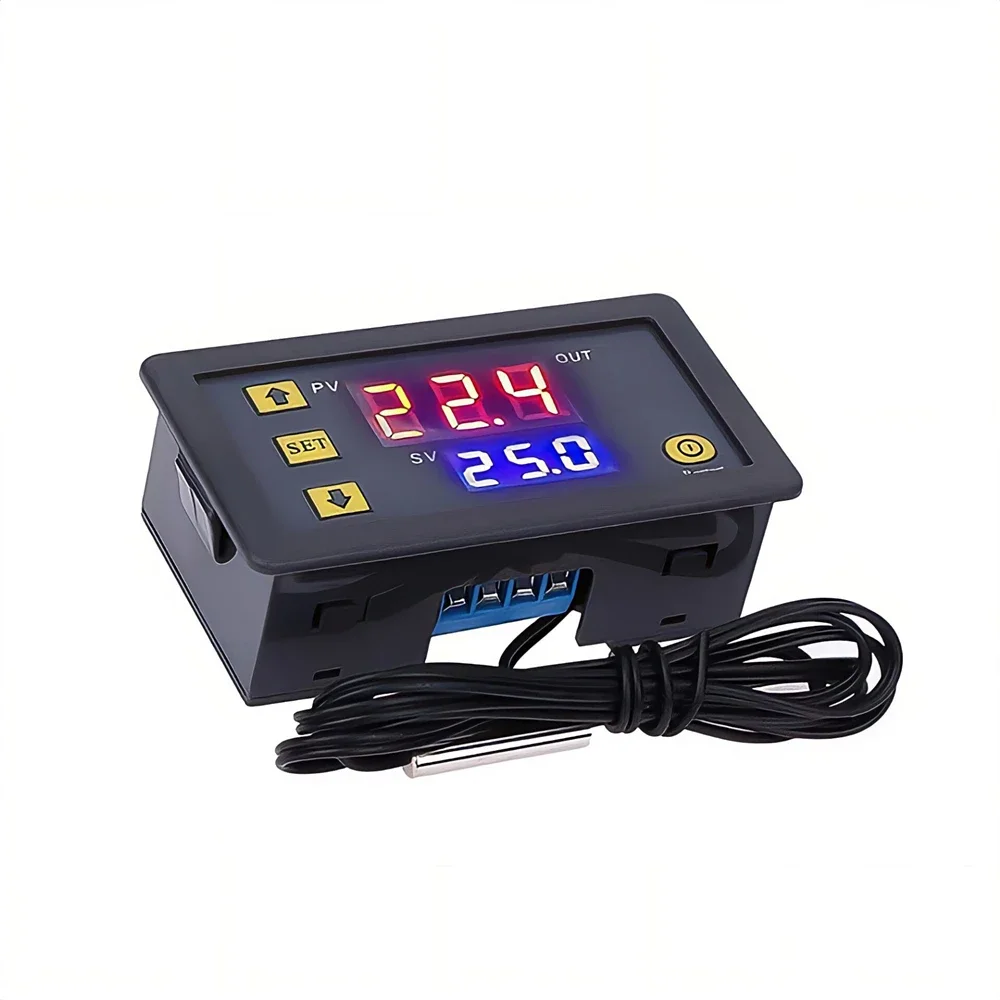

• Clear LED Display: The bright red or blue display provides real-time temperature readings, ensuring users can quickly assess the current conditions.
• Dual Control Options: The W3230 supports both heating and cooling modes, making it adaptable to various systems including freezers, water tanks, and industrial chillers.
• High Control Precision: With an impressive control precision of 0.1°C, the thermostat is capable of maintaining strict temperature thresholds.
• Memory Function: All user-defined settings are saved even after a power interruption, allowing for seamless operation without the need for frequent adjustments.

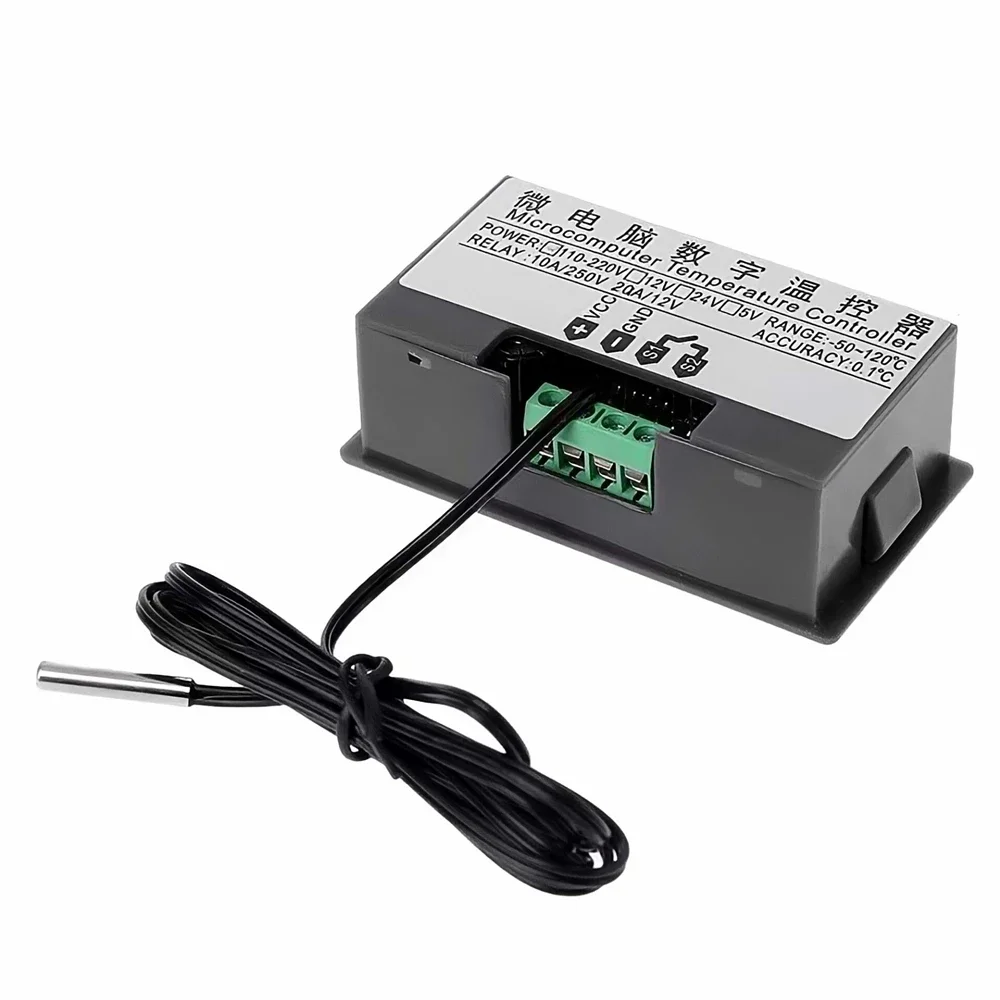

• Relay Output: Equipped with a relay output capable of handling loads up to 20A, this controller can efficiently manage high-power devices.

🔍 Specifications:

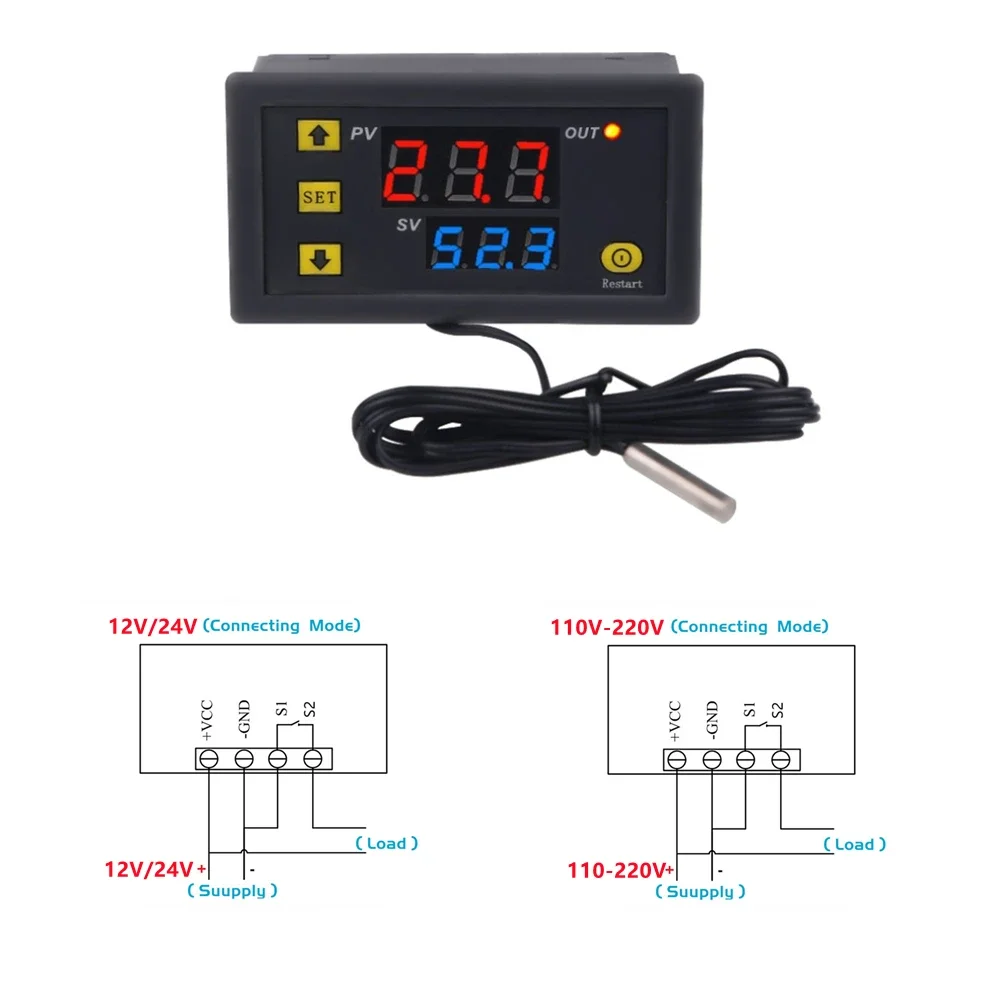

• Power Supply Options: 12V DC, 24V DC, 110V-220V AC
• Temperature Control Range: -55°C to 120°C
• Resolution Ratio: 0.1°C in the range of -9.9°C to 99.9°C; 1°C for other ranges
• Measurement Accuracy: ±0.1°C
• Sensor Type: NTC10K Waterproof sensor
• Operating Environment: -10°C to 60°C with humidity levels between 20% to 85% RH

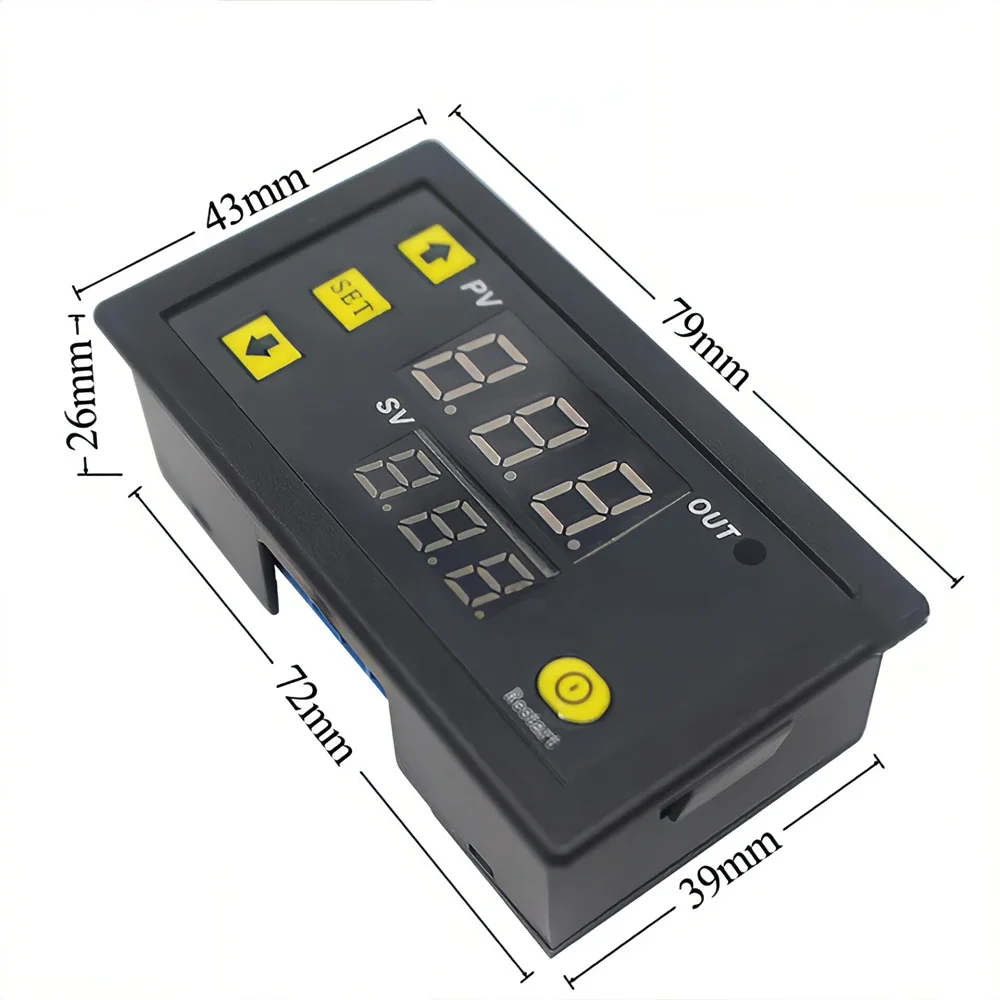

• Dimensions: 79mm x 43mm x 26mm
• Cutting Size: 73mm x 39mm
• Sensor Cable Length: 1 meter

💧 User-Friendly Operation:

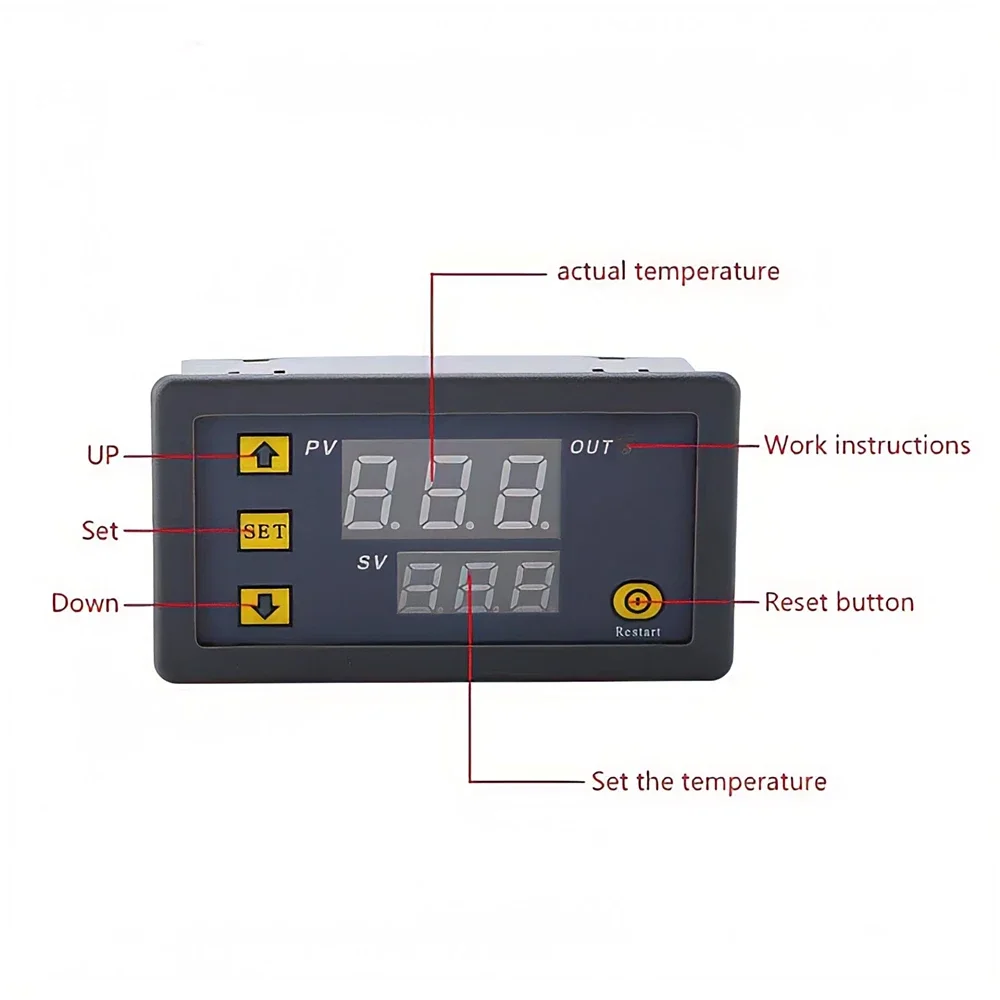

😎 Setting up the W3230 is intuitive. Upon connecting to power, the device begins to measure the ambient temperature. Users can easily adjust settings by pressing the SET key, followed by the "+" or "-" keys to reach the desired temperature. The straightforward navigation allows for adjustments in cooling/heating modes, return differences, and temperature limits with just a few key presses.

🧩 Indicator and Alarm Functions:

🔍 The W3230 includes a clear status indicator that provides operational feedback. The indicator light flashes during delayed startup, while a solid light signifies that the relay is engaged. An alarm feature alerts the user of temperature extremes, ensuring proactive management of temperature-sensitive environments.

🧰 Advanced Settings:

🧩 For those who require greater control, the W3230 offers advanced functions such as:

• P0: Choose between cooling and heating modes
• P1: Adjust return difference to fine-tune temperature maintenance
• P2: Set a maximum temperature limit to prevent overheating
• P3: Establish a minimum temperature setting to avoid freezing or ice formation
• P4: Correct any discrepancies in temperature measurement
• P5: Delay startup of the cooling or heating elements to enhance equipment longevity

😎 Reset Function:

🏆 In the event of configuration errors, the W3230 features a simple restore-to-factory settings function, allowing users to easily revert to the default settings with minimal hassle. This ensures that the thermostat can be swiftly reconfigured for optimal performance.

🛠️ With its versatile design, advanced features, and ease of use, the Mini W3230 Probe Line Digital Temperature Control Thermostat is an essential tool for anyone needing precise temperature control in their home or industrial applications.
