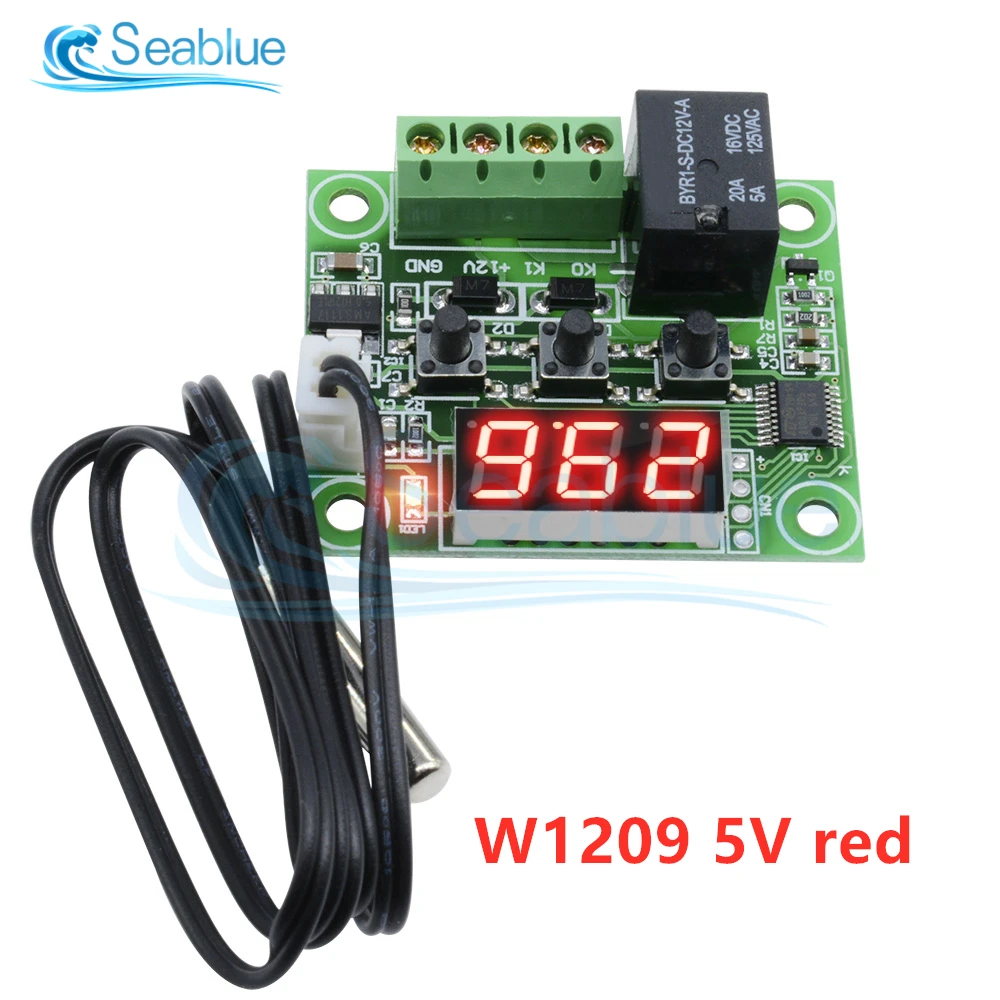

LED Digital Thermostat Temperature Controller with Waterproof NTC Sensor and Thermometer Switch Module (W1209 5V red)

💧 Product Overview:
The DC 5V/12V/24V AC 110-220V W1209 LED Digital Thermostat is an advanced temperature control solution designed for a variety of applications. With its sleek and compact design, this module allows for precise temperature management, making it ideal for home, industrial, and research settings. Key Features:
- Temperature Range: Operates within a wide temperature spectrum from -50°C to +110°C, ensuring versatility across several environments.
- Dimensions: Compact size of 48.5 x 40 mm allows for easy integration into various projects or systems.
- Temperature Control Mode: Employs an intuitive ON/OFF control method that simplifies operation for users of all levels.
- Resolution: Offers precise temperature readings with a resolution of 0.1°C in the range of -9.9°C to 99.9°C; with a 1°C resolution at other temperature segments.
- Control Accuracy: Boasts impressive accuracy at ±0.1°C, ensuring reliable and consistent temperature regulation.
- Hysteresis Accuracy: Maintains stability with a hysteresis of ±0.1°C, preventing unwanted fluctuations in temperature.
- Refresh Rate: Quick 0.5 second refresh rate for real-time temperature updates.
- High-Temperature Protection: Features a safety range of 0°C to 110°C to safeguard sensitive components.
- Environmental Suitability: Designed to operate effectively in environments ranging from -10°C to 60°C, with humidity levels between 20% and 85%.
- Probe Specifications: Comes with a 30 cm waterproof NTC sensor tailored for accurate temperature measurement.
- Power Supply: Supports versatile power inputs including DC 5V, 12V, 24V, and AC 110-220V (requires transformer). The static current consumption is ≤ 35MA, while the relay attraction current is ≤ 65MA.
- Output Power: Capable of controlling loads up to 20A through its robust relay, offering reliable performance for various applications.
Operational Instructions:
To utilize the W1209 thermostat, connect your power supply and load to the controller. The unit will immediately display the measured temperature. Press the SET button to enter the temperature setting mode, where you can adjust the desired temperature using the "-" button. Confirm your settings by pressing the SET button again; the system will then execute the relay operation automatically. The LED indicators provide visual status updates, showing whether the relay is open or closed and alerting you to sensor issues or high-temperature conditions.
Included in the Package:
- 1 x W1209 Thermostat Temperature Control Switch Module (with waterproof NTC sensor probe)
- 1 x DIY Assembly Case (requires self-assembly)
- 1 x 30 cm NTC Sensor Probe
- 1 x Transformer
