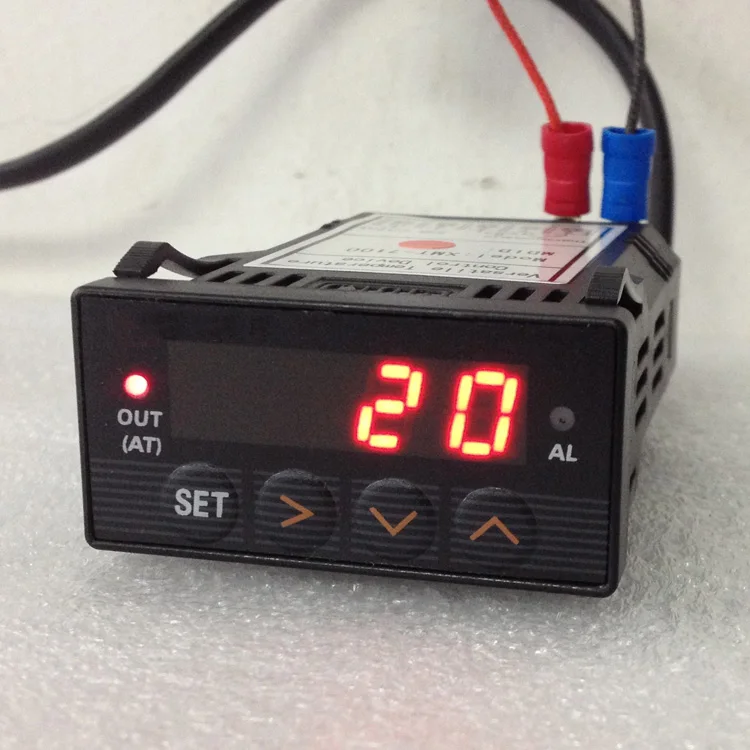

Intelligent PID Temperature Controller Thermostat, Digital Display, Industrial Use, 1300°C Capacity, 48x24mm (Red)

📦 Product Overview:
Introducing the XMT7100 Intelligent PID Temperature Controller, an advanced digital thermostat designed for industrial applications. This compact device features a panel size of 48*24mm and is equipped with an intuitive programmable PID control system that ensures precise temperature regulation. With the ability to handle temperatures up to 1300°C, it is ideal for a variety of industrial environments where accuracy and reliability are paramount.

⚡ Key Features:
The XMT7100 series utilizes state-of-the-art microprocessing technology, allowing the unit to automatically adjust to different system requirements. The device supports temperature readings in both Celsius and Fahrenheit, accommodating diverse applications. It also includes five selectable control options, providing flexibility in its operation:

• 1. Alarm relay output with relay contact PID output
• 2. Alarm relay output with SSR (Solid State Relay) non-contact PID output
• 3. Alarm relay output with SSR-level feedback for enhanced control
• 4. Backlash relay control output

🏆 Technical Specifications:
The XMT7100 ensures high performance and compatibility through various input options, including:

• RTD input (Pt100, Cu50)
• Thermocouple input (Types T, R, J, B, S, K, E, WRe3-WRe25)

💍 It operates on a wide power supply range of AC/DC 85~260V (50/60Hz), with additional options of 12VDC and 24VDC. The contact capacity is rated at AC 250V/3A, providing robust performance suited for industrial tasks. The expected contact life is an impressive 1×10⁵ cycles, ensuring long-term reliability.

🏆 The temperature measurement range is extensive, spanning from -199.9°C to +2300°C, with a measurement accuracy of ±0.2% FS. Designed for use in environments ranging from 0°C to +50°C with relative humidity ≤85%, the XMT7100 is built to withstand challenging conditions without compromising performance.

🧩 Display and Customization:
This device features a bright LED display available in various colors, including red, blue, white, green, and orange, ensuring visual clarity in different lighting conditions. The outline dimension of the controller is 48×24×75mm, with a panel dimension of 45×22mm. For businesses seeking a tailored solution, the front panel can be customized with logos or branding elements upon request.
