📶 Product Overview: The 433MHz Universal Wireless Remote Control is an innovative solution for managing a variety of devices, making it ideal for controlling garage doors, gate motors, and lighting systems. Designed with versatility in mind, this remote control system operates at both AC 110V and 220V, ensuring compatibility across different power supply standards.
Specifications:
- Model Number: KR2204-4
- Working Voltage: AC 90V-250V, 50/60Hz
- RF Working Mode: ASK Superheterodyne Reception
- Modulation Mode: ASK
- Operation Modes: Offers Multiple Modes such as Momentary, Toggle, and Latched for flexible control
- Matching Mode: Features Intelligent Learning Code for seamless integration
- Quiescent Current: Consumes only 5mA for efficient operation
- RF Frequency: Operates at 433MHz, providing reliable communication
- Receiving Sensitivity: Greater than 104dBm, ensuring effective signal reception
- Remote Control Range: Up to 70 meters in free space, offering extensive coverage

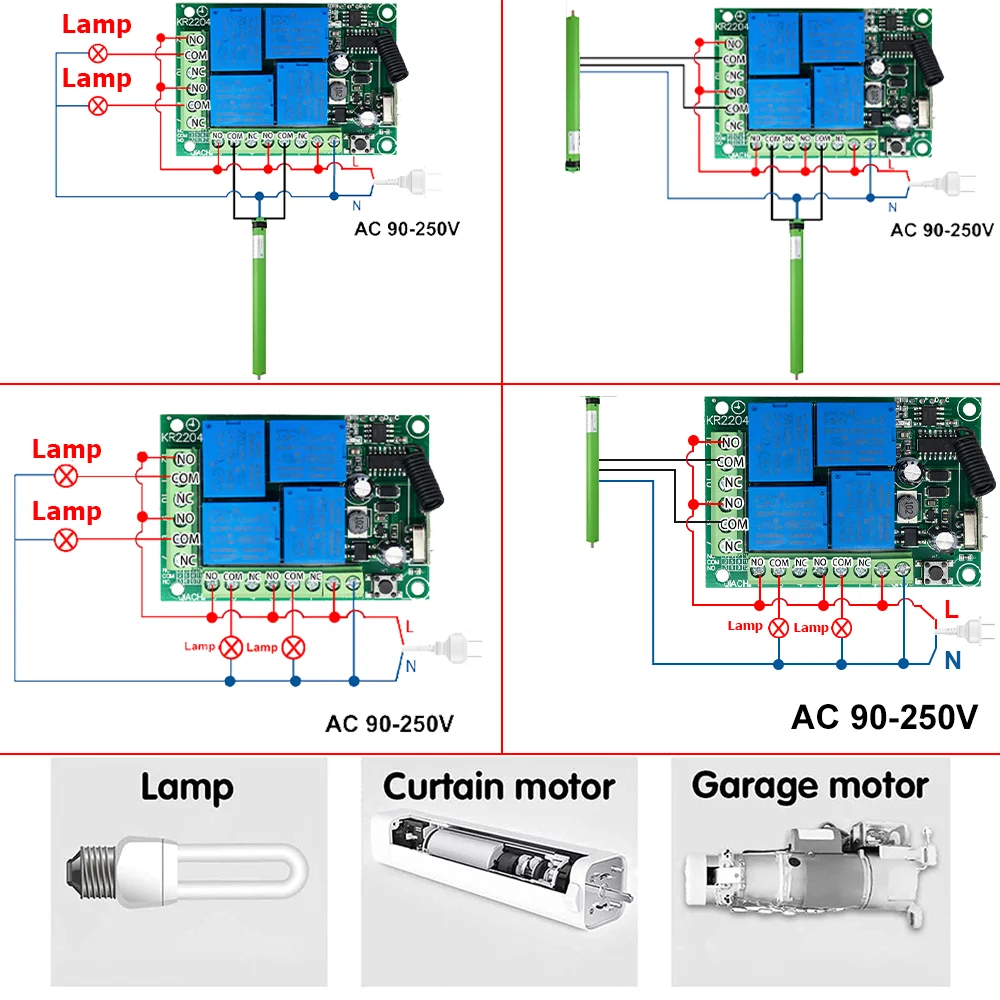

- Output Mode: Supports both Dry Contact and Voltage Output for versatile applications
- Wired Connection: Utilizes a Fixed Wiring Pillar for secure installation
- Color: Green PCB Board with a sleek white outer shell
- Dimensions: 7.5 x 5.5 x 3.0 cm (2.95 x 2.16 x 1.18 in)
- Weight: Lightweight at 80g (2.82oz)
🔒 Operating Functions: The remote control unit features a comprehensive range of operating instructions to provide unmatched flexibility:

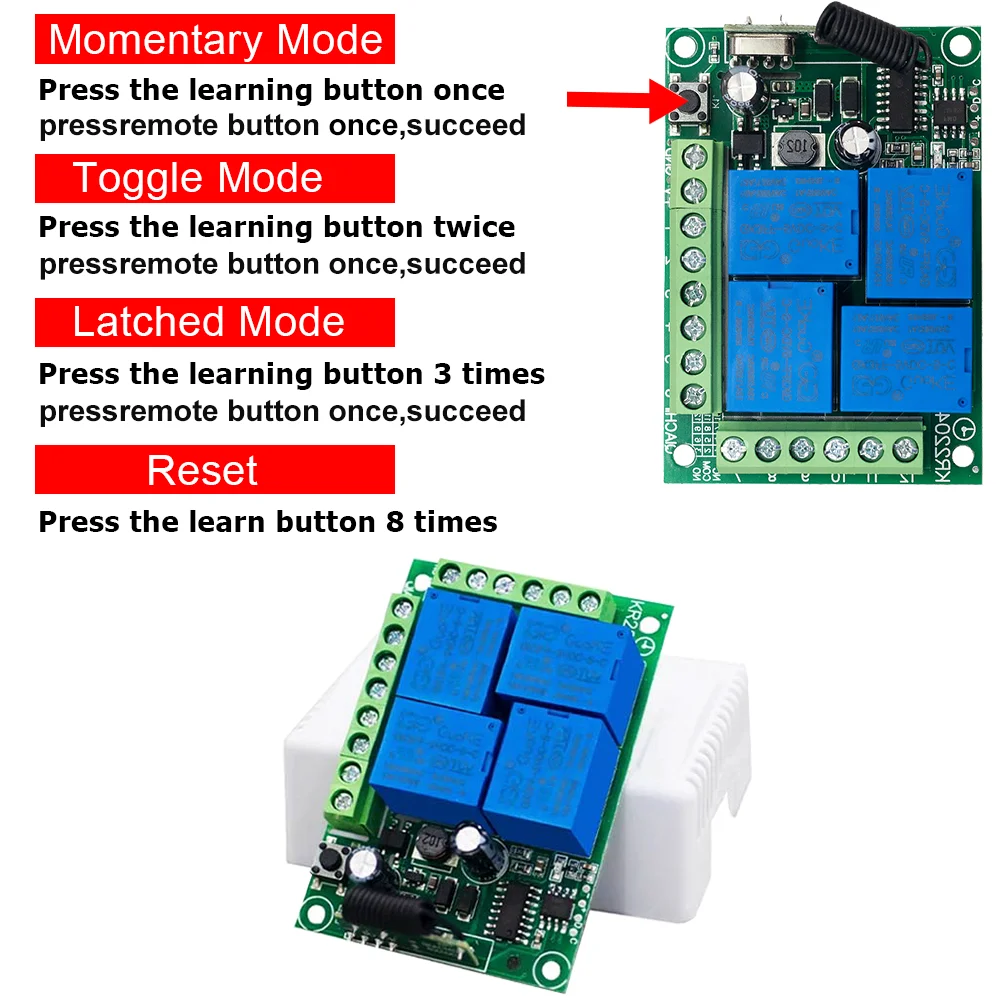

- Jogging Function: Enable pairing by pressing the control board button once, followed by the remote button.
- Self-Locking Function: For secure operation, press the pairing button twice, then follow with the remote button.
- Interlocking Function: Achieve synchronized operation by pressing the button three times and then the remote button.
- Two-way Jog & Self-Locking: A combination of both functionalities by pressing the button four times.
- Two-way Jog & Interlocking: Enhanced interactivity by pressing the button five times.
- Two-way Self-Locking & Interlocking: A versatile option achieved by pressing the button six times.
- Two-way Interlocking: Enable repeated interlocking functions by pressing the button seven times.
- Code Clearing Function: Reset matched codes by pressing the button eight times, ensuring all previous pairings are removed.
🔍 This comprehensive remote control system combines versatility, intuitive operation, and robust performance, making it an essential tool for anyone looking to modernize their home or workspace with reliable wireless control.
