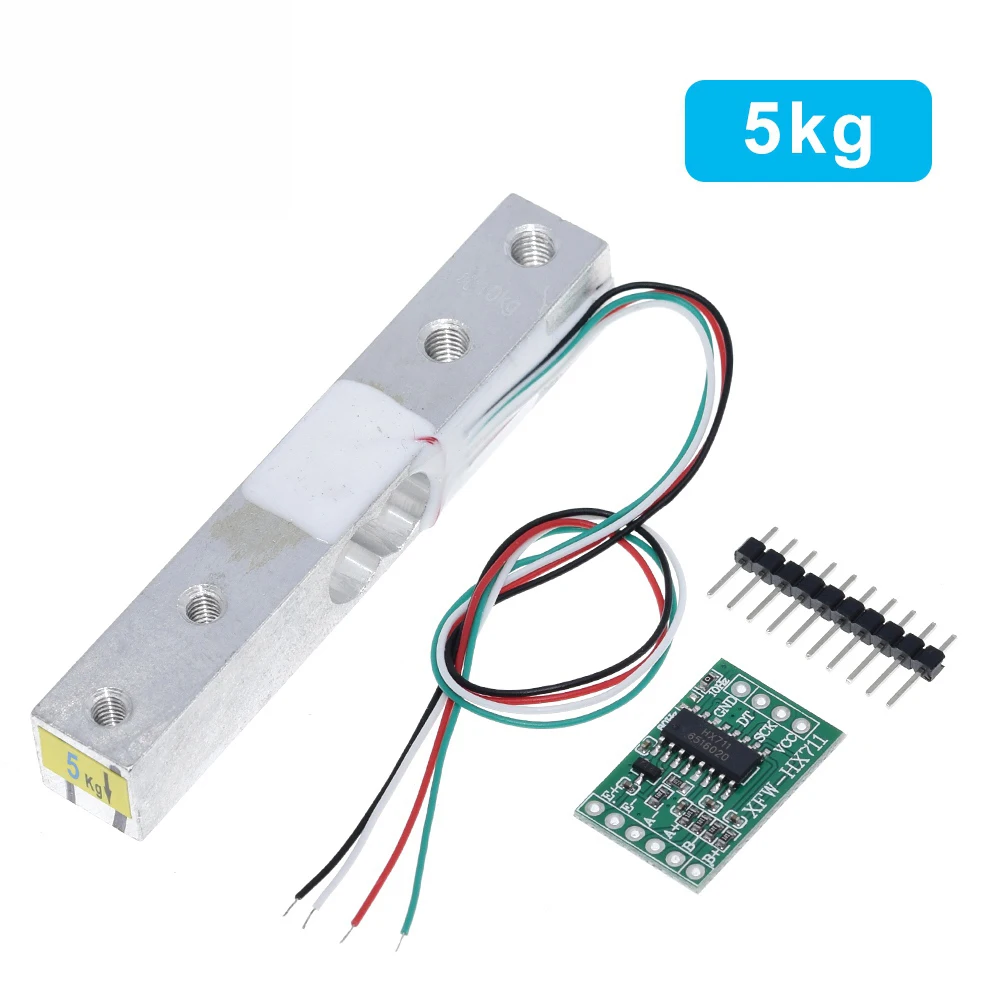

Aluminum Alloy Weight Sensor Module with HX711 (5KG AND HX711)

Product Overview:

🛠️ Introducing the Load Cell Weight Sensor, an efficient and reliable solution for all your weighing needs. Available in four precise models—1KG, 5KG, 10KG, and 20KG—this module is designed to deliver accurate measurements for various applications. The robust design, featuring an aluminum alloy construction, ensures durability and longevity, making it ideal for both commercial and personal use.

🔧 Key Features:

• Versatile Range: Choose from four different weight capacities to suit your specific requirements, whether for light items or heavier loads.
• Integrated Backplane: This weighing module includes a self-contained backplane, making it easy to integrate into your electronic scale projects.
• Simple Connectivity: With just four leads, this module simplifies installation and setup. It operates on a 5-10V driving voltage and directly outputs a voltage signal that correlates with applied force changes.
• Compact Design: The compact dimensions of the weighing module (12.7mm x 12.7mm x 75mm) and the HX711AD module (16mm x 24mm) make installation easy in confined spaces.
• Fixed Holes for Easy Mounting: The module features two 4mm and two 5mm holes for securing the setup, with a fixed hole distance of approximately 14.5mm, allowing for versatile mounting options.
• Lightweight: Weighing in at about 32 grams, this sensor is easy to transport and install without added bulk.

🕊️ Wiring Instructions:

💍 To ensure correct installation, the wiring should be connected as follows: the red wire connects to the positive power supply (+), the black wire to the negative power supply (-), the green wire outputs the signal positive (+), and the white wire outputs the signal negative (-).

⚡ Important Precautions:

💍 When installing the sensor, it is crucial to fix one end using the provided screw holes while keeping the opposite end in a floating state. Be sure to apply weight according to the direction indicated by the label. Special care must be taken to avoid direct pressure on the white rubber element to prevent any damage to the sensor, ensuring reliable and accurate measurements.

🛠️ Enhance your electronic scale projects with the Load Cell Weight Sensor, a dependable component that combines precision, ease of use, and robust construction.
