Enhanced Lithium Battery Protection Board, 48V 15A/20A, for Electric Vehicles and Bikes (20A Same Port)

🧩 Product Overview:
Introducing the BMS 13S 48V Lithium Battery Protection Board, designed for optimal performance and safety in electric vehicles and bikes. With its high-quality construction and advanced features, this protection board is essential for maintaining the health of your lithium battery pack, ensuring longevity and efficiency.

🛡️ Exceptional Features:
Crafted with exquisite attention to detail, this protection board boasts remarkable heat dissipation capabilities, enhancing overall reliability. It features multiple layers of protection, including:

• Over-Voltage Protection: Safeguards your battery from excessive voltage that can lead to damage.
• Over-Discharge Protection: Prevents battery depletion below safe levels, ensuring operational stability.
• Integrated Charging Protection: Streamlines the charging process while protecting against potential hazards.
• Short Circuit Protection: Offers immediate shutdown in the event of a short circuit, enhancing safety.
• Over Current Protection: Shields the circuitry from excessive current flow that could cause failure.

🧩 This board incorporates a single integrated circuit, which improves performance stability and includes advanced features such as disconnection protection and temperature monitoring capabilities, ensuring safe operation in a variety of conditions.

⚡ Technical Specifications:
The BMS 13S 48V protection board is engineered to support various needs, featuring:

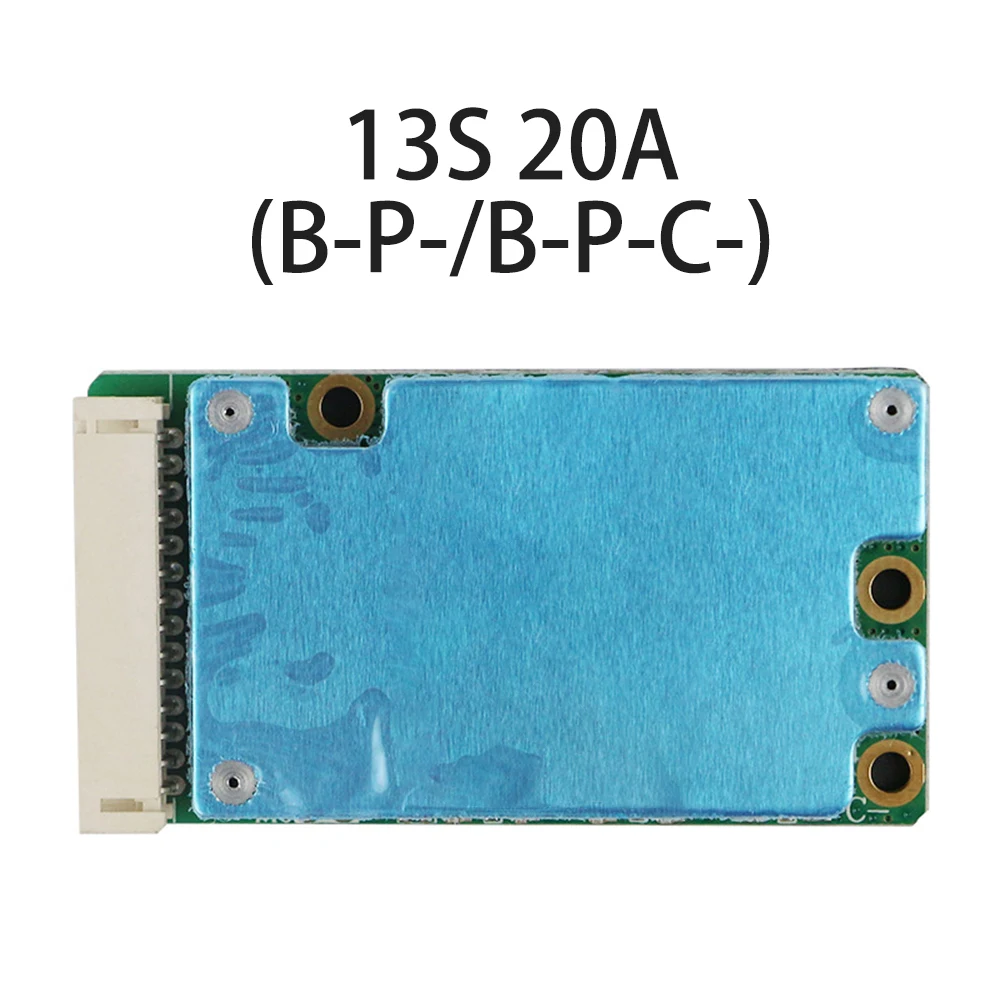

• Type: Ternary, 13 strings, 48V, available in both 15A and 20A configurations.

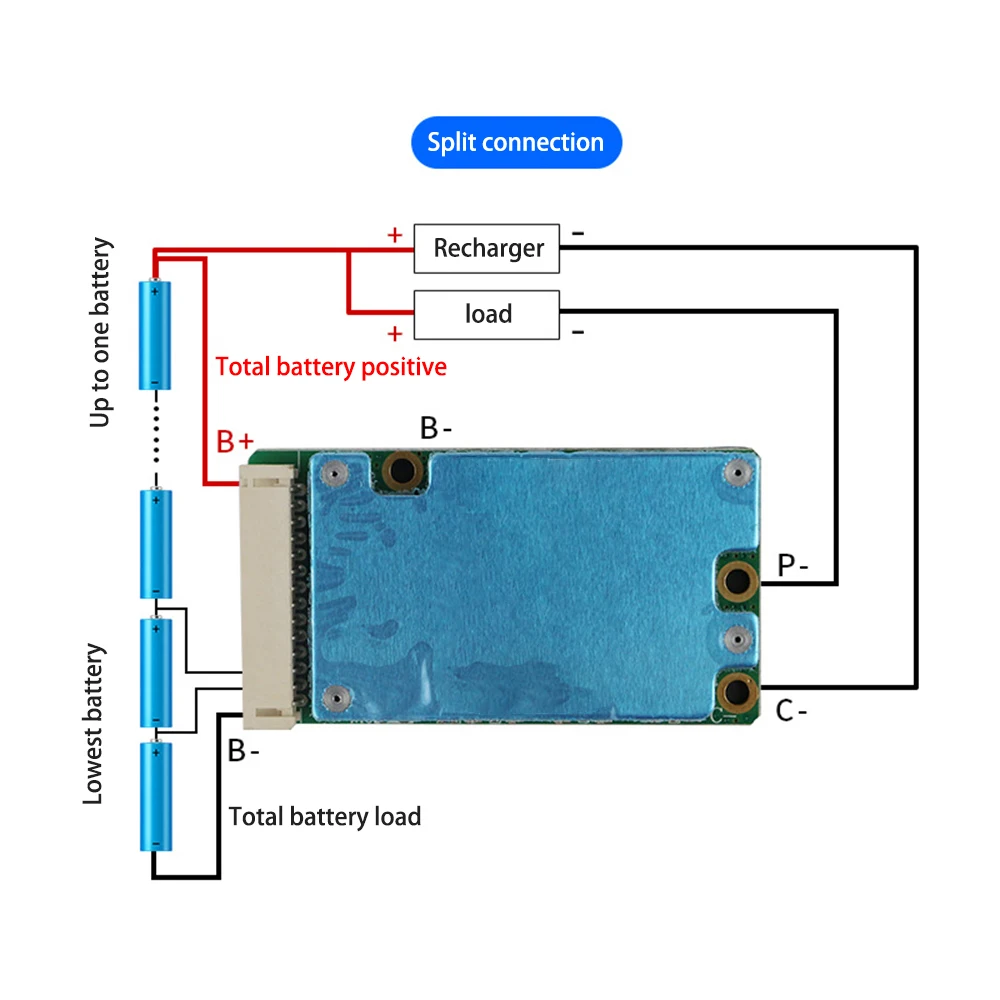

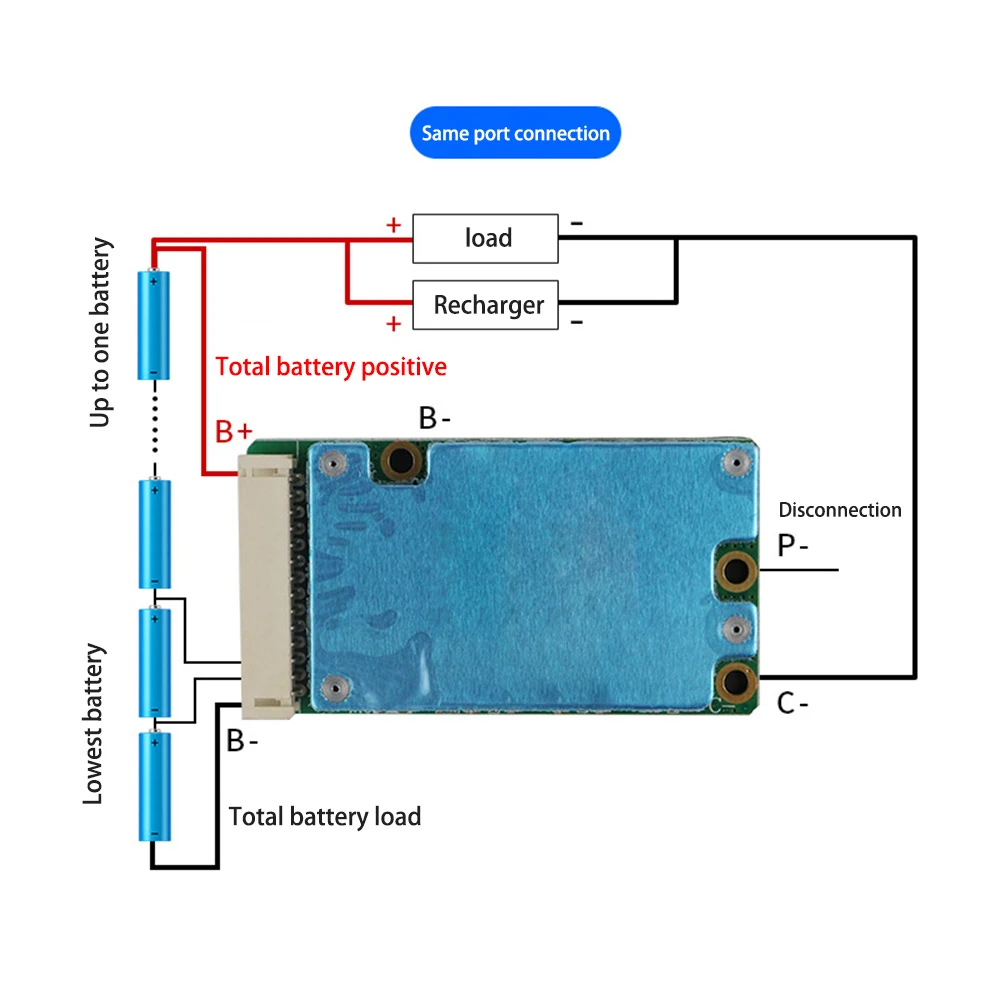

• Wiring Modes: Choose between same port or split port wiring to suit your application.
• Continuous Working Current: Either 15A with 4MOS or 20A with 6MOS.
• Instant Protection Current: Up to 65A for 4MOS and 80A for 6MOS configurations.
• Temperature Range: Operational from -40°C to +80°C, accommodating various environments.

⚡ The product is designed with a practical activation mechanism, allowing for easy initial setup with two options: either short-circuiting specific wires or by charging to activate. This flexibility ensures that users can start using their battery pack quickly and efficiently.

📦 Dimensions:
Compact in design, the protection board measures 63mm x 34mm x 7mm, and features robust 2.0MM pitch cables 40CM long to facilitate installation.

🧩 This comprehensive protection board is perfect for enhancing safety and performance in electric vehicles and bicycles, making it an essential component for any lithium battery setup.

🪶 Package Contents:

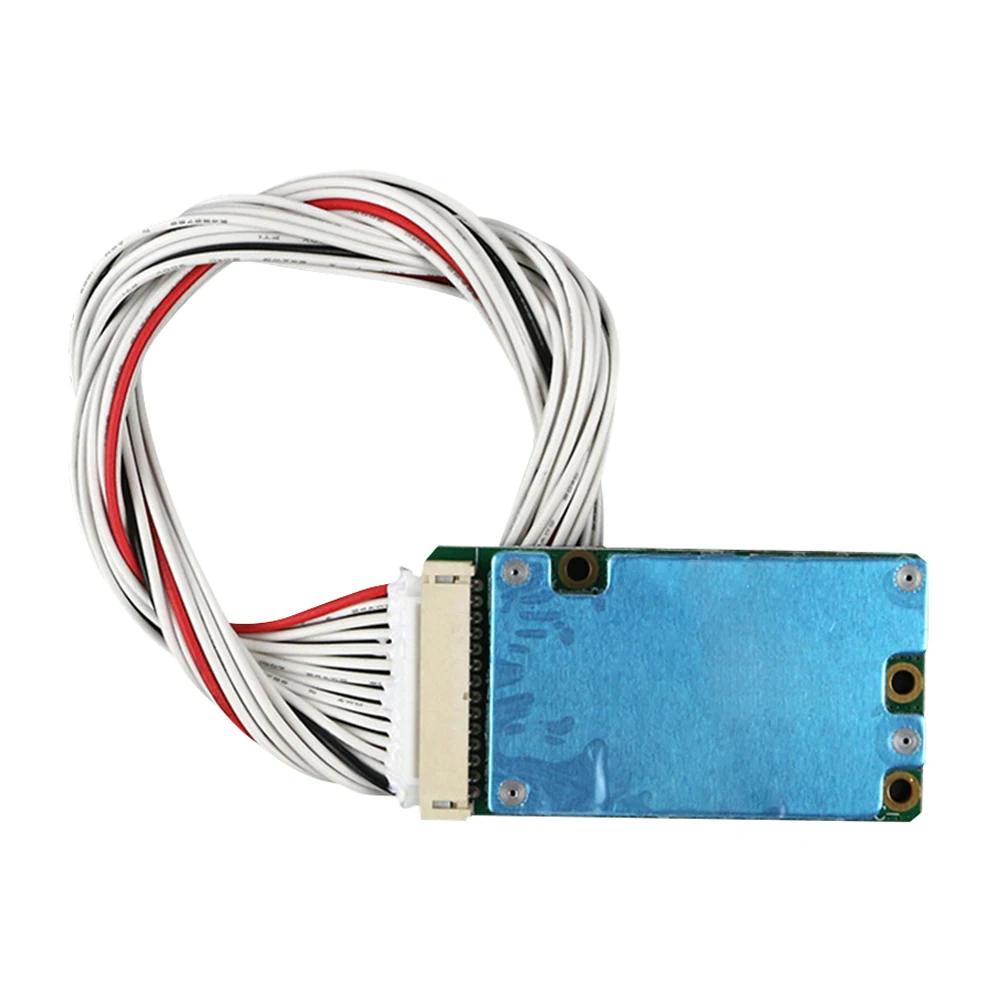

The package includes 1 protection board and 1 connecting line, ensuring you have everything necessary for installation.
