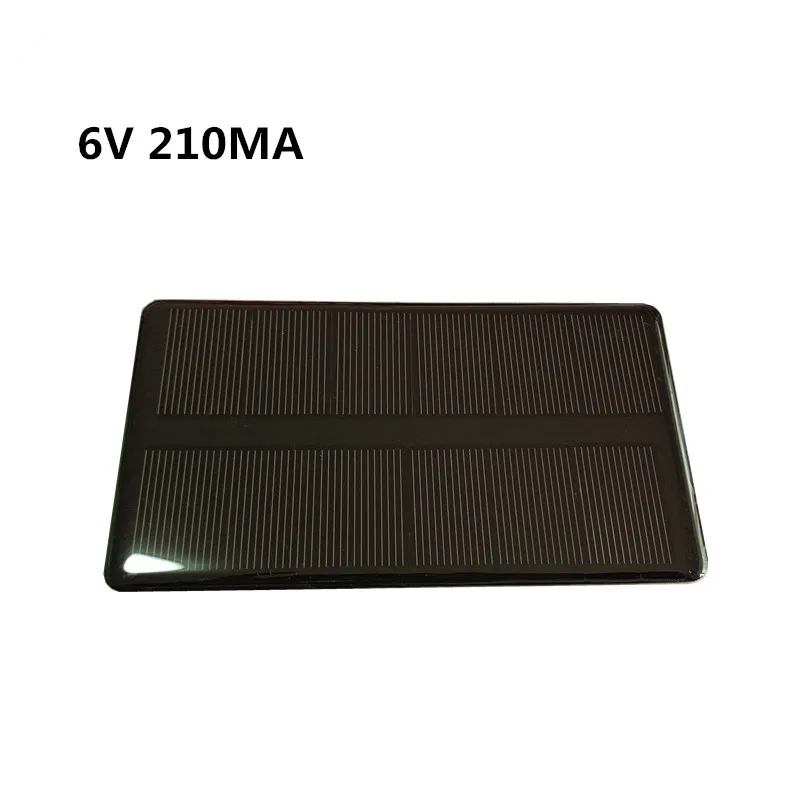

Compact 6V Monocrystalline Silicon Solar Panel with Built-in Solar Charger (6V 210mA panel only)

Product Overview:

📦 Introducing the Mini 6V 210MA 1.25W Monocrystalline Silicon Solar Panel with integrated solar charger based on the advanced CN3065 cell management technology. This compact solar energy solution is perfect for eco-conscious individuals looking to harness the power of the sun to charge their devices efficiently.

Specifications:

• Voltage: 6V
• Current: 210MA
• Construction: Epoxy based with a high-performance solar cell, utilizing AB glue and a durable PCB or fiberglass backplane.
• Dimensions: 133mm x 73mm

🪞 Contents:

• 1 x Solar Panel
• 1 x Solar Charger

🔌 Product Features:

🔌 This mini solar charger excels in charging single lithium polymer batteries, leveraging its ability to extract maximum power from your photovoltaic setup. The ease of use is remarkable; simply connect your solar panel to the Solar Charger on one side and your rechargeable battery on the other, and you're ready to charge!

🧩 The Solar Charger is specifically designed for optimal compatibility with single polymer lithium-ion cells. It can manage a maximum charge current of 500mA and requires an input voltage range from 4.4V to 6V, ensuring safety and efficiency while charging your batteries. It's worth noting that batteries should not be charged above their rated capacity to extend their life.

🔧 Advanced Features Include:

• Solar Panel Input: 4.4V to 6V
• Maximum Charge Current: 500mA
• Connector Type: 2-pin JST connectors (PH2.0)
• Short Circuit Protection: Ensures safety and reliability during charging.
• Battery Status Indicator: The device features a user-friendly indicator system, where a red light signifies charging, and a green light indicates a fully charged battery.
• Micro-USB Connector: For versatile connectivity.

🧩 Battery Monitoring and Display:

🔧 The included 1S Power Display demonstrates real-time battery power status. Simply connect the display board to the positive and negative terminals of your battery, and the digital readout will show you the current voltage level. This feature allows you to keep a close eye on your battery’s health and ensure it is charged when necessary.

Display Parameter Guidelines:

• 1 Grid: Battery voltage > N × 3.3V
• 2 Grids: Battery voltage > N × 3.5V
• 3 Grids: Battery voltage > N × 3.7V
• 4 Grids: Battery voltage > N × 3.9V
• Off: Battery voltage < N × 3.3V — Time to charge!

📦 Additional Package Options:

• Package A: Includes solar panel, solar charger, cables, and a 1S power display.
• Package B: Complete kit with solar panel, 1S display, solar charger, 1S battery holder, connectors, and cables (battery not included).

🔌 Unleash the power of renewable energy with this exceptional solar panel and charger combination, perfect for a wide range of applications!
