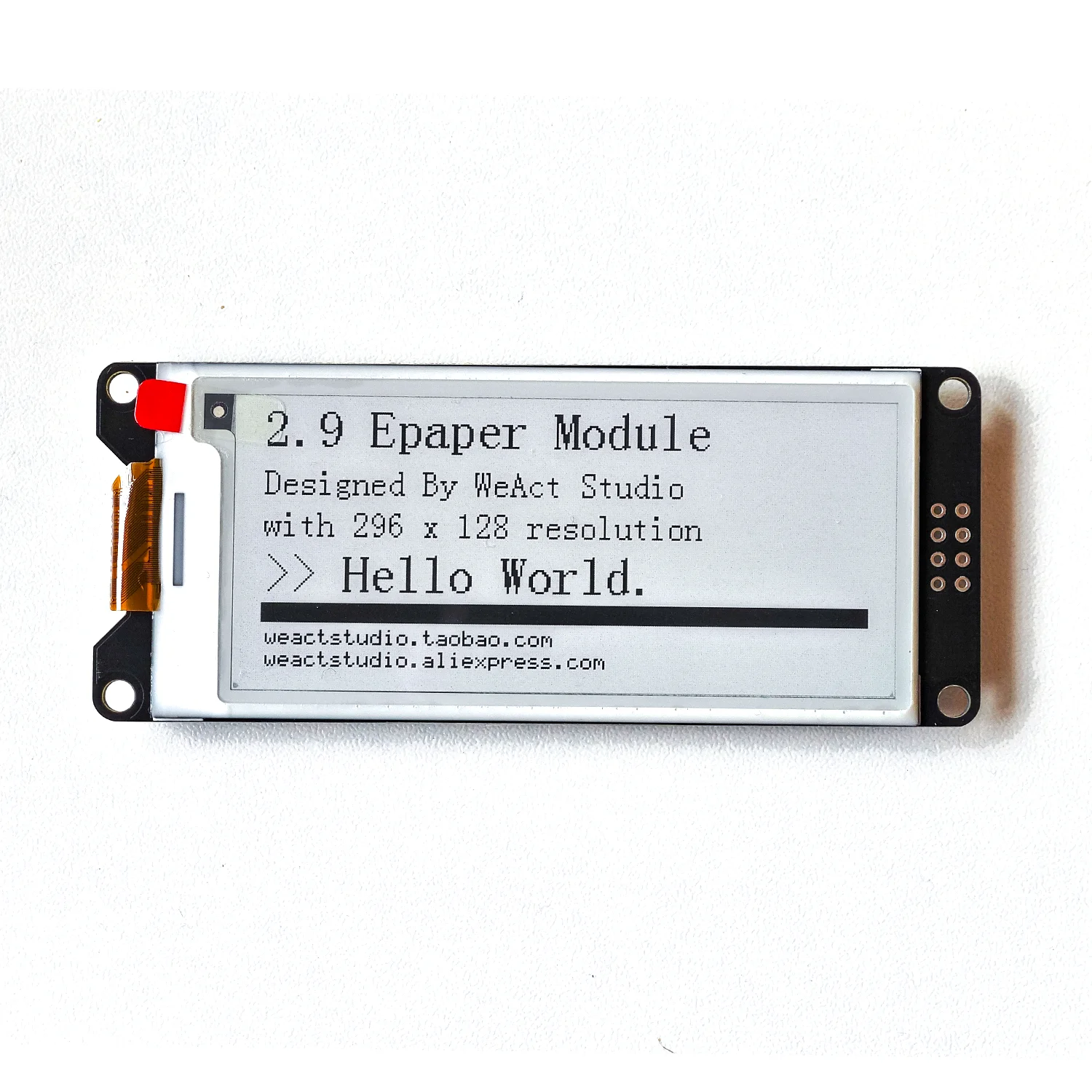

Introducing the WeAct E-paper Module
🏛️ The WeAct E-paper Module is a versatile display solution that comes in two options: a classic black-and-white variant and an enhanced black-white-red version. Each module is designed with efficiency and performance in mind, catering to different project requirements.
Module Specifications:
- Display Sizes: Available in two sizes - 2.13 inches and 2.9 inches.
- Display Resolutions:
- 2.13 inch: 250 x 122
- 2.9 inch: 296 x 128
- Color Options: Choose between black-white and black-white-red displays.
- I/O Level: 3.3V for seamless integration with your projects.
- Supply Voltage: Compatible with 3.3V to 5V power supplies to suit a range of applications.
- Connector Types: Features a 2x4Pin 2.54mm row pin and an MX1.25-8P wire-to-board connector for flexible connectivity.
- Module Dimensions: Compact size of 72mm x 30mm for easy incorporation into various designs.
📦 Performance Characteristics:
- The black-white module offers efficient partial screen brushing capabilities, with a full refresh time of approximately 3 seconds.
- The black-white-red module provides a vibrant visual experience with a refresh time of around 19 seconds, focusing on full-screen updates.
⚫ Components Included:
- 1 x Electronic Paper Module
- 1 x 2.54mm 2x4Pin Row Pin
- 1 x MX1.25-8P to 8P 2.54mm Dupont Cable Conversion Cable
Explore the potential of E-paper technology with the WeAct E-paper Module, perfect for DIY projects, electronic displays, and innovative applications.
For additional resources and code implementations, visit our GitHub page.
