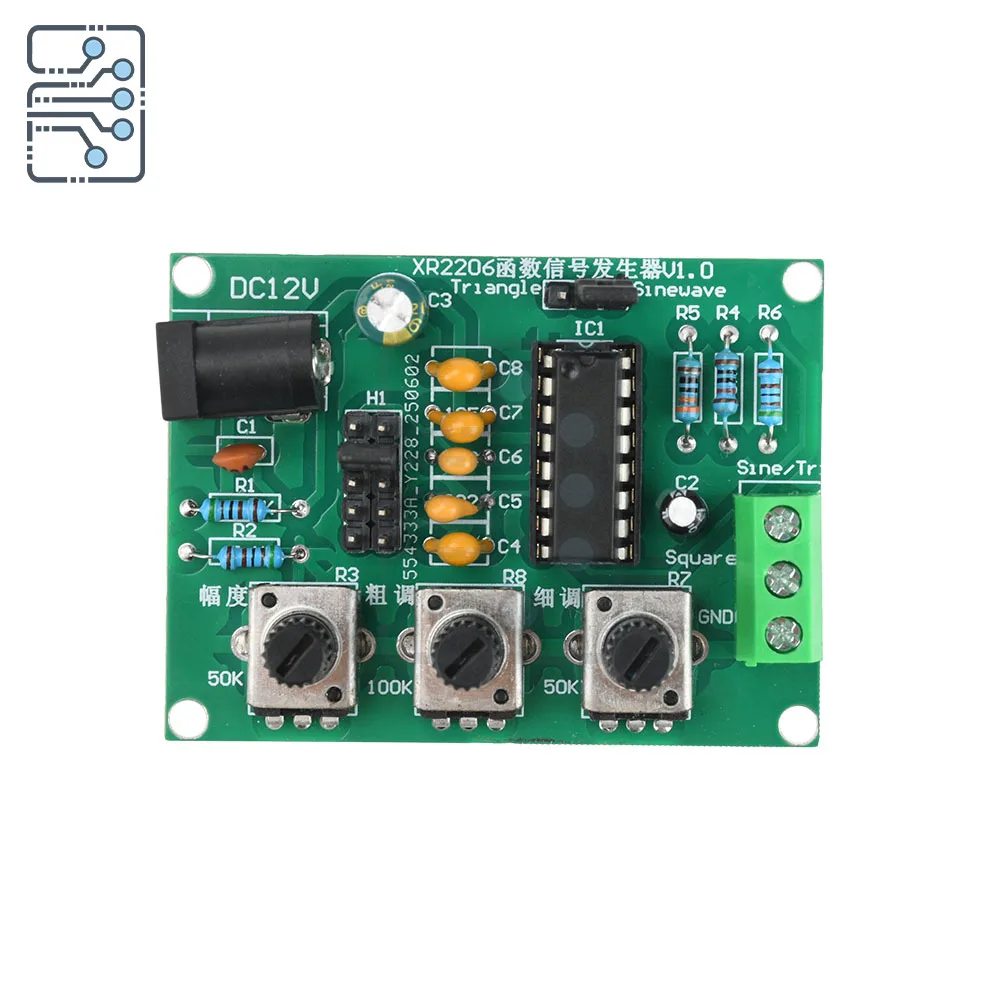

Enhanced Function Signal Generator DIY Kit - Adjustable Sine, Triangle, Square Wave Output, 1Hz to 1MHz, DC 9 - 12V (No shell)

🧩 XR2206 Function Signal Generator DIY Kit is an exceptional tool designed for electronics enthusiasts and professionals alike. This kit provides a versatile platform to generate a variety of waveforms, including sine, triangular, and square waves, making it perfect for a multitude of applications in signal processing and testing.

🔧 Key Features:

• High stability and accuracy for reliable waveform generation.
• Multiple waveform outputs: enjoy sine, triangular, and square waves, with the capability to produce sawtooth and pulse waves by adjusting the duty cycle.
• Designed for a wide voltage input range of DC 9-12V, accommodating both external power supply and battery options for flexibility in operation.
• Precise frequency adjustment with both coarse and fine tuning options spanning from 0.01Hz to 1MHz, allowing for detailed control over signal properties.
• Supports advanced features such as amplitude modulation and frequency modulation, meeting the needs for complex signal generation.
• Features a straightforward design with direct insertion components, minimizing the number of parts, which simplifies the installation and debugging process.

🛠️ Product Introduction:

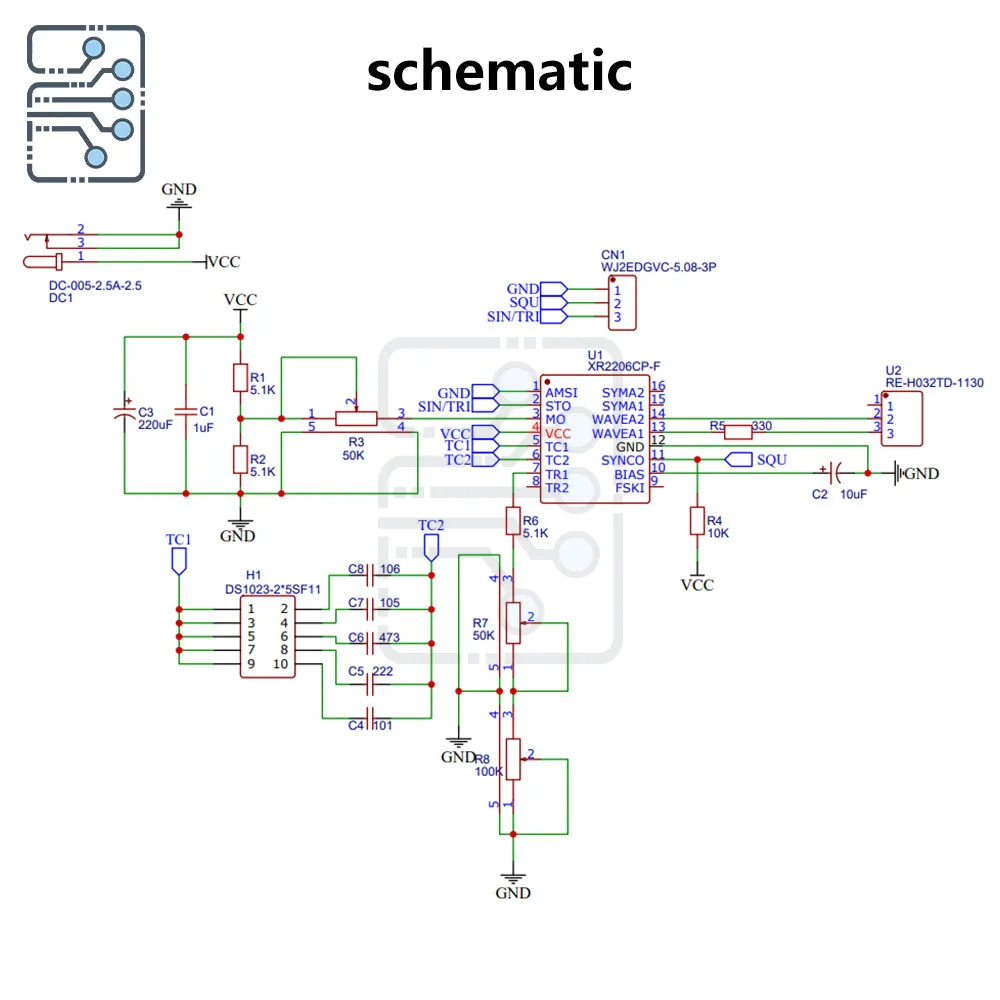

🛠️ The heart of this kit is the XR-2206, a high-performance single-chip integrated function generator. This advanced chip excels in generating high-stability, high-precision signals that are essential for various electronics projects. Whether you require consistent sine waves, precise triangular waves, or sharp square waves, the XR-2206 delivers with outstanding performance. Its amplitude and frequency modulation capabilities enhance its utility, making it ideal for applications in telecommunications, sweep signal generation, and even in frequency shift keying (FSK) signal generation.

Specifications:

• Waveform Types: Sine wave, triangular wave, square wave
• Impedance: 600 ohms ± 10%
• Frequency Range: Adjustable from 1Hz to 1MHz with variable amplitude
• Precision: Five-digit resolution for accurate readings
• Power Supply: Compatible with external supplies or 9V batteries

🛠️ Welding Precautions:

💍 When assembling the kit, solder components starting from the lowest profile to the highest to ensure stability. After soldering, please trim excess pins on the reverse side to prevent accidental contact and potential damage to the device.

📦 Package Includes:

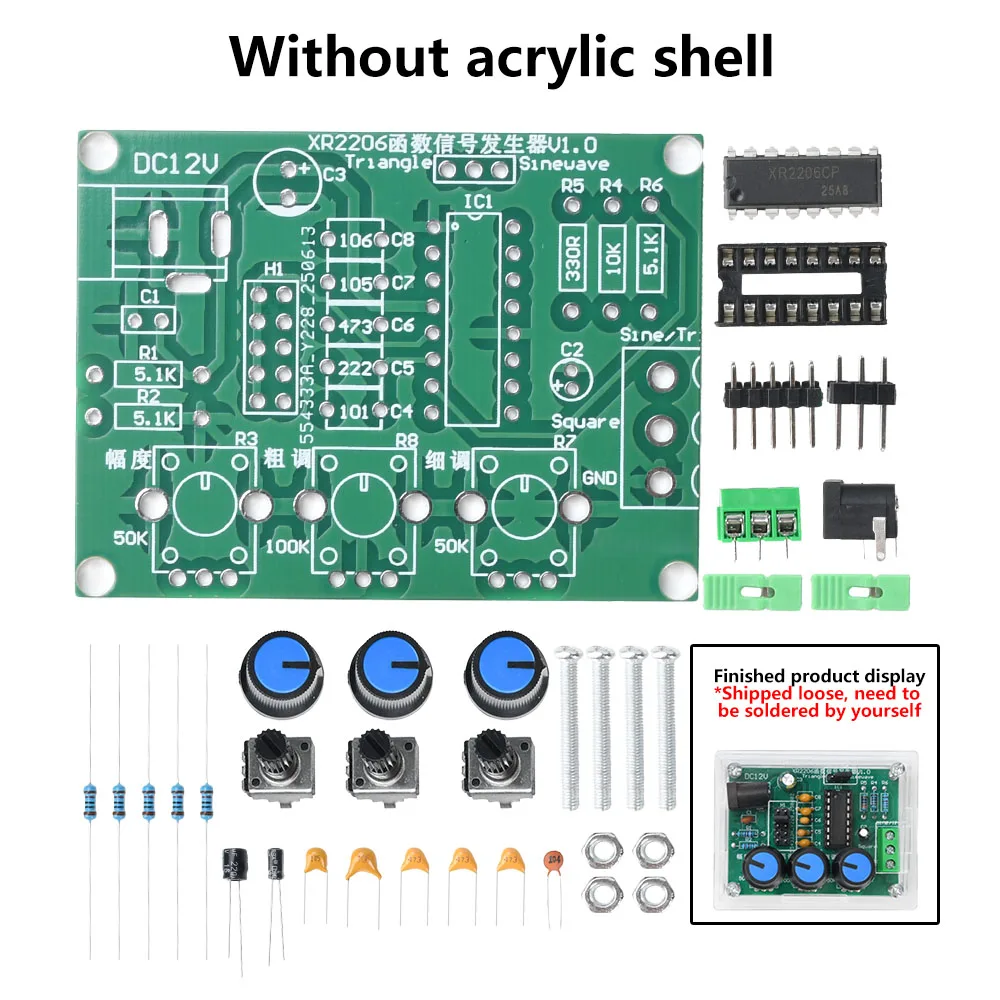

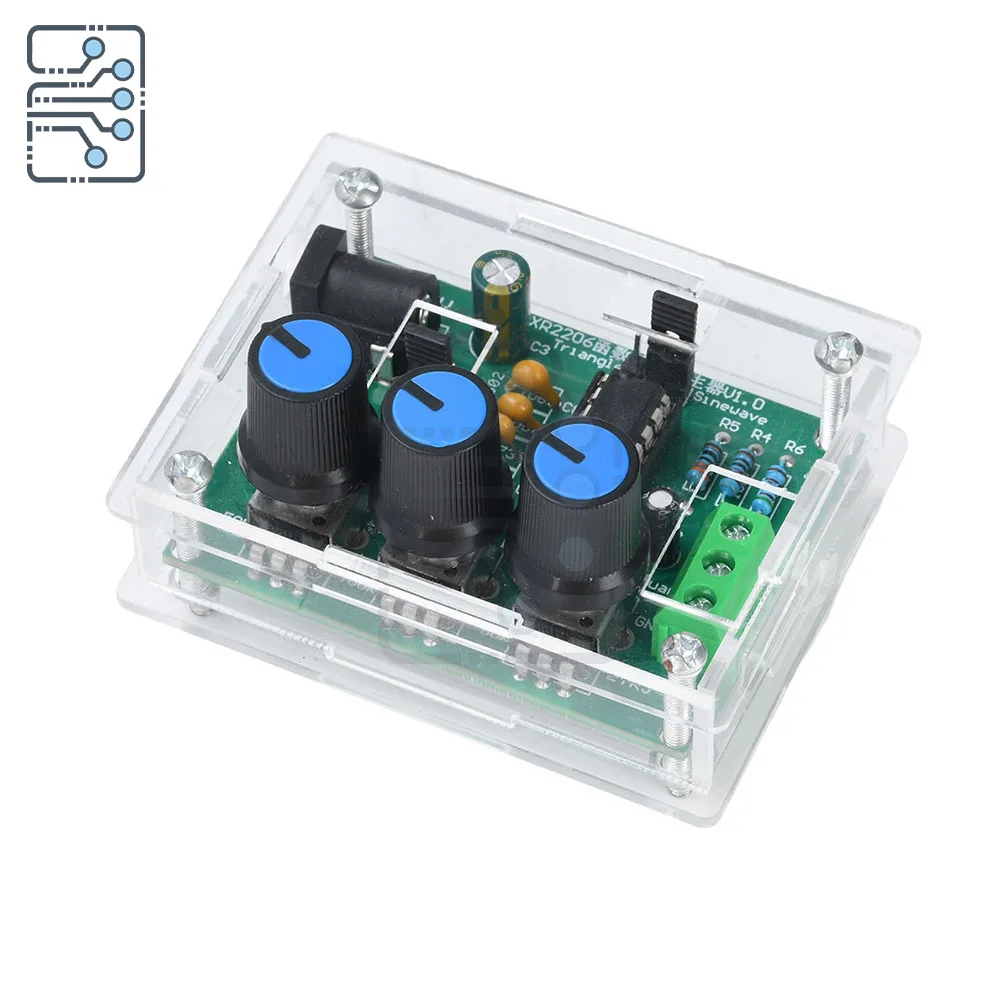

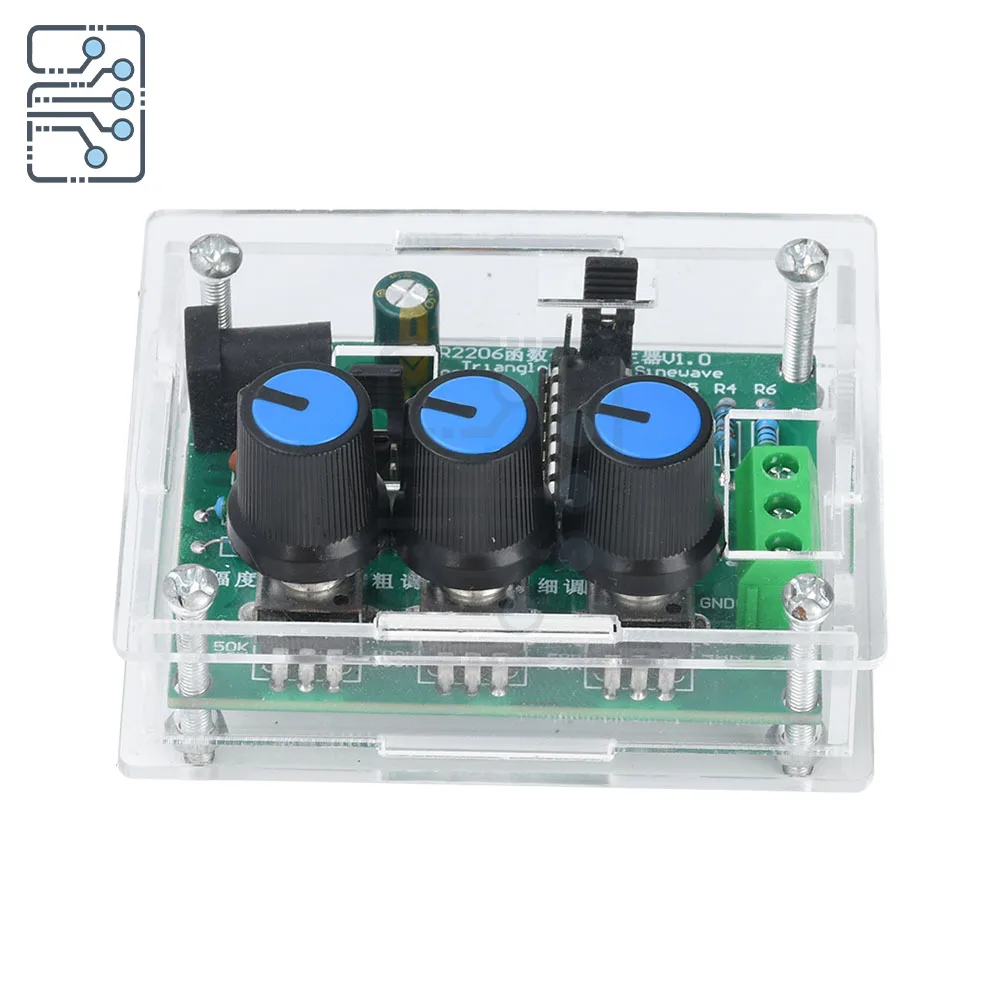

• 1x Signal Generator DIY Kit (Optional Shell)

🧩 This XR2206 Function Signal Generator DIY Kit is a remarkable addition to any electronics lab or personal workshop and is an excellent way to explore the intricacies of signal generation in a hands-on manner.
