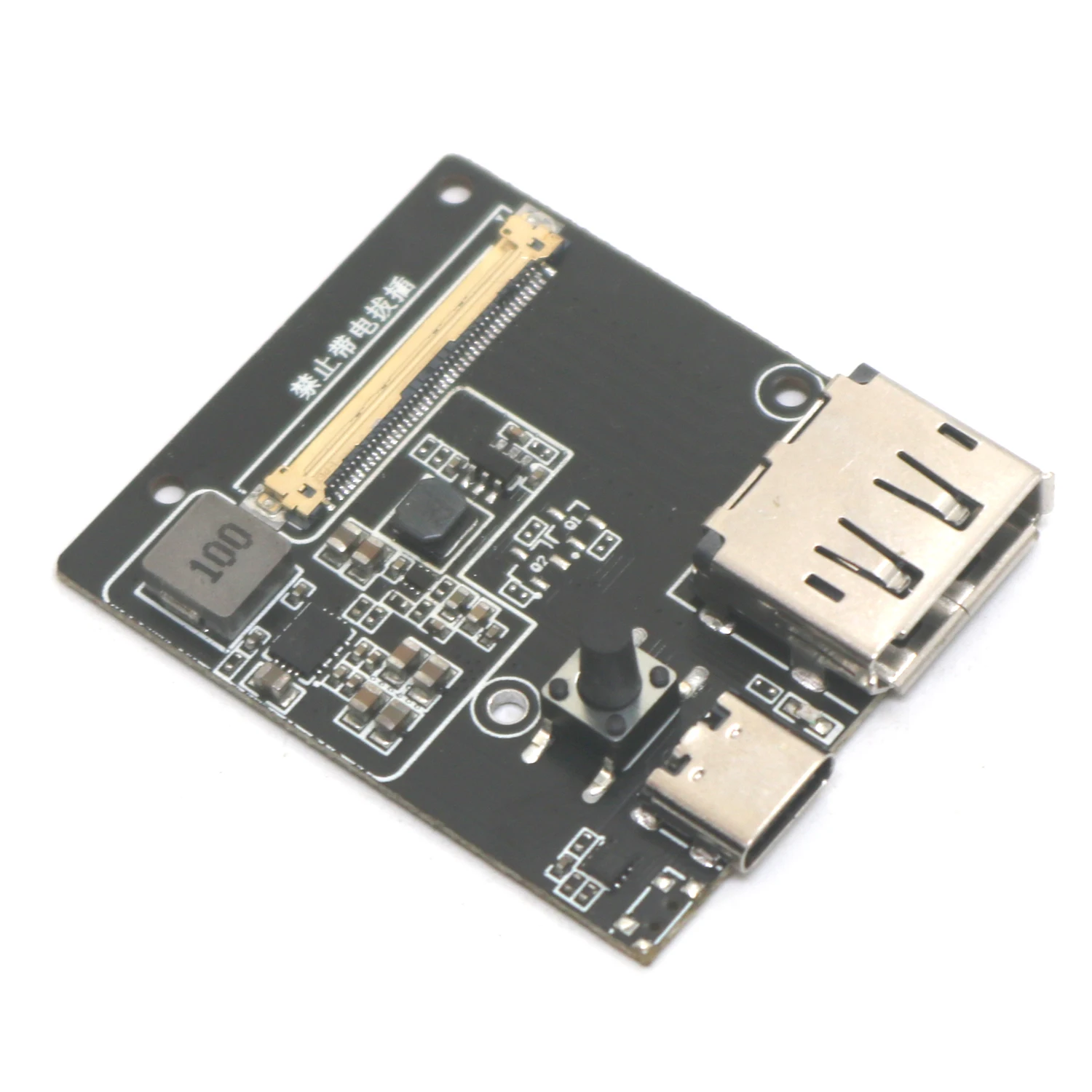

High - Resolution Display Signal Adapter with PD/QC Support (ONLY Driver Board)

DP to EDP Driver Board - EDP Signal Adapter

⚡ Introducing the cutting-edge DP to EDP Driver Board, designed to facilitate the seamless connection between DisplayPort (DP) and Embedded DisplayPort (EDP) displays. This versatile EDP Signal Adapter comes in configurations compatible with both 30-pin and 40-pin connections, ideal for high-resolution 2K and 4K LCD and LED display screens.

🔧 Product Features:

• Compatible with 30-pin and 40-pin EDP displays (2LAN and 4LAN configurations).
• Supports advanced resolutions of up to 3840 x 2160 (4K) at 120Hz, ensuring crystal-clear visuals.
• Input power capabilities through USB Type-C PD3.0/3.1 (including PPS protocol), with support for fast charging and a power delivery of up to 100W.

🔍 This adapter board enhances the performance of various computer graphics setups, supporting a range of graphics cards, predominantly those from AMD, while being aware of limitations with Nvidia graphics cards. Before purchasing, it is crucial to ensure your screen outputs EDP signals; this product does not support LVDS signals.

Operation and Compatibility:

• Powering the driver board indicates successful operation through a blue indicator light.
• Equipped with a user-friendly interface, it features a power switch that activates the display with a short press, along with an initial brightness setting of 90%.
• Important: Always disconnect EDP cables when the power is off to prevent damage to the screen or the board.

⚡ The driver board supports varying backlight voltages up to 60W, with default settings optimized for 12V. This flexibility allows for adjustments according to specific display requirements. The board operates over a wide temperature range of -40 to 85 ℃ and offers a high dimming frequency of 20kHz.

Screen Compatibility:

• When equipped with a 40-pin to 30-pin adapter, the EDP30-2LAN supports a resolution of 1920 x 1080.
• EDP40-4LAN supports multiple resolutions, including 2560 x 1440 at 240Hz and 5120 x 2880 at 60Hz, ensuring broad compatibility with a variety of display setups.

⚡ Adjustment Features:

• This driver board includes a triple sensitivity adjustment feature via the C9 capacitor, allowing users to fine-tune the touch button sensitivity according to their preferences, enhancing overall user experience.
• Utilizing polyester capacitors with precise accuracy during adjustments will yield optimal performance.

🛠️ Upgrade your display connectivity and experience impressive visuals with the DP to EDP Driver Board—combining quality, compatibility, and advanced features for your computing needs.
