Electronic DIY Kit: Heart Shape LED Voice Control Rotating Star Shape Gyro - A Fun Learning Experience for Beginners
ð This exciting DIY kit includes an array of electronic components and a high-quality printed circuit board (PCB), which are purposefully provided in an unsoldered form. The primary intention behind this kit is to inspire electronic novices to explore and master the art of soldering in an engaging and enjoyable way.
1. Introduction
ðŠķ Experience the mesmerizing effects of light with this Heart Shape breathing lamp kit. As you complete the assembly process, you'll discover how the brightness of the LEDs dynamically shifts, creating a captivating visual experience.
2. Specifications
3. Warm Tips
ð This kit comes complete with all necessary parts; however, please note that assembly is required. The included SCM (Single Chip Microcontroller) has been pre-programmed and successfully tested, making it easier for you to focus on the soldering process itself.
4. Schematic Diagram
A detailed schematic diagram is provided to guide you through the assembly, helping you correctly place and solder components as indicated.
5. Component Listing
ð A comprehensive list of components is included, which corresponds to the PCB silk screen, ensuring clarity during the assembly process.
ð§ Voice Control LED Features
ð§Đ This kit features an innovative sound-controlled LED circuit that operates a sequence of 10 flowing lights. It serves as an excellent educational tool, effectively demonstrating the functions of a CD4017 counter, a frequency divider, and a color light controller. This practicality, combined with its engaging effects, makes it a fantastic project for budding electronics enthusiasts.

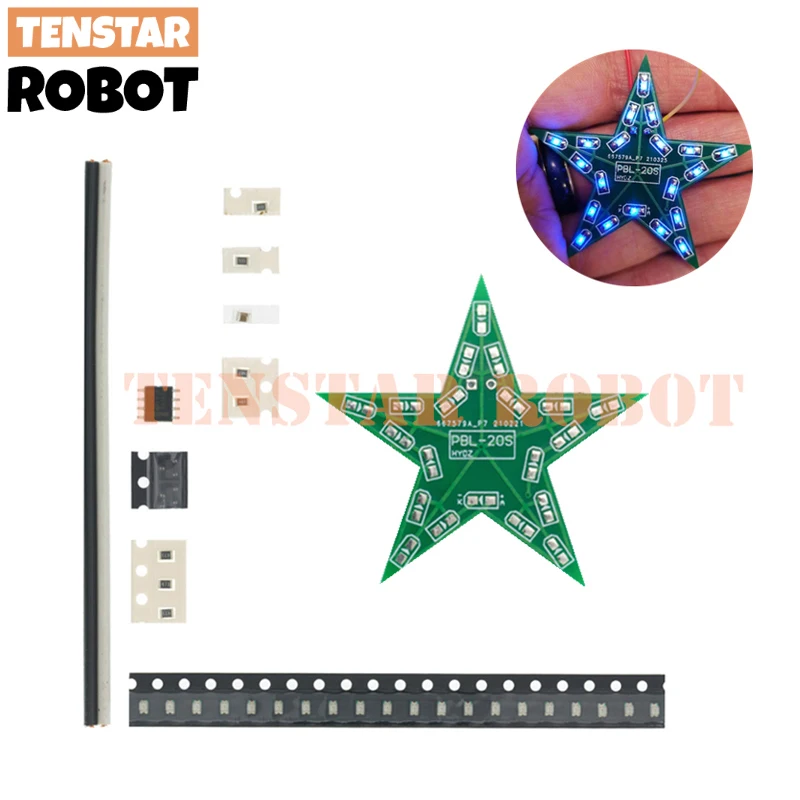

ð§ Star Shape LED Features
ðŠķ True to its name, the breathing lamp in this kit gradually transitions in brightness from light to dark, and vice versa, simulating a breathing effect that is both soothing and visually striking.
ð§ Gyro LED Features
The kit also includes the Gyro LED component, adding an extra layer of interaction and excitement to your project.
ðļ Embark on a creative journey with this Electronic DIY Kit, where you can learn invaluable skills while crafting beautiful LED displays! Ideal for beginners looking to delve into the world of electronics.
