Portable Ultra - Low Frequency Pulse Wave Signal Generator (FG - 300)

⚡ FG-300 Portable Signal Generator: An Overview

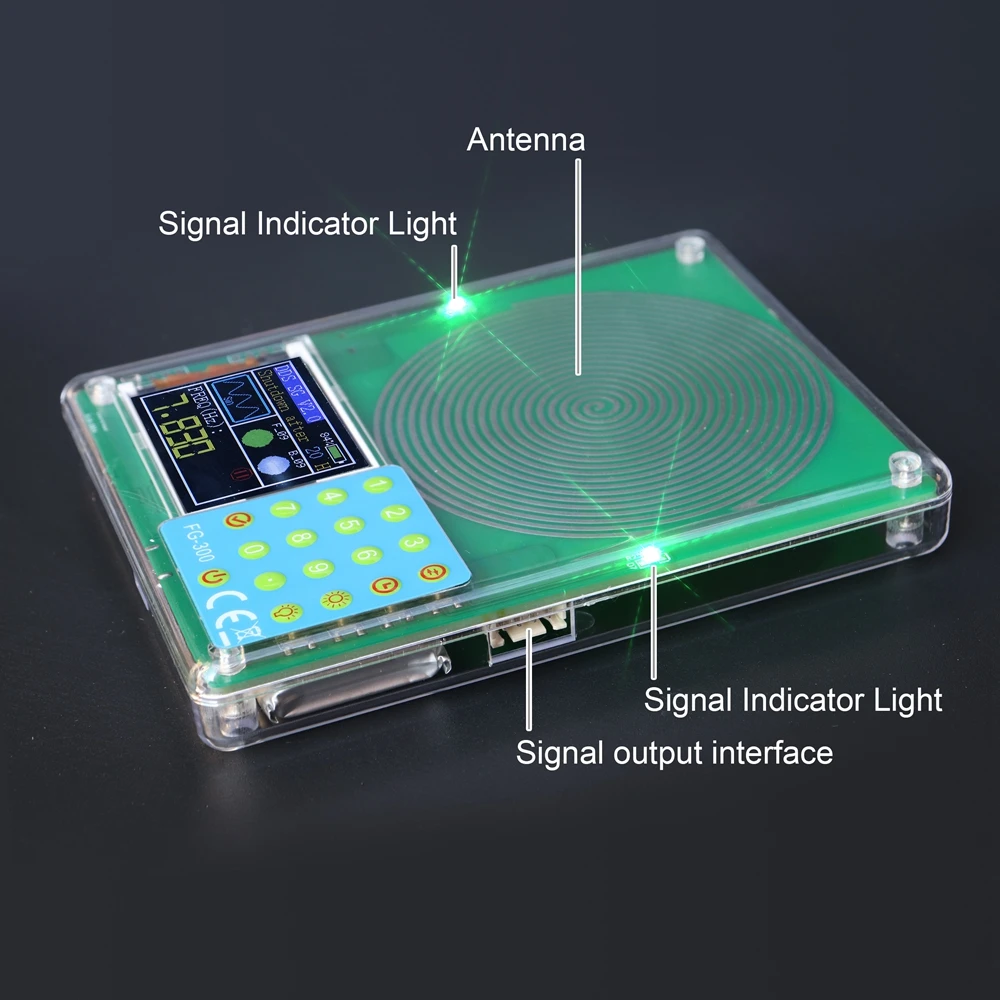

🌟 The FG-300 is a state-of-the-art, multifunctional portable signal generator designed for a wide array of applications in electronics. Its versatility allows for the generation of multiple waveform types, including sine wave, square wave, triangle wave, forward and reverse sawtooth waves, electrocardiogram, half wave, Loren wave, Gaussian wave, Singh wave, exponential rise and fall, as well as the unique 7.83 Hz Schumann resonance wave. With an onboard spiral antenna, it functions effectively as a high-precision Schumann wave generator, making it an essential tool for electronic research and development, production testing, educational purposes, maintenance, and audio testing.

🔧 Cutting-Edge Features

🛠️ Equipped with a low temperature drift crystal oscillator and advanced Direct Digital Synthesis (DDS) for frequency generation, the FG-300 ensures high precision and stability. The frequency resolution is an impressive 0.001 Hz, providing extraordinary accuracy in low-frequency applications.

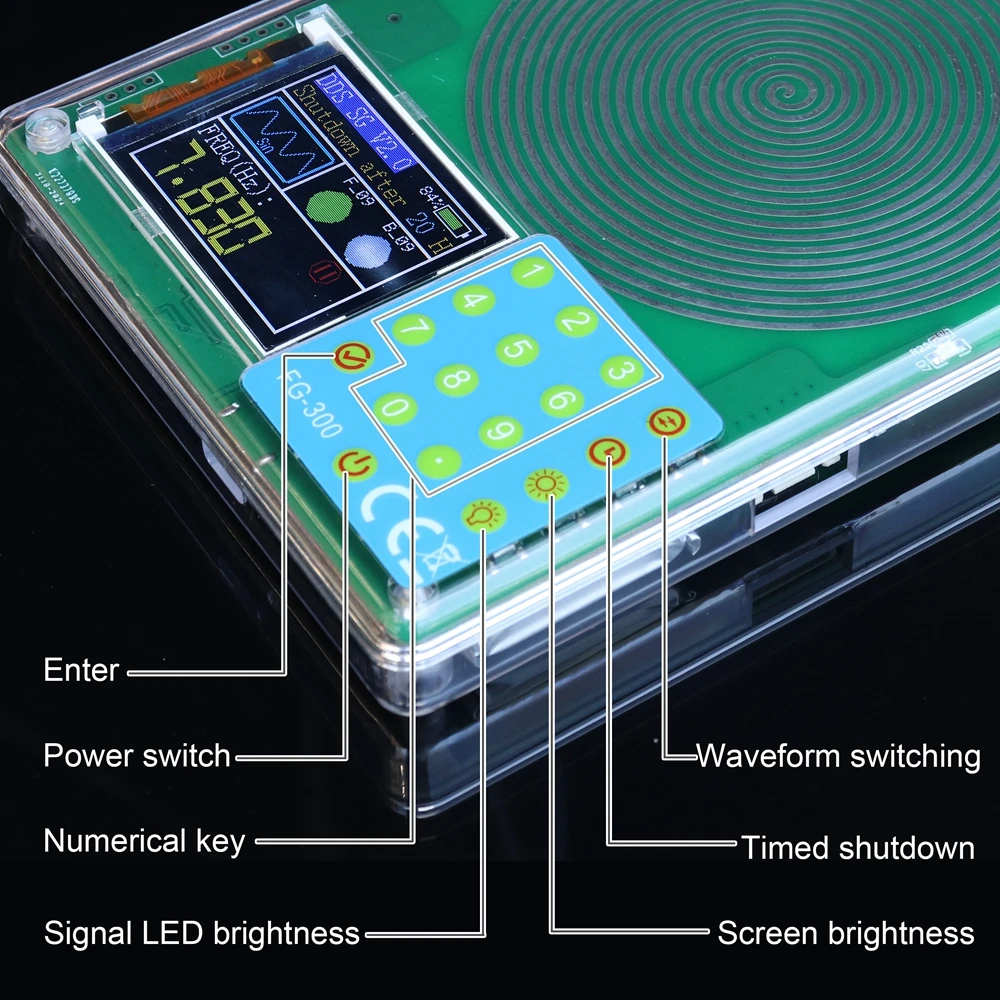

💍 The FG-300 offers the capability to output an impressive range of thirteen different waveforms, catering to diverse experimental and practical needs. Its 1.8-inch color TFT LCD display enhances usability, allowing users to directly input frequencies via a digital keyboard for intuitive operation. Additional features include a timing shutdown function, adjustable signal light brightness, and adjustable screen backlight brightness, ensuring a user-friendly experience.

⚙️ All setting parameters are intelligently designed to save automatically, eliminating the need for users to reconfigure settings upon rebooting. This feature enhances operational efficiency, making the FG-300 an even more attractive choice for professionals in the field.

Technical Specifications

• Frequency Range: Sine wave: 0.001 Hz - 200 kHz (with amplitude flatness up to 100 kHz; distortion increases at higher frequencies). Other waveforms: 0.001 Hz - 20 kHz, though the maximum adjustable frequency can be extended under specific conditions.
• Waveform Types: Thirteen waveform outputs including sine, square, triangle, forward sawtooth, reverse sawtooth, electrocardiogram, half wave, Loren, Gaussian, Singh, exponential rise, exponential fall, and Schumann resonance at 7.83 Hz.
• Output Amplitude: 2.5 V peak-to-peak.
• Output Impedance: 330 ohms.
• Display: High-resolution 1.8-inch TFT display.
• Supply Voltage: 5V via USB Type-C.
• Dimensions: Length: 125 mm, Width: 95 mm, Height: 18 mm.

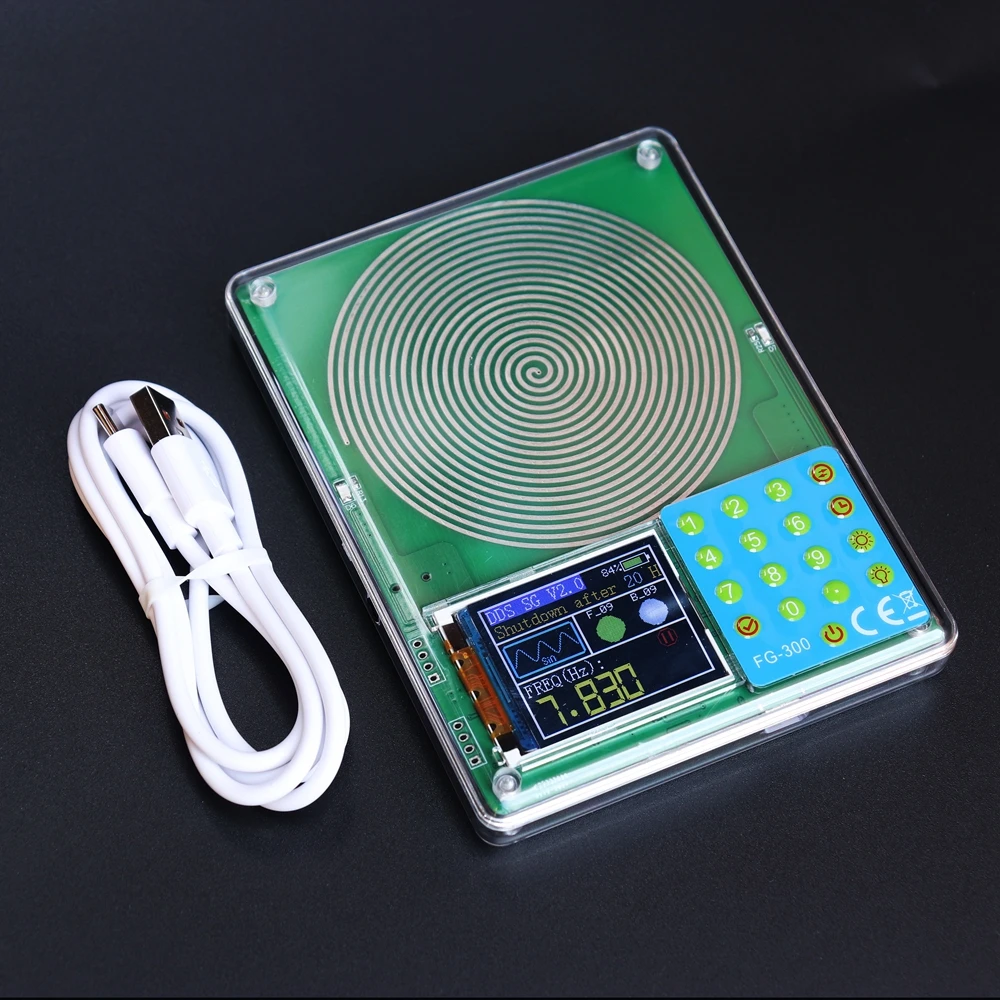

📎 Included Components:

• 1 x FG-300 Signal Generator
• 1 x USB Type-C Power Cord
• 1 x 4-Pin Signal Output Cable

🛠️ The FG-300 Portable Signal Generator is a powerful and reliable instrument that meets the evolving demands of professionals in research, education, and testing environments, ensuring you have the best tools at your disposal for precision and innovation.
