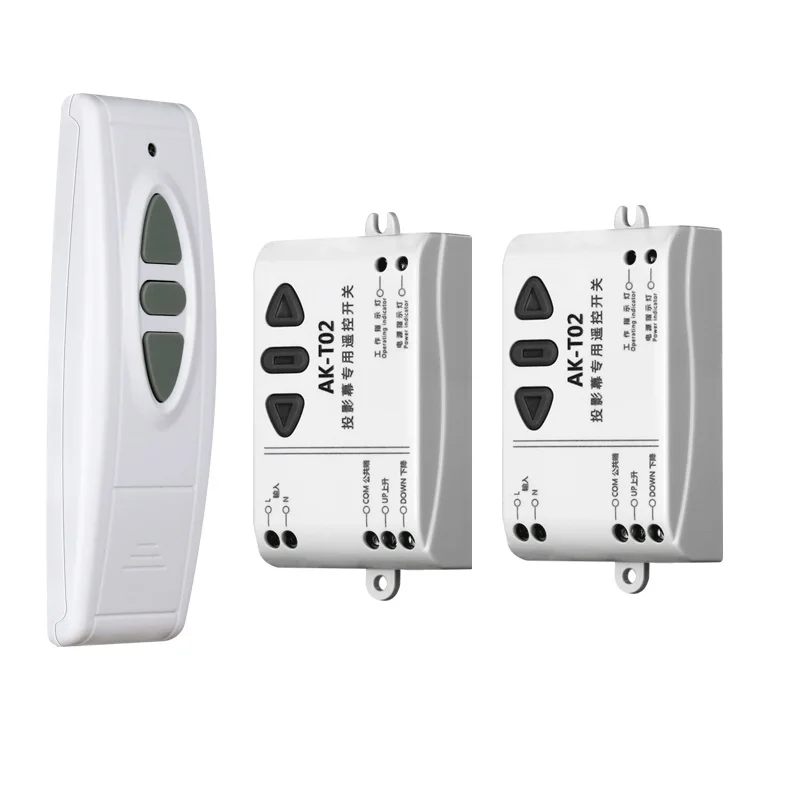

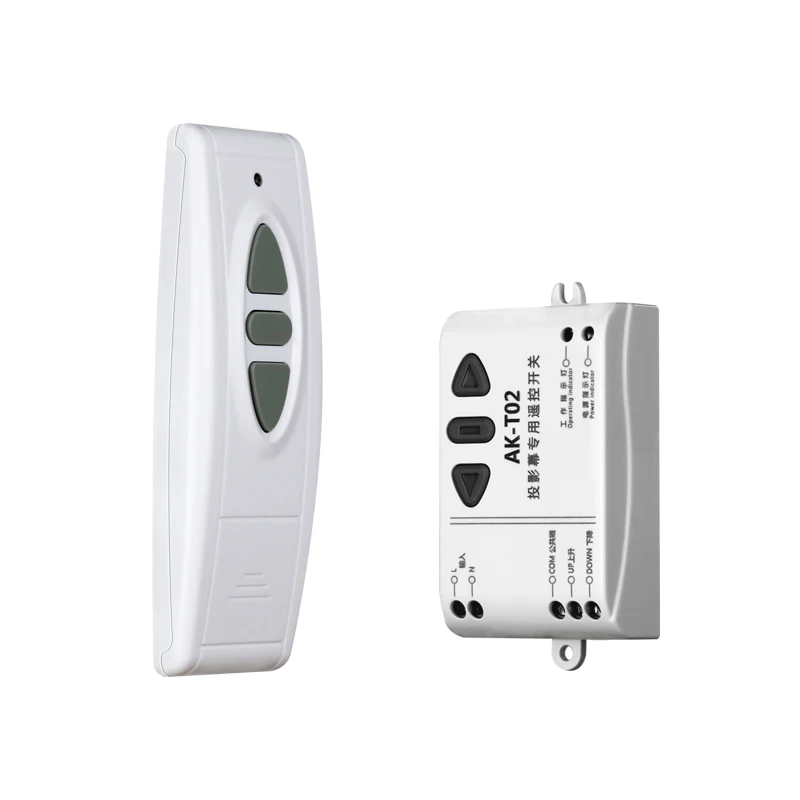

📶 Product Overview: The Intelligent Home AK-T02 Wireless Remote Control Switch is an innovative solution designed to control AC tubular motors effortlessly. Compatible with a range of voltage options, including AC 85V, 110V, 220V, and 250V, this system allows for seamless operation of motors rated at 500W or less. With its intuitive remote functionality, you can easily maneuver your motor in both forward and reverse directions, as well as stop it at any desired position.
🔧 Key Features:
- Versatile Voltage Input: Accommodates a wide range of AC voltage inputs from 85V to 250V, ensuring compatibility with various electrical setups.
- Simple and User-Friendly Remote: The remote control features three clearly labeled buttons: "UP" for motor forward, "DOWN" for motor reverse, and a "STOP" button for added convenience during operation.
- Advanced Learning Code Technology: Easily program and add additional transmitters by utilizing the learning code feature, ensuring you can expand your remote control options as needed.

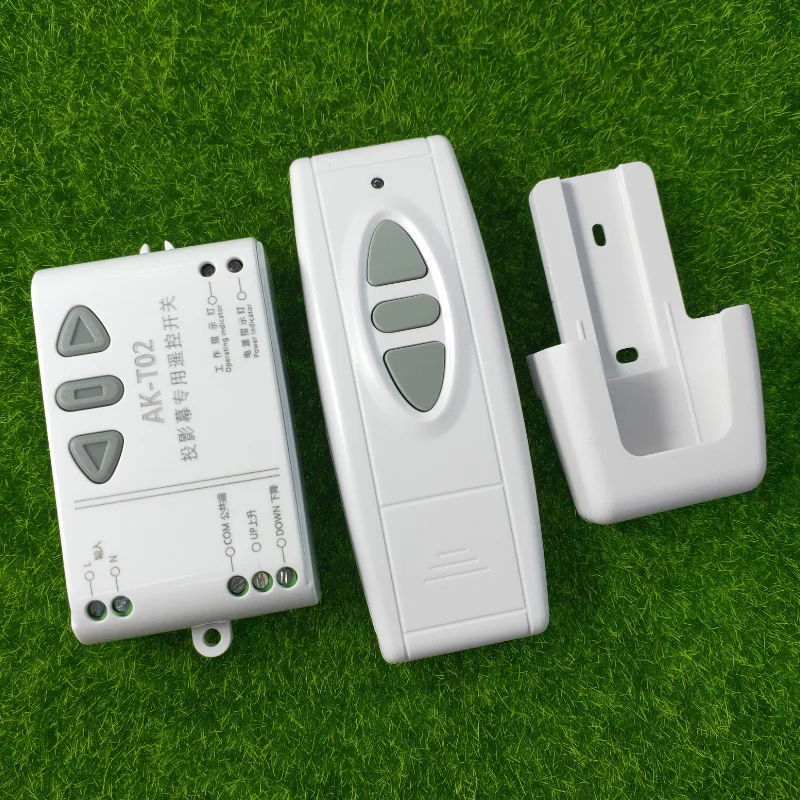

- Compact and Practical Design: The receiver measures 98 x 52 x 25 mm and the transmitter is 120 x 45 x 18 mm, making them suitable for various installation environments. The transmitter is also designed to be wall-mounted for easy access.
- Long Range Control: Operates up to 50 meters, providing flexibility in controlling your motor from a distance.
- Frequency Options: Available in both 315MHz and 433MHz frequencies for enhanced compatibility with your specific applications. The default frequency of 315MHz will be sent unless otherwise requested.
🔍 Installation and Operation:
🔘 The installation process is straightforward. After connecting the lines and ensuring power is on, users can engage the learning mode to pair the remote control with the receiver effortlessly. Just press and hold the buttons on both the remote and controller as indicated in the included instructions, and you'll achieve successful pairing in no time.
🎯 Additional Benefits:
- Compatible with Limited Switch: The controller integrates well with tubular motors that feature their own limited switches, providing an added layer of safety and functionality.
- Code Clearing Feature: Easily reset your system by clearing codes on the controller, allowing for the reprogramming of remote controls whenever necessary.
🔍 Package Includes:

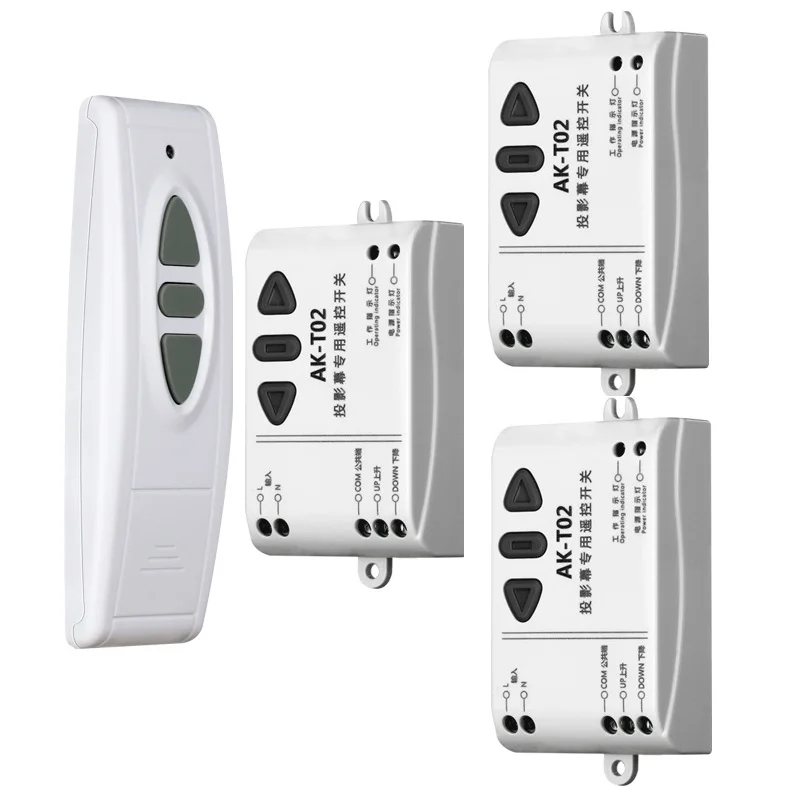

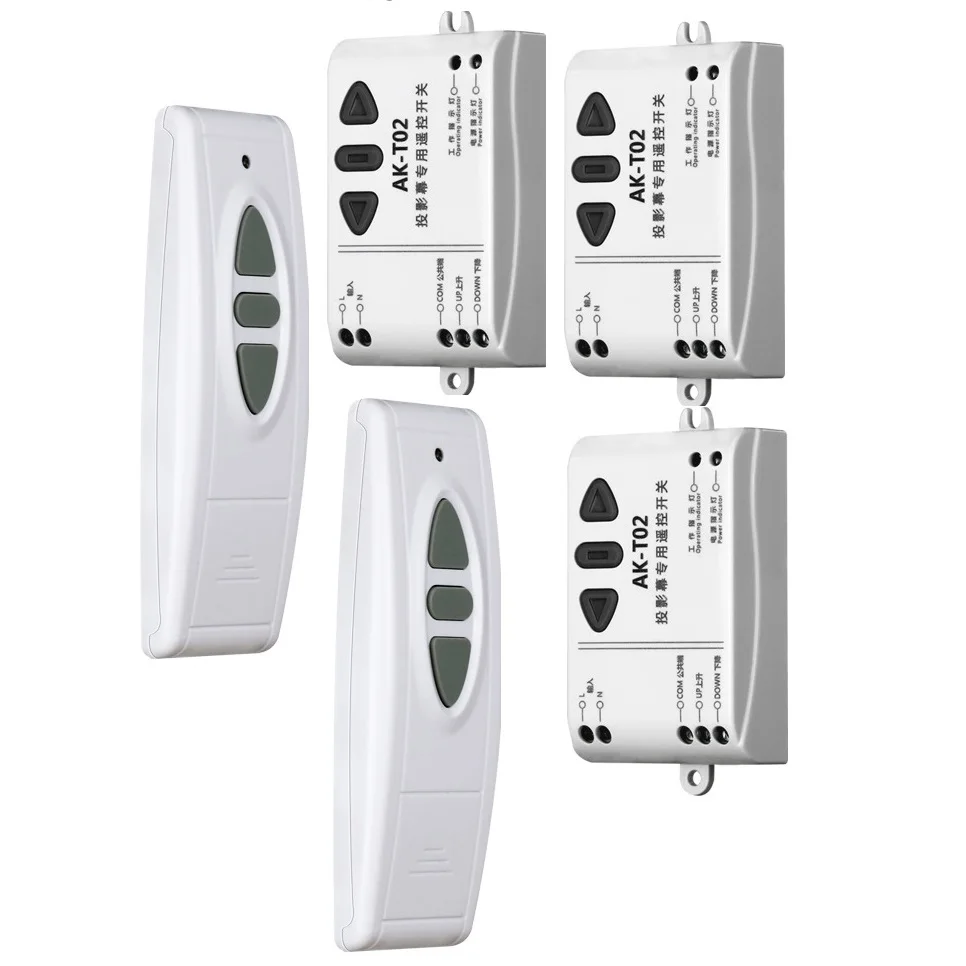

- A single receiver and transmitter (with battery) or combinations of multiple receivers with one or two transmitters, depending on your selection.
🧠 In summary, the Intelligent Home AK-T02 Wireless Remote Control Switch is an essential tool for anyone looking to enhance the functionality and convenience of their tubular motor systems. With its reliable performance and user-friendly design, it provides an exceptional solution for modern home automation.
