🧲 Product Overview: The 5/10PCS Reed Switch Magnetic Switch Sensor series encompasses a variety of high-performance sensors designed for diverse applications. With models including MKA07101, MKA10110, Y213, MMKA17101, GPS-11A, GPS-14A, and GPS-14B, each sensor is meticulously engineered to provide reliable and efficient operation in various settings.
Technical Specifications:
Model Specifications:
- GPS-11A: Normally Open (NO), dimensions 3x11mm, rated for a switching current of 0.5A and a switching voltage of 100V. The sensor boasts a high insulation resistance of 1010 Ohms and is suitable for a working temperature range of -10 to 85°C.
- GPS-14A: Normally Open (NO), dimensions 2x14mm, with similar electrical parameters to GPS-11A, ideal for compact applications.
- GPS-14B: Normally Closed (NC), dimensions 2x14mm, offering configurations where normally closed functionality is required. Maintains excellent switching characteristics, identical to its NO counterpart.
- MKA-07101: Normally Open (NO), dimensions 1.8x7mm, switching current of 0.1-0.2A with a maximum switching voltage of 100-125V. Exceptional performance with a minimal release time of 0.4ms making it ideal for responsive systems.

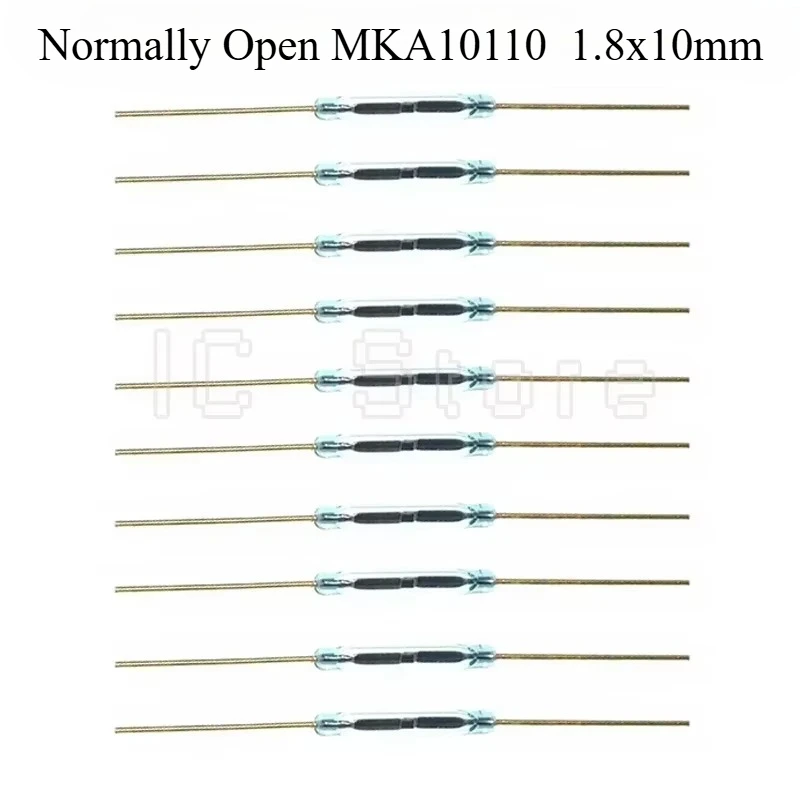

- MKA-10110: Normally Open (NO), dimensions 1.8x10mm, with a contact resistance max of 100mΩ and a wide operational temperature range from -55°C to +120°C, ensuring versatile applicability.
- MKA-14103: Switching current ranges from 0.5-1A and can handle voltage from 100-220V, making it suitable for high power applications.
- Y213: A robust normally open (NO) model measuring 2x14mm, capable of handling a maximum contact rating of 10W and exhibiting a high-level electrical lifespan of 1x106 cycles under specific conditions.
- MMKA17101: Reviewing 4x28mm dimensions, this model handles up to 2.5A current, ensuring reliability in demanding applications. Strong insulation resistance adds to its durability.
- RI-90: Displays dual functions as Normally Open and Normally Closed, suited for versatile applications where adaptability is required. It delivers excellent electrical stability with a high-frequency response.
📦 Key Features:
- High Reliability: Each sensor is crafted with precision to ensure dependable performance over extended usage, catering to various industries including automotive, consumer electronics, and industrial automation.
- Robust Design: The use of durable ABS material and superior contact materials guarantees longevity and minimal maintenance.
- Versatile Operating Conditions: These sensors efficiently function across a range of temperatures and voltages, accommodating a wide array of applications.
- Efficient Action and Release Times: Designed for high-speed detection and control applications, ensuring rapid response times in critical environments.
🛡️ Conclusion: The Reed Switch Magnetic Sensors provide cutting-edge solutions for your sensing needs, with a wide selection of models tailored for specific application requirements. Their advanced design features promise high performance and longevity, making them indispensable components in modern technological setups.
