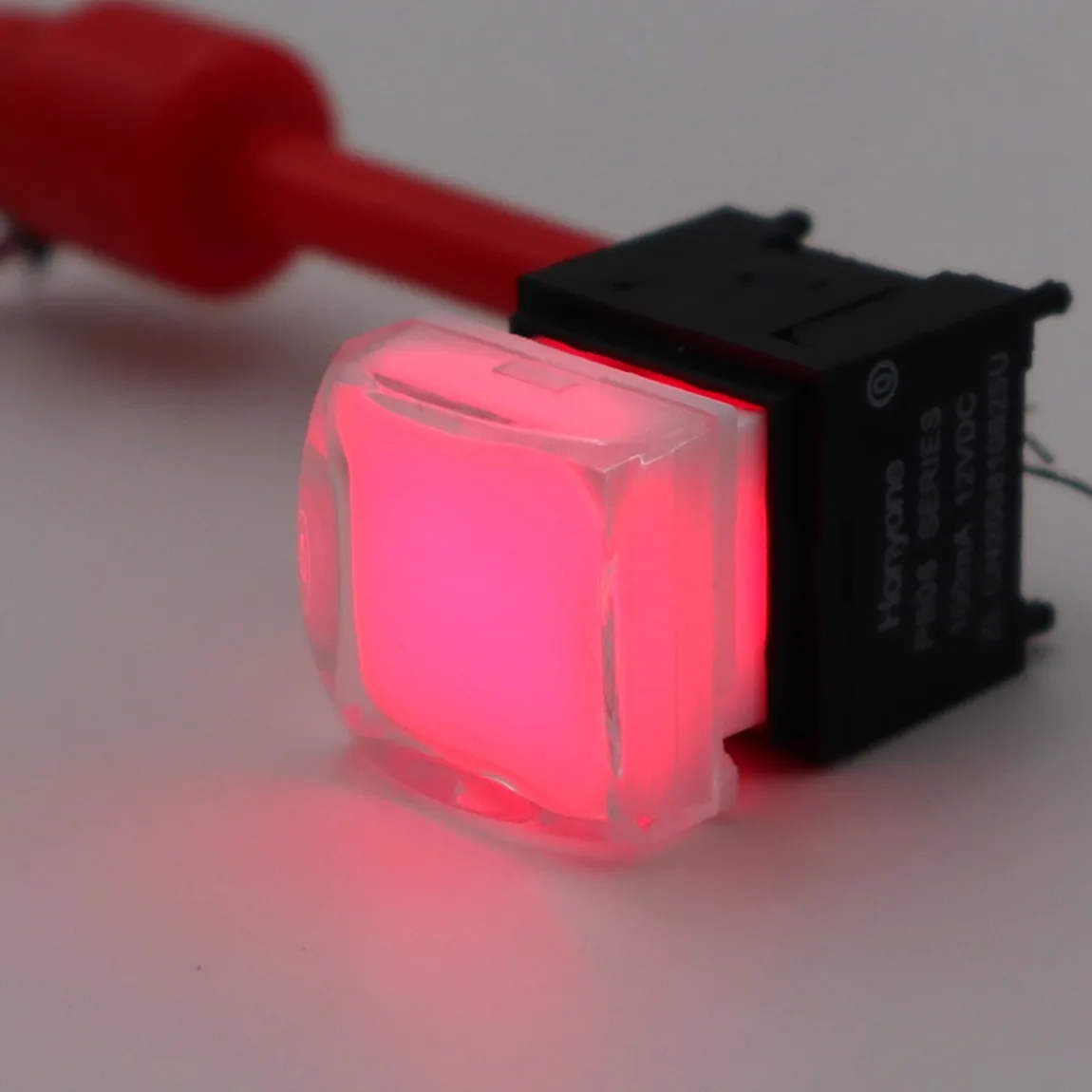

Enhanced Illuminated Tactile Push Button Switch, Square 15*15mm, SPST Momentary, Self - Return (Red LED)

🎨 Introducing the PB06-B Series Square Illuminated SPST Momentary Self-Return Tactile Push Button Switch, designed to deliver a reliable user experience for applications such as video processors, control panels, and various electronic devices. This innovative switch combines functionality and aesthetics, providing a perfect solution for systems that require intuitive and responsive controls.

Model Variants:

• PB06-B-WT-R-NN-DY (Red)
• PB06-B-WT-G-NN-DY (Green)
• PB06-B-WT-U-NN-DY (Blue)
• PB06-B-WT-W-NN-DY (White)
• PB06-B-WT-RGB-NN-QY (RGB)

⚪ Specifications:

• Switch Rating: 100mA / 12VDC
• Button Size: 15 x 15mm
• Button Color: White + Transparent
• LED Working Voltage (@20mA):
• Red: 1.8-2.4V
• Green: 2.7-3.7V
• Blue: 2.7-3.7V
• White: 2.9-3.6V
• Switch Action: Momentary (Self-Return) — the button returns to its original position once released.
• Switch Feel: Tactile feedback assures the user of successful activation.
• Contact Form: SPST (Single Pole Single Throw)
• Function: OFF-MOM (The switch only remains active while pressed.)
• Button Travel: 4.5±0.2mm, providing efficient pressing feedback.
• Solder Specifications: Suitable for soldering at 350℃ for 3 seconds.
• Weight: 3.8g — lightweight yet robust.

🔍 This tactile push button switch is ideal for users looking for a dependable interface with a clear visual indication of activation. With its various color options, it can seamlessly integrate into different designs while enhancing functionality and user comfort.
