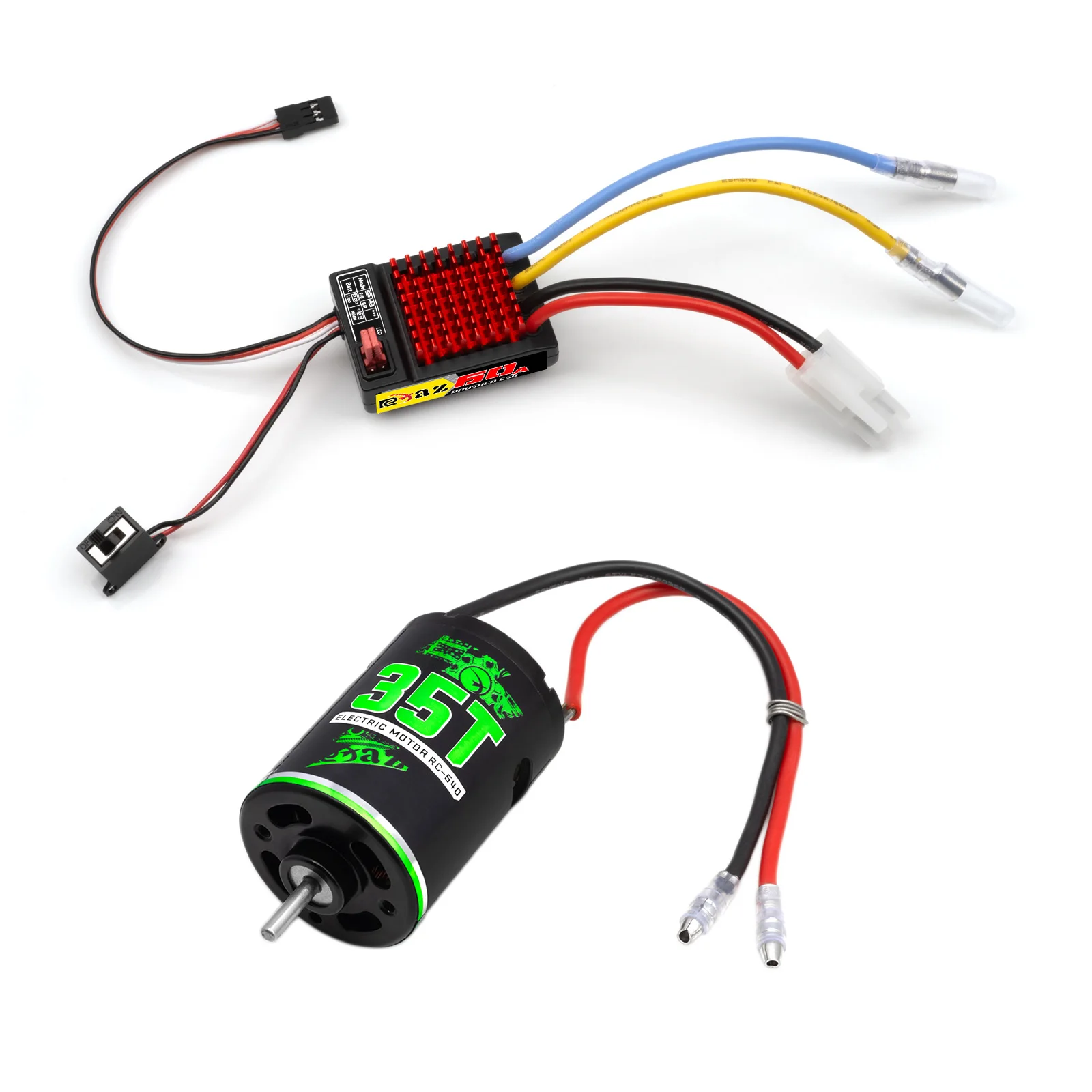

High - Performance Brushed Kit: 540 Motor with 60A ESC for Off - Road RC Cars (35t - 60A)

🏆 RCXAZ Brushed Kit Speed Set is specifically engineered for avid RC enthusiasts, particularly those who enjoy off-road rock crawling. This comprehensive kit includes a high-performance 540 motor and a robust 60A Electronic Speed Controller (ESC), making it suitable for popular models like the Traxxas TRX4 and Axial SCX10.

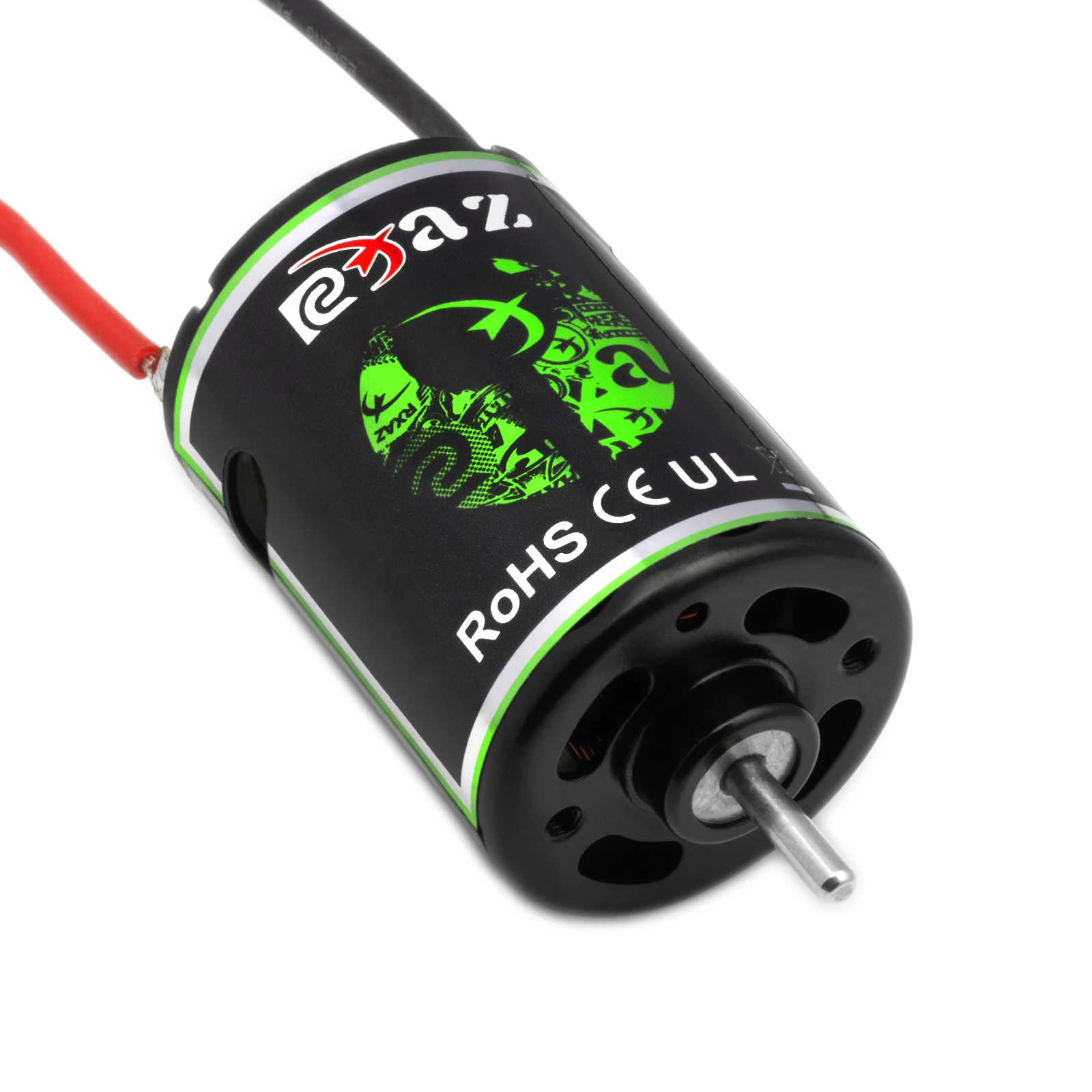

🏔️ The heart of the system lies in the high torque magnet and rotor configuration which delivers exceptional power and performance when climbing rocky terrains or navigating challenging trails. The motor also features a custom-made 540 steel casing, ensuring durability and longevity during rugged use.

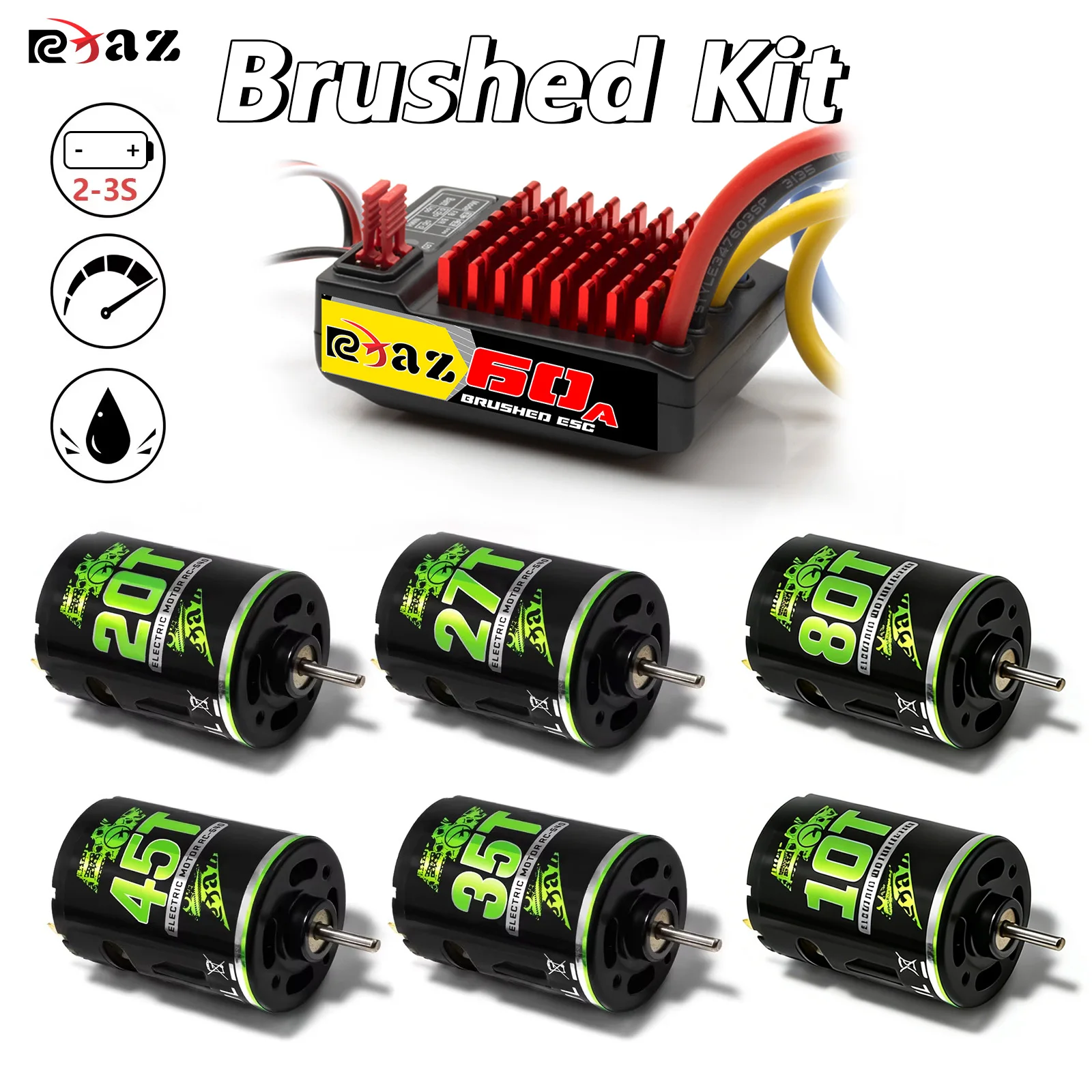

🧩 One of the standout features of this kit is the built-in capacitor, designed to minimize glitches and deliver a smoother operation. Available in various tuning options, you can choose from a selection of brushed 540 motor speeds, including 10T, 15T, 20T, 27T, 35T, 45T, and 80T, allowing for customization that best fits your driving style.

Specifications:

• Item Name: 540 Motor (1 piece included)
• Voltage Range: 2.4V - 30V
• Body Length: 1.96 in (50 mm)
• Body Outer Diameter: 1.39 in (35.5 mm)
• Output Shaft: 0.12 in (3.1 mm) with a length of 0.43 in (11 mm)
• Compatibility: RC Cars / Boats

📎 Product Parameters:

• Continuous/Peak Current: 60A / 320A (Maximum)
• Compatible Battery Cells: 4-9 Cells NiMH, 2-3S LiPo with built-in BEC (6V/2A)
• Supported Motor Types: Brushed motors—compatible with sizes 380, 390, 540, and 550
• Main Vehicle Types: Electric touring cars, buggies, trucks, and crawler vehicles

💥 The ESC includes a red signal indicator light for easy diagnostics and functionality checks. Users will appreciate the Low Voltage Protection feature that safeguards against battery drain, automatically reducing power output when voltages drop below optimal levels. The kit also has provisions for Throttle Signal Loss Protection, cutting off power if no throttle signal is detected.

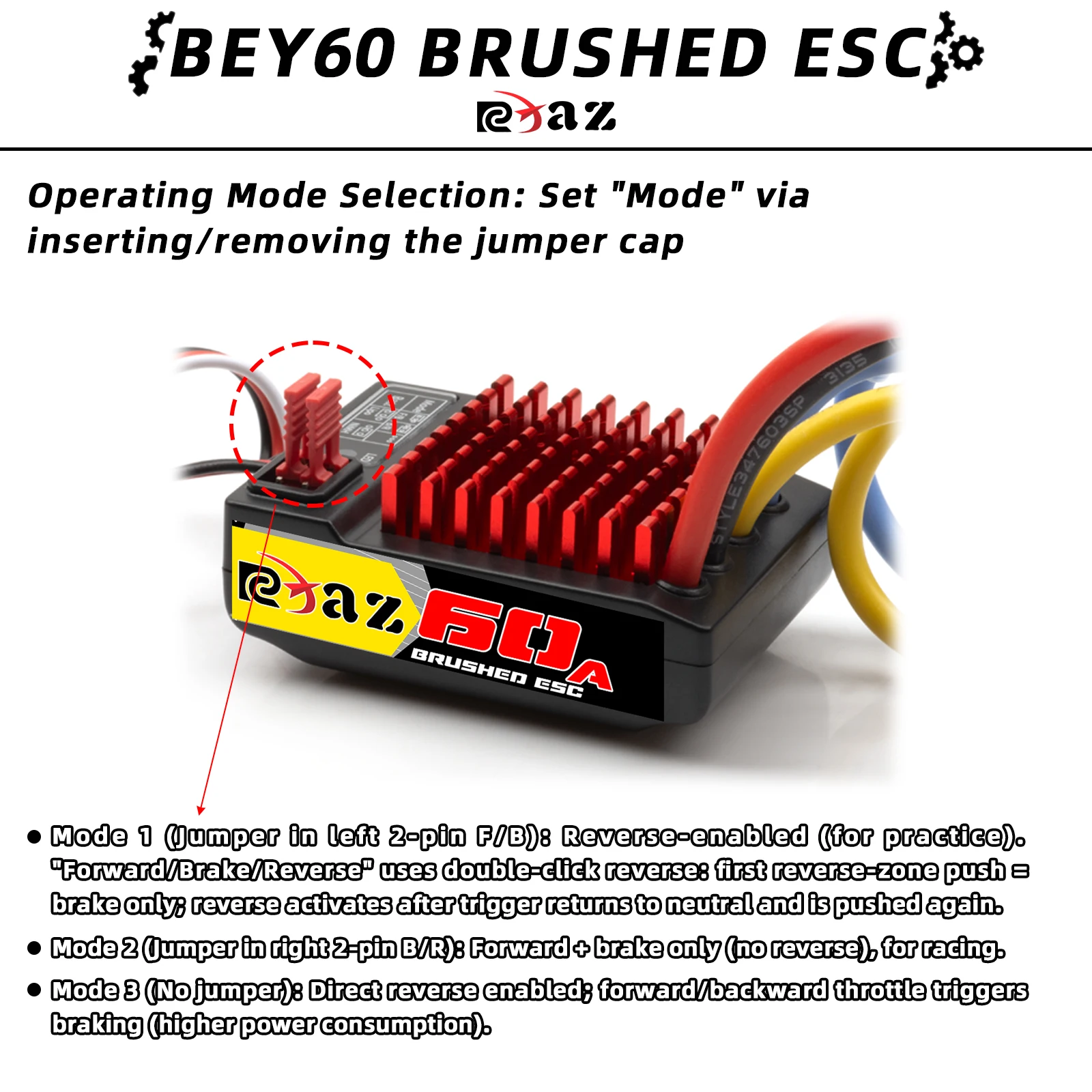

🧩 This ESC provides versatile operating modes that users can select based on their needs, ranging from reverse functionality for beginners to a racing mode for more experienced drivers. The battery type can be easily configured to accommodate either LiPo or NiMH batteries, making it adaptable to various setups.

🏆 Product Connection Guidance: For optimal performance, ensure correct connections: the ESC's positive and negative poles must be connected to the battery correctly, while motor wires can be interchanged if needed to adjust rotation direction.

🔧 This setup is perfect for individuals seeking to enhance their RC experience with increased torque, reliability, and user-friendly features tailored for rock crawling and adventurous scale driving.
