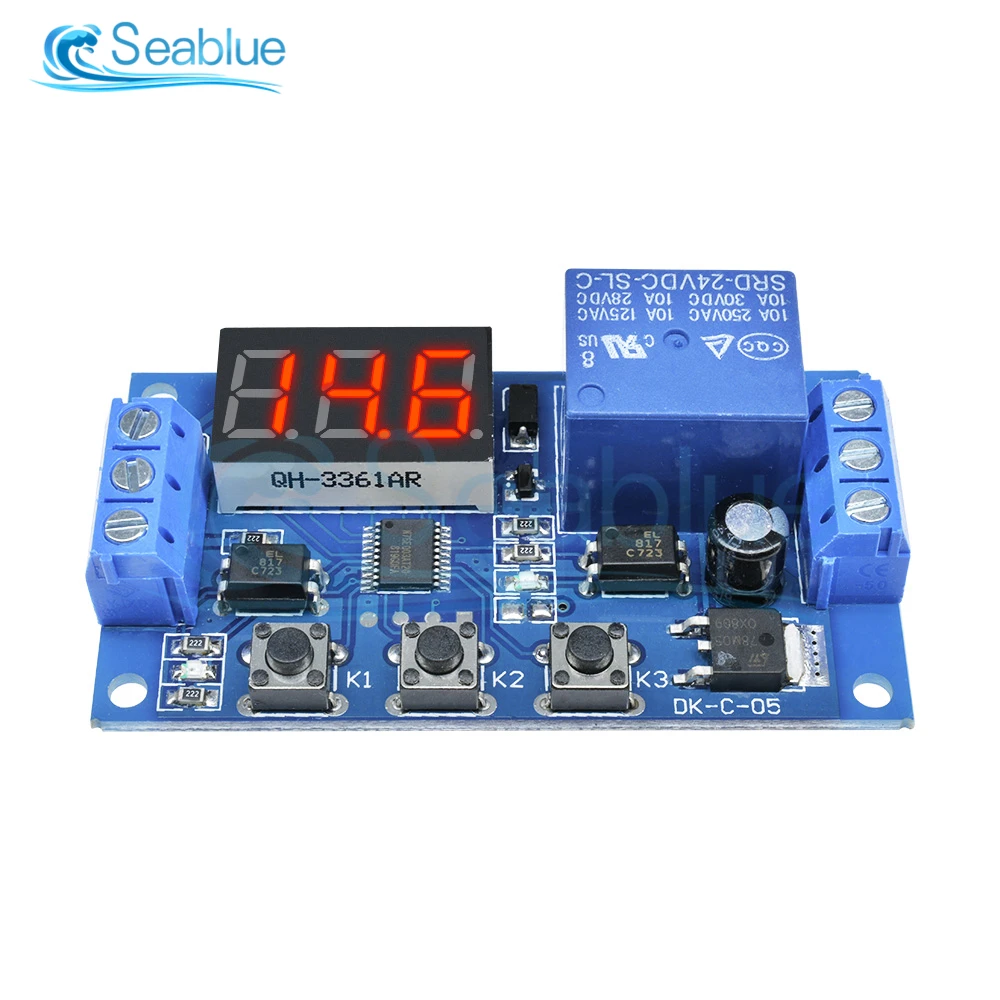

Adjustable LED Digital Display Timer Relay Module for Electronic Automation

⚙️ Product Overview:
Introducing the advanced LED Digital Display Delay Relay Module, designed for DC 12V/24V automation control. This state-of-the-art circuit timer switch seamlessly integrates into your electronic systems, providing adjustable trigger timings for a variety of applications. Whether you're working on a DIY project or professional automation, this module is engineered to enhance the ease of use and reliability you expect.

🧩 Key Features:
The latest upgrades to this relay module include a simplified interface that caters specifically to customer needs. With an enhanced anti-reverse function and opto-isolated input/output, this module offers superior noise immunity, ensuring optimal performance even in electrically noisy environments. The parameters set will be permanently remembered after powering down, maintaining stability across long periods.

📦 Robust Specifications:
Measuring at 64.2mm in length, 34.8mm in width, and 18.5mm in height, this compact module houses powerful relay specifications supporting AC 220V 10A or DC 30V 10A. It operates efficiently with a quiescent current of just 20mA and a maximum operating current of 50mA, making it suitable for a variety of applications. With a wide working voltage range (10~16V) and customizable options, this module can accommodate various signal voltages between 4V and 20V. Designed for durability and reliability, it boasts a lifespan of approximately 100,000 cycles and performs effectively in extreme temperatures ranging from -40°C to 85°C.

Operating Modes:
The LED Digital Display Delay Relay Module offers four versatile operating modes, facilitating diverse control options:

• P1-1 Mode: Trigger the relay with a set delay. Users can easily adjust the relay timing through a simple interface, allowing for precise control over timing settings.
• P1-2 Mode: Upon signal activation, a countdown begins, allowing the relay to stay active for X seconds, followed by Y seconds of deactivation. This mode is ideal for tasks requiring timed relay control.
• P1-3 Mode: Offers a continuous loop where the relay opens for X seconds and then disconnects for Y seconds. This infinitely repeating cycle is perfect for automated processes.
• P1-4 Mode: Start with an immediate trigger without initiating a timer, which allows for time control based on signal presence. Once the signal disappears, a countdown begins before the relay closes, making it suitable for power-off delays.

🛠️ Conclusion:
This LED Digital Display Delay Relay Module is designed for efficiency, versatility, and robustness, making it the perfect solution for your automation needs. Whether you're troubleshooting, designing new projects, or expanding existing systems, trust this module to deliver high performance and reliability.

📦 Package Includes:
1 x DC 12V/24V Delay Timer Control Switch Module
