Product Description:
🧩 The 87-108MHz AM/FM Medium Wave Frequency Modulation Two Bands Stereo Digital Tuning Headphone Radio DIY Kit is a versatile and educational electronic assembly kit perfect for both budding electronics enthusiasts and seasoned hobbyists. This kit offers an engaging way to explore the fundamentals of radio technology and circuit design while creating a functional device.
🔧 Key Features:

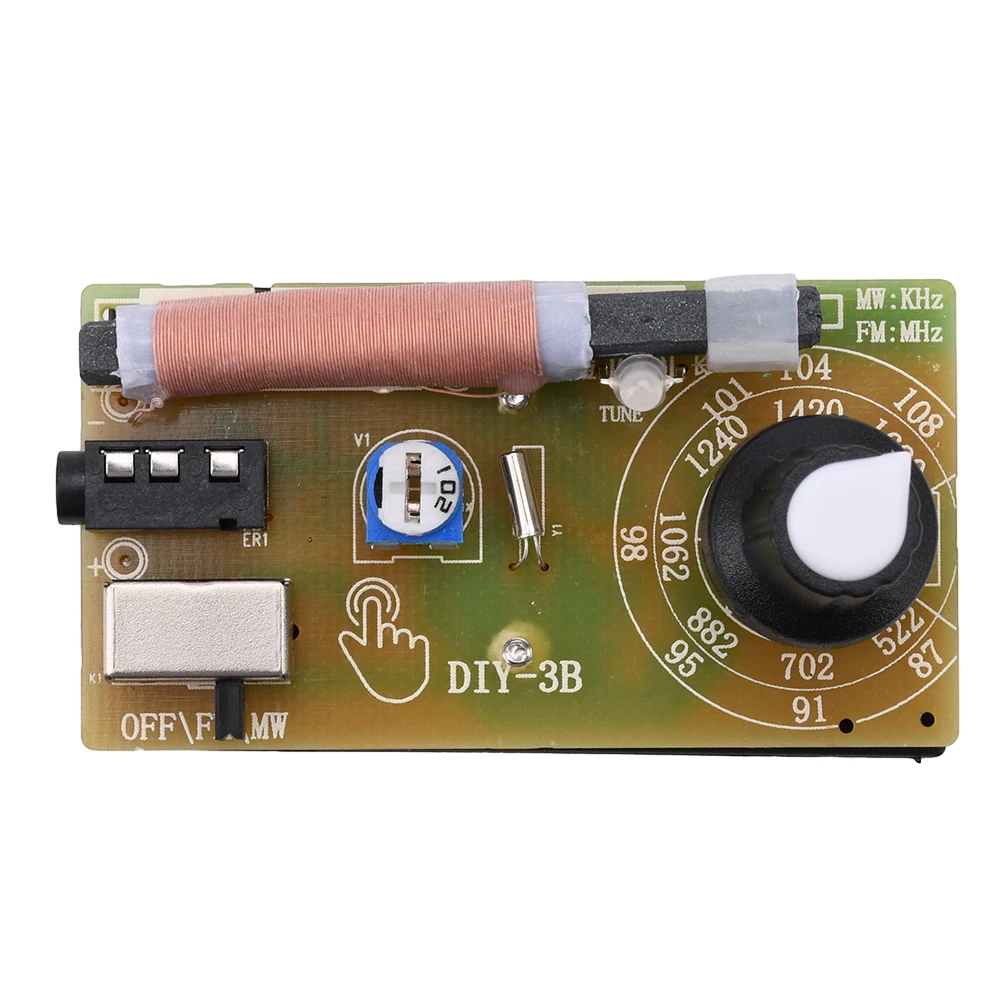

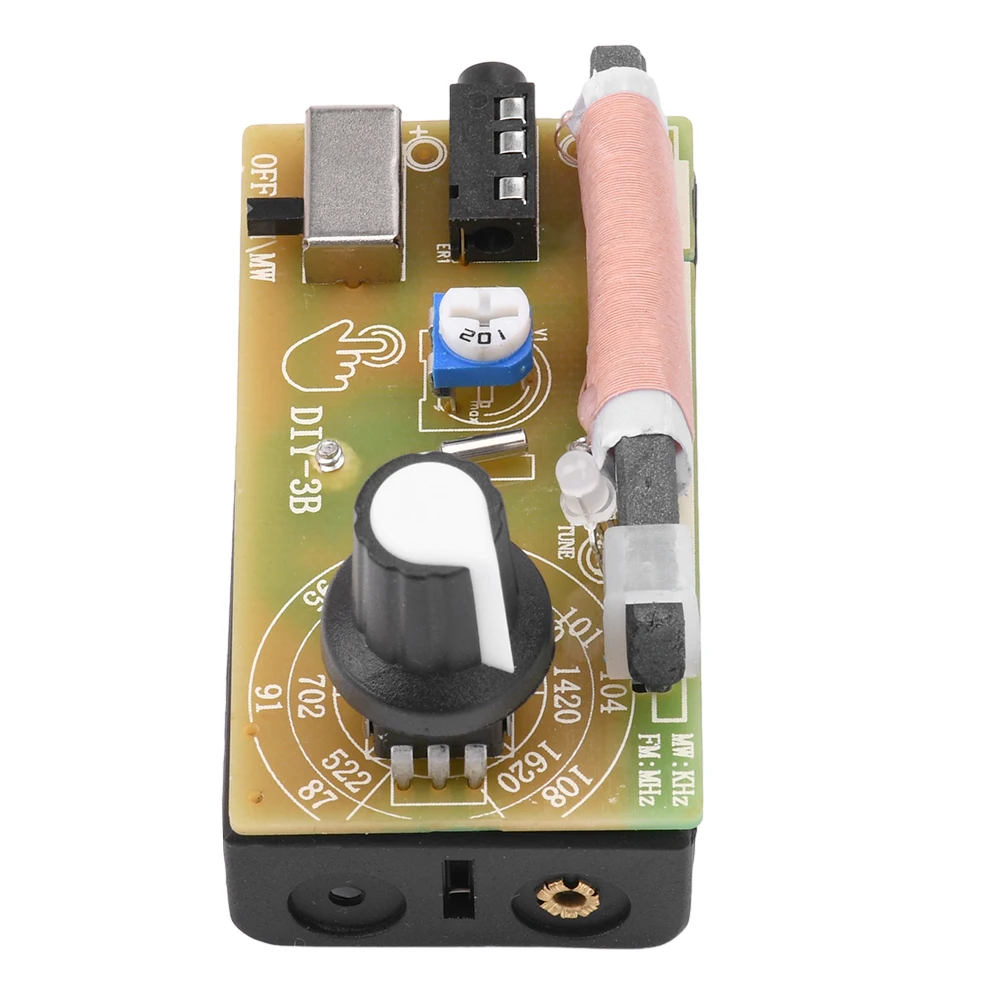

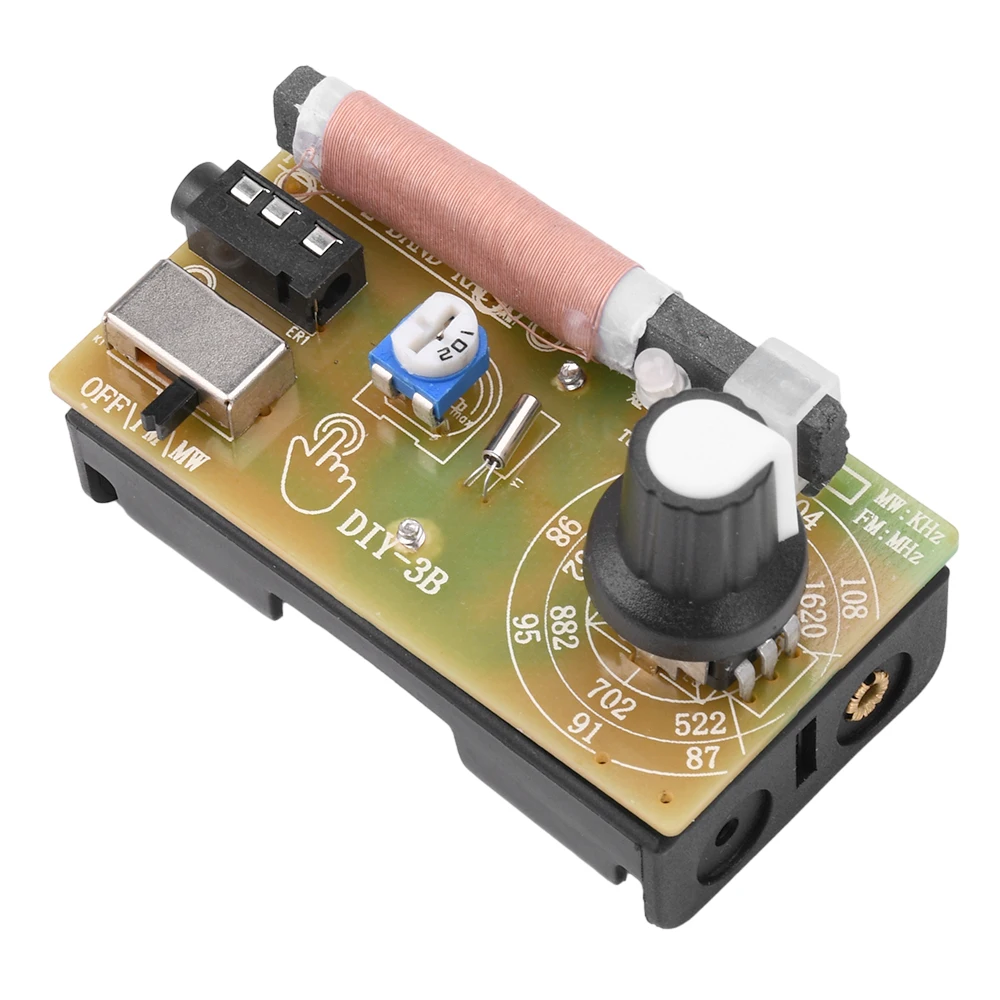

- Quality Construction: The kit is built on a high-quality PCB board, providing a solid foundation for your radio project. You can choose to either solder the components for a finished product or work with spare parts to create your very own version of the stereo radio.
- Multiple Tuning Styles: Enjoy flexibility with selectable options for manual AM/FM tuning as well as FM band stereo digital tuning, allowing you to experience a variety of audio programming.

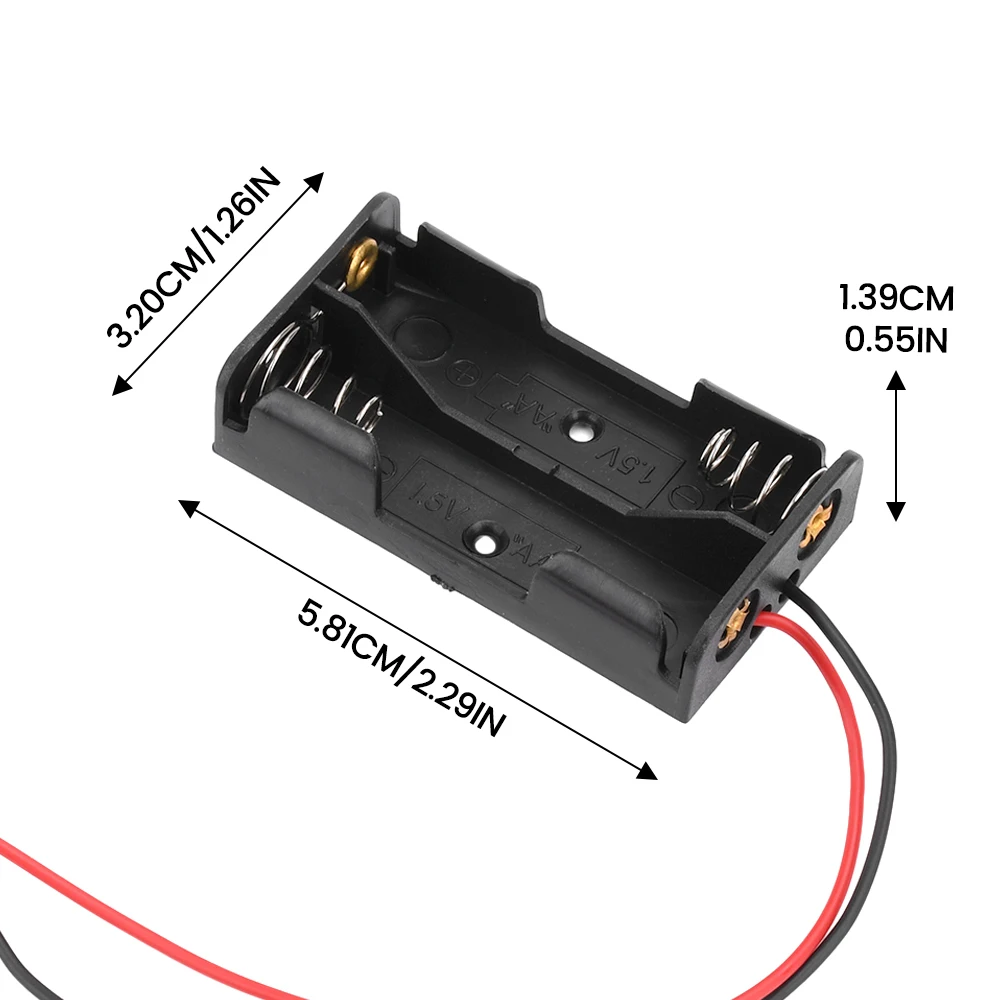

- Diverse Power Supply Options: Power your radio using two AA batteries for portability or opt for a more stable connection via a TYPE-C USB port to ensure uninterrupted listening experiences.
- User-Friendly Design: With easy-to-follow instructions, simply insert two AA batteries or connect to a DC 5V power supply via the TYPE-C port, press the power switch, and plug in your stereo headphones to immerse yourself in stereo sound quality.

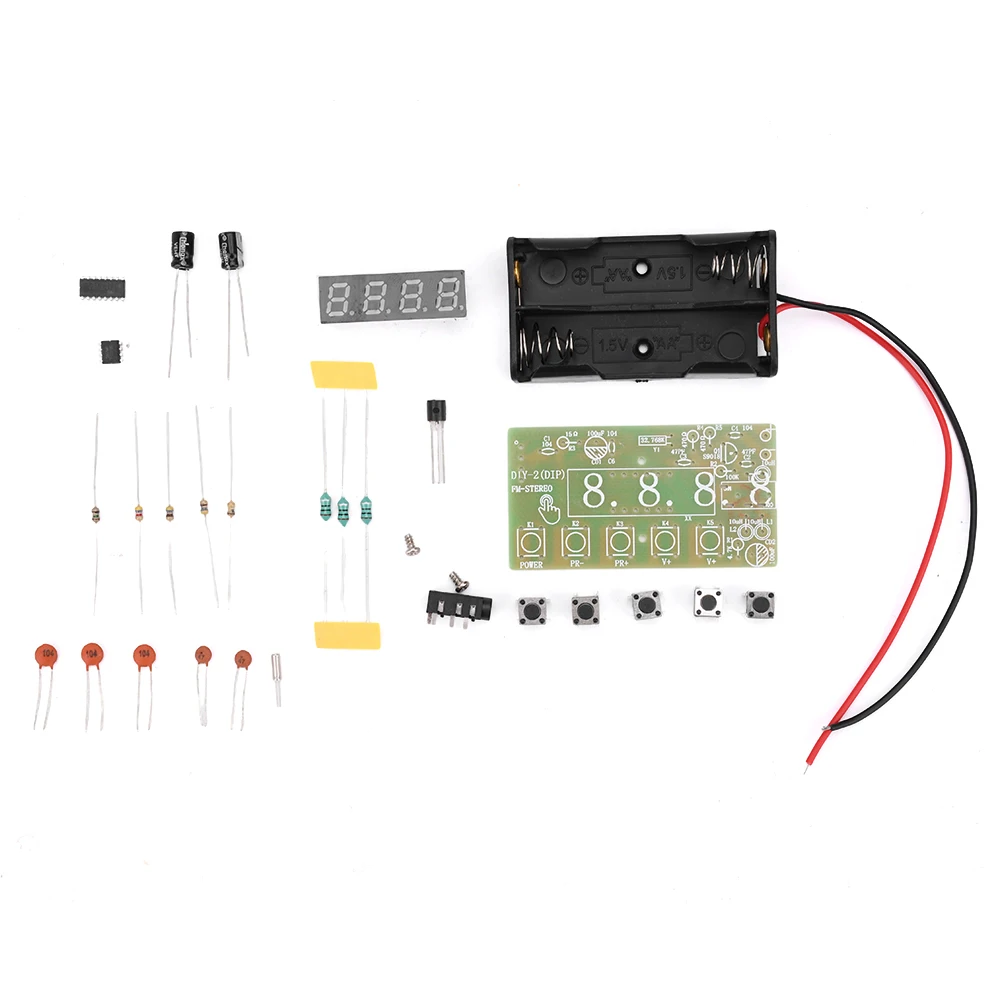

- Educational Value: The DIY kit includes a range of electronic components, making it an excellent tool for learning about electronic circuits and enhancing hands-on skills. Perfect for classrooms or individual exploration!
⚡ Technical Specifications:
- Band Type: AM/FM medium wave frequency modulation, featuring two bands
- Input Voltage: 1.5V x 2 (AA batteries) or DC 5V via TYPE-C port
- Frequency Range: 87.0-108.0MHz
- Audio Specifications: Noise limit sensitivity of -5dBu, audio output power of 20mW, and an impressive stereo separation of 26dB
- Storage Capabilities: Store up to 63 stations with an intuitive volume adjustment system

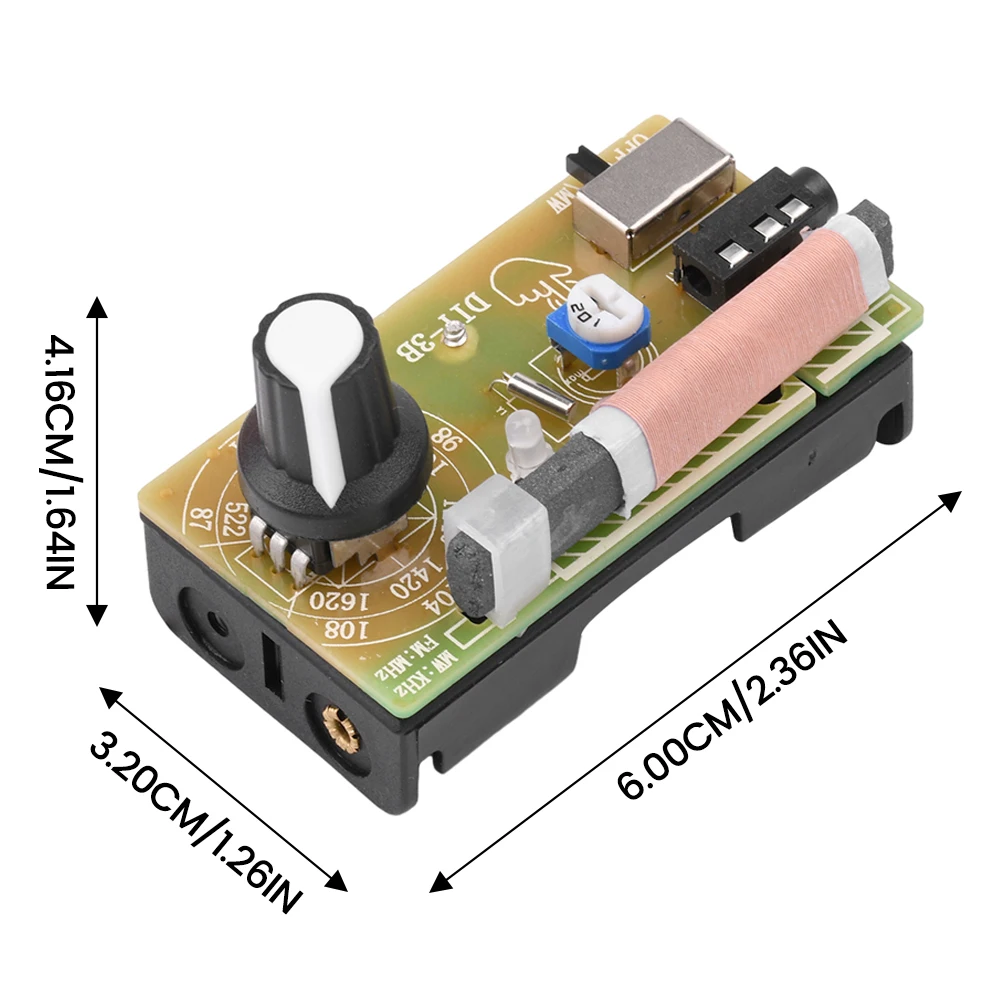

- Dimensions: PCB board measures 60mm x 32mm and compatible with standard 3.5mm headphone jacks
⚡ Included in the Package:
- 1 x 87-108MHz AM/FM Medium Wave Frequency Modulation Two Bands Stereo Digital Tuning Headphone Radio DIY Kit
Operating Instructions:
- Insert the AA batteries or connect via TYPE-C. Ensure your headphones are plugged in.
- Press the left power button to turn on; you will see the display light up as the device initializes.
- Allow two seconds, then press the power switch again to activate automatic station search and storage.
- Use the +/- buttons to navigate through frequencies and stored stations easily.
- Incorporate the built-in sleep function which will turn off the radio after 59 minutes of inactivity.
🔘 Experience the joy of creating your own technology and develop critical skills with this exciting DIY radio kit!
