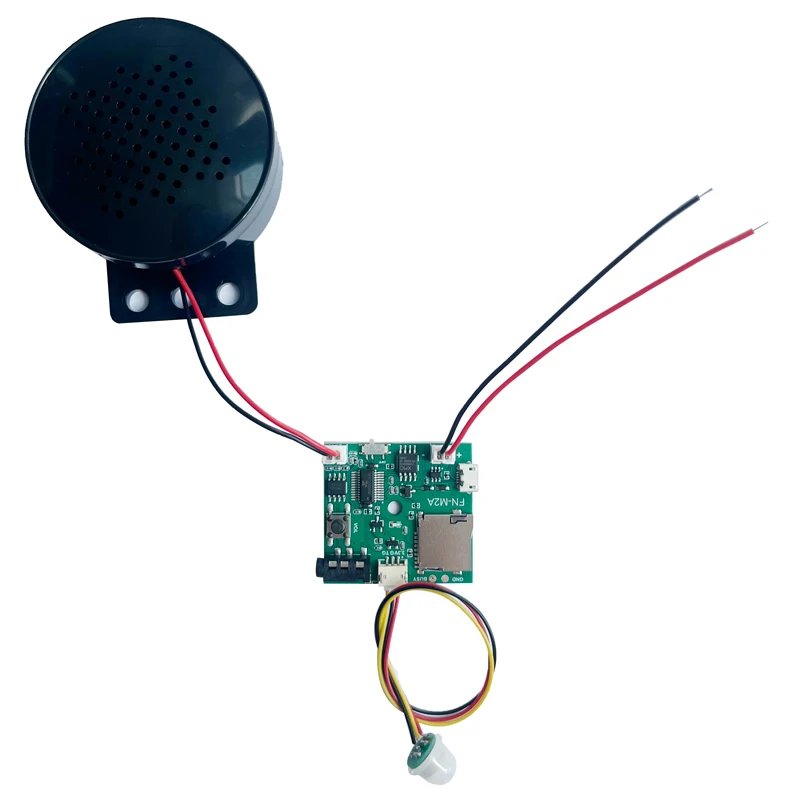

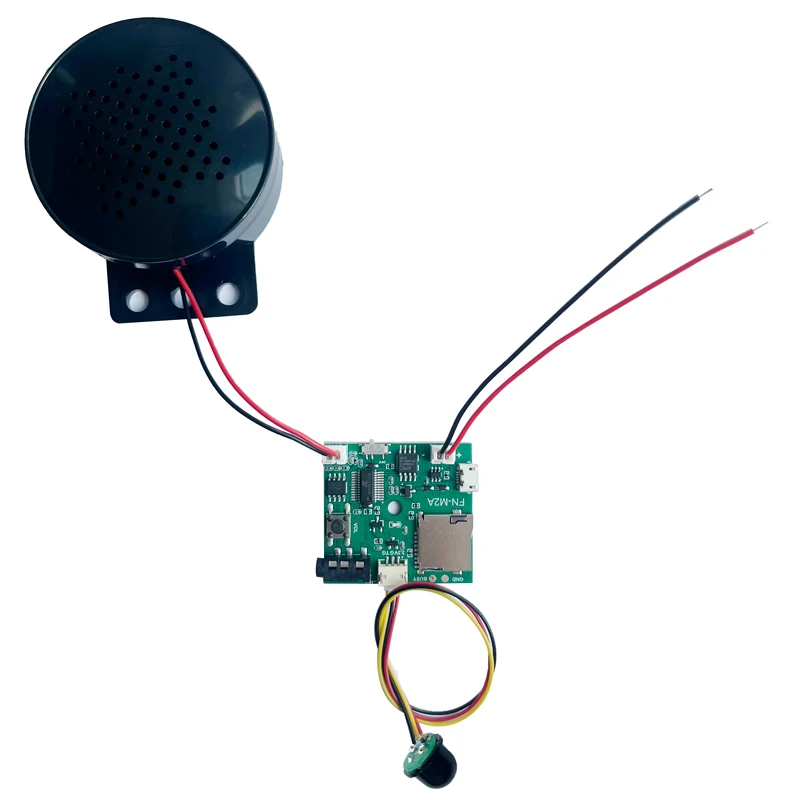

Introducing the Motion Activated Sound Player Module for POP Displays, a versatile and engaging audio solution designed to enhance your interactive displays, statues, and artworks. This innovative device utilizes advanced technology to create a captivating experience for viewers, activating sound playback upon detecting motion.
🔧 Features:
- PIR Motion Detection: Employs a sensitive PIR motion sensor capable of detecting movement from a distance of up to 3.5 meters, ensuring that your audio experience is triggered when most needed.
- Automatic Sound Playback: Once movement is sensed, the device automatically plays back a prerecorded sound message, drawing attention and enhancing user interaction.

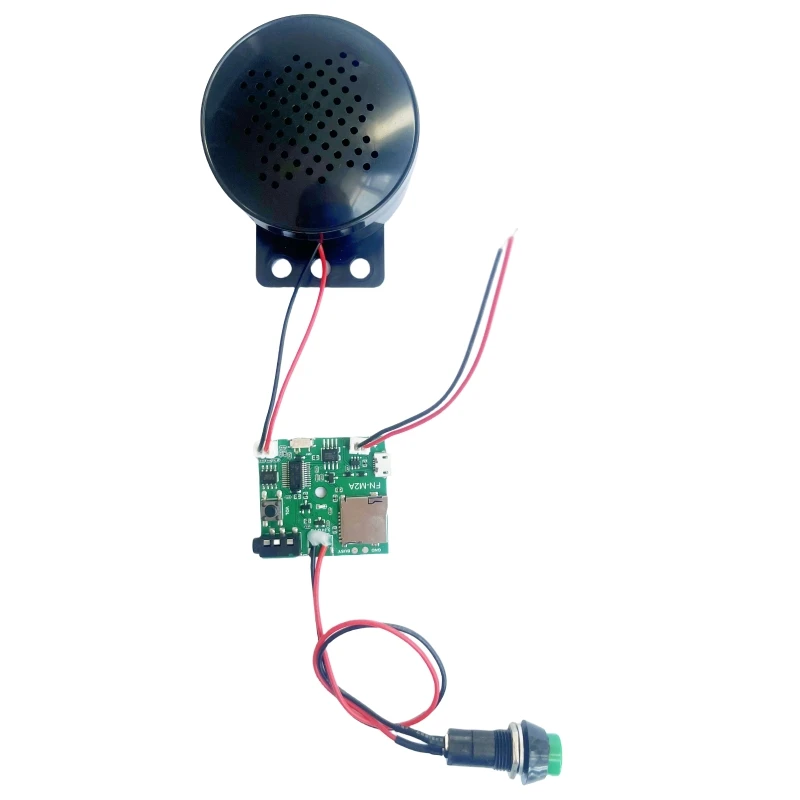

- Manual Activation: For scenarios requiring on-demand playback, simply press the button to activate and enjoy the sound message immediately.
- Generous Storage Capacity: Comes equipped with 4MBytes of built-in flash memory and supports micro SD cards of up to 32GB, allowing for ample storage of multiple audio files.
- Sequential Playback: When multiple audio files are stored, the device plays the next track in sequence after each movement activation, providing a dynamic audio experience.
- Effortless File Management: Easily load audio files onto the flash memory through a micro USB port connected to a computer, making it simple to customize your audio content.
- Enhanced Audio Output: Featuring a built-in 3W class D mono audio amplifier and a high-quality round speaker box, the sound playback is clear and impactful.
- Adjustable Volume: The module allows for easy volume control with six levels, ensuring the sound output can be tailored to your specific environment.
- Versatile Connectivity: Provides a 3.5mm audio jack for connecting to external amplifiers or active speakers, extending its usability even further.
- Integration Capabilities: Includes a busy signal output that works with relays to control additional equipment, such as LED lights or motors, allowing for enhanced interactivity.
- Energy Efficient Design: Designed with low power consumption, the module can be powered by a 3.7V rechargeable lithium battery or traditional AA/AAA batteries, as well as through a micro USB port connected to a phone charger.
- Charging Capability: Built-in charging circuits enable easy recharging of the lithium battery through the micro USB port, ensuring convenient maintenance.

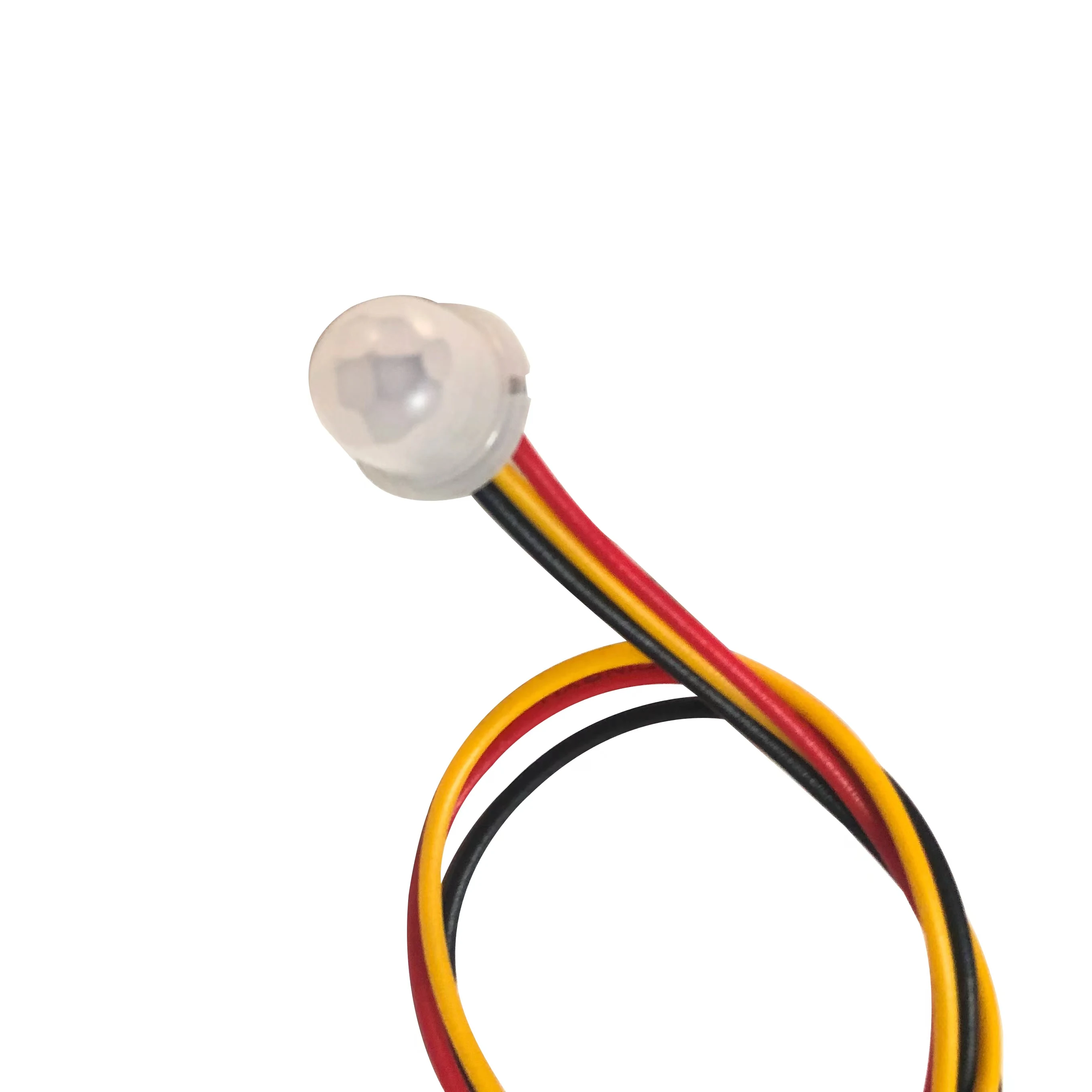

- Convenient Sensor Placement: The unit comes with a 15 cm wire between the main module and the PIR sensor, offering flexibility in sensor positioning.

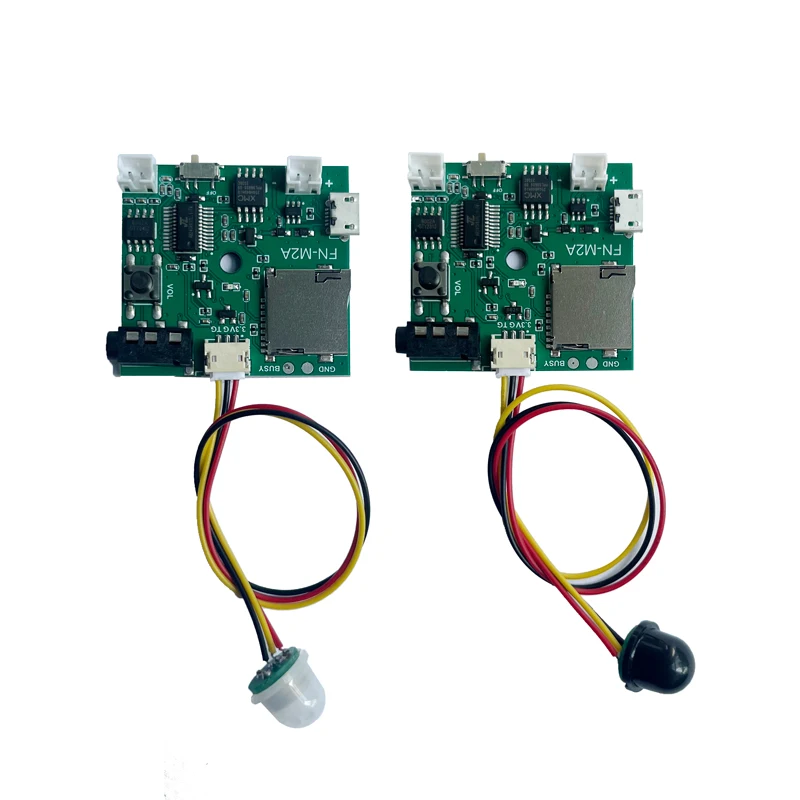

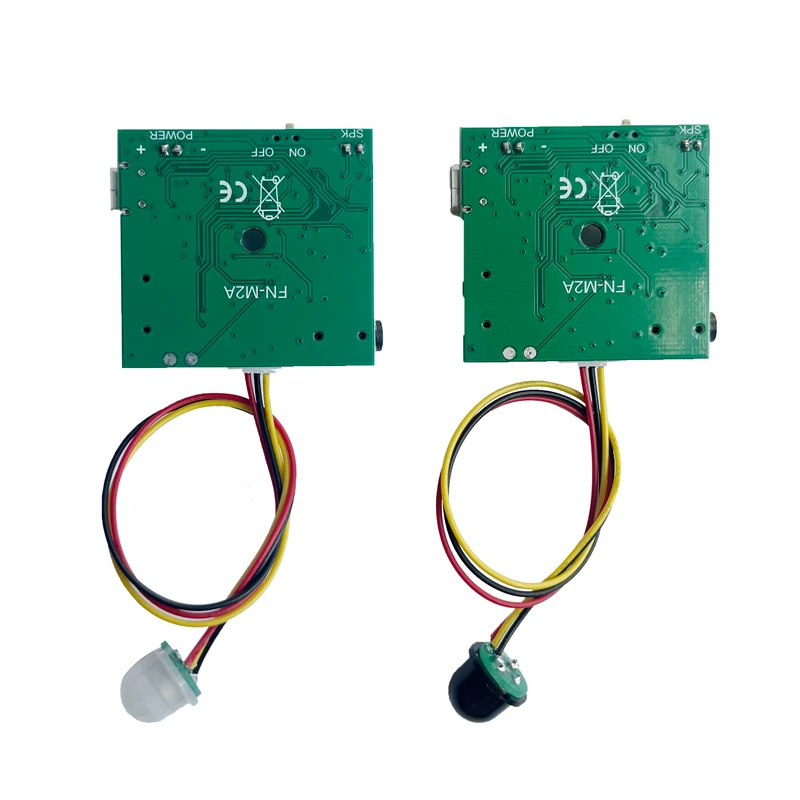

- Compact Dimensions: The PCB measures 40mm x 37mm, and the speaker box has a diameter of 58mm and a height of 28mm, making it suitable for various applications without taking up excessive space.
🔍 Technical Specifications:
- Working Voltage: 3.7-5V DC
- Working Current: ≤200mA
- Standby Current: ≤30uA
- Power Consumption: ≤3W
- Audio Format: MP3 or WAV
- PIR Detection Range: ≤3.5 meters
- Detection Angle: 120 degrees
This innovative Motion Activated Sound Player Module seamlessly integrates technology and creativity, inviting engagement and interaction with your displays. Whether utilized in exhibitions, art installations, or retail environments, this module is designed to captivate audiences and enhance the overall experience.
