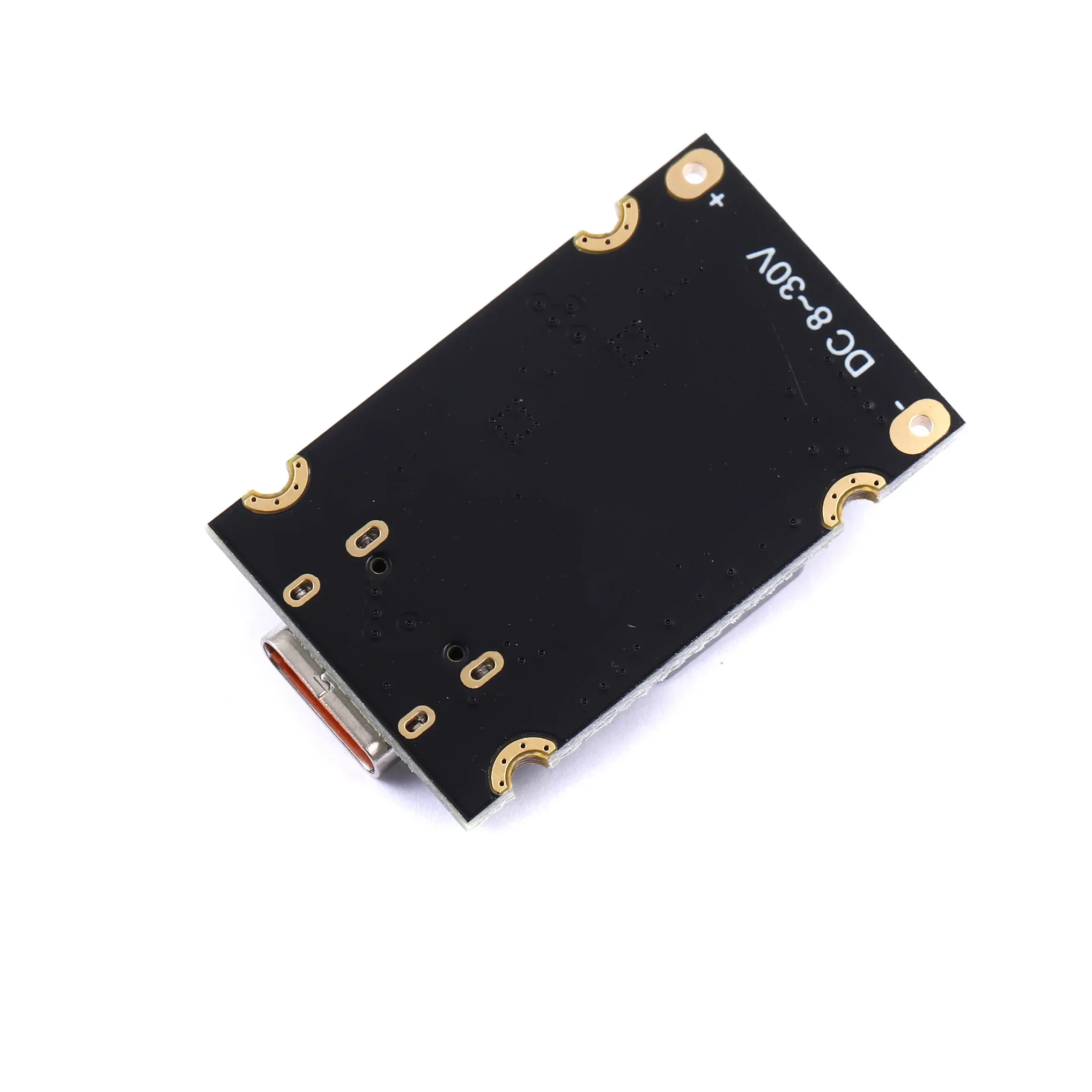

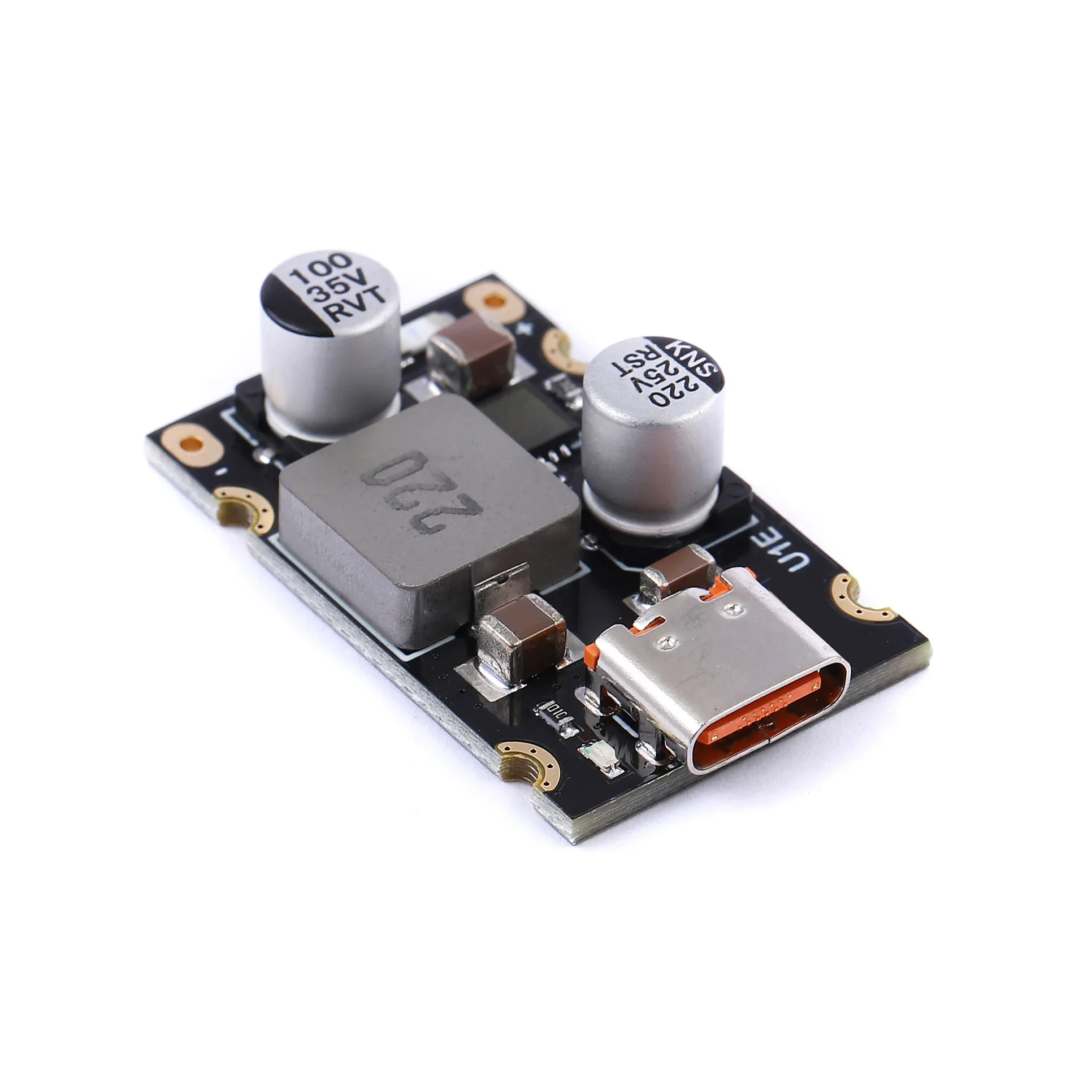

Product Overview:
⚡ The PD65W Fast Charging Module exemplifies cutting-edge technology designed for efficient power delivery to a variety of devices. With its versatile Type-C USB interface, this charging module supports a multitude of fast charging protocols, making it an ideal choice for anyone looking to maximize charging efficiency and speed.
🔧 Key Features:
- Input Voltage Range: Operates within a DC voltage range of 8V to 32V, accommodating a wide range of power sources.
- Dynamic Output Voltage: Automatically adjusts output voltage from 3.3V to 21V when connected to Type-C compatible devices, enhancing compatibility and performance based on the connected device's requirements.
- Impressive Output Power: Delivers a maximum output power of 65W, capable of providing quick energy transfer at various wattages, including 5V/3A, 9V/3A, 12V/3A, and 20V/3.25A.
- High Conversion Efficiency: Achieves a remarkable conversion efficiency ranging from 92% to 97%, ensuring minimal energy loss during the charging process.
- Voltage Ripple Control: Maintains output voltage ripple under 200mV, safeguarding connected devices from potential interference.
- Low No-Load Current: Features a no-load current of less than 3mA, contributing to energy conservation when not actively charging.
🧩 Safety Features:
- Input Protection: Incorporates overvoltage and undervoltage protection to prevent damage from irregular input conditions.
- Output Protection: Equipped with over-current and short-circuit protection, ensuring safe operation while charging.
- Temperature Management: Whole machine over-temperature protection minimizes risk of overheating during extended use.
🧩 Supported Charging Protocols:
- BC1.2, Apple protocol
- Qualcomm QC2.0 and QC3.0
- Huawei Fast Charging Protocol FCP and SCP
- Samsung Fast Charging Protocol AFC
- MTK PE+1.1 and MTK PE+2.0
- PD2.0/PD3.1 (PPS) output protocols
🧩 This fast charging module is designed for both versatility and safety, catering to a wide array of devices and ensuring a reliable charging experience. Elevate your power delivery capabilities with the PD65W Fast Charging Module.
