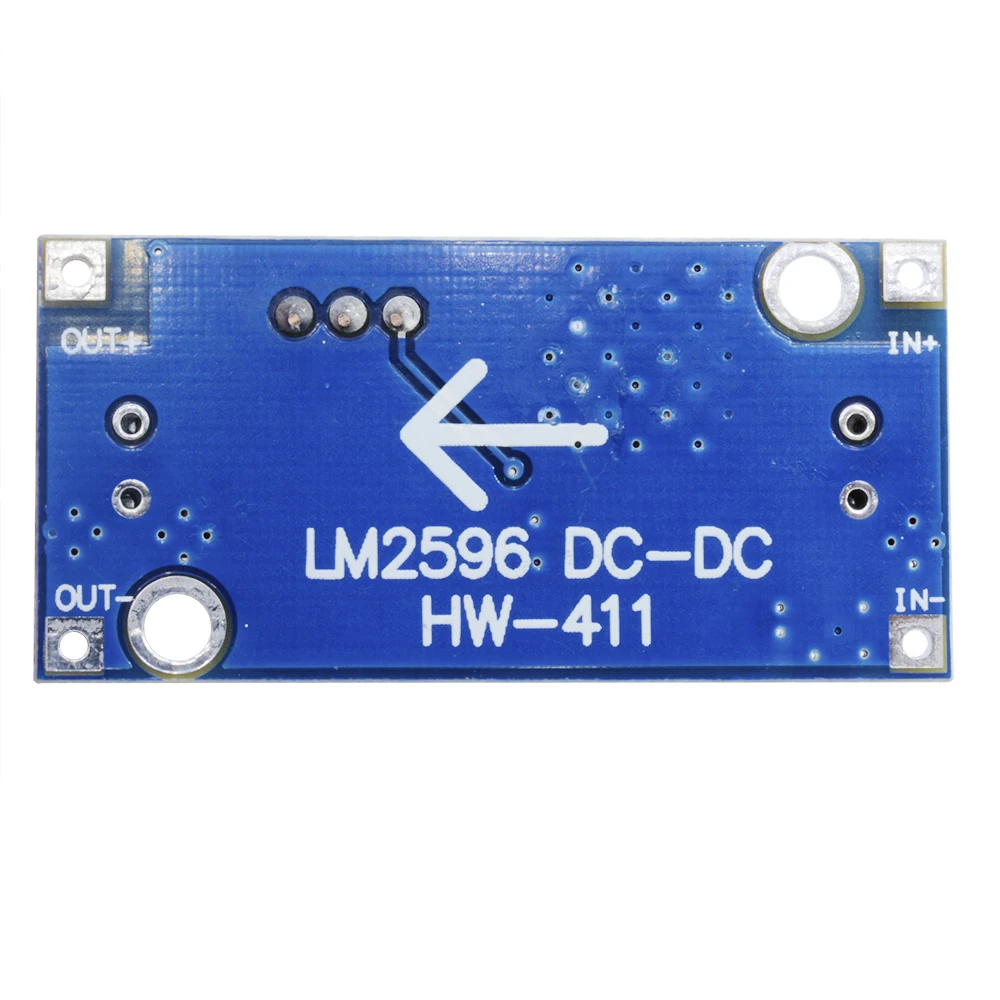

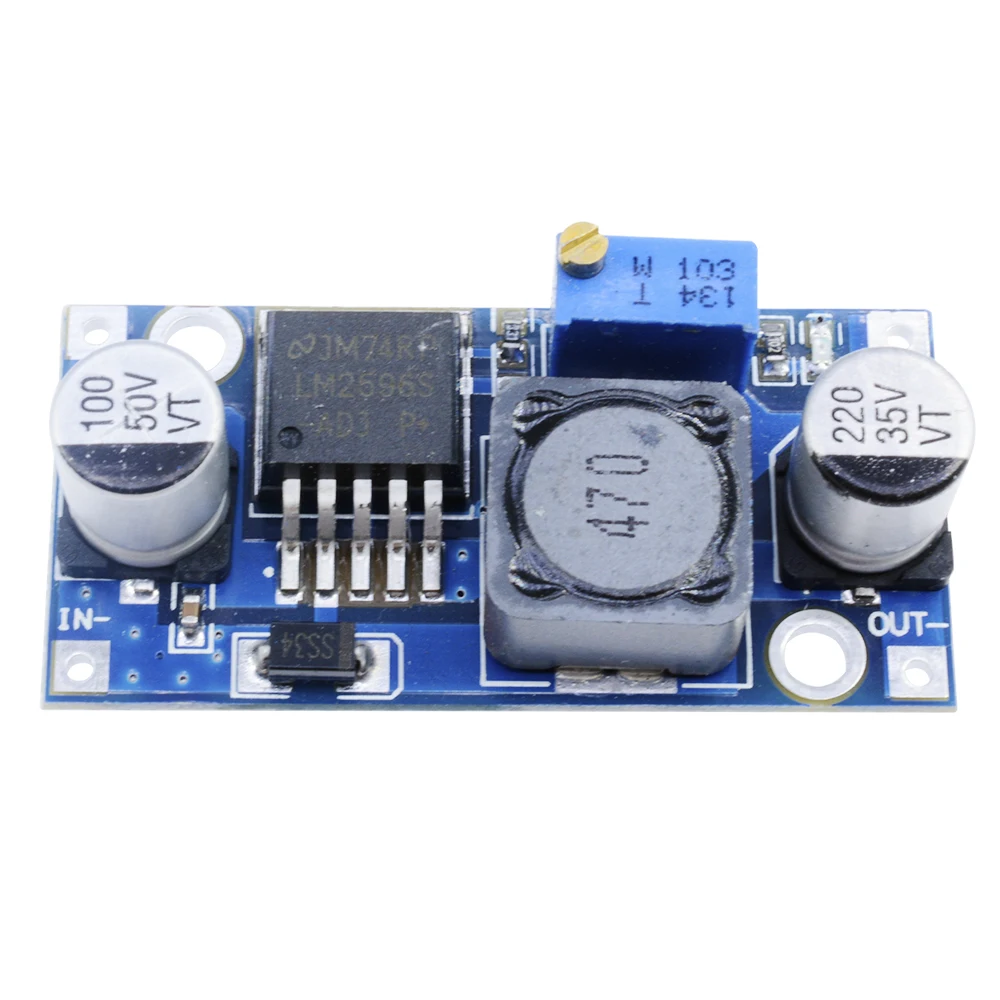

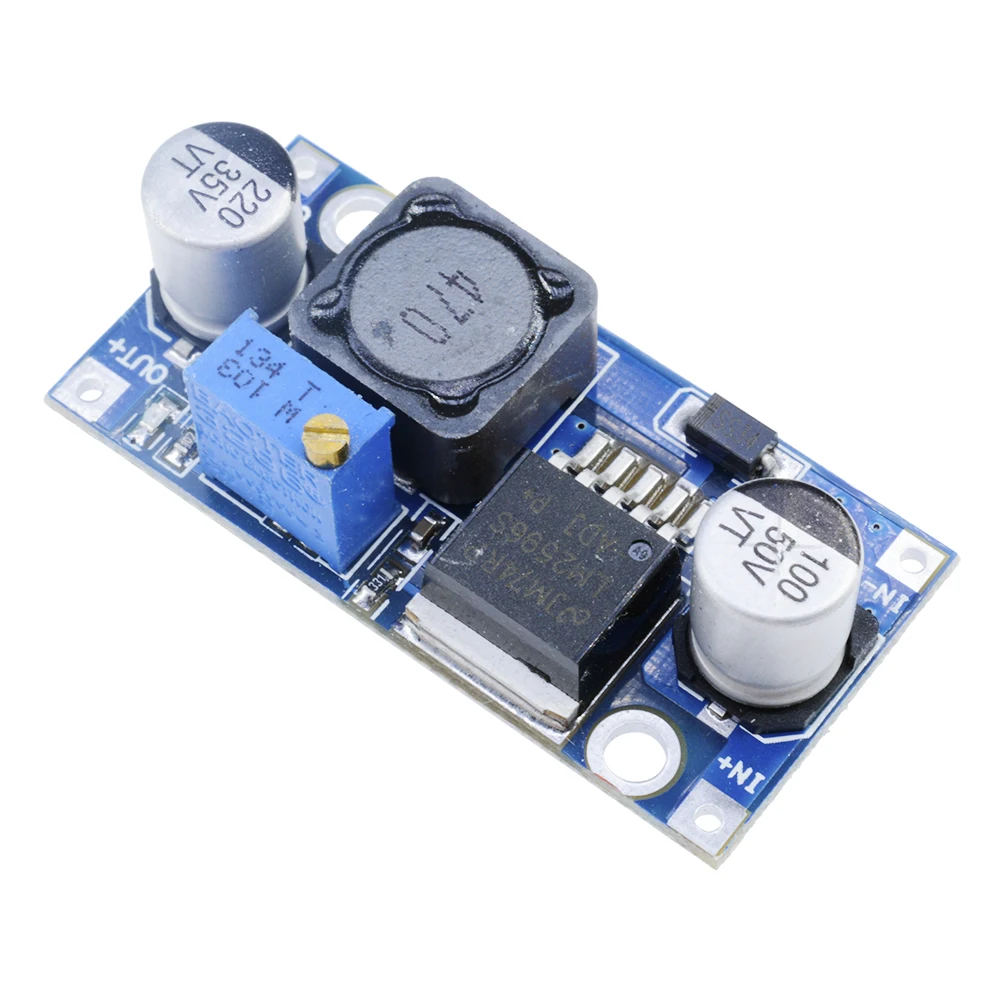

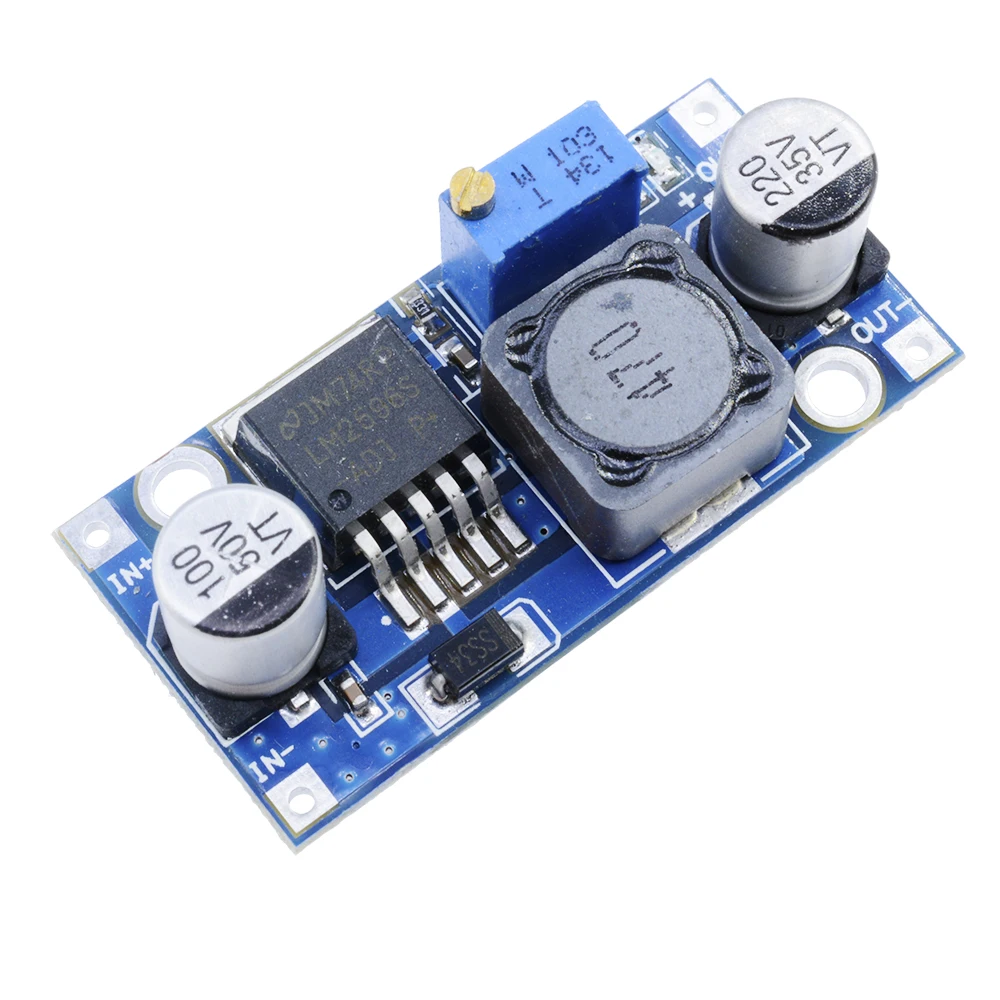

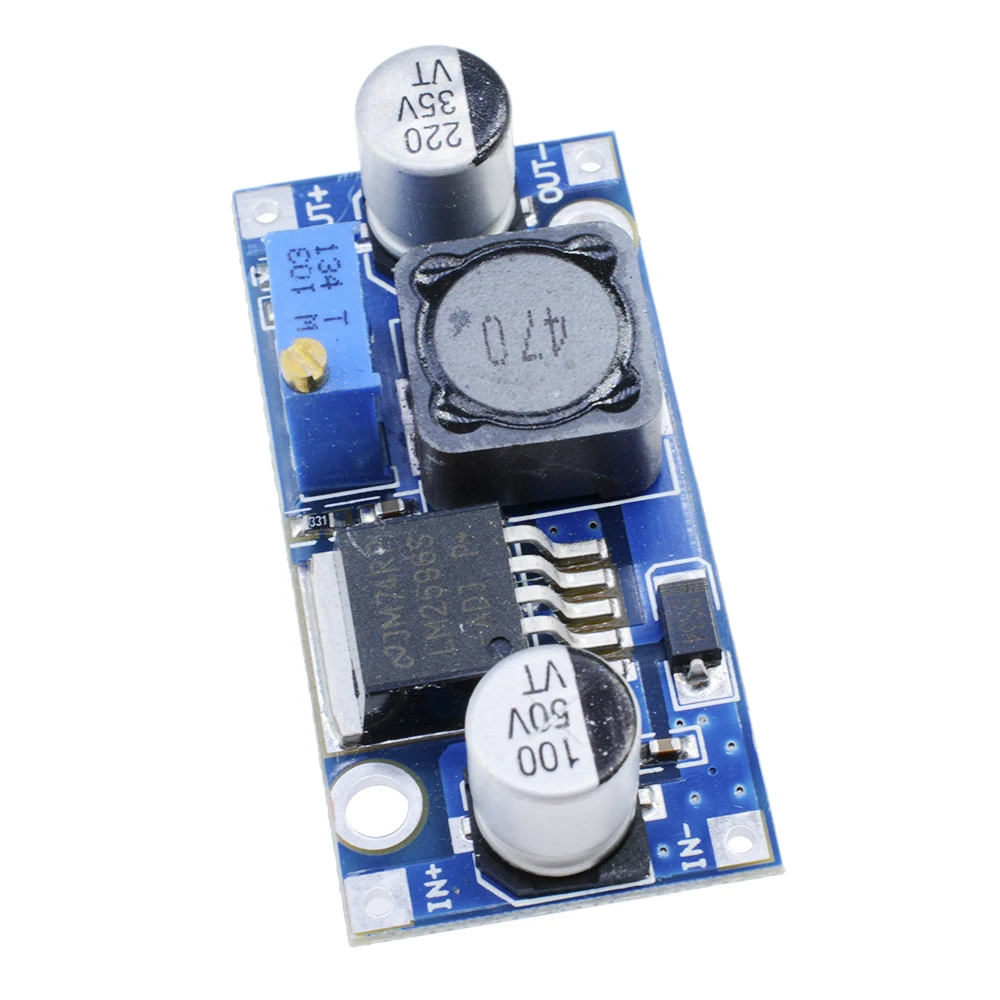

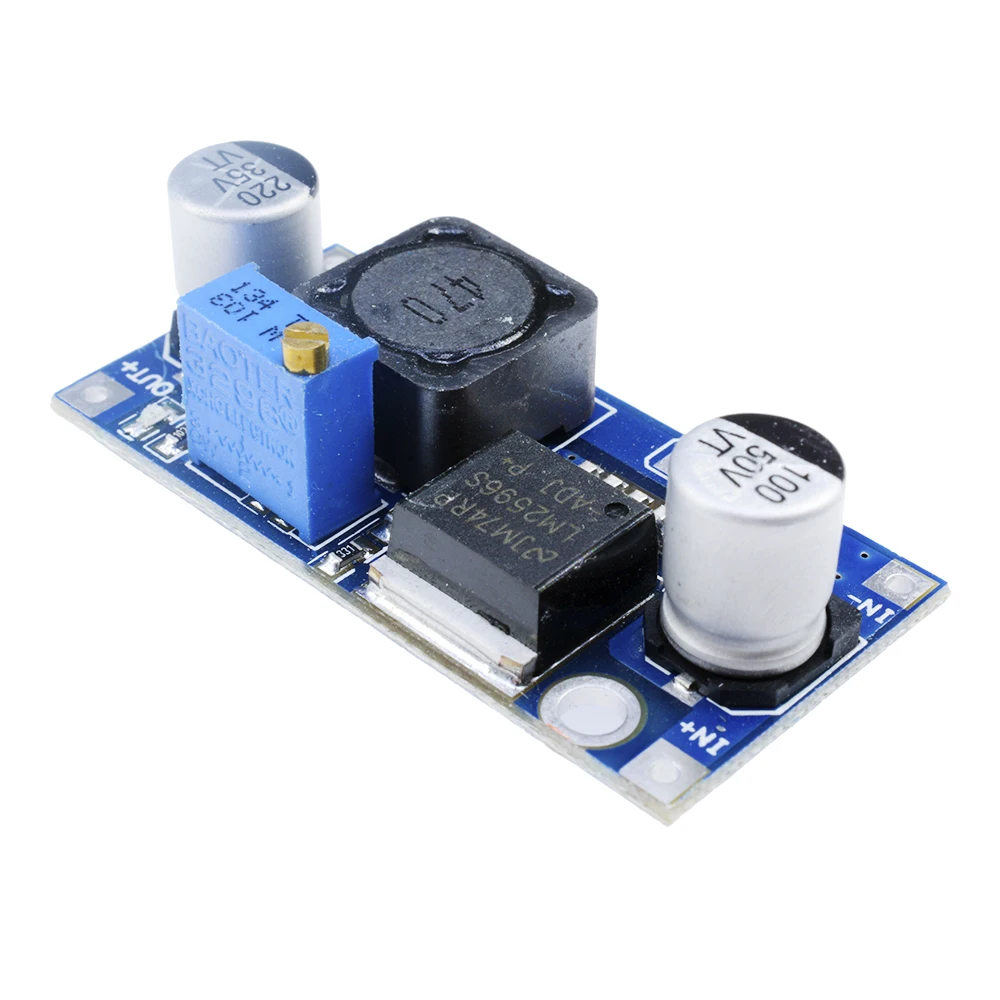

LM2596 Buck Converter DC-DC Power Supply Module
⚙️ The DC-DC Buck Converter Module is a highly versatile and efficient voltage regulation solution designed to step down voltages from a range of 3.2V to 35V to any adjustable output between 1.25V to 35V. Ideal for a variety of applications including mobile devices, electronic projects, and automotive systems, this module provides a reliable source of power wherever it is needed.
🔧 Key Features:
- Adjustability: Equipped with a precision adjustable potentiometer, this module allows users to easily set the desired output voltage, making it user-friendly.
- High-Quality Components: Constructed with premium materials, including a 0.1µF high-frequency filtering capacitor, ensuring stable and consistent performance.
- Ultra-High Current Chip: Designed for robust performance, this module can handle a maximum output current of 3A, although it is recommended to operate within 2.5A for prolonged use.
- Noise Filtering: Features a 0.1µF high-frequency bypass capacitor that effectively minimizes high-frequency noise, maintaining a clean output.
- Compact Design: Measuring only 43mm x 21mm x 14mm, this module is ideal for integration into various electronic devices, saving space without compromising functionality.
🪶 Specifications:
- Input Voltage: 3.2V - 35V (Ensure the input voltage is at least 1.5V higher than the output voltage)
- Output Voltage: 1.25V - 35V (continuously adjustable)
- Maximum Output Current: 3A
- Conversion Efficiency: Up to 92%
- Output Ripple: Less than 30mV
- Switching Frequency: 65KHz
- Operating Temperature: -45°C to +85°C
💍 Wiring Options:
- Direct Soldering: Easily solder wires directly to the input and output terminals.
- Pin Connections: User-friendly pin solder options allow for easy integration into breadboards or PCB setups.
💍 Applications:
- Automotive Use: Connect directly to a car's cigarette lighter for a convenient and adjustable power source, perfect for charging devices such as mobile phones and MP3 players.
- Electronic Projects: Ideal for supplying various electronic components requiring a stable voltage from 3V to 35V.
- System Voltage Testing: Perfect for debugging and testing voltage ranges in project systems, allowing for easy adjustments as necessary.
💥 Note: For optimal performance, it is advisable to add a heat sink for output power above 10W and ensure minimum dropout voltage is maintained at 1.5V for stable output. Care must be taken to correctly identify the input and output terminals to prevent any damage to the module.
📦 Package Includes: 1 x LM2596 Buck Converter Module
